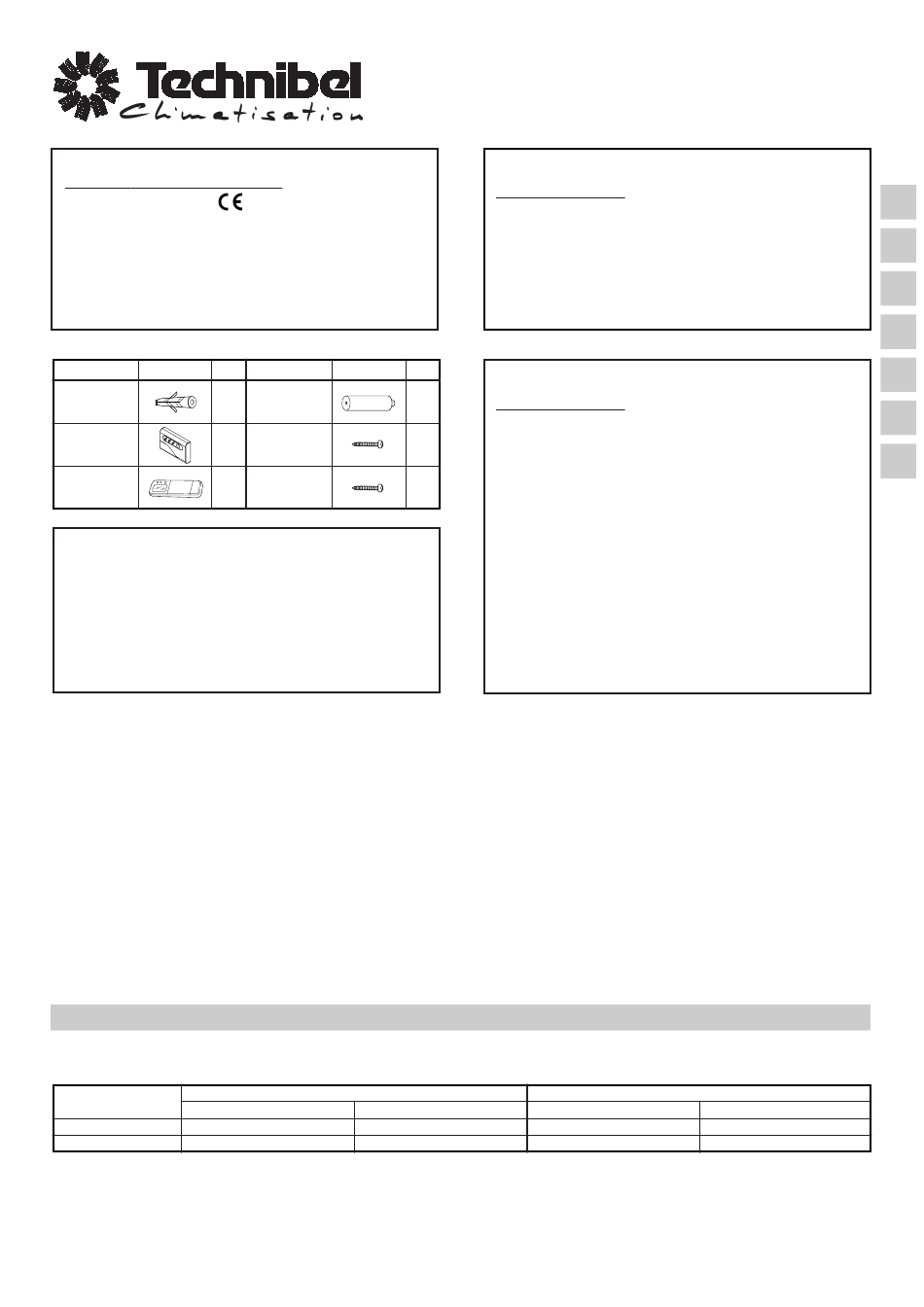

Technibel Climatisation DSAF94 Installation Instructions Manual

DECLARATION OF CONFORMITY
This product is marked
– Low voltage no. 73/23 EEC and 93/68 EEC.
– Electromagnetic compatibility no. 89/336 ECC, 92/31 EEC
and 93/68 EEC.
This declaration will become void in case of misuse and/or non
observance though partial of manufacturer's installation and/or
operating instructions.
ACCESSORIES SUPPLIED WITH THE UNIT
PARTS FIGURE Q.TY
RAWL PLUG 4
RECEIVER WITH
1
CABLE (5 mt)
REMOTE
1
CONTROL UNIT
Tools required for installation (not supplied)
1. Standard screwdriver
2. Phillips head screwdriver
3. Knife or wire stripper
4. Tape measure
5. Level
6. Sabre saw or key hole saw
7. Hacksaw
8. Core bits ø 5
Installation site selection - Indoor unit
AVOID
• Direct sunlight.
• Nearby heat sources that may affect unit performance.
• Areas where leakage of flammable gas may be expected.
• Locations where large amounts of oil mist may occur (such as in kitchen
or near factory equipment) because oil contamination can cause
operation problems and may deform plastic surfaces and parts of the
unit.
• Unsteady locations that will cause noise or possible water leakage.
• Locations where the remote control unit will be splashed with water or
affected by dampness or humidity.
• To make holes in areas where electrical wiring or conduits are located.
• To place appliances under tension (household appliances, computers),
because in case of emergency operation the unit could drip condensate
water.
ADDITIONAL MATERIAL REQUIRED FOR INSTALLATION (NOT SUPPLIED)
G
Deoxidized annealed copper tube for refrigerant tubing connecting the units of the system; it has to be insulated with foamed polyethylene
(min. thickness 8mm).
MODEL
OUTER DIAMETER
DSAF94 - 124 - 184
DSAF224
G
PVC pipe for condensate drain pipe (ø int.18mm) in lenght suitable to let the condensate flow into the outside drainage.
G
Anti-freeze oil for flare connections (about 30g.).
G Electric wire: use insulated copper wires of size and length as shown in the "Installation Instructions" of Outdoor Unit.
INSTALLATION INSTRUCTIONS
as it satisfies Directives:
PARTS FIGURE Q.TY
AAA ALKALINE
2
BATTERY
TAPPING
2
SCREW 4 X 30
TAPPING
2
SCREW 3,5 X 13
19. Hammer
10. Drill
11. Tube cutter
12. Tube flaring tool
13. Torque wrench
14. Adjustable wrench
15. Reamer (for reburring)
16. Hex. key
NARROW TUBE
MIN. THICKNESS
6,35 mm
6,35 mm
37.4163.255.0
- Split system air conditioner -
COOLING ONLY MODELS
OPERATING LIMITS
í Maximum conditions
Outdoor temperature : 43°C D.B.
Room temperature
í Minimum conditions
Outdoor temperature : 19°C D.B.
Room temperature
OPERATING LIMITS
í Cooling Maximum conditions
Outdoor temperature : 43°C D.B.
Room temperature
í Cooling Minimum conditions
Outdoor temperature : 19°C D.B.
Room temperature
í Heating Maximum conditions
Outdoor temperature : 24°C D.B. / 18°C W.B.
Room temperature
í Heating Minimum conditions
Outdoor temperature : –15°C W.B.
Room temperature
DO
• Select an appropriate position from which every corner of the room
can be uniformily cooled.
• Select a sufficiently strong ceiling to support the weight of the unit.
• Select a location where tubing and drain hose have the shortest run
to the outside.
• Allow access for operation and maintenance as well as unrestricted air
flow around the unit.
Installation site selection - Outdoor unit
AVOID
• Heat sources, exhaust fans.
• Direct sunlight.
• Damp, humid or uneven locations.
• To make holes in areas where electrical wiring or conduits are located.
DO
• Choose places as cool as possible and well ventilated.
• use lug bolts or equal to bolt down the unit, reducing vibration and
noise.
OUTER DIAMETER
0,8 mm 9,52 mm
0,8 mm 12,7 mm
01/2005
: 32°C D.B. / 23°C W.B.
: 19°C D.B. / 14°C W.B.
HEAT PUMP MODELS
: 32°C D.B. / 23°C W.B.
: 19°C D.B. / 14°C W.B.
: 27°C D.B.
: 16°C D.B.
LARGE TUBE
MIN. THICKNESS
0,8 mm
0,8 mm
