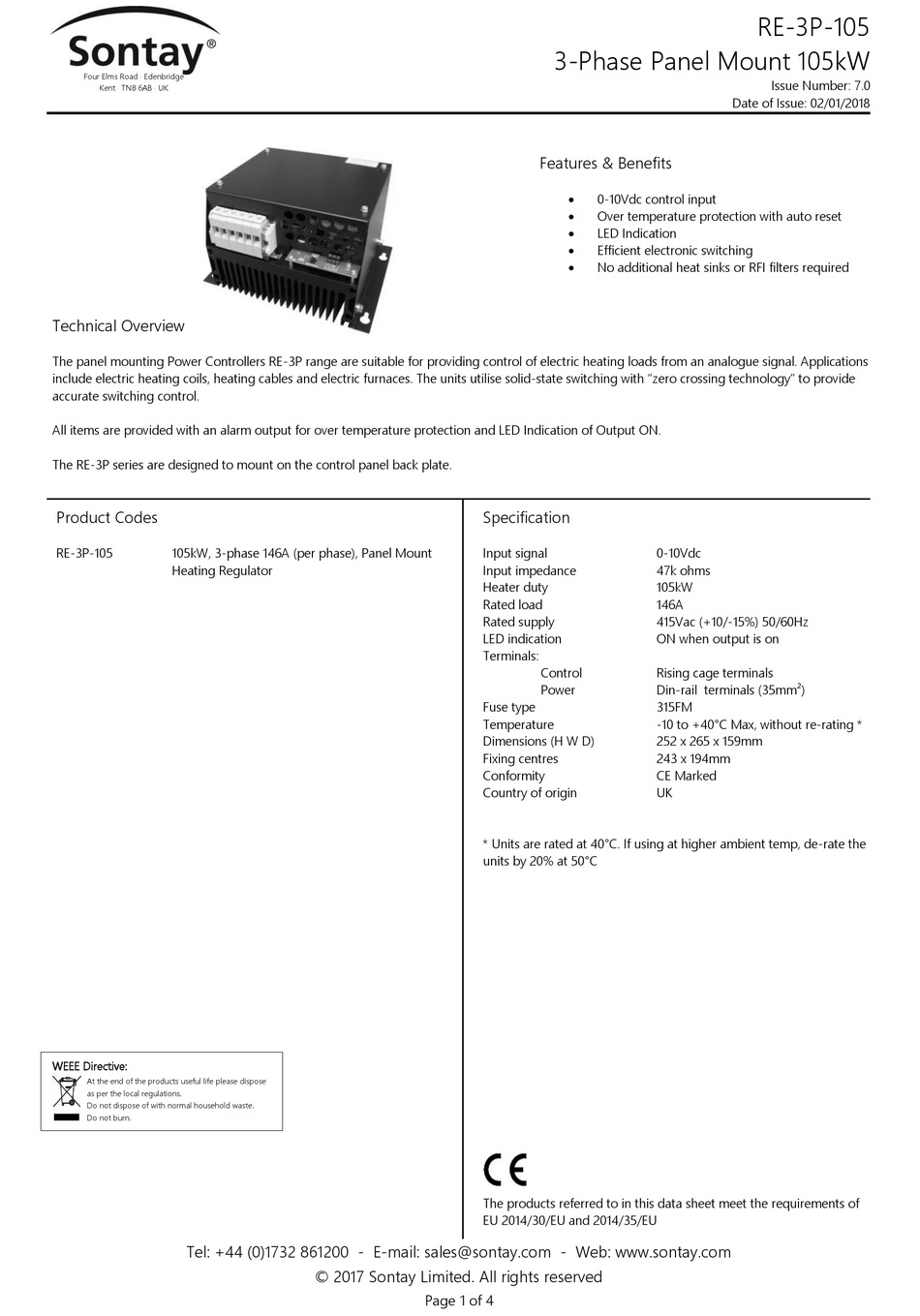

Technical Overview

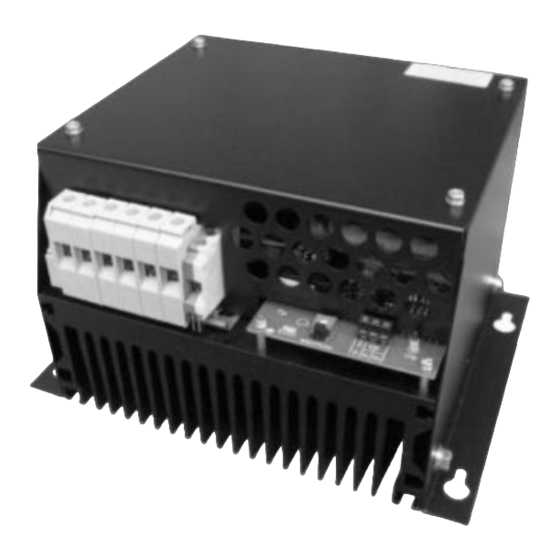

The panel mounting Power Controllers RE-3P range are suitable for providing control of electric heating loads from an analogue signal. Applications
include electric heating coils, heating cables and electric furnaces. The units utilise solid-state switching with "zero crossing technology" to provide
accurate switching control.
All items are provided with an alarm output for over temperature protection and LED Indication of Output ON.
The RE-3P series are designed to mount on the control panel back plate.
Product Codes
RE-3P-105 105kW, 3-phase 146A (per phase), Panel Mount
Heating Regulator
WEEE Directive:
At the end of the products useful life please dispose
as per the local regulations.
Do not dispose of with normal household waste.
Do not burn.
Tel: +44 (0)1732 861200 - E-mail: sales@sontay.com - Web: www.sontay.com
Specification
Input signal
Input impedance
Heater duty
Rated load
Rated supply
LED indication
Terminals:
Fuse type
Temperature
Dimensions (H W D)
Fixing centres
Conformity
Country of origin
* Units are rated at 40°C. If using at higher ambient temp, de-rate the
units by 20% at 50°C
The products referred to in this data sheet meet the requirements of
EU 2014/30/EU and 2014/35/EU
© 2017 Sontay Limited. All rights reserved
Page 1 of 4
3-Phase Panel Mount 105kW
Features & Benefits
0-10Vdc control input

Over temperature protection with auto reset

LED Indication

Efficient electronic switching

No additional heat sinks or RFI filters required

0-10Vdc
47k ohms
105kW
146A
415Vac (+10/-15%) 50/60Hz
ON when output is on
Control Rising cage terminals
Power Din-rail terminals (35mm²)
315FM
-10 to +40°C Max, without re-rating *
252 x 265 x 159mm
243 x 194mm
CE Marked
UK
RE-3P-105
Issue Number: 7.0
Date of Issue: 02/01/2018
