Four Elms Road Edenbridge
Kent TN8 6AB UK
Technical Overview

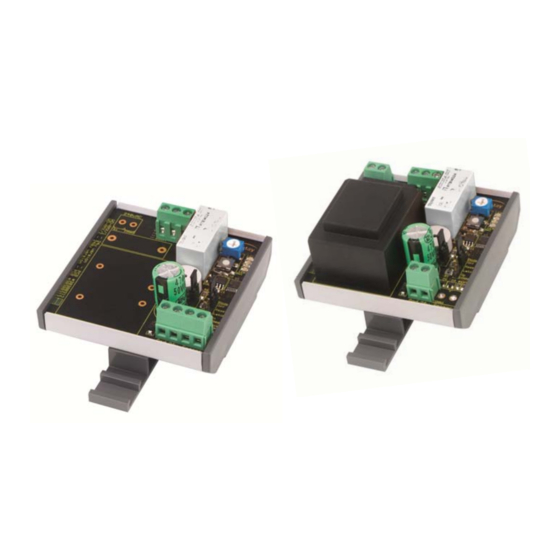

The WD-AMX water leak detection modules are designed for use with the WD-CS, WD-PS and WD-RS water leak detection sensors.
The modules have LED Indication of the water leak status and a sounder that can be enabled or disabled. The relay output can be used in manual or
auto reset, and can be used as an alarm signal for connection to a BMS controller or remote alarm annunciation panel, such as the UI-AA-1-F.
The cable excitation used is an isolated AC signal which ensures the detector cable will not be subject to oxidation or erosion over time, avoiding the
degradation problems associated with DC systems
Product Codes
WD-AMX-1
24Vac/dc water detection alarm module with audible
alarm and LED status indication
WD-AMX-2
230Vac water detection alarm module with audible alarm
and LED status indication
Warning!
When installed, the output relay contacts may carry 240Vac. Special
care must be taken to isolate the switched voltages prior to any work
being undertaken.
WEEE Directive:
At the end of the products useful life please
dispose as per the local regulations.
Do not dispose of with normal household waste.
Do not burn.
Tel: +44 (0)1732 861200 - E-mail: sales@sontay.com - Web: www.sontay.com
Specification
Supply Voltage:
Supply current
Output
LED Status indication for:
Response time
Max. sensor cable length
Alarm hysteresis
Audible alarm output
Electrical
Connections
Ambient:
Dimensions
Weights:
Country of origin
The products referred to in this data sheet meet the requirements of
EU 2014/30/EU and 2014/35/EU
© 2017 Sontay Limited. All rights reserved
Page 1 of 3
Water Detection Controllers
Features & Benefits
LED Status of leak status
VFC output
Audible alarm
Auto or manual reset alarm output
Uses an isolated AC signal which prevents
oxidation or erosion of sensing modules
WD-AMX-1
24Vac/dc ±10%
WD-AMX-2
230Vac @ 50Hz
50mA max.
12A @ 250Vac
Error condition
Input sensitivity
Relay output mode
<1 sec. after exposure
200m with leader cable
Dependent on sensitivity
Clockwise
Minimum
Anticlockwise
Maximum
85dB@2.3Hz @ 10cm
Terminals for 0.5-2.5² cable
Rising cage
Temperature
0°C to 40°C
RH
0-80% non-condensing
74 x 76 x 50mm
WD-AMX-1
100g
WD-AMX-2
240g
UK
WD-AMX
Issue Number: 7.1
Date of Issue: 29/10/2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sontay WD-AMX
Summary of Contents for Sontay WD-AMX
- Page 1 Technical Overview The WD-AMX water leak detection modules are designed for use with the WD-CS, WD-PS and WD-RS water leak detection sensors. The modules have LED Indication of the water leak status and a sounder that can be enabled or disabled. The relay output can be used in manual or auto reset, and can be used as an alarm signal for connection to a BMS controller or remote alarm annunciation panel, such as the UI-AA-1-F.
- Page 2 Maximum cable is 2.5mm², care must be taken not to over tighten terminals. When mounting the WD-AMX care should be taken not to stress the PCB when fitting to the DIN rail. If it is necessary to remove the module from the DIN rail, be sure to use a flat bladed screwdriver to release the DIN clips.
- Page 3 Reset: The WD-AMX will report all flood alerts by releasing the relay and activating the sounder (if enabled). Any transition will be reported for a minimum of two seconds. When the sensor stops indicating a flood, the unit resets automatically.
