Features:
LED Status of leak status
VFC output
Audible alarm
Auto or manual reset alarm output
Technical Overview

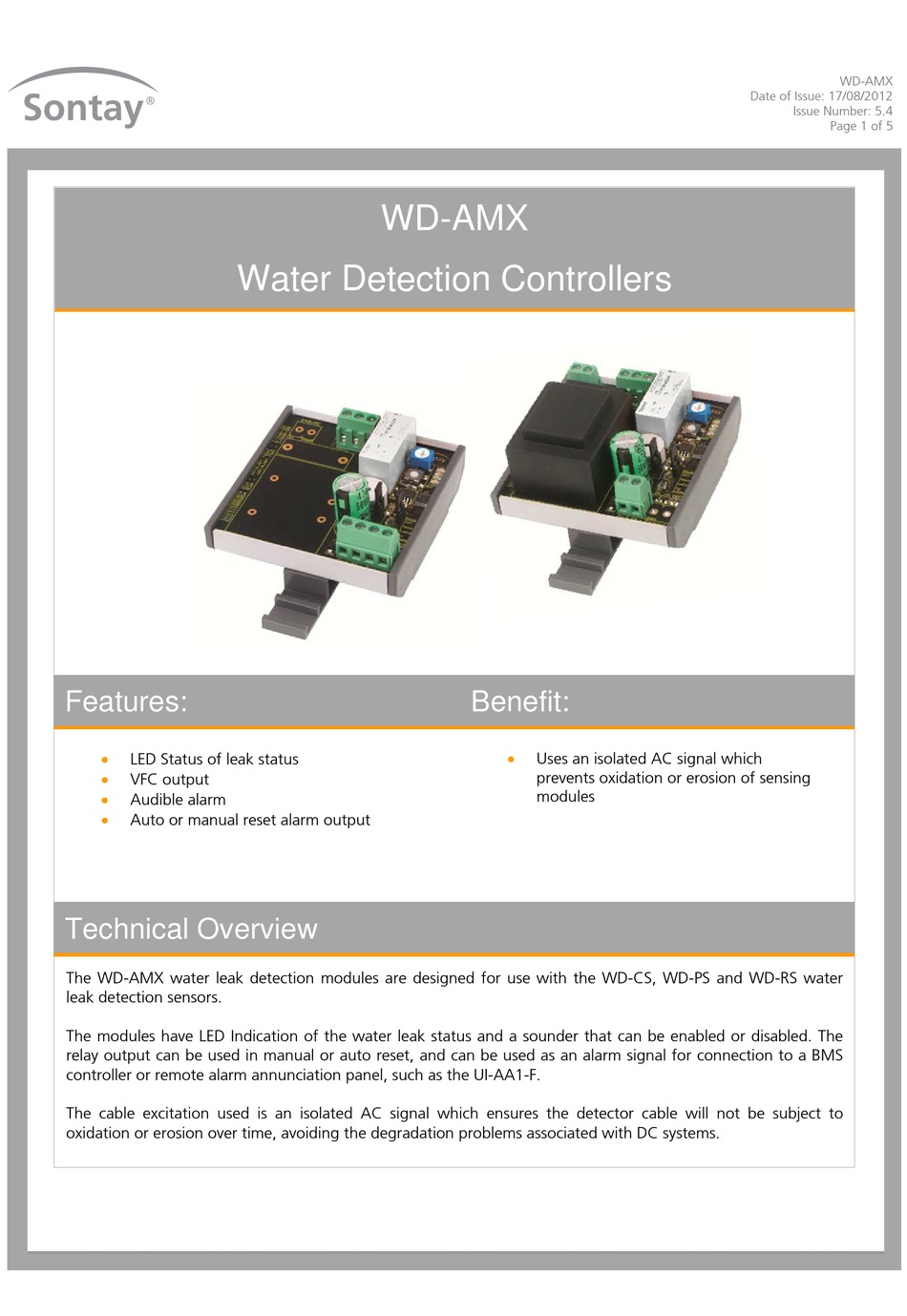

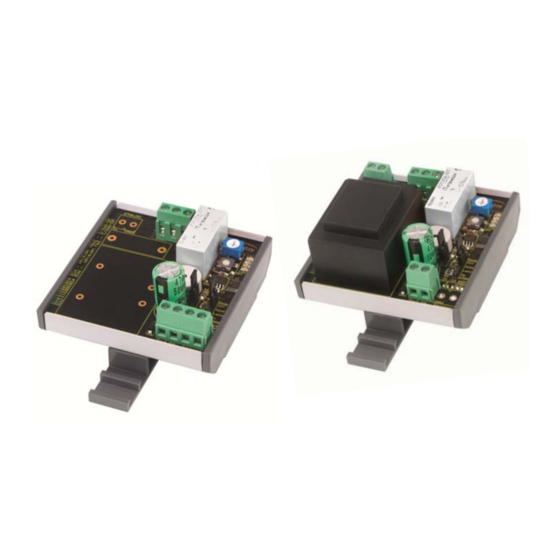

The WD-AMX water leak detection modules are designed for use with the WD-CS, WD-PS and WD-RS water
leak detection sensors.
The modules have LED Indication of the water leak status and a sounder that can be enabled or disabled. The
relay output can be used in manual or auto reset, and can be used as an alarm signal for connection to a BMS
controller or remote alarm annunciation panel, such as the UI-AA1-F.
The cable excitation used is an isolated AC signal which ensures the detector cable will not be subject to
oxidation or erosion over time, avoiding the degradation problems associated with DC systems.
WD-AMX
Water Detection Controllers
Benefit:
Uses an isolated AC signal which
prevents oxidation or erosion of sensing
modules
WD-AMX
Date of Issue: 17/08/2012
Issue Number: 5.4
Page 1 of 5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sontay WD-AMX
Summary of Contents for Sontay WD-AMX
- Page 1 Auto or manual reset alarm output Technical Overview The WD-AMX water leak detection modules are designed for use with the WD-CS, WD-PS and WD-RS water leak detection sensors. The modules have LED Indication of the water leak status and a sounder that can be enabled or disabled. The relay output can be used in manual or auto reset, and can be used as an alarm signal for connection to a BMS controller or remote alarm annunciation panel, such as the UI-AA1-F.
-
Page 2: Specification
WD-AMX Date of Issue: 17/08/2012 Issue Number: 5.4 Page 2 of 5 Specification: Part Codes: WD-AMX-1 Supply Voltage: 24Vac/dc water detection alarm module with WD-AMX-1 24Vac/dc ±10% audible alarm and LED status indication WD-AMX-2 230Vac @ 50Hz Supply current 50mA max. -
Page 3: Installation
Maximum cable is 2.5mm², care must be taken not to over tighten terminals. When mounting the WD-AMX care should be taken not to stress the PCB when fitting to the DIN rail. If it is necessary to remove the module from the DIN rail, be sure to use a flat bladed screwdriver to release the DIN clips. -
Page 4: Led Status
Reset: The WD-AMX will report all flood alerts by releasing the relay and activating the sounder (if enabled). Any transition will be reported for a minimum of two seconds. When the sensor stops indicating a flood, the unit resets automatically. -
Page 5: Jumper Settings
Whilst every effort has been made to ensure the accuracy of this specification, Sontay cannot accept responsibility for damage, injury, loss or expense from errors or omissions. In the interest of technical improvement, this specification may be altered without notice.
