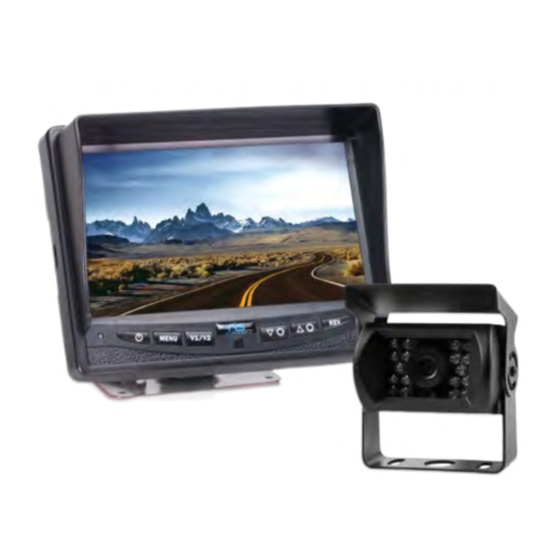

- Page 2 • 1 - 7" TFT LCD Color Monitor w/Monitor Mount • 1 - Power Harness • 1 - 66’ Camera Cable • 1 - Power Connection Wire • 1 - Screw Kit for installation Note: Minor details may change based on item configuration REAR VIEW SAFETY...
-
Page 3: Table Of Contents
Table of Contents Introduction....................4 Safety Information ..................5-7 Before Beginning Installation..............8 Installation Guide..................9 Wiring Camera & Monitor..............10-11 Monitor Wiring ..................12 Monitor Operation..................13 Splitting & Splicing...................14 Positioning....................Monitor Dimensions..................16 Monitor Specifications................17 Camera Dimensions...................18 Camera Specifications................19 Troubleshooting..................20 Warranty.......................21 Disclaimer ....................22 Reverse With Confidence ™... -
Page 4: Introduction
In some jurisdictions, it is unlawful for a person to drive a motor vehicle equipped with a TV viewer or screen located forward of the back of the driver’s seat or in any location that is visible, directly or indirectly, to the driver while operating the vehicle. REAR VIEW SAFETY... -
Page 5: Safety Information
Safety Information Please read the entire manual and follow the instructions and warnings carefully. Failure to do so can cause serious damage and/or injury, including loss of life. Be sure to obey all applica- ble local traffic and motor vehicle regulations as it pertains to this product. - Page 6 Dropping the unit may cause detected, disconnect the possible mechanical failure. system immediately. • Where the power cable may touch a metal case, cover the cable with a friction tape. A short circuit or disconnected wire may cause a fire. REAR VIEW SAFETY...
- Page 7 Safety Information If you have questions about this product, contact: Customer Service: Rear View Safety 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
-
Page 8: Before Beginning Installation
Install split grommets where applicable. Step 3: Once all cables and wiring have been properly routed, perform a system function test by temporarily connecting the system. If the system seems to not be operating properly see troubleshooting REAR VIEW SAFETY... -
Page 9: Installation Guide
Installation Guide Cable 1. Be sure to position the cable properly. The camera cable uses aircraft grade connectors which means the camera cable can be exposed to all weather elements. Do not run the cable over sharp edges, do not kink the cable and keep away from HOT and rotating parts. - Page 10 (or any constant power. power source that comes on only in reverse). • 2 of the other channels can also be triggered (side cameras can be triggered by the turn signals) REAR VIEW SAFETY...
-
Page 11: Wiring Camera & Monitor
Wiring Camera & Monitor • Grid-lines: The grid-lines are • There is a built-in voltage also carried through the blue regulator for our systems which wire. To use the grid-lines for can handle 9-32 volts. Real consumption is 10 to 30 Volts. reversing, connect the blue wire to a reverse power. -
Page 12: Monitor Wiring
Monitor Wiring Reverse With Confidence ™... -
Page 13: Monitor Operation
• Picture: Toggle picture characteristics (contrast, brightness, saturation, hue, sharpness) to predetermined setting • Contrast/Hue/Brightness/Saturation/Hue: Adjust settings • Front/Back/Left/Right Mir: Toggle normal/mirror image • Dist. Grid: Toggle distance grid lines On/Off • Language: Toggle language • Reset: Reset system to factory settings REAR VIEW SAFETY... -
Page 14: Splitting & Splicing
Splitting & Splicing Installing sun shield: Put shade cover on the display. Installing back cover: Put the monitor with shade cover in the back cover (only for embedded monitor) Splitting back cover: Hold monitor with 2 hands and detach with fingers, as indicated by arrows. -
Page 15: Positioning
Positioning REAR VIEW SAFETY... -
Page 16: Monitor Dimensions
Monitor Dimensions 7” Rotation 5.25” Imager Menu/ Camera (Exit in Down Power Selection Menu Selection Arrow Arrow On/Off Button Mode) Reverse With Confidence ™... -
Page 17: Monitor Specifications
Video System NTSC/PAL (Auto Detect) Overall Dimensions 7" (L) x 5.25" (H) x 1 (D)” Audio Source Built-In Microphone Audio Output 0.5 W Speaker LED Auto On / Off CDS Sensor CDS Sensor (Manual or Auto) Dimmer REAR VIEW SAFETY... -
Page 18: Camera Dimensions
Camera Dimensions 3” 3.25” Reverse With Confidence ™... -
Page 19: Camera Specifications
0 Lux (IR On) Power Source DC 12V+/10% S/N Ratio More than 48dB Waterproof Rating IP69K ≥ 50db (AGC Off) S/N Ratio Auto CDS or Manual IR Switch Control Built-in Microphone Audio Source Operating Temperature -40°C~70°C Storage Temperature -40°C~70°C REAR VIEW SAFETY... -
Page 20: Troubleshooting
Troubleshooting Monitor Displays Blue Screen & Displays No Signal • Do a hard reset, unplug all trigger on power harness is put cables and power cables leave to power 12v+. out for 1 minute and then If the problem still persists, ver- ify that alternate ports work. -
Page 21: Warranty
Rear View Safety, Inc. system after partial failure or use with improper accessories. -
Page 22: Disclaimer
In no event shall Rear View Safety and/or its affiliates have any liability for any losses (whether direct... - Page 23 Take Notes ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ REAR VIEW SAFETY...
- Page 24 If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 BETTER CAMERAS. BETTER SERVICE. IT’S OUR GUARANTEE.
