- Page 1 Instruction Manual Backup Camera System with GPS Natigation (3 Channel) RVS-7700 Rear View Safety, Inc. © 2016 Reverse With Confidence ™...
- Page 2 Camera Specification......18-19 Warranty & Disclaimer......20-21 Rear View Safety...
- Page 3 NOTE! Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. Congratulations on purchasing a Rear View Backup Camera System! With this manual you will be able to properly install and operate the unit. The Backup Camera System is intended to be installed as a supplement aid to your standard rear view mirror that already exists in your vehicle.
- Page 4 Rear View Camera System. If you back up while looking only at the monitor, you may cause Rear View Safety...
-
Page 5: Installation
INSTALLATION: • Electric shock or product or disconnected wire may cause a malfunction may occur if this fire. product is installed incorrectly. • While installing the Rear View System be careful with the wire • Use this product within positioning in order to avoid wire the voltage range specified. - Page 6 If you have questions about this product, contact: Rear View Safety 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 1.800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
- Page 7 Before drilling please check that no cable or wiring is on the other side of the wall. Please clamp all wires securely to reduce the possibility of them being damaged while vehicle is in use. Keep all cables away from hot or moving parts and electrical noisy components. We recommend doing a benchmark test before installation to insure that all components are working properly.
- Page 8 Safety • Before drilling make sure no cable or wire is on the other side. • Feed as much cable as possible into vehicle & clamp securely. This reduces the possibility of cable being hooked or snagged. Rear View Safety...
- Page 9 Reverse With Confidence ™...

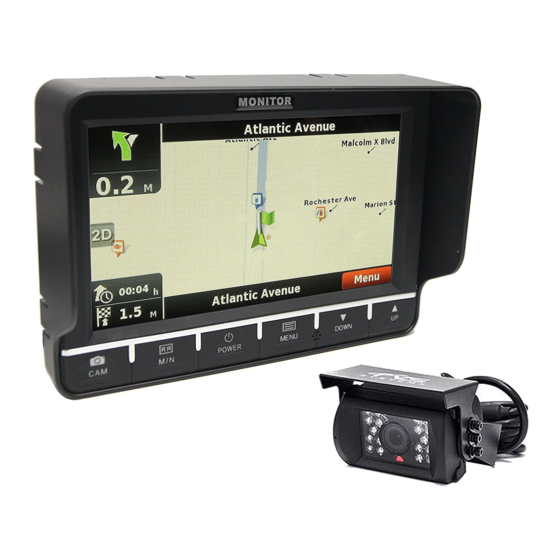

- Page 10 • 7” TFT LCD Digital Color Touch Display • GPS Navigation with Sygic Maps • 3 Channel Power Harness - Supports 3 Cameras • Built-in Speaker For Camera Mic • Touch Screen - Monitor Functions Controlled Simply By Touch Rear View Safety...
-
Page 11: Monitor Specifications
Monitor Specifications Type: TFT LCD Screen Size: 7” Aspect Ratio: 16:9 Video Input: 3 Channel Trigger Capacity: 3 Triggers Video System: Auto PAL/NTSC Resolution: 800 X RGB X 480 Brightness: 450cd/m2 Power Supply: 9-36V DC Audio: Built-in Speaker Operating Temperature: -20°C ~ +70°C RH 95% Max Storage Temperature: -30°C ~ +80°C RH 95% Max Reverse With Confidence ™... -
Page 12: Gps Navigation
GPS Navigation Press the Navigation icon on the interface or ‘SRC’ , ‘GPS’ on the panel to switch to navigation mode. Rear View Safety... - Page 13 1. Setup - Press on the Setup icon to enter the setup interface. Select from Navigate setup/GPS monitor/Usual Setting/Touch Screen/Volume/Time/ System. Reverse With Confidence ™...
-
Page 14: Navigation Setup
Click on the Navigate setup icon to enter the interface shown below. GPS Monitor Click on the Navigate setup icon to enter the interface shown below. 1. Satellite dataflow 2. Satellite number & signal intensity 3. Longitude, latitude, time Rear View Safety... - Page 15 Usual Setting Press the Usual Setting icon to enter the interface shown below. Press the arrow icons to change the settings. Touch Screen Press the Touch Screen icon to enter the calibration interface. Follow the screen prompt, pressing the center of the cursor until it moves to the top left, lower left, lower right and top right respectively.
- Page 16 Volume Click on the Volume icon to enter the interface shown below. Press the arrows to change settings. Time Click on the Time icon to enter the interface shown below. Press the arrows to change settings. Rear View Safety...
-
Page 17: System Message
System Message Press the System icon to enter the system interface. Choose from the settings as shown below. Entertainment Click on the Entertainment icon to enter the interface shown below. Choose from Music/Movie/E-Book/Picture. Reverse With Confidence ™... -
Page 18: Camera Dimensions
18 Infra-red illuminators (enables you to see in total darkness) • 1/4 Sharp® color CCD, 250k pixels, 2.1 mm wide lens with 130° angle • Shock resistant with a 20G Vibration and 100G impact rating • Built-in high gain microphone Rear View Safety... -
Page 19: Camera Specifications
Camera Specifications SENSOR 1/4” SHARP® COLOR CCD PICTURE ELEMENTS 250,000 PIXELS GAMMA CORRECTION R=0.45 TO 1.0 IMAGE SENSOR 600 TV LINES, PAL: 500 (H) X 582 (V) NTSC: 510 (H) X 492 (V) LENS 2.1MM VIEW ANGLE 130° WATERPROOF RATING IP69K SYNC SYSTEM INTERNAL SYNCHRONIZATION... -
Page 20: One Year Warranty
OTHERS OR THE UNAUTHORIZED USE OF NONCONFORMING PARTS; THE DAMAGE IS DUE TO NORMAL WEAR AND TEAR, THIS DAMAGE IS DUE TO ABUSE, IMPROPER MAINTENANCE, NEGLECT OR ACCIDENT; OR THE DAMAGE IS DUE TO USE OF THE REAR VIEW SAFETY, INC. SYSTEM AFTER PARTIAL FAILURE OR USE WITH IMPROPER ACCESSORIES. - Page 21 FOR ANY INJURY, LOSS OR DAMAGE, INCIDENTAL OR CONSEQUENTIAL, ARISING OUT OF THE USE OR INTENDED USE OF THE PRODUCT. IN NO EVENT SHALL REAR VIEW SAFETY AND/OR ITS AFFILIATES HAVE ANY LIABILITY FOR ANY LOSSES (WHETHER DIRECT OR INDIRECT, IN...
- Page 22 If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 Better Cameras. Better Service. IT’S OUR GUARANTEE. Rear View Safety...
