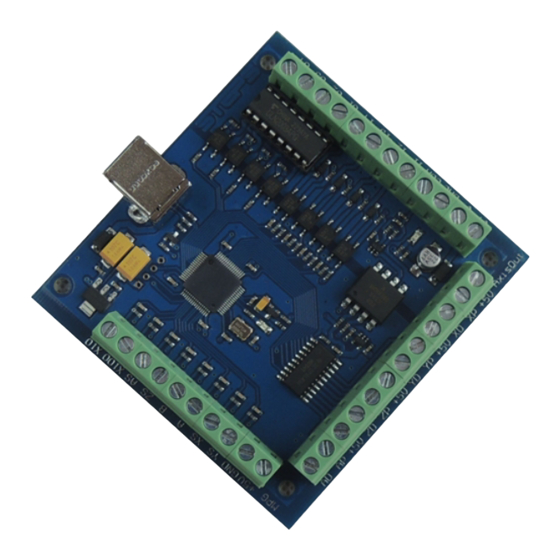

Page 1: Mach3 Usb Motion Card (Stb4100) Installation Manual
Mach3 USB Motion Card STB4100 V2.1 Mach3 USB Motion Card (STB4100) Installation Manual V2.1... - Page 2 Mach3 USB Motion Card STB4100 V2.1 The motion control card for machine control, with strong professional.Requires the operator to have the relevant expertise!If used improperly, may appear an accident, please strictly follow the instructions and warnings using this product if you are not sure, consulting engineers for help.First time...
-
Page 3: Table Of Contents
Mach3 USB Motion Card STB4100 V2.1 Contents Mach3 USB Motion Card (STB4100) Installation Manual ............1 Contents ..........................3 Features: ..........................4 Basic connection diagram (an Overview): ................5 Mechanical dimensions diagram: .................... 6 1.Prepare: ..........................6 1.1.Installation the Mach3: ....................6 1.2.Software license application: .................. -
Page 4: Features
Mach3 USB Motion Card STB4100 V2.1 Features: 1. Support for 4-axis linkage, you can connect four stepper motor drives or servo drives; 2. Maximum step-pulse frequency is 100KHz,which is suitable for the servo or stepping motor; 3. 4 general-purpose opto-couplers isolation input : can connect the limit switch, emergency stop switch, auto tool zero, home switch etc. -
Page 5: Basic Connection Diagram (An Overview)
Mach3 USB Motion Card STB4100 V2.1 Basic connection diagram (an Overview):... -
Page 6: Mechanical Dimensions Diagram
Mach3 USB Motion Card STB4100 V2.1 Mechanical dimensions diagram: 1.Prepare: 1.1.Installation the Mach3: Open the CD, find mach3 software，run the installation file： Follow the prompts to install, until the last step. The last step requires Note: For 64-bit computer, it is best not to select”LoadMach3 Driver “this... -
Page 7: Software License Application
Mach3 USB Motion Card STB4100 V2.1 1.2.Software license application: Copy license files “Mach1Lic.dat” from “mach3 software folder”,to C:\Mach3 Cover the original file,Reset Computer（must reset the computr,please don't open the software dircetly!） Way above the license for DIY or study purposes only, not for commercial use. -
Page 8: Installing The Motion Card Plug-In
Mach3 USB Motion Card STB4100 V2.1 1.3.2 Installing the motion card plug-in. Unzip the usb move.zip, copy or drag RnRMotion.dll into your Mach3\PlugIns folder. 1.3.3 Start the Mach3 software, a dialogue of “Motion Control Hardware PlugIn sensed!” is shown. Please select the“ RnRMotionControllerECO-V2.0”, you can also check”Don't ask me... -
Page 9: Config For Mach3
Mach3 USB Motion Card STB4100 V2.1 2.config for mach3: 2.1 Mach3 X、 Y、 Z、 A Axis config as shown below: Config => Ports and Pins): Suggest to put ticks”√ ”, to set low signal levels actived Pick tick “√” After setting, click "Apply" to... -
Page 10: Motor Tuning Setup As Shown Below: (Config => Motor Tuning)
Mach3 USB Motion Card STB4100 V2.1 2.2 Motor tuning setup as shown below: (Config => Motor Tuning) Setup each axis Save now Acceleration Velocity Mach3 steps per unit: Mach3 steps per unit = Mach3 steps per rev x Motor revs per unit 2.3 The Mach3 Menu =>... -
Page 11: Setup The Output Signals
Mach3 USB Motion Card STB4100 V2.1 below: 2.5 Setup the Output signals: There are 4 general-purpose (open-drain) output channels, The channels number is from O1 to O4, mach3 setup as shown below :... -
Page 12: Spindle Speed Control (0-10V) Setup
Mach3 USB Motion Card STB4100 V2.1 Don’t forget click “apply” Pick ticks” √ ” Pin number 1-4 Enter “3” Remove ” √ ” Remove ” √ ” M3 code control output 1 output, M4 code control output port 2 output,M5 shut down output 1 and output2. - Page 13 Mach3 USB Motion Card STB4100 V2.1 speed (for example,24000RPM). As shown below:The Mach3 Menu => Config => Spindle pulleys： Setup Spindle parameters: as shown in the red box Enable spindle output. as shown below: Completion of the setting, there are two ways to control the output value of 0 ~ 10V.
-
Page 14: Mach3 Mpg Setup
Mach3 USB Motion Card STB4100 V2.1 2.6 Mach3 MPG Setup: Note: The electronic handwheel selection 5V voltage output models, more than 5V output will damage the hand wheel interface, refer to the following wiring diagram: Mach3 MPG Setup: The Mach3 Menu => Config =>Ports and Pins=>Encoder/MPG’S After setting, click "Apply"... - Page 15 Mach3 USB Motion Card STB4100 V2.1 click "Jog Mode" to choose MPG mode Click the "Jog mode" select MPG mode, you can use the electronic handwheel control the motor run.
