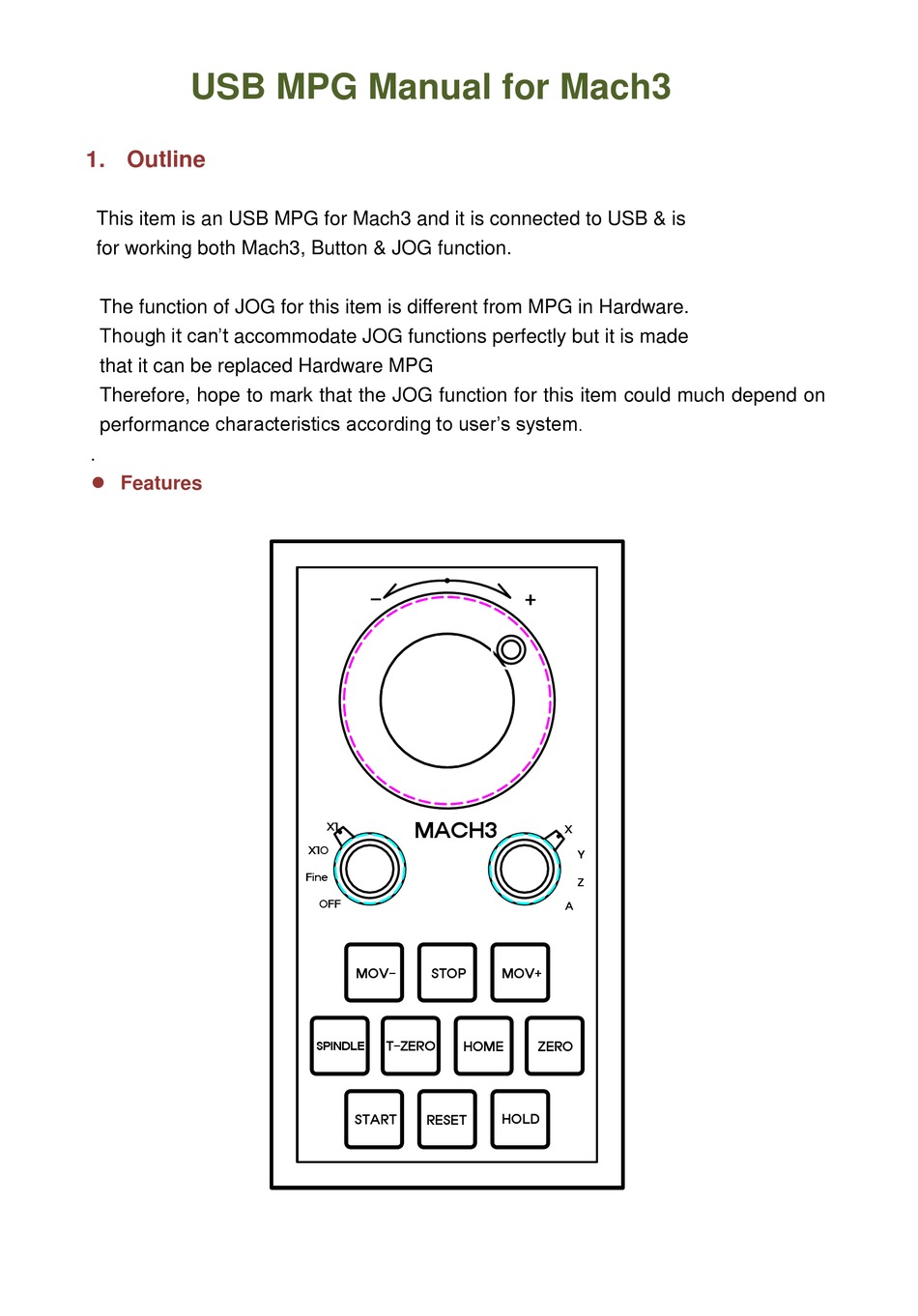

USB MPG Manual for Mach3
1. Outline
This item is an USB MPG for Mach3 and it is connected to USB & is
for working both Mach3, Button & JOG function.
The function of JOG for this item is different from MPG in Hardware.
Though it can't accommodate JOG functions perfectly but it is made
that it can be replaced Hardware MPG
Therefore, hope to mark that the JOG function for this item could much depend on
performance characteristics according to user's system.
.
Features
-
MACH3
X1
X10
Fine
OFF
MOV-
STOP
SPINDLE
T-ZERO
START
RESET
+
X
Y
Z
A
MOV+
HOME
ZERO
HOLD
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CNC USB MPG
Summary of Contents for CNC USB MPG
- Page 1 USB MPG Manual for Mach3 1. Outline This item is an USB MPG for Mach3 and it is connected to USB & is for working both Mach3, Button & JOG function. The function of JOG for this item is different from MPG in Hardware.
- Page 2 1) The switch for step selection selector Fine - X1,x10 step moving Selection of step can be moved to a set step in JOG Increments in Cycle Mode in General Config as below picture. Basically, it is made by 1 & 0.1 step. If you turn JOG Handle in this mode, it is moved to a set step.
- Page 3 2) Selector Switch for Axis Selection This product supports 4 – Axis and buttons & JOG’s dial can work by choosing a axis that you want to. 3) JOG Handle JOG Handle plays a role to provide rotation pulse when step & fine moving. It it turns right, the value increases and if turns left, the value decreases.
- Page 4 4) Function Buttons MOV- STOP MOV+ SPINDLE T-ZERO HOME ZERO HOLD START RESET - MOV-, MOV+ These are buttons for fast transferring of chosen axis. To adjust each axis, you do fast transferring by this button and do fine adjustment by JOG Handle. This button also works for selected axis by the switch for axis, selection - STOP This can halt moving in program or can stop it while transferring...
- Page 5 This button is for doing “Tool Zero Set” - HOME This is the button for returning to Reference Point. - ZERO This button plays a role that current coordinates of selected axis set by 0(Zero) - START This is for starting to working program. - RESET This is the same as emergency stop in mach3 and this can do emergency stop or clear.
- Page 6 And then you do Load Screen in mach3 picture as follows. Upload “ Mach3_USB_v1.set” copied in mach3 folder. Thank you so much. If you have any question or for technical support, Feel free to ask us via email.
