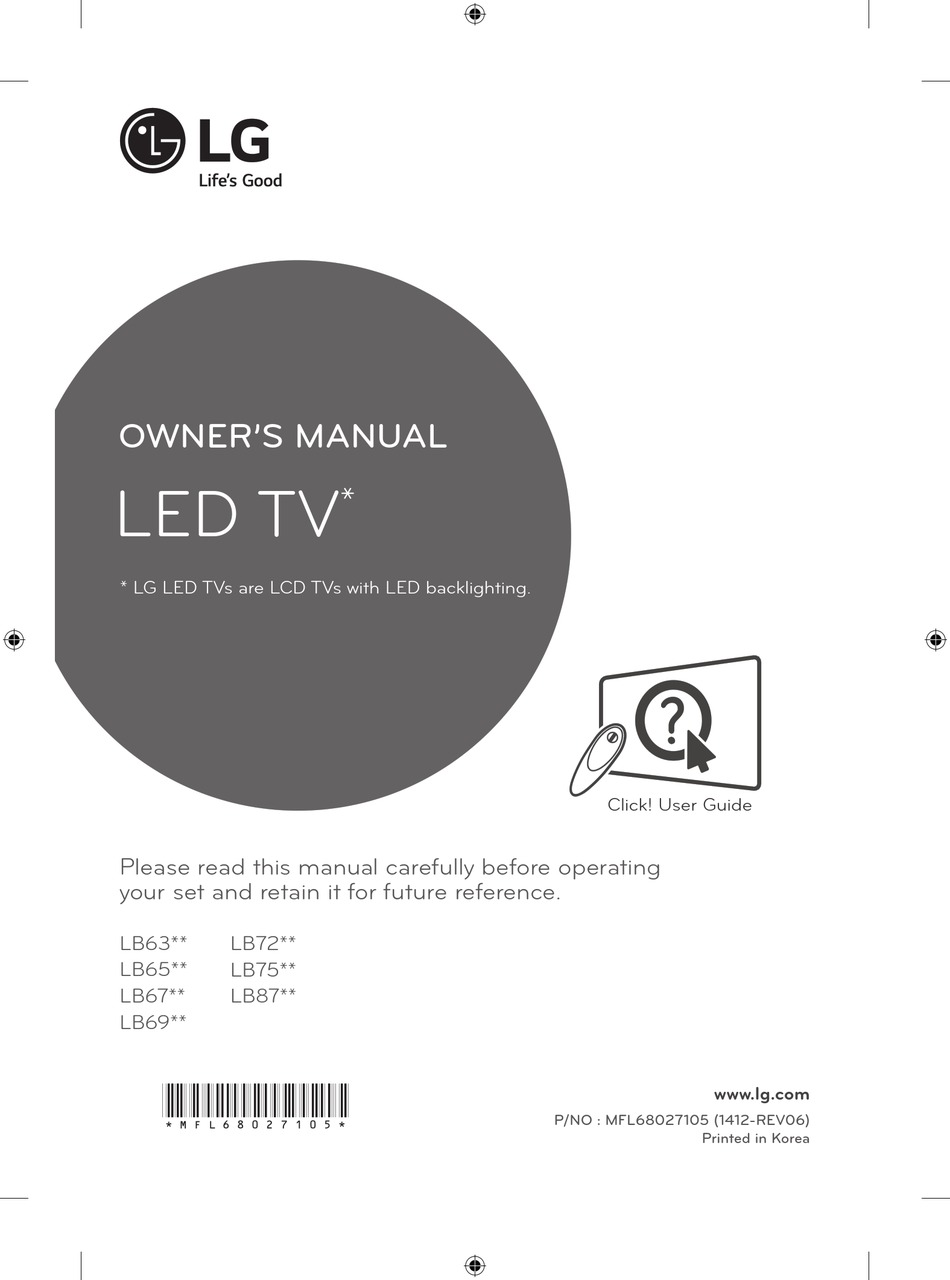

OWNER’S MANUAL LED TV * LG LED TVs are LCD TVs with LED backlighting. Click! User Guide Please read this manual carefully before operating your set and retain it for future reference. LB63** LB72** LB65** LB75** LB67** LB87** LB69** www.lg.com...
TABLE OF CONTENTS TABLE OF CONTENTS rEmOTE CONTrOL LiCENSES mAGiC rEmOTE FuNCTiONS OpEN SOurCE SOFTwArE NOTiCE iNFOrmATiON Registering Magic Remote How to use Magic Remote Precautions to Take when Using the EXTErNAL CONTrOL DEViCE Magic Remote SETup uSiNG ThE uSEr GuiDE SAFETy iNSTruCTiONS Viewing 3D Imaging (Only 3D models) mAiNTENANCE...
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.
SAFETY INSTRUCTIONS SafEty INStructIoNS Please read these safety precautions carefully before using the product. WarNING y Make sure to connect Mains cable to y Do not place the TV and/or remote control compliant AC mains socket with Grounded in the following environments: earth pin.
Page 5
SAFETY INSTRUCTIONS y When mounting TV onto wall make sure to y Dispose of used batteries carefully to ensure neatly install and isolate cabling from rear that a small child does not consume them. of TV as to not create possibility of electric Please seek Doctor- Medical Attention shock /fire hazard.
Page 6
SAFETY INSTRUCTIONS y Do not allow any impact, shock or any y Unplug the TV from AC mains wall socket objects to fall into the unit, and do not drop if you do not intend to use the TV for a long anything onto the screen.
Page 7
SAFETY INSTRUCTIONS y If you install the TV on a stand, you need y Do not place non-rechargeable batteries in to take actions to prevent the product from charging device. overturning. Otherwise, the product may fall over, which may cause injury. y Make sure there are no objects between the remote control and its sensor.
Page 8
SAFETY INSTRUCTIONS y Take care not to touch the ventilation y When cleaning the product and its openings when watching the TV for long components, unplug the power first and wipe periods as the ventilation openings may it with a soft cloth. Applying excessive force become hot.
Page 9
SAFETY INSTRUCTIONS y Contact the service centre once a year to y You may find different brightness and colour clean the internal parts of the product. of the panel depending on your viewing Accumulated dust can cause mechanical position(left/right/top/down). failure. This phenomenon occurs due to the characteristic of the panel.
Symptoms which require discontinuation or Cautions when using the 3D glasses refraining from watching 3D contents y Make sure to use LG 3D glasses. Otherwise, y Do not watch 3D contents when you feel you may not be able to view 3D videos fatigue from lack of sleep, overwork or properly.
INSTALLATION PROCEDURE NOTE y Image shown may differ from your TV. y Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual. y The available menus and options may differ from the input source or product model that you are using.
ASSEMBLING AND PREPARING ASSEMBLiNG AND PREPARiNG Unpacking Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.
Page 13
ASSEMBLING AND PREPARING ENERGY AV MODE INPUT ENERGY AV MODE INPUT SAVING SAVING FLASHBK FLASHBK LIST MARK LIST MARK MUTE MUTE MENU INFO Q.MENU MENU INFO Q.MENU ENTER ENTER BACK EXIT BACK EXIT L/R SELECT L/R SELECT FREEZE FREEZE RATIO RATIO Remote Control, Batteries Magic Remote, Batteries...
Page 14
ASSEMBLING AND PREPARING Stand Screws Stand Screws Stand Bases 4EA, M4 x L14 4EA, M4 x L10 (Only LB65**-TH) (Only LB63**, (Only LB75**) (See p.21) 39/42/47/50/55/60/70LB65**, (See p.21) LB67**, LB69**, LB72**, LB75**) 8EA, M4 x L14 (Only LB87**) (See p.20, 21, 22, 23, 24) Stand Bases Stand Assys...
Contact your dealer to buy these items. These devices only work with certain models. AG-F***DP AG-F*** AN-MR500 Dual Play Glasses Cinema 3D Glasses Magic Remote AN-VC5** LG Audio Device Video Call Camera LB65**, LB67**, Compatibility LB63** LB69**, LB72**, LB87** LB75** AG-F***DP •...
ASSEMBLING AND PREPARING Parts and buttons A type : LB63**, LB65**-TA/TB B type : LB65**-TH Screen Screen Speakers Speakers Remote control and Remote control and Intelligent sensors Intelligent sensors Power Indicator Power Indicator Joystick Button Joystick Button C type : LB67**, LB69**, LB72** Screen Speakers Remote control and...
Page 17
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment. 2 Joystick Button - This button is located below the TV screen. NOTE y You can set the LG Logo light or Power indicator Light to on or off by selecting General in the main menus. (Depending on model)
ASSEMBLING AND PREPARING Using the Joystick button You can simply operate the TV functions by pressing to turn On/Off or sliding your finger over joystick button moving up, down, left or right. Basic Functions When the TV is turned off, place your finger on the joystick Power On button and press it once and release it.
ASSEMBLING AND PREPARING Lifting and moving the TV y When transporting a large TV, there should be at least 2 people. y When transporting the TV by hand, hold the Please note the following advice to prevent the TV as shown in the following illustration. TV from being scratched or damaged and for safe transportation regardless of its type and size.
ASSEMBLING AND PREPARING Setting up the TV 70LB65**-TA, LB67**, LB69**, LB72** Image shown may differ from your TV. Stand Body Attaching the stand LB63**, 32/39/42/47/50/55/60LB65**-TA/TB A stand base Stand Base A stand base B stand base B stand base 1 Attach the stand to the TV using the upper mounting hole on the back of the TV.
Page 21
ASSEMBLING AND PREPARING LB75** LB65**-TH A stand base B stand base Stand Front B Stand A Stand Supporter Supporter 1 Attach the stand to the TV using the upper mounting hole on the back of the TV. 2 Attach the stand to the TV using the lower connection on the back of the TV.
Page 22
ASSEMBLING AND PREPARING LB87** Sound Bar Stand Assy Right Stand Assy Left 1 Attach the stand to the TV using the upper mounting hole on the back of the TV. M4 x L14 2 Attach the stand to the TV using the lower connection on the back of the TV.
Page 23
ASSEMBLING AND PREPARING CAUTiON y When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches. y Make sure that the screws are fastened completely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Do not use too much force and over...
ASSEMBLING AND PREPARING Attaching the Sound Bar Supporter (In case of mounting on a wall) LB87** Sound Bar Sound Bar Supporter Right Sound Bar Supporter Left M4 x L14 M4 x L14 Screw Cover...
ASSEMBLING AND PREPARING CAUTION NOTE y When attaching the Sound Bar Supporter y Remove the sound bar supporter before to the TV set, place the screen facing installing the stand by performing the down on a cushioned table or flat surface sound bar supporter attachment in to protect the screen from scratches.
Page 26
ASSEMBLING AND PREPARING Using the Kensington security system WARNING (This feature is not available for all models.) y If a television is not positioned in a y Image shown may differ from your TV. sufficiently stable location, it can be The Kensington security system connector potentially hazardous due to falling.
We recommend the use of LG’s wall mount bracket. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices.
Page 28
If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Model 32/39LB65** 42/47/55LB63** Use an authorised LG wall mount and 42/47/50/55LB65** contact the local dealer or qualified 49/55LB87** personnel. VESA (A x B) 200 x 200...
ASSEMBLING AND PREPARING Tidying cables NOTE Image shown may differ from your TV. y Use the screws that are listed on the VESA standard screw specifications. 1 Gather and bind the cables with the cable y The wall mount kit includes an installation holder.
Page 30
ASSEMBLING AND PREPARING (Only 32LB65**-TH) (Only LB87**) Cable Holder Cable Management Cable Management (Only 39/42/47/50/55LB65**-TH) Cable Holder CAUTION y Do not move the TV by holding the cable holder, as the cable holder may break, and injuries and damage to the TV may occur.
ASSEMBLING AND PREPARING Using Built-in Camera Preparing Built-in Camera (Only LB87**) Pull up the slide at the back of the TV. You can make a Skype video call or use the Angle motion recognition function using the built-in Adjustment camera of the TV. Lever This TV does not support the use of an external camera.
ASSEMBLING AND PREPARING Push down the built-in camera when you are not using it. Name of Parts of Built-in Camera Camera Lens Protective film Microphones Checking the Camera’s Shooting Range Press the (Home) button on the remote control to display the Home menu. Select CAMERA and then press the Wheel(OK) button.
MAKING CONNECTIONS MAKING CONNECTIONS Antenna connection Connect the TV to a wall antenna socket with an RF cable (75 Ω). This section on MAKING CONNECTIONS mainly uses diagrams for the 42LB67** models. Connect various external devices to the TV and switch input modes to select an external device.
MAKING CONNECTIONS Satellite dish connection Headphone connection (Only satellite models) Transmits the headphone signal from the TV to an external device. Connect the external device Connect the TV to a satellite dish to a satellite and the TV with the headphone as shown. socket with a satellite RF cable (75 Ω).
MAKING CONNECTIONS (Only LB87**) HDMI connection Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown. Choose any HDMI input port to connect. It does not matter which port you use.
MAKING CONNECTIONS (Only LB87**) DVI to HDMI connection Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the DVI-HDMI cable as shown. To transmit an audio signal, connect an audio cable.
MAKING CONNECTIONS Component connection (Only LB87**) Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with a component cable as shown. (Only LB63**, LB65**, LB67**, LB69**, LB72**, LB75**) COMPONENT VIDEO AUDIO YELLOW...
MAKING CONNECTIONS Composite connection (Only LB87**) Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with the composite cable as shown. (Only LB63**, LB65**, LB67**, LB69**, LB72**, LB75**) COMPONENT COMPONENT VIDEO AUDIO...
MAKING CONNECTIONS Audio connection USB connection You may use an optional external audio system Connect a USB storage device such as a USB instead of the built-in speaker. flash memory, external hard drive, or a USB memory card reader to the TV and access the Digital optical audio connection SmartShare menu to use various multimedia files.
MAKING CONNECTIONS Euro Scart connection NOTE (Only satellite models) y Any Euro scart cable used must be signal shielded. Transmits the video and audio signals from an y When watching digital TV in 3D imaging external device to the TV set. Connect the ex- mode, only 2D out signals can be output ternal device and the TV set with the euro scart through the SCART cable.
MAKING CONNECTIONS MHL connection Mobile High-definition Link (MHL) is an interface for transmitting digital audiovisual signals from mobile phones to television sets. MHL passive cable (*Not Provided) Mobile phone NOTE y Connect the mobile phone to the HDMI IN 3 (MHL) or HDMI/DVI IN 4 (MHL) port to view the phone screen on the TV.
REMOTE CONTROL REMOTE CONTROL The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the ends to the label inside the compartment, and close the battery cover.
MAGIC REMOTE FUNCTIONS MAGIC REMOTE FUNCTIONS When the message “Magic Remote battery is low. Change the battery.” is displayed, replace the battery. To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching ends to the label inside the compartment, and close the battery cover.
MAGIC REMOTE FUNCTIONS How to use Magic Remote Voice recognition (Depending on model) Network connection is required to use the y Shake the Magic Remote voice recognition function. slightly to the right and left 1 Press the Voice recognition button. or press (Home), 2 Speak when the voice display window...
MAGIC REMOTE FUNCTIONS / USING THE USER GUIDE USING THE USER GUIDE Precautions to Take when Using the Magic Remote User Guide allows you to more easily access the y Use the remote control within the detailed TV information. specified range (within 10 m). You may experience communication failures when using the device outside the coverage 1 Press the...
MAINTENANCE / TROUBLESHOOTING MAINTENANCE Cleaning your TV Clean your TV regularly to keep the best performance and to extend the product lifespan. CAUTION y Make sure to turn the power off and disconnect the power cord and all other cables first. y When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.
SPECIFICATIONS SPECIFICATIONS Wireless module(LGSBW41) Specifications Wireless LAN Bluetooth Standard IEEE 802.11a/b/g/n Standard Bluetooth Version 3.0 2400 to 2483.5 MHz Frequency Frequency 5150 to 5250 MHz 2400 to 2483.5 MHz ragne ragne 5725 to 5850 MHz (for Non EU) 802.11a: 13 dBm 802.11b: 15 dBm Output power Output power...
Page 48
SPECIFICATIONS Product specifications may be changed without prior notice due to upgrade of product functions. For the power supply and power consumption, refer to the label attached to the product. 42LB63** 47LB63** 55LB63** 42LB6310-TC 47LB6310-TC 55LB6310-TC 42LB631T-TC 47LB631T-TC 55LB631T-TC MODELS 42LB6330-TD 47LB6330-TD 55LB6330-TD...
Page 49
SPECIFICATIONS 42LB65** 42LB6500-TA 42LB650T-TA 42LB650V-TA MODELS 42LB6500-TH 42LB6520-TB 42LB650T-TH 42LB652T-TB 42LB652Y-TB 42LB659Y-TB 960 x 610 x 218 960 x 612 x 193 Dimensions With stand (mm) (W x H x D) Without stand (mm) 960 x 567 x 54.5 960 x 567 x 54.5 Weight With stand (kg) Without stand (kg)
Page 50
SPECIFICATIONS 55LB65** 55LB6500-TA 55LB650T-TA 55LB650V-TA 55LB6500-TH MODELS 55LB6520-TB 55LB650T-TH 55LB652T-TB 55LB652Y-TB 55LB659Y-TB 1241 x 772 x 247 1241 x 769 x 230 Dimensions With stand (mm) (W x H x D) Without stand (mm) 1241 x 725 x 55.5 1241 x 725 x 55.5 18.7 18.6 Weight...
Page 51
SPECIFICATIONS 55LB67** 42LB69** 47LB69** 55LB6700-TA 42LB6900-TA 47LB6900-TA MODELS 55LB670T-TA 42LB690T-TA 47LB690T-TA 55LB670Y-TA 42LB690Y-TA 47LB690Y-TA 55LB679Y-TA 42LB692V-TB 47LB692V-TB 1229.8 x 767.5 x 247.5 949 x 608 x 211 1061 x 670 x 247 Dimensions With stand (mm) (W x H x D) Without stand (mm) 1229.8 x 716.6 x 55.1 949 x 560 x 55.1 1061 x 623 x 55.1...
Page 52
SPECIFICATIONS 42LB75** 47LB75** 55LB75** MODELS 42LB7500-TE 47LB7500-TE 55LB7500-TE 42LB750T-TE 47LB750T-TE 55LB750T-TE 949 x 608 x 213 1061 x 666 x 227 1231 x 766 x 237 Dimensions With stand (mm) (W x H x D) Without stand (mm) 949 x 560 x 55.1 1061 x 623 x 55.1 1231 x 718 x 55.1 10.7...
Page 53
SPECIFICATIONS CI Module Size (W x H x D) 100.0 mm x 55.0 mm x 5.0 mm Operating Temperature 0 °C to 40 °C Operating Humidity Less than 80 % Environment condition Storage Temperature -20 °C to 60 °C Storage Humidity Less than 85 % 1 Only Satellite models.
Page 54
Record the model number and serial (Only DTV) number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL...
Page 55
OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com...
Page 56
KEY CODES kEy CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button...
Page 57
(TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.
Page 58
EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &...
Page 59
EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA...
Page 60
EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
Page 61
EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
Page 62
EXTERNAL CONTROL DEVICE SETUP Data Min : 00 to Max : 64 * (Depending on model) Ack [i][ ][Set ID][ ][OK/NG][Data][x] 14. Bass (Command: k s) 09. Tint (Command: k j) ► To adjust Bass. ► To adjust the screen tint. You can also adjust in the AUDIO menu.
Page 63
EXTERNAL CONTROL DEVICE SETUP Set ID = All = 00 5th Band 20(decimal) Data 00 & 01 = Channel Data is 10 = 00 0a Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x] Data 02 = Analog Antenna TV = 00 Result = ma 00 00 0a 00 * It depends on model, and can adjust when sound mode is EQ adjustable value.
Page 64
EXTERNAL CONTROL DEVICE SETUP Number Data 05 = Digital Antenna TV = 02 - 22 : Antenna TV (DTV) – Don’t Use Physical Total = ma 00 00 00 11 00 01 02 Channel Number - 26 : Cable TV (CADTV) - Don’t Use Physical 2.
Page 65
11 11 EXTERNAL CONTROL DEVICE SETUP 24. Input select (Command: x b) (Main Picture Input) ► To select input source for main picture. Transmission [x][b][ ][Set ID][ ][Data][Cr] Data X : don’t care 00 : DTV 01 : CADTV 02 : Satellite DTV 10 : ATV Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02] ISDB-BS (Japan)
Page 66
EXTERNAL CONTROL DEVICE SETUP 27. Auto Configure (Command: j u) (Depending on model) ► To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode. Transmission [j][u][ ][Set ID][ ][Data][Cr] Data 01 : To set Ack [u][ ][Set ID][ ][OK/NG][Data][x]...
