The materials are reusable according to their markings. By reusing, recycling or
other forms of utilization of old devices you make an important contribution to
the protection of our environment.
Please contact your local authorities for details about collection points.
WARNING
Risk of electric shock
Do not open!
Caution: To reduce the risk of electric shock, do not remove the cover (or back). There
are no user serviceable parts inside. Refer servicing to qualified service personnel.
Safety, Environmental and Setup Instructions
Use the device in dry indoor environments only.
Protect the device from humidity.
Do not open the device. RISK OF ELECTRIC SHOCK! Refer opening and servicing to qualified personnel.
Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with the
specifications on the rating plate.
Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way.
Disconnect device warning: Main plug is used as the connection, so it should always remain ready operate.
The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
A damaged mains cable or plug must immediately be replaced by an authorized service center.
In case of lightning, immediately disconnect the device from the mains supply.
Children should be supervised by parents when using the device.
Clean the device with a dry cloth only.
Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS!
Do not expose the device to direct sunlight or other heat sources.
Install the device at a location with sufficient ventilation in order to prevent heat accumulation.
Do not cover the ventilation openings!
The ventilation should not be impeded by covering the ventilation openings with items, such as newspaper, table-cloths, curtains, etc.
It shall be not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the
apparatus.
The unit should not be exposed to direct sunlight, very high or low temperature, moisture, vibrations or placed in dusty environment.
Never attempt to insert wires, pins or other such objects into the vents or opening of the unit.
Install the device at a safe and vibration-free location.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
Install the device as far away as possible from computers and microwave units; otherwise radio reception may be disturbed.
Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized service/ customer
center.
The device is equipped with a "Class 1 Laser". Avoid exposure to the laser beam as this could cause eye injuries.
Only use mercury and cadmium-free batteries.
Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
Used batteries are hazardous waste and NOT to be disposed of with the household waste!!! Return the batteries to your dealer or to
collection points in your community.
Keep batteries away from children. Children might swallow batteries. Contact a physician immediately if a battery was swallowed.
Check your batteries regularly to avoid battery leakage.
ENVIRONMENTAL PROTECTION
Do not dispose of this product with the normal household waste at the end
of its life cycle. Return it to a collection point for the recycling of electrical
and electronic devices. This is indicated by the symbol on the product,
user manual or packaging.

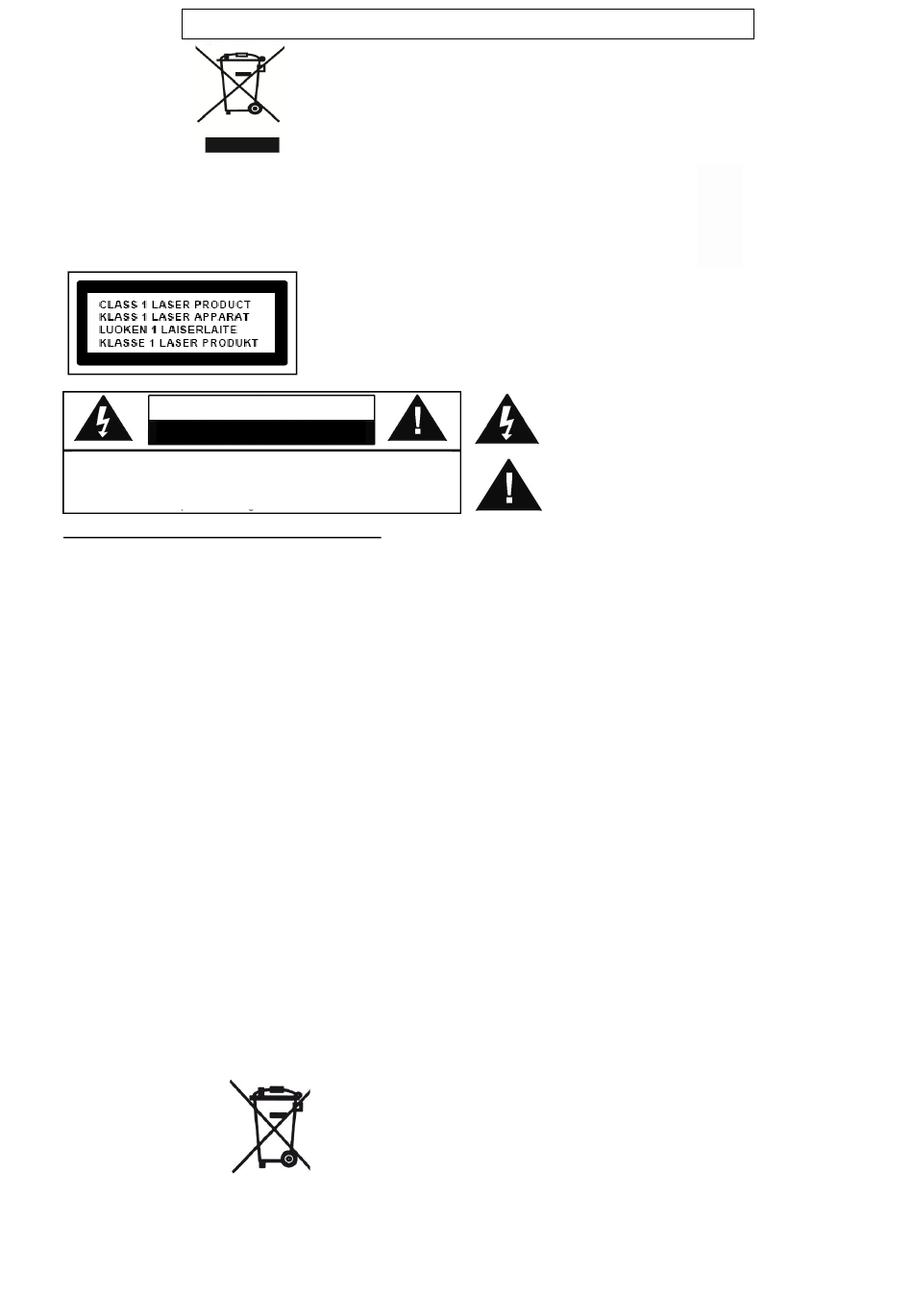

CAUTION - INVISIBLE LASER RADIATION WHEN OPENING THE COVER OR
PRESSING THE SAFETY INTERLOCK. AVOID EXPOSURE TO THE LASER BEAM.
Used batteries are hazardous waste and NOT to be disposed
of with the household waste! As a consumer you are legally
obligated to return all batteries for environmentally responsible
recycling – no matter whether or not the batteries contain harmful
substances*).
Return batteries free of charge to public collection points in your
community or to shops selling batteries of the respective kind.
Only return fully discharged batteries.
*) marked Cd = cadmium, Hg = mercury, Pb = lead
This symbol indicates the presence of dangerous
voltage inside the enclosure, sufficient enough to
cause electric shock.
This symbol indicates the presence of important
operating and maintenance instructions for the
device.

Advertisement

loading
Need help?

Need help?

Do you have a question about the UR2170v2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

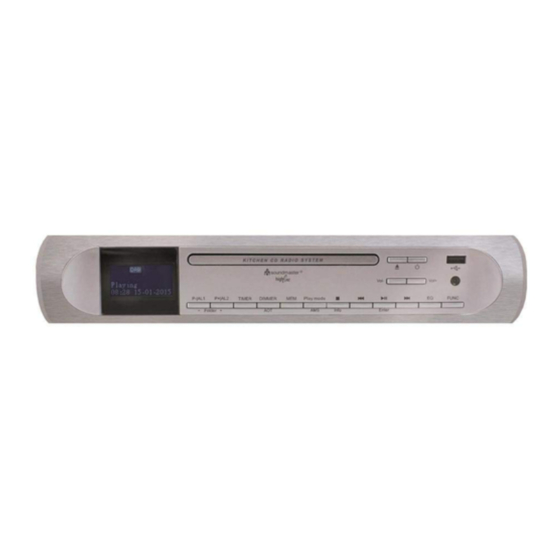

Summary of Contents for SOUNDMASTER UR2170v2

  • Page 1 ENVIRONMENTAL PROTECTION Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging.
  • Page 2: General Description

    UR2170 / English Instruction Manual General Description • DAB/FM Digital Tuning System (20DAB+20FM Preset Stations by manual) • AMS function (Automatic Memory System) (30DAB+30FM Preset Stations) • RDS feature provide radio station name display & automatic time up-date • CD|MP3|WMA and USB playback function provided •...
  • Page 3: Assembly Drawing

    UR2170 / English Instruction Manual Assembly Drawing Install the unit as below 3 steps: 1) Place the mounting/drill template under the cabinet with tape, so the unit will be located where you want to and drill four holes with diameter 1/16 inch drill bit. 2) Fasten the screw as the above drawing with supplied Spacer+ mounting bracket+ long screw or mounting bracket + short screw 3) Buckle the unit to the mounting bracket...
  • Page 4 UR2170 / English Instruction Manual Key List K-1. Power: Device power On | Off K-2. Open : Control of CD tray to open or close K-3. UPP | FF: Tune K-3.▌►►| Radio station and forward of CD playback at that mode Tune ◄◄▐...
  • Page 5 UR2170 / English Instruction Manual Setup Device When Auto-Run Mode, Press <INFO> once will entry to setting mode, the LCD display should be show as below: Use <▌►►> or <◄◄▐> go to different mode sequentially as below Device running as auto-run Set Clock Set the Calendar Set the SDA...
  • Page 6 UR2170 / English Instruction Manual Setup Calendar Press <▌►►> or <◄◄▐> to select 'Set Calendar' when set menu mode. • Press <Enter> to setup value of calendar. • Press <▌►►> or <>◄◄▐ to set value of dates. • Press <enter> to Confirm date value and enter to month selection, display show as •...
  • Page 7 UR2170 / English Instruction Manual Press <▌►►> or <◄◄▐> to set value of month. • Press <enter> to Confirm month and enter set year mode. • Press <▌►►> or <◄◄▐> to set value of year. • Press <enter> to Confirm year and return to set menu. •...
  • Page 8 UR2170 / English Instruction Manual Press <▌►►> or <◄◄▐> to set value of hour for alarm • Press <enter> to confirm selected hour value and enter to select output of alarm active: • there are five kinds of choices, it is respectively as table 1 •...
  • Page 9: Using Device

    UR2170 / English Instruction Manual Press <▌►►> or <◄◄▐> to select ON or OFF. Default is On Press <enter> to Confirm selection and return to set up menu. When you choose On, the default back light automatically set to dim from 23:00 to 05:59 When you choose Off, the device won’t dim the back light automatically.
  • Page 10 UR2170 / English Instruction Manual Listen the radio DAB Press <Power> once to turn on the radio. • Press <FUNC> to select device work mode to DAB • Electronic Volume Control • Press <VOL+ > once, to increase speaker volume by one step. Hold for continually.
  • Page 11 UR2170 / English Instruction Manual Review the information of station • Press <info> to review information of station. There are Seven kinds of choices, it is respectively: 1. Station frequency and block number 2. Data rate 3. Station RSSI 4. Signal error Rate 5.
  • Page 12 UR2170 / English Instruction Manual How to set up station by AMS (Automatic Memory Setup) • Press and hold <AMS> for 2 seconds to active AMS mode. In this mode, the radio will automatically scan the radio station and store the station that had been scanned until scan all the frequency or stored all the memory station, it will exit automatically.
  • Page 13 UR2170 / English Instruction Manual Press “Play mode” to select play back mode as “rep one”, “rep all” or “random” Press and hold “▌►► ” to fast speed forward, press once to next track Press and hold “◄◄▐ ” to Fast speed rewind, press once back to previously track. Press folder <▌►►>...
  • Page 14 UR2170 / English Instruction Manual Using AOT (Automatic OFF Timer) The function let user setup a onetime timer to let device automatic power off Press <AOT> once to active AOT function, if device stay on the standby, will turn on the device.
  • Page 15: Technical Data

    UR2170 / English Instruction Manual Remote control: Key Mark Function Device power On | Off EQ(Flat | Rock | Classic | Jazz | Pop) VOL- Volume decrease VOL+ Volume increase REPEAT Select play mode of rep one/rep all/random for CD/USB Tune down Radio Station and backward of CD/USB play back at that mode Play &...
