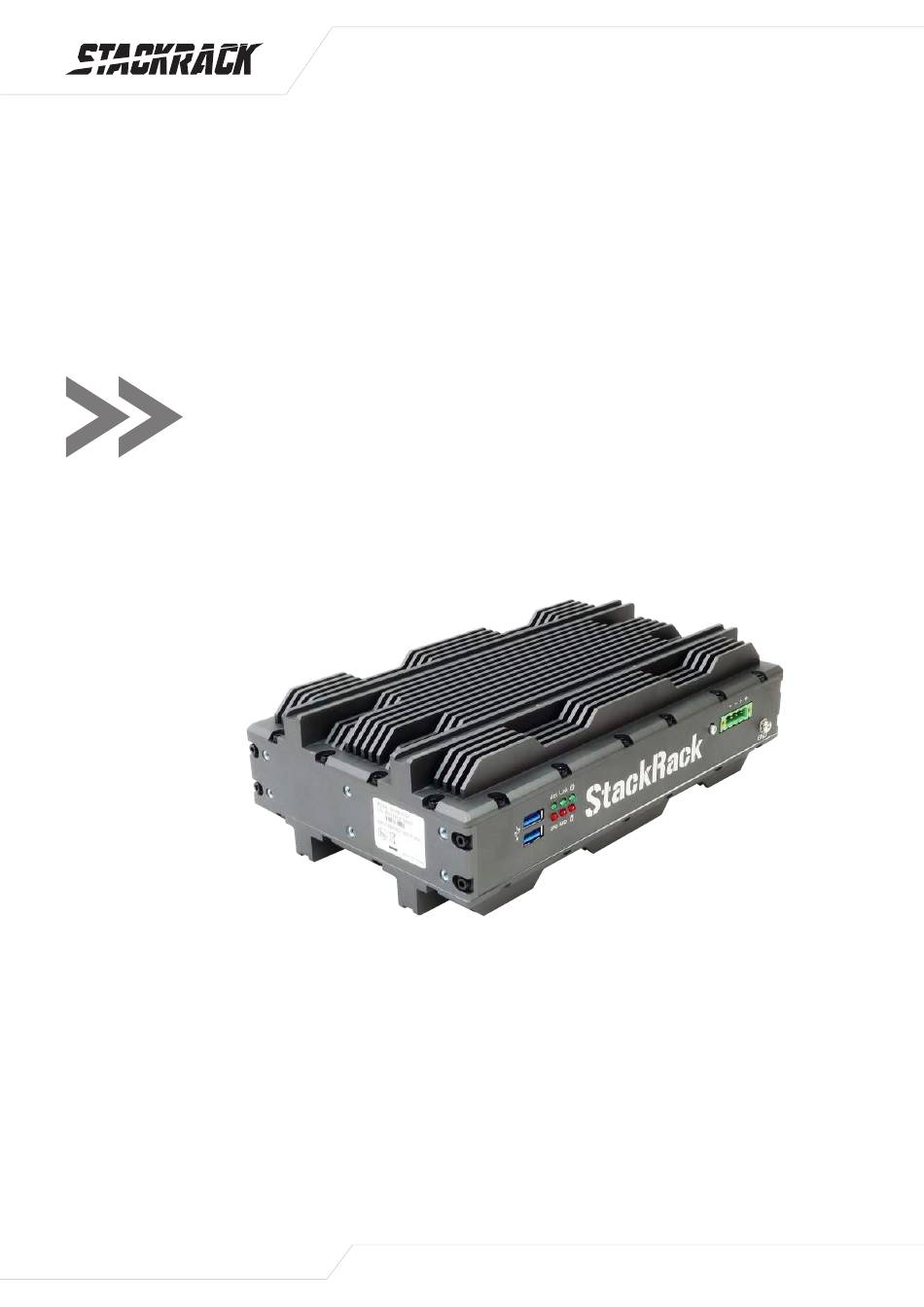

SR100
MIL-STD Rugged Computer
User's Manual
WWW.STACKRACK.COM
MIL-STD Rugged Computer
User's Manual
Version 1.1
Revision Date: AUG.22, 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR100 and is the answer not in the manual?

Questions and answers

Related Manuals for Stackrack SR100

Summary of Contents for Stackrack SR100

  • Page 1 MIL-STD Rugged Computer Version 1.1 User’s Manual Revision Date: AUG.22, 2016 SR100 MIL-STD Rugged Computer User’s Manual WWW.STACKRACK.COM...

  • Page 2: Safety Information

     All rights reserved. No part of this publication may be reproduced in any form or by any means, without prior written permission from the publisher.  All trademarks are the properties of the respective owners.  All product specifications are subject to change without prior notice WWW.STACKRACK.COM...

  • Page 3: Revision History

    Initial release V1.1 2016/08/22 Photo update Packing list □ SR100 MIL-STD Rugged Computer □ XR-DIMM up to 8 GB RAM optional Accessories Kit □ Terminal block 4 PIN x 1pcs □ CD (Driver + User’s Manual) If any of the above items is damaged or missing, please contact your local distributor.

  • Page 4: Table Of Contents

    MCARD1: Mini PCIE Card Slot<COLAY M SATA> .................... 14 JV2,3: COM1 RS232/422/485 jumper setting ....................14 JV4: COM1 RS422/485 receiver termination ....................15 JP12: COM1P9SEL pin function select ......................15 CHAPTER 3: AMI BIOS UTILITY ........................... 16 3.1 S ................................. 16 TARTING WWW.STACKRACK.COM...
  • Page 5 USB Configuration ............................. 47 PCH Azalia Configuration.......................... 47 3.5.2 System AGENT SA ..........................48 Graphics Configuration ..........................49 LCD Control ............................49 Memory Configuration..........................49 GT- Power Management Control ......................49 3.6 B ................................50 CSM16 Parameters ............................ 51 WWW.STACKRACK.COM...
  • Page 6 MIL-STD Rugged Computer Version 1.1 User’s Manual Revision Date: AUG.22, 2016 3.7 S ................................51 ECURITY 3.8 S ..............................52 AVE AND WWW.STACKRACK.COM...

  • Page 7: Chapter 1: Product Introduction

    Standards and Certifications MIL-STD-810G Test Method 507.5, Procedure II (Temperature & Humidity) Method 514.6, Procedure I (Category 20 & 24, Vibration) Method 516.6, Procedure I (Mechanical Shock) Method 501.5, Procedure I (Storage/High Temperature) Method 501.5, Procedure II (Operation/High Temperature) WWW.STACKRACK.COM...
  • Page 8 User’s Manual Revision Date: AUG.22, 2016 Method 502.5, Procedure I (Storage/Low Temperature) Method 502.5, Procedure II (Operation/Low Temperature) Method 503.5, Procedure I (Temperature shock) CE and FCC compliance Green Product RoHS, WEEE compliance *Specifications are subject to change without notice* WWW.STACKRACK.COM...

  • Page 9: Front Panel Components

    Power Input (9~36V DC in) Grounding Screw 1.3 Back Panel Components Audio jack (1 x MIC, 1 x Line out) 2 x RJ45 LAN Port 2 x DisplayPort 1 x DVI-I 1 x RS232/422/485 with 5V/12V selectable 2 x USB 3.0 WWW.STACKRACK.COM...

  • Page 10: Mechanical Dimensions

    MIL-STD Rugged Computer Version 1.1 User’s Manual Revision Date: AUG.22, 2016 1.4 Mechanical Dimensions WWW.STACKRACK.COM...

  • Page 11: Chapter 2: Jumpers And Connectors Locations

    Light Dark Flash GREEN Link Un-link Activity 1000M 100M LED2: LAN2 LED STATUS LED2 Light Dark Flash GREEN Link Un-link Activity 1000M 100M LED3: POWER/HDD LED LED2 Light Dark Flash GREEN Power On Power Off HDD un-access HDD access WWW.STACKRACK.COM...

  • Page 12: Power Button

    MIL-STD Rugged Computer Version 1.1 User’s Manual Revision Date: AUG.22, 2016 POWER BUTTON Orange Backlight Blue Backlight Power Off Power On DC IN: DC Adapter Power Input PIN DEFINITION +VIN +VIN WWW.STACKRACK.COM...

  • Page 13: Rear Panel Connector Pin Definitions

    1 DPC_LANEP0 2 GND 3 DPC_LANEN0 4 DPC_LANEP1 5 GND 6 DPC_LANEN1 7 DPC_LANEP2 8 GND 9 DPC_LANEN2 10 DPC_LANEP3 11 GND 12 DPC_LANEN3 13 DDIC_DDC_AUX_SEL 14 GND 15 DPC_AUXP 16 GND 17 DPC_AUXN 18 DPC_DET 19 GND 20 DPC_PWR WWW.STACKRACK.COM...

  • Page 14: Dvi: Dvi-I

    RTS# CTS# RI# (Define by JP12) RI# (Define by JP12) RI# (Define by JP12) USB3.0 CN18: USB*2 LOWER USB UPPER USB PIN DEFINITION PIN DEFINITION USB_VCC0 USB_VCC1 USBD2- USBD3- USBD2+ USBD3+ USB_SSRX1N_C USB_SSRX2N_C USB_SSRX1P_C USB_SSRX2P_C USB3TN1 USB3TN2 USB3TP1 USB3TP2 WWW.STACKRACK.COM...

  • Page 15: Internal Connector And Jumper Setting

    PERp0 1.5V SMB_CLK PETn0 SMB_DATA PETp0 USB_D- USB_D+ +3.3VAUX +3.3VAUX LED_WWAN# LED_WLAN# Reserved LED_WPAN# Reserved 1.5V Reserved Reserved 3.3VAUX JV2,3: COM1 RS232/422/485 jumper setting Function Description Location 1 Loopback 2 RS232 (Default) 3 RS485 Half-Duplex 4 RS485/422 Full Duplex WWW.STACKRACK.COM...

  • Page 16: Jv4: Com1 Rs422/485 Receiver Termination

    MIL-STD Rugged Computer Version 1.1 User’s Manual Revision Date: AUG.22, 2016 JV4: COM1 RS422/485 receiver termination Jumper Function description Setting Disable RS422/485 receiver termination (default) Enable RS422/485receiver termination Default setting: 1-2 JP12: COM1P9SEL pin function select Jumper Function description Setting COM_RI(Default) WWW.STACKRACK.COM...

  • Page 17: Chapter 3: Ami Bios Utility

    The <F10> key saves any changes made and exits the BIOS setup utility. The <Esc> key discards any changes made and exits the BIOS setup utility. Enter The <Enter> key displays a sub-screen or changes a selected or highlighted option in each menu. WWW.STACKRACK.COM...

  • Page 18: Main Menu

    System Language: Choose the system default language. System Date: Set the date. Use Tab to switch between date elements. System Time: Set the time. Use Tab to switch between time elements. Access Level Displays the access level of the current user in the BIOS. WWW.STACKRACK.COM...

  • Page 19: Advanced Menu

    MIL-STD Rugged Computer Version 1.1 User’s Manual Revision Date: AUG.22, 2016 3.4 Advanced Menu This section allows you to configure and improve your system and allows you to set up some system features according to your preference. WWW.STACKRACK.COM...

  • Page 20: Pci Subsystem Settings

    ASPM Support: Set the ASPM level: Force L0s - Force all links to L0s state: AUTO - BIOS auto configure: DISABLE- Disables ASPM. WARNING: Enabling ASPM may cause some PCI-E devices to fail. Extended Synch: If ENBLED allows generation of extended synchronization patterns. WWW.STACKRACK.COM...

  • Page 21: Acpi Settings

    Warning: Enabling this may cause issues with other hardware after S3 resume. 3.4.2 ACPI Settings System ACPI Parameters. Enable ACPI Auto Configuration Enable/disable BIOS ACPI Auto Configuration. Enable Hibernation Enables or Disables system ability to hibernate (OS/S4 sleep state). This option may be not effective with some OS. WWW.STACKRACK.COM...

  • Page 22: Cpu Configuration

    Select ACPI sleep state the system will enter when the suspend button is pressed. Lock Legacy Resources Enable or disable lock of legacy resource. S3 Video Repost Enable or disable S3 Video Repost. 3.4.3 CPU configuration CPU Configuration Parameters. WWW.STACKRACK.COM...
  • Page 23 MIL-STD Rugged Computer Version 1.1 User’s Manual Revision Date: AUG.22, 2016 WWW.STACKRACK.COM...
  • Page 24 Intel Virtualization Technology When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology. Hardware Prefetcher Enable the mid level cache(L2) streamer prefetcher. Adjacent Cache Line Prefetcher Enable the mid level cache(L2) prefetching of adjacent cache lines. WWW.STACKRACK.COM...
  • Page 25 4-Core Ratio Limit: This limit is for 4 cores active. 0 means using the factory-configured value. VR Current value lock Locks VR Current value from further writes until a reset. VR Current value Voltage regulator current limit. 0 means AUTO. WWW.STACKRACK.COM...
  • Page 26 Allows reconfiguration of TDP levels base on current power and thermal delivery capabilities of the system. Configure TDP lock Lock the Config TDP control register. TCC activation offset Offset from the factory TCC activation temperature. Intel TXT(LT) Support Only Disable ACPI T state Enable/Disable ACPI T state support. WWW.STACKRACK.COM...

  • Page 27: Sata Configuration

    Lock CPU debug interface setting. IOUT OFFSET Sign 0 positive offset. 1 negative offset. IOUT OFFSET VR IOUT OFFSET configuration 0~625. IOUT SLOPE VR IOUT SLOPE configuration range 0~1023. 3.4.4 SATA Configuration This section is used to configure the SATA drives. WWW.STACKRACK.COM...
  • Page 28 Determines how SATA controller(s) operate. The options are: IDE, AHCI, RAID SATA Test Selection Enable or disable Test Mode Aggressive LPM Support Enable PCH to aggressively enter link power state. SATA Controller Speed Indicates the maximum speed the SATA controllers can support. The options are default, Gen1, Gen2, Gen3. WWW.STACKRACK.COM...

  • Page 29: Software Feature Mask Configuration

    External SATA: External SATA support. SATA device type: Identify the SATA port is connected to Solid State Drive or Hard Disk Drive. Spin Up Device: On an edge detec from 0 to 1, the PCH starts a COMRESET initialization sequence to the device. WWW.STACKRACK.COM...
  • Page 30 External SATA: External SATA support. SATA device type: Identify the SATA port is connected to Solid State Drive or Hard Disk Drive. Spin Up Device: On an edge detec from 0 to 1, the PCH starts a COMRESET initialization sequence to the device. WWW.STACKRACK.COM...

  • Page 31: Intel Rapid Start Technology

    MIL-STD Rugged Computer Version 1.1 User’s Manual Revision Date: AUG.22, 2016 3.4.5 Intel Rapid Start Technology Enable or disable Intel Rapid Start Technology 3.4.6 PCH-FW Configuration Configure Management Engine Technology Parameters. MDES BIOS Status Code Enable/Disable MDES BIOS Status Code. WWW.STACKRACK.COM...

  • Page 32: Firmware Update Configuration

    Disabling Intel AT allow user to login to platform. This is strictly for testing only. This does not disable Intel AT services in ME. Intel Anti-Theft Technology Enable/Disable Intel AT in BIOS for testing. On Enter Intel AT Suspend Mode Only Disabled WWW.STACKRACK.COM...

  • Page 33: Amt Configuration

    OEMFlag Bit 6: Hide Un-Configure ME without password Configuration prompt. MEBx Debug Message Output OEMFlag Bit 14: Enable MEBx debug message output. Un-Configure ME OEMFlag Bit 15: Un-Configure ME without password. Amt Wait Timer Set Timer to wait before sending ASF_GET_BOOT_OPTIONS. WWW.STACKRACK.COM...
  • Page 34 Set ME to Soft Temporary Disabled. Enable/Disable Alert Specification Format. Activate Remote Assistance Process Trigger CIRA boot. USB Configure Enable/Disable USB Configure function. PET Progress User can Enable/Disable PET Events progress to receive PET events or not. WatchDog Enable/Disable WatchDog Timer. WWW.STACKRACK.COM...

  • Page 35: Usb Configuration

    This is a workaround for OSes without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver. EHCI Hand-off This is a workaround for OSes without EHCI hand-off support. The EHCI ownership change should be claimed by EHCI driver. USB Mass Storage Driver Support Enable/Disable USB Mass Storage Driver Support. WWW.STACKRACK.COM...

  • Page 36: It8786 Super Io Configuration

    Change Settings: Select an optimal setting for Super IO device. Serial Port 2 Configuration Set Parameters of Serial Port 1 (COMB). Serial Port: Enable or Disable Serial Port (COM). Device Settings: IO=2F8h, IRQ=3 Change Settings: Select an optimal setting for Super IO device. WWW.STACKRACK.COM...

  • Page 37: Serial Port 3 Configuration

    Change Settings: Select an optimal setting for Super IO device. Serial Port 6 Configuration Set Parameters of Serial Port 5 (COMF). Serial Port: Enable or Disable Serial Port (COM). Device Settings: IO=2E0h, IRQ=7 Change Settings: Select an optimal setting for Super IO device. WWW.STACKRACK.COM...

  • Page 38: It8786 Hw Monitor

    MIL-STD Rugged Computer Version 1.1 User’s Manual Revision Date: AUG.22, 2016 3.4.11 IT8786 HW Monitor Monitor hardware status. 3.4.12 Serial Port Console Redirection Console Redirection Console Redirection Enable or Disable. WWW.STACKRACK.COM...

  • Page 39: Console Redirection Setting

    “star” signal can be sent to re-start the flow. Hardware flow control uses two wires to send start/stop signals. The options are None, Hardware RTS/CTS, Software Xon/xoff Data bits: 8 Parity: None Stop bits: 1 3.4.13 Network Stack Network stack settings Network Stack Enable/Disable UEFI network stack WWW.STACKRACK.COM...

  • Page 40: Intel I210 Gigabit Network Connection

    NIC Configuration: Configure Boot Protocol, wake on LAN, Link Speed, and VLAN. Blink LEDs: Identify the physical network port by blinking the associated LED. PORT CONFIGURATION INFORMATION Link Status: Link Status. Virtual MAC Address: Programmatically assignable MAC address for port. WWW.STACKRACK.COM...

  • Page 41: Chipset

    User’s Manual Revision Date: AUG.22, 2016 3.5 Chipset This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources. 3.5.1 PCH IO configuration WWW.STACKRACK.COM...

  • Page 42: Pci Express Configuration

    Reserved I/O: Reserved I/O (4K/8K/12K/16K/…/48K) Range for this Root Bridge. PCIE LTR: PCIE Latency Reporting Enable/Disable. PCIE LTR Lock: PCIE LTR configuration lock. Snoop Latency Ocerride: Snoop Latency Ocerride for PCH PCIE. Non Snoop Latency Ocerride: Non Snoop Latency Ocerride for PCH PCIE. WWW.STACKRACK.COM...

  • Page 43: Pci Express Root Port2

    Reserved I/O: Reserved I/O (4K/8K/12K/16K/…/48K) Range for this Root Bridge. PCIE LTR: PCIE Latency Reporting Enable/Disable. PCIE LTR Lock: PCIE LTR configuration lock. Snoop Latency Ocerride: Snoop Latency Ocerride for PCH PCIE. Non Snoop Latency Ocerride: Non Snoop Latency Ocerride for PCH PCIE. WWW.STACKRACK.COM...

  • Page 44: Pci Express Root Port3

    Reserved I/O: Reserved I/O (4K/8K/12K/16K/…/48K) Range for this Root Bridge. PCIE LTR: PCIE Latency Reporting Enable/Disable. PCIE LTR Lock: PCIE LTR Configuration Lock. Snoop Latency Ocerride: Snoop Latency Ocerride for PCH PCIE. Non Snoop Latency Ocerride: Non Snoop Latency Ocerride for PCH PCIE. WWW.STACKRACK.COM...

  • Page 45: Pci Port 4 Is Assigned To Lan

    Reserved I/O: Reserved I/O (4K/8K/12K/16K/…/48K) Range for this Root Bridge. PCIE LTR: PCIE Latency Reporting Enable/Disable. PCIE LTR Lock: PCIE LTR Configuration Lock. Snoop Latency Ocerride: Snoop Latency Ocerride for PCH PCIE. Non Snoop Latency Ocerride: Non Snoop Latency Ocerride for PCH PCIE. WWW.STACKRACK.COM...

  • Page 46: Pci Express Root Port6

    Reserved I/O: Reserved I/O (4K/8K/12K/16K/…/48K) Range for this Root Bridge. PCIE LTR: PCIE Latency Reporting Enable/Disable. PCIE LTR Lock: PCIE LTR Configuration Lock. Snoop Latency Ocerride: Snoop Latency Ocerride for PCH PCIE. Non Snoop Latency Ocerride: Non Snoop Latency Ocerride for PCH PCIE. WWW.STACKRACK.COM...

  • Page 47: Pci Express Root Port7

    Reserved I/O: Reserved I/O (4K/8K/12K/16K/…/48K) Range for this Root Bridge. PCIE LTR: PCIE Latency Reporting Enable/Disable. PCIE LTR Lock: PCIE LTR Configuration Lock. Snoop Latency Ocerride: Snoop Latency Ocerride for PCH PCIE. Non Snoop Latency Ocerride: Non Snoop Latency Ocerride for PCH PCIE. WWW.STACKRACK.COM...

  • Page 48: Pci Express Root Port8

    Enable or disable onboard NIC. Wake on LAN: Enable or disable integrated LAN to wake the system. (The Wake On LAN cannot be disabled if ME is on at Sx state.) SLP_LAN# Low on DC Power: Enable/Disable SLP_LAN# Low on DC Power. WWW.STACKRACK.COM...

  • Page 49: System Agent Sa

    Configure Serial IRQ Mode. SLP_S4 Assertion Width Select a minimum assertion width of the SLP_S4# signal. Port 80h Redirection Control where the Port 80h cycles are sent. 3.5.2 System AGENT SA VT-d Check to enable VT-d function on MCH. WWW.STACKRACK.COM...

  • Page 50: Graphics Configuration

    Max TOLUD: Maximum Value of TOLUD. Dynamic assignment would adjust TOLUD automatically based on largest MMIO length of installed graphic controller. GT- Power Management Control RC6 (render standby): check to enable render standby support. GT OverClocking Support: enable or disable GT overclocking support WWW.STACKRACK.COM...

  • Page 51: Boot

    Enables or disables boot with initialization of a minimal set of devices required to launch active boot option. Has no effect for BBS boot options. Boot option priorities Boot Option #1: Sets the system boot order. Hard Drive BBS Priorities Set the order of the legacy devices in this group WWW.STACKRACK.COM...

  • Page 52: Csm16 Parameters

    POSTPONES-execute the trap during legacy boot. CSM Parameters OpROM execution, boot options filter, etc. 3.7 Security Use the Security Menu to establish system passwords Administrator Password Set Administartor Password. User Password Set User Password. HDD Security Configuration Set HDD Password. WWW.STACKRACK.COM...
  • Page 53 Save Changes: Save Changes done so far to any of the setup options. Discard Changes: Discard Changes done so far to any of the setup options. Restore Defaults Restore/Load Default values for all the setup options. Save as User Defaults Save the changes done so far as User Defaults. WWW.STACKRACK.COM...
  • Page 54 Version 1.1 User’s Manual Revision Date: AUG.22, 2016 Restore user Defaults Restore the User Defaults to all the setup options. Launch EFI Shell from filesystem device Attempts to launch EFI Shell application (Shellx64.efi) from one of the available filesystem devices. WWW.STACKRACK.COM...
