K3 and KT3
1 2 O
o
K3 & KT3 STEAM BATH CONTROLS
FOR USE WITH AMEREC
AK STEAM GENERATORS
FOR THE SAFETY OF YOU AND YOUR FAMILY PLEASE READ THE WARNINGS TO
THE RIGHT AND ALL INSTRUCTIONS BEFORE USING YOUR STEAMBATH.
POST "WARNING" LABEL OUTSIDE STEAMBATH FOR SAFETY WARNINGS.
REQUIRED POSTING ON DOOR OF STEAM ROOM OR ADJACENT TO DOOR FOR
ALL COMMERCIAL INSTALLATIONS.
Thank you for purchasing your new AMEREC steam generator. If we can be of any assistance do not hesitate
to call our Service Department at 1-800-363-0251 or 1-320-286-3500.
SECTION 1: USING THE K3/KT3 WITH An AMEREC GENERATOR

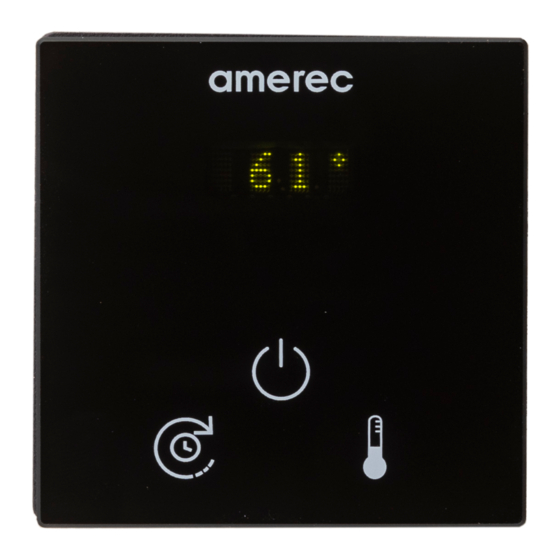

The K3 and KT3 controls provide automatic temperature control with AK steam generators. These
controls allow the user to set steam bath time and to adjust the bath operating temperature.
Note: For a temperature controlled steam bath, the AK generator requires either a KT3 with built
in temperature sensor or a K3 with separate temperature sensor. Another K3 may be added to
allow two controls for a steam bath, such as one inside the room and one outside, but if a KT3 is
installed it must be inside the steam room. A maximum of two controls may be installed.
1. Ensure that both the power circuit and water supply to the generator are ON.
2. To activate the steam, press the K3 (or KT3) control's On/Off switch. In 10 to 20 minutes
the room should be comfortable enough to begin taking a steam bath. The unit will turn off
automatically in 30 minutes. Note: other bath times and temperature may be set by the user.
3. Remove clothing and jewelry.
4. Enter the steam room and close the door to prevent steam from escaping.
5. Relax and enjoy the warm steam releasing tense muscles and refreshing the entire body. The
average time spent taking a steam bath is approximately 10 minutes
6. Pressing the control's on/off switch while the steam generator is operating will shut it off.
7. If your steam room has a shower, a pleasant experience can be achieved by taking a warm
shower while in the steam. You will find the contrast from water to steam quite invigorating.
4209-42 08/06/21
K3 and KT3 OWNER'S MANUAL
SAVE THIS MANUAL
Technical support: 1-320-286-3500
AK STEAM GENERATOR
1-800-363-0251
WARNING
Electrical grounding is required
on all Steam Generators.
All electrical supplies should be
disconnected when servicing a
Steam Generator.
All wiring must be installed by a
licensed electrical contractor in
accordance with local and
national codes.
All plumbing must be installed
by a licensed plumber in
accordance with all applicable
local and national codes.
Steamers are for indoor use only.
Steamers are not for
space-heating purposes.
Be certain that steam bath
enclosures are properly sealed
to avoid water damage from
escaping steam. It is
recommended that 100%
silicone caulk be used to seal
all pipes and fittings. Steam
must be prevented from
escaping into the wall cavity.
Never shut off the water to an
appliance that is in use.
Electric Shock Hazard
High Voltage exists within this equipment.
There are no user serviceable parts
in this equipment.
WA RNING
REDUCE THE RISK OF
OVERHEA TING AND SCALDING
1. Exit immediately if uncom fortable, dizzy or slee py. St aying too long in
a heated area is capa
ble of causing overheating.
2. Supe rvise children at all tim es .
3. Chec k with a doctor be fore use if pregnant, diabetic , in poor health or
under medical car e.
4. Breathing heated air in conjunction with consumption of alcohol, dr
or medication is capa ble of causing unconsciousnes s.
CA UTION!
Do not contact steam head . St ay at least 12" away
from hot steam escaping from the steam outlet.
REDUCE THE RISK OF
SLIPPING AND F
ALL INJU RY
Use care when enter ing or exiting the steam room, floor ma y be slippe ry.
NO TE : Fo r additional sa fety instr uctions, see owner's manual .
05-21-07
4110-79
support@amerec.com
ugs
Page 1
Advertisement
Table of Contents
Related Manuals for Amerec K3
Summary of Contents for Amerec K3
- Page 1 Never shut off the water to an appliance that is in use. Thank you for purchasing your new AMEREC steam generator. If we can be of any assistance do not hesitate to call our Service Department at 1-800-363-0251 or 1-320-286-3500.
- Page 2 K3 and KT3 OWNER'S MANUAL IMPORTANT SAFETY INSTRUCTIONS 1. READ AND FOLLOW ALL INSTRUCTIONS. 2. WARNING - To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times. 3. WARNING - To reduce the risk of injury: a.
- Page 3 Either control my be used to control the steam bath. If a K3 is installed without a KT3: The K3 control may be mounted inside or outside the steam room, approximately 4 feet up from the floor. A second K3 control may be installed so one is inside and the other outside the steam room.
- Page 4 KT3. 4. OPTIONAL SECONDARY CONTROL : As an option, a second K3 control may be installed with a K3 or KT3 to provide controls both inside and outside the steam room. The second control should be installed as described in above, with the second K3 control cable plugged into the second S60 connector.
- Page 5 The troubleshooting guide is meant as a general aid only. There are no user serviceable parts in the generator. All repairs should be performed by a qualified service person. For additional assistance or the factory authorized service person nearest you, call: AMEREC's Service Department at 1-800-363-0251.
- Page 6 K3 and KT3 OWNER'S MANUAL SECTION 5: MAINTENANCE OF YOUR AK STEAM GENERATOR The steam generator, steam head, fittings and plumbing connections should be inspected regularly for water leaks and damage. The AK steam generator is supplied with a manual drain valve for flushing sediments from the generator tank; an optional automatic electronic drain is available as an option. The autodrain option drains and rinses the bath after each use.
