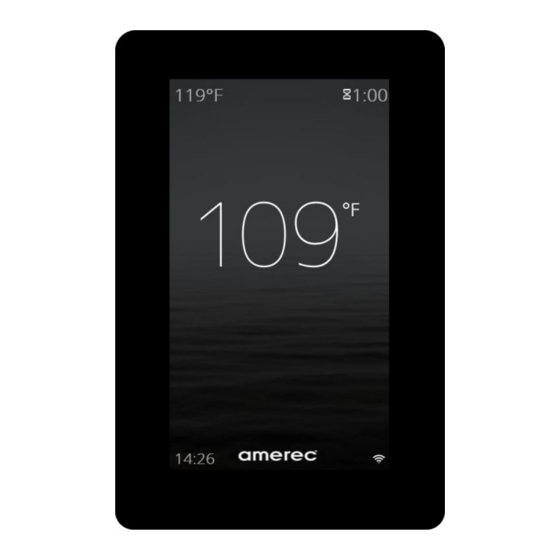

Amerec's Elite control for the AX steamer
to be mounted on a wall, generally in or near the steam bath and mounted directly on the
wall surface.
Using the Elite, you set or adjust the steam bath time and temperature, control options
such as lights and fragrance pumps, and use Warm Start (if installed) to keep the
steamer's water hot between baths so it produces steam more quickly when the bath is
started. Delayed start and calendar start settings allow you to have a steam bath ready
to use in a few hours or on a regular schedule. Favorites save your preferred settings for
later use. WiFi apps give you wireless control from your Android phone and iPhone or
while using a PC. You can even prevent the steam room from being used during certain
time periods.
Intelligent steam control learns how long it should take your room to reach a comfortable steam bath temperature
then adds this time to your delayed starts so you set when you want to start your steam bath and the bath will be
up to temperature and ready when you are.
You may use 1 to 3 controls with an AX steamer, such as 1 or 2 Elite controls + a Pure 2.0.
To reduce the risk of damage to the steamer or controls and to ensure the controls connect properly with the
steamer, always turn power off to the steamer before connecting or disconnecting a control. Most control settings
changed on one control will also be set the same for any other controls connected. Some settings, such as PIN,
Temperature (°F or °C), Time and Date formats, and Language used, will affect only the control they used to set
them.
Note: The Elite control comes with "haptic feedback" which causes the control to vibrate and buzz when you touch
the screen. You can turn this on or off using the Tools menu.
Index
Section
Navigation
Turning Things On and Off
Start Up
Initial Set Up – Tools Menus
Options
Favorites
WiFi
Apps
Available Languages in the Elite
Warm Start: Is It Installed?
Mounting the Control
Note: These instructions will mostly use light colored display for clarity. The Elite's displays are black with grey
markings (except the on/off pads on the Home screen).
4211-1460 08/21/19
ELITE OPERATING INSTRUCTIONS
General
Limits
Additional Settings
System
is a touch screen control intended
4211-1460
Page
2
2
3
4
4
5
5
5
6
7
8
8
9
9
10
Page 1 of 10
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amerec Elite
Summary of Contents for Amerec Elite
- Page 1 You may use 1 to 3 controls with an AX steamer, such as 1 or 2 Elite controls + a Pure 2.0. To reduce the risk of damage to the steamer or controls and to ensure the controls connect properly with the steamer, always turn power off to the steamer before connecting or disconnecting a control.
- Page 2 ELITE OPERATING INSTRUCTIONS Navigating the Elite Some indicators are used while navigating and setting the control. These are light grey when their screen or menus are in view, dark gray when they are not in use. The Home button: touch this to return to the main screen. Here you will see the current temperature in the steam room, the bath temperature setting, the remaining bath time (if any) and the time of day.
- Page 3 The first time your Elite is turned on, it will need some information loaded and some settings changed. When the power is first turned on, the steamer will take about 30 seconds to start operating before the Elite is turned on. The Elite screen will then light and display the amerec logo, then change to a lit screen with spinning circle showing while it loads its own software.
-
Page 4: Initial Setup
Initial Set-up Once you are ready to use your Elite, there are a few things you need to set up. You’ll want to set the normal bath time, the bath temperature, set the temperature readings for °C or °F, turn a few options on or off, and maybe set an access code. - Page 5 ELITE OPERATING INSTRUCTIONS Limits menus To set the maximum allowed bath temperature, select Bath temperature. This lets you limit the temperature anyone can set the bath to (no more than 125°F by default). For instance, if you have someone in the family who is sensitive to heat, you may set the limit to 115°F so they cannot accidentally set the bath too hot.
- Page 6 ELITE OPERATING INSTRUCTIONS Options Go to Options to set up various options available for use with you steamer. Your AX steamer comes with two options automatically loaded: a room light which always light during the steam bath and remains on for 10 minutes after the bath stops (or can be manually turned on and off) and a dedicated fan control (set-up previously in the Systems menus).
- Page 7 This will save the bath temperature and time and the options you want turned on for you bath. The Elite will let you save a total of eight favorites When you have your bath set up the way you like it, go to the Settings screen then select Save as favorite.
- Page 8 Make sure the Auto connect switch is still enabled (green) then return to the previous screen and make sure WiFi is still enabled. Note: in this screen you can check to see all of the apps and Elite controls which are connected to your system.
- Page 9 Slavic Finnish Swedish Warm Start: Is It Installed? If you enable Warm Start on the Elite and you get a steam tank temperature error when you try to turn on Warm Start for the first time (see Turning Things On on page 2), you’ll need to remove the cover...
-
Page 10: Mounting The Control
If the surface is uneven or has grout lines, we recommend using a small amount of silicone to mount the Elite control. If using silicone, run a bead around the control’s cable end and another bead around the back of the control as shown here. Then tape in place on the wall until the sili- cone has set up.
