USER MANUAL
ENGLISH

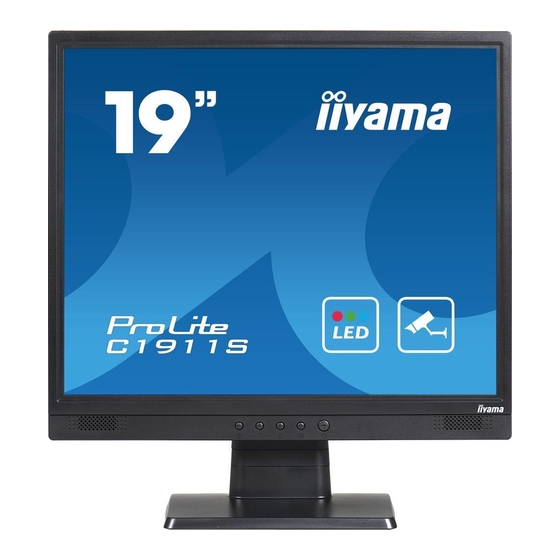

Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes
to read this comprehensive manual carefully
before installing and switching on the monitor.
Please keep this manual in a safe place for
your future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProLite C1911S-B3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Iiyama ProLite C1911S-B3

  • Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
  • Page 3: Table Of Contents

    IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com...
  • Page 4: For Your Safety

    Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage.
  • Page 5 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
  • Page 6: Special Notes On Lcd Monitors

    Power Switch for some hours.  Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, fl ickering or not lighting up. Never attempt to replace it by yourself.
  • Page 7: Before You Operate The Monitor

    CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce.
  • Page 8: Fitting And Removal Of Base

    FITTING AND REMOVAL OF BASE  Install the stand on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped.  Do not give a strong impact to the monitor. It may cause damage. ...
  • Page 9: Controls And Connectors

    CONTROLS AND CONNECTORS <Front> <Back> Power Switch ( Power Indicator Blue: Power is ON. NOTE Orange: Power is OFF. Input Select / Select Button ( Scroll Up Button ( Scroll Down Button ( Menu / Exit Button ( Speakers Audio input Connector (AUDIO IN L/R) Video output Connector (AV2 OUT) Video output Connector (AV1 OUT) Video input Connector (AV2 IN)
  • Page 10: Connecting Your Monitor

    * VGA (D-Sub) cable is not supplied with the monitor; you need to use a special VGA (D-Sub) cable dedicated for this model. Please contact the iiyama Support Centre in your country if you wish to connect the monitor via the VGA input.
  • Page 11: Computer Setting

    COMPUTER SETTING  Signal Timing Change to the desired signal timing listed on page 19: COMPLIANT TIMING. ADJUSTING THE VIEWING ANGLE  For optimal viewing it is recommended to look at the full face of the monitor.  Hold the stand so that the monitor does not topple when you change the monitor’s angle.
  • Page 12: Operating The Monitor

    OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 19. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 14 for SCREEN ADJUSTMENTS.
  • Page 13: Adjustment Menu Contents

    ADJUSTMENT MENU CONTENTS Picture Pic ture B r ight ne s s C o n t r a s t Colour Tint Sha rpnes s C ol our Te mp. N o r m a l Exit S e l e c t Pag e Adjustment Item Problem / Option...
  • Page 14 Sound Sound B a s s Tr eble B a l a n c e Volum e A udio Sourc e Al l Exit S e l e c t P ag e Adjustment Item Problem / Option Button to Press Too weak Bass Too strong...
  • Page 15 Option Option OSD La ngua ge English OSD Time Out 2 0 s e c AV Swit ch Auto Off No Signal Off Loop Through R e s e t Exit S e l e c t Pag e Adjustment Item Problem / Option Button to Press English...
  • Page 16 Only PC Input A ut o H-Position V-Position C loc k Pha se Exit S e l e c t P a ge Adjustment Item Problem / Option Button to Press Auto* Adjust H / V-Position, Clock and Phase automatically. Too left H-Position Too right...
  • Page 17: Screen Adjustments

    If the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama.com). Adjust the image by following the procedure below to get the desired picture.
  • Page 18 Auto Adjust. Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. Adjust the V-Position so that the top and bottom of the picture frame will fi t to the display area.
  • Page 19 Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern.  In case the strong fl icker or blurs remain on a part of the screen, repeat steps NOTE because the Clock may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from again.
  • Page 20: Trouble Shooting

    MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem...
  • Page 21: Appendix

    APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS Size Category 19" LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 19" (48cm) Pixel pitch 0.294mm H × 0.294mm V Brightness 250cd/m (Typical) Contrast ratio 1000 : 1 (Typical) Viewable angle Right / Left : 85 degrees each, Up / Down : 80 degrees each (Typical)
  • Page 22: Dimensions

    DIMENSIONS 407.0mm/16.0" 378.5mm/14.9" 70.5mm/2.8" COMPLIANT TIMING PC Input Horizontal Vertical Dot Clock Video Mode Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 640 × 480 37.500kHz 75.000Hz 31.500MHz 37.879kHz 60.317Hz 40.000MHz SVGA 800 × 600 46.875kHz 75.000Hz 49.500MHz 48.363kHz 60.004Hz 65.000MHz VESA 1024 × 768 60.023kHz 75.029Hz 78.750MHz...
