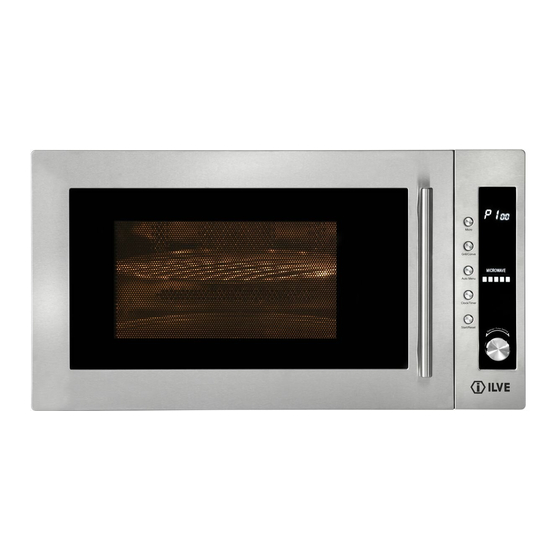

Summary of Contents for ILVE IVFSCM34X
- Page 1 31 Litre Electronic Microwave Owner s Instruction Manual IVFSCM34X Read the Instructions carefully and Keep for Future Reference...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When Using Electrical Appliance Basic Safety Precautions Should Be Followed, Including The Following: Warning: To Reduce The Risk Of Burns, Electric Shock, Fire, Injury To Persons Or Exposure To Excessive Microwave Energy: 1.Read All Instructions Before Using The Appli- ance. - Page 3 6.Warning: Only Allow Children To Use The Oven Without Supervision When Adequate Instructions Have Been Given So That The Child Is Able To Use The Oven In A Safe Way And Understands The Hazards Of Improper Use. 7.To Reduce The Risk Of Fire In The Oven Cavity: A.When Heating Food In Plastic Or Paper Con- tainer, Keep An Eye On The Oven Due To The...
- Page 4 11.Eggs In Their Shell And Whole Hard-boiled Eggs Should Not Be Heated In Microwave Ovens Since They May Explode Even After Mi- crowave Heating Has Ended. 12.Pierce Foods With Heavy Skins Such As Po- tatoes, Whole Squashes, Apples And Chestnuts Before Cooking.
- Page 5 In The Form Of Electromagnetic Radiation For The Treatment Of Material, And Spark Erosion Equipment. For Class B Equipment Is Equipment Suitable For Use In Domestic Establishments And In Establishments Directly Connected To A Low Voltage Power Supply Network Which Sup- plies Buildings Used For Domestic Purpose.
- Page 6 24.The Door Or The Outer Surface May Get Hot When The Appliance Is Operating. 25.The Temperature Of Accessible Surfaces May Be High When The Appliance Is Operating. 26.The Appliance Shall Be Placed Against A Wall. 27.Appliance Is Not To Be Used By Children Or Persons With Reduced Physical, Sensory Or Mental Capabilities, Or Lack Of Experience And Knowledge, Unless They Have Been Given Su-...
- Page 7 34.Caution: It Is Dangerous To Repair Or Main- tain The Appliance By No Other Than A Special- ist Because Under These Circumstances The Cover Have To Be Removed Which Assures Pro- tection Against Microwave Radiation. This Ap- plies To Changing The Power Cord Or The Light- ing As Well.
- Page 8 CAUTION: Hot surface. This appliance can be used by children aged from 8 years and above and persons with reducted Physical,sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction con- cerning use of the appliance in a safe way and understand the hazards involved.Children shall not play with the appliance.Cleaning and user maintenance shall not be made by children...
-
Page 9: Before You Call For Service
SPECIFICATIONS Power consumption: 240V~50Hz,1450W Output: 900W Grill Heater: 1200W Convection: 1350W Operating Frequency: 2,450MHz Outside Dimensions: 520mm(W) X 530mm(D) X 300mm(H) Oven Cavity Dimensions: 350mm(W) X 372mm(D) X 232mm(H) Oven Capacity: 31 litres Uncrated Weight: Approx. 18.5kg BEFORE YOU CALL FOR SERVICE 1. - Page 10 INSTALLATION 1. Make sure all the packing materials are removed from 3. This Microwave Oven weighs 18.5 kg and must be the inside of the door. placed on a horizontal surface strong enough to support this weight. 2. Inspect the oven after unpacking for any visual 4.
- Page 11 IMPORTANT SAFETY INSTRUCTIONS -WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function) -WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;...
-
Page 12: Feature Diagram
6. Do not insert any object into the openings on the outer removed from the oven, please remember that case. the food/liquid inside will be releasing the same 7. Do not at any time remove parts from the oven such as amount of steam and/or spitting when the lid is the feet, coupling, screws, etc. - Page 15 Weight Menu (kg) Reheat Meat Potato Pizza Fish Chicken Touching Times 0.20 0.10 0.20 0.15 0.30 0.20 0.40 0.20 0.40 0.25 0.60 0.25 0.50 0.30 0.80 0.30 0.60 0.35 1.00 0.35 0.70 0.40 1.20 0.40 0.90 0.45 1.40 0.45 1.10 0.50 1.60 0.50...
- Page 17 SCHEMATIC DIAGRAM ( DOOR CLOSED,COOK OFF CONDITION) NOISE FILTER TRANSFORMER MAGNETRON H.V. RECTIFIER CONTROLLER THERMISTOR P( OUT) R4-1 T( IN) R4-2 SWA: THE FIRST DOOR SAFTY SWITCH L: LAMP SWB: THE SECOND DOOR SAFTY SWITCH FM: FAN MOTOR SWC: THE THIRD DOOR SAFTY CONTROL SWITCH TM: TURNTABLE MOTOR CM: CONVECTION MOTOR *CIRCUIT SUBJECT TO CHANGE WITHOUT NOTICE...
