- Page 1 WNER’S ANUAL AWR391 UHF 460-470 MHz Two - W ADIO 20809 Kensington Blvd. Lakeville, MN 55044 1-800-475-5852 www.advancedwireless.com...
- Page 2 AWR391(The Mini): UHF 460-470 MHz 420855102498 6-Ganged Charger Model Number: 420855208640...
- Page 3 1.3 cm between the back of the radio and the user’s body. AWC-approved accessories, antennas, Using non AWC approved accessories may result in exposure levels which exceed the FCC’s for use with this radio. Use of non-FCC approved headsets, batteries and accessories may...
-
Page 6: Table Of Contents
CONTENTS Thank You! ................FCC Declaration ..............II-IV Contents ................V Introduction ................Getting Acquainted ..............Product inspection ..............Transceiver radio view ............LCD display symbols ............. 6-gang charger view ............. Safety and Care Instructions ..........Safety precautions ..............Caring for this product ............Caution ................. -
Page 7: Thank You
INTRODUCTION Advanced Wireless Communications is a leader in the design and integration of wireless communications solutions. Since 1992, we’ve been creating on site wireless systems that help businesses communicate effectively. Whether it’s a national chain of retail stores, a 50-story office tower, construction site, a large distribution center, a college campus or a retirement home, Advanced Wireless has the expertise and experience to create the best solution possible... -
Page 8: Transceiver Radio View

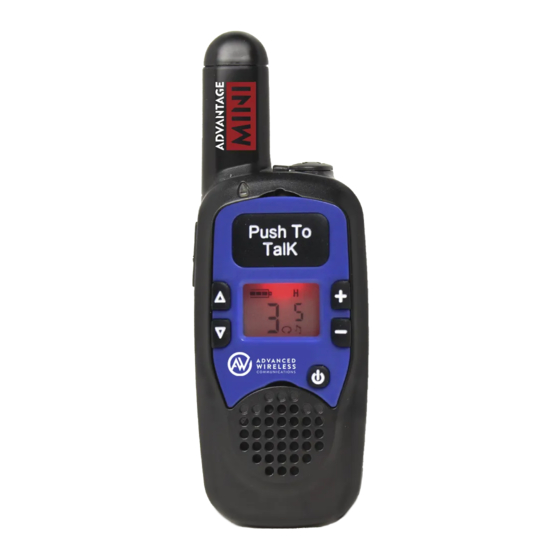

TRANSCEIVER RADIO VIEW Front View: 0. Antenna Receives and transmits signals 1. LED indicator Lights up red when transmitting a signal 2. Channel Up Press and hold for more than 1.5 seconds to activate the auto scan or dual watch (selected by PC program) for available channel. - Page 9 7. Headset jack Allows use of headset for hands-free communication. 8. Push to talk Press and hold button, speak into the microphone using your normal speaking voice. 9. Volume Up Press and hold more than 1.5 seconds to rapidly increase the volume. While radio is on, press button to increase the volume by a single unit.
-
Page 10: Lcd Display Symbols
LCD DISPLAY SYMBOLS SYMBOL FUNCTION Channel number: Select between 22 channels Dual Watch: Scan 2 channels Battery indicator: Provides battery status during operation Keypad lock: Locks keypad to prevent accidental button activation Auto-scan: Unit is scanning Channels or CTCSS VOX: Voice activation system 6-GANG CHARGER VIEW 1. -
Page 11: Safety And Care Instructions
Repair – Do not attempt to repair the product or modify the circuitry by yourself. Only replacement parts that are recommended by Advanced Wireless Communications at 1-800-475-5852 are to be used. Do not scratch hard objects against the LCD display as this may cause damage. -
Page 12: Getting Started
Always make sure the radio is switched off before installing or changing the battery. Replace only with the same or equipment type. Use ONLY with lithium 3.7V 830mAH rechargeable battery. Contact Advanced Wireless Communications at 1-800-475-5852 or www.adavncedwireless.com for more information. -
Page 13: Turn The Unit On/Off
NOTE: To completely disconnect from power, the adapter should be disconnected from the 6-Ganged Charger. Batteries should not be exposed to excessive heat such as sunshine or fire. The 6-Ganged Charger and adapter should not be exposed to wet conditions. No objects filled with liquid, such as vases, should be placed on the main unit and adapter. -
Page 14: Keypad Lock
KEYPAD LOCK To avoid accidentally changing the channel and the unit’s preferred settings, you can l o c k t h e k e y p a d . To lock or unlock the keypad: appears when the keypad is locked. Press and hold for 1.5 seconds. -
Page 15: Dual Watch (Dw)
For this and all other issues contact Advanced Wireless ● Can’t communicate with Communications at 1-800-475-5852 or other radios www.advancedwireless.com for more information Check the headset is correctly plugged in and is ● VOX function is not working compatible with the Mini 391 radio... -
Page 16: Optional Accessories
OPTIONAL ACCESSORIES Picture Part number Model No. Item 6 gang charger 420855208640 AWGC-391 Plug in Charger for Mini 391 420855209265 AWC-391 Flexible Earloop for Mini 391 420855207698 AWFEL-391 420855209395 AWSVM-391 Surveillance Headset for Mini 391 420855203041 AWEB-Mini Earbud Headset for Mini 391 Modular Earloop for Mini 391 420855205120 AWMFEL-391... - Page 17 Ear Mold Right Medium 420855204413 AWEM391 Ear Mold Right Small 420855207070 AWEM391 Magnetic Mount For Holding Radio 420855209722 AWM-391 Battery for Mini 391 Radio 420855209289 AWB-391 Holster Swivel 420855209241 AWSH-391 These products are available form: Advanced Wireless Communications at 1- 800-475-5852 or www.advancedwireless.com...
