  • Page 1 AWR Advantage & AWR Advantage Plus User manual Advanced Wireless Communications...

  • Page 2: Thank You

    THANK YOU! Thank you for your purchase of Advanced Wireless Communications’ AWR Advantage/AWR Advantage Plus two-way radio. This portable two-way radio is a business grade device. Treat it with care, and you will enjoy years of reliable operation. The manual is applicable to the following model:...
  • Page 3 Product Safety and RF Exposure for Portable Two-Way Radios Compliance with RF Energy Exposure Standards NOTICE: This radio is intended for use in occupational/controlled applications where users have been made aware of the potential for exposure and can exercise control over their exposure. This radio device is NOT authorized for general population, consumer or similar use.

  • Page 4: Fcc Declaration

    RF exposure can be accomplished using labels, or by education and training through appropriate means such as information and instructions in user manuals or safety booklets. Your Advanced Wireless Communications’ two-way radio has an RF exposure information label in the battery compartment. The...
  • Page 5 helpful instructions on how to control your RF exposure. Your Advanced Wireless Communications two-way radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to RF electromagnetic energy. In terms of measuring RF energy for compliance with FCC exposure guidelines, your radio radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode.
  • Page 6 *Transmit no more than 50% of the time. To transmit (talk), push the PushTo- Talk (PTT) button. To receive calls, release the PTT button. Transmitting 50% of the time or less is important since the radio generates measurable RF energy exposure only when transmitting (in terms of measuring standards compliance).
  • Page 7 *Use only FCC-approved, supplied or replacement headsets, batteries, and accessories intended for use with this radio. Use of non-FCC approved head- sets, batteries and accessories may exceed FCC RF exposure guidelines. FCC License Information Your Advanced Wireless Communications radio operates on communications...
  • Page 8 frequencies which are subject to FCC (Federal Communications Commission) Rules & Regulations. FCC Rules require that all operators using Private Land Mobile radio frequencies obtain a radio license before operating their equip- ment. Application for license must be made on FCC main form 601, and schedules D, and H.
  • Page 9 (or frequencies) you will operate on. Questions? Call the FCC for license application questions at (888) CALL-FCC (225-5322). If you have any questions, call Advanced Wireless Communications at (800) 475-5852 Notices to The User: This device complies with Part 15 of the FCC Rules. Operation is subject to...
  • Page 10 that may cause undesired operation. One or more of the following statements may be applicable: FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifi- cations to this equipment may cause harmful interference unless the modifica- tions are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.
  • Page 11 INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in residential installations.
  • Page 12 the following measures: • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult with the dealer for technical assistance. SAFETY INFORMATION: Your wireless portable two-way radio has been designed using a low power transmitter.
  • Page 13 User Safety Information PLEASE READ THIS IMPORTANT INFORMATION BEFORE USING YOUR ADVANCED WIRELESS COMMUNICATIONS PORTABLE TWO-WAY RA- DIO. ◊ Only qualified technicians are allowed to maintain this product. ◊ To avoid electromagnetic interference, turn off your radio in places where posted notices instruct you to do so.
  • Page 14 ◊ Turn off your radio prior to entering any area with a potentially explosive atmosphere. Do not remove, install, or charge batteries in such areas. ◊ To avoid possible interference with blasting operations, turn off your radio when you are near electrical blasting caps. ◊...

  • Page 15: Table Of Contents

    CONTENTS Thank You! ......................1 FCC Declaration ....................3 Contents ....................... 14 Getting Acquainted .................... 18 Product Inspection ....................18 Radio View ......................20 LCD Display Symbols .................... 23 Safety and Care Instructions ................27 Safety Precautions ....................27...
  • Page 16 Caring for This Product..................28 Caution ........................ 29 Getting Started ....................31 Installing / Removing / Charging the Battery ............33 Turn the Unit ON / OFF ..................42 Volume ........................43 Talk to Another Radio .................... 45 Keypad Lock ......................47 VOX Level / Voice Delay Time / Monitoring A Channel .........
  • Page 17 Programming the Frequency ................. 70 Advanced Features ....................75 Limited Menu Feature ................... 78 Bluetooth (AWR Advantage Plus – Only) .............. 79 Recorder Feature (AWR Advantage Plus – Only) ..........81 Vibration Alert Feature (AWR Advantage Plus – Only) ......... 83...
  • Page 18 DTMF Encoding / Autodialing ................85 Frequencies List ....................86 CTCSS / DCS Code List..................89 Troubleshooting ..................... 100...

  • Page 19: Getting Acquainted

    PRODUCT INSPECTION Thank you for your purchase of Advanced Wireless Communications AWR Advantage (4000) / AWR Advantage Plus (4002) Portable Two-way Radio. Before use, please inspect the product as follows. First check the shipping carton for any signs of damage. If any damage has occurred, please contact your dealer or Advanced Wireless Communications immediately.
  • Page 20 COMMON PACKAGE ITEMS (CONTENTS MAY VARY): Part Number Item Qty. 106070 (kit) Radio (AWR-4000) 106094 (kit) Radio (AWR-4002) 221051 Battery 221052 Single Charger (with adapter) 221116 Charger Power Adapter 221115 Swivel Belt Holster 221129 User Manual...

  • Page 21: Radio View

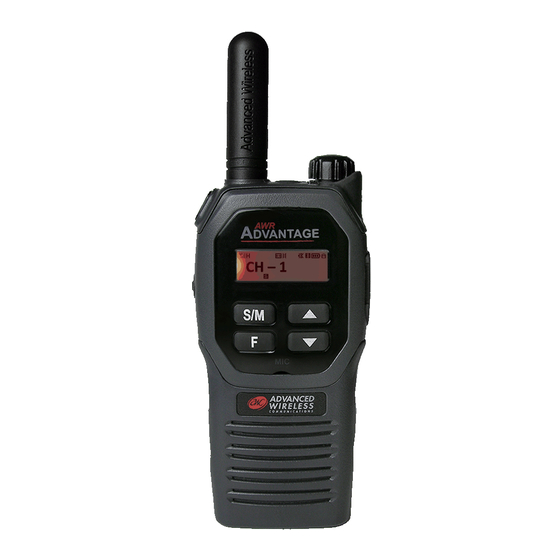

    ADVANTAGE RADIO VIEW Charger Terminal Speaker Microphone ▼, Channel Down Key - (Select item key in Local setting Mode) F , Programmable function OPEN key - (Default: Key Lock...
  • Page 22 @long press, Flashlight @short press, Exit current status key in local setting mode) S/M, Programmable function key - ( Default: Menu @long press, Scan @short press) ▲, Channel Up Key - (Select item key in Local programming Mode) LCD display - refer to the below symbols list. SF2 , Programmable function key - (Default: Channel view @short press, Monitor @long press) 10.
  • Page 23 12. LED Indicator (Tx & Busy) 13. Power switch/ Volume Knob 14. Head set Jack /Programming Cable Jack 15. Belt clip screw hole 16. Antenna 17. Battery cover 18. Open slot for battery cover...

  • Page 24: Lcd Display Symbols

    LCD DISPLAY SYMBOLS AWR-4000 SYMBOL FUNCTION AWR-4000 Power on text, it can be Channel number/Channel alias/Channel frequency...
  • Page 25 High Power：the current channel is high power (H/M/L) LED flashlight function enable Headset connected Headset function disable Recorder function enable/ Flashing when no space (AWR ADVANTAGE PLUS) Vibration function enable (AWR ADVANTAGE PLUS) Monitor indicator Speaker opened Speaker function disable...
  • Page 26 Bluetooth function enable (AWR ADVANTAGE PLUS) Bluetooth earpiece connected (AWR ADVANTAGE PLUS) Battery indicator Keypad lock DTMF signalling enable (AWR ADVANTAGE PLUS) Scan The current channel is in scan list The current channel is prior channel Compander enable Scrambler enable...

  • Page 27: Programmable Auxiliary Functions

    Programmable Auxiliary Functions The SF1, SF2, S/M, and F keys can be programmed for a variety of functions. See “Local Programming Mode” menu list later in this manual. Please contact your dealer for further details on these functions.

  • Page 28: Safety And Care Instructions

    SAFETY AND CARE INSTRUCTION SAFETY PRECAUTIONS Please observe the following safety precautions when setting up and using this product. ·LCD panel - The LCD panel is made of glass, and may break if the unit is dropped or impacted. ·Heat sources - Keep the product away from heat sources such as radiators, stoves, heaters, and other heat-generating products.

  • Page 29: Caring For This Product

    CARING FOR THIS PRODUCT To ensure you receive the maximum benefit from using this product, please observe the following guidelines. ·Cleaning - Use a damp cloth. Do not use liquid cleaning agents, benzene, thinner, or aerosols. ·Repair - Do not attempt to repair the product or modify the circuitry by yourself. Only replacement parts that are recommended by Advanced Wireless Communications (AWC) should be used.

  • Page 30: Caution

    CAUTION · To avoid risk of fire or injury, do not attempt to charge non-rechargeable batteries. · Please turn off the unit while charging. ·Only replace batteries with the same or equivalent type recommended by the manufacturer. · Please dispose of old, defective batteries in an environmentally friendly manner in accordance with the relevant laws and regulations.
  • Page 31 · To reduce the risk of electric shock, do not expose equipment to rain or moisture.

  • Page 32: Getting Started

    GETTING STARTED INSTALLING THE SWIVEL BELT HOLSTER (OPTIONAL ACCESSORY) 1. Slide the bottom of the radio into the holster until it snaps into place. 2. To remove, push the tab on the holster and pull the radio away from the holster. Note: If there is a need to replace the holster, contact your account manager or call (800) 475- 5852 to order a replacement (part number...
  • Page 33 Figure 1 INSTALLING THE BELT CLIP Align the two screw holes on the metal bracket of the belt clip with holes on the back side of the radio. Then secure the belt clip on the back side of the radio, as shown in Figure 2, and then secure the screws.

  • Page 34: Installing / Removing / Charging The Battery

    INSTALLING THE BATTERY Your radio uses a rechargeable Lithium Ion (Li Ion) battery 1. If the battery cover is already in place, use the fingers to press down the three circle position and in the meantime use the thumb to pull up in the direction of arrow from the bottom side OPEN slot.
  • Page 35 Figure 3 2. Insert the battery, printed arrows first, into the battery compartment and press down to secure firmly in place. Figure 4...
  • Page 36 Fit the one extension at the top of the battery cover into the slot at the of the radio’s body, press the bottom of the battery cover towards the radio until a click is heard, and then the battery cover is securely attached to the radio, as shown in Figure 5.
  • Page 37 Charging the Battery When the Battery Icon displays 0 bars, you will hear a voice prompt “please charge”, then you need to recharge the battery. For optimum battery life, do not charge the battery for prolonged periods after it is fully charged. Using the Drop-in Charger 1.
  • Page 38 3. Plug the cord into an AC outlet. 4. Turn the radio off. If the radio is on while charging, it will not fully charge. 5. Insert the radio (with battery installed) into the front charging pocket. Note: The radio will fit in the charger with the holster or belt clip on. The drop-in charger will also charge a spare AWB-4000 Li Ion battery.
  • Page 39 Figure 6...
  • Page 40 Using the AWR Advantage (AWR-4000) / AWR Advantage Plus (AWR- 4002) Multi-Unit Charger The Multi-Unit Charger (MUC) allows drop-in charging of up to 6 radios or batteries. Batteries can be charged inside the radios or removed and placed in the MUC Separately.
  • Page 41 Radio charging pocket Battery charging pocket Figure 7...
  • Page 42 Charging Status LEDs On the drop-in charger, the radio and battery charging pockets have their own LEDs. On the MUC, each of the 6 charging pockets has an LED. The LED is solid red when the battery is charging and solid green when charging is complete. See label at the bottom of the charger for other LED conditions.

  • Page 43: Turn The Unit On/Off

    3 Bars 2 Bars 1 Bar 0 Bar Voice charging prompt 100%-85% 85%-25% 25%-10% Final 10% TURN THE UNIT ON/OFF Turn clockwise to turn the radio on, and counterclockwise to turn the radio off. When you turn the radio on, the radio will chirp and if enabled, speak the...

  • Page 44: Volume

    channel number. The display briefly shows all features and display segments. ADJUSTING THE VOLUME Turn clockwise to increase the volume, and counterclockwise to decrease the volume. Note: Do not hold the radio too close to your ear when adjusting the volume.
  • Page 45 SELECT A CHANNEL The transmitting and receiving radios must be on the same channel using the same CTCSS code or DCS code in order for you to communicate with another party. To select between channels (maximum 16): 1. Press to increase channel number. 2.

  • Page 46: Talk To Another Radio

    TRANSMITTING AND RECEIVING For best transmission, speak about 1.5” away from the radio and leave a short pause before speaking once you have pressed the PTT button. To talk to another radio: 1. Press and hold “SF2” (this button is set to the Monitor function) to check for channel activity.
  • Page 47 radios to respond. The radio will automatically hear received transmissions. The transmit LED on the top of the radio is red when transmitting and is green when receiving. Signal Strength and Channel Busy Indicators When there is activity on a frequency, the radio LCD displays and the green LED lights steady.

  • Page 48: Keypad Lock

    of range. Note: Obstacles that block the signal path may affect the strength of the incoming signal. KEYPAD LOCK To avoid accidentally changing the channel and the unit’s preferred settings, you can lock the keypad. To lock or unlock the keypad: Press and hold the F button for 2.0 seconds.

  • Page 49: Vox Level / Voice Delay Time / Monitoring A Channel

    appears on the LCD when the keypad is locked. NOTE: 1. The F button Long Press is programmed for keylock (default). 2. While key lock is “on” you can still use the PTT button. VOX OPERATION The Voice Activated Transmission (VOX) function allows your voice to activate transmission automatically when the transceiver is used with an optional hands-...
  • Page 50 free microphone / headset. If the unit is set to VOX level 1, 2, ..6, it will automatically detect and transmit your voice through to the selected channel. Note: The VOX level and transmission delay time should be set according to your voice loudness and personal preference.
  • Page 51 5. Lower the radio volume BEFORE placing the headset in or near your ear. 6. To transmit, speak into the accessory microphone. To receive, stop talking. NOTE: This product is compatible with Motorola headsets, please ask your local Account Manager for further information.

  • Page 52: Monitoring A Channel

    Monitoring a Channel Monitoring allows you to check for activity on a channel. The AWR Advantage / AWR Advantage Plus has three monitor modes. You can choose a mode according to your preference. ● Squelch Off (Default): In this mode, the speaker is unmuted in any condition so as to receive any sound on the current channel.
  • Page 53 calls from the transmitting party regardless of CTCSS/CDCSS condition. If the channel frequency is not the same, the receiving party will not receive any calls. incoming Operation: Press the Monitor key to enter this mode, and press it again to exit.

  • Page 54: Scan For A Channel / Ctcss / Dcs

    Scanning You can scan up to 16 channels and frequencies. When the radio detects activity, it stops scanning and locks in on the active channel. If programmed for talkback, you can talk and listen to the person transmitting without changing channels.
  • Page 55 radio detects activity, it stops on that channel and displays and the channel number. 2. To talk to the person transmitting without switching channels, press the PTT button before scan resumes. If no transmission occurs, scanning resumes. Note: these timers can be changed by the programming software. 3.
  • Page 56 If the radio stops scanning on a channel you do not want to listen to, press to resume scanning for the next active channel. • Nuisance delete Press and hold to temporarily remove a channel from the scan list. The channel returns to the scan list when the radio is turned off &...
  • Page 57 Figure 1 Normal Scan Sequence Figure 2 Priority Scan Sequence...
  • Page 58 With Priority Channel If you prioritize Channel 2 as Priority, the scan operation would proceed in the following sequence, as shown in Figure 2. This function enables users to scan the most frequently used channel so that messages will not be missed. The priority channel is programmed by the dealer via programming software or by the radio’s keypad if full radio programming is activated.

  • Page 59: Wireless Cloning

    Power-on Scan If Power-on Scan is enabled by your dealer, the radio will automatically enter scan mode when it is turned on. The radio is always in scan mode. Scan cannot be turned off. WIRELESS CLONING The AWR-4000 is capable of Wireless Cloning. NOTE: It is VERY important to know the Source radio.
  • Page 60 1. When cloning a radio(s), they should be in the same area as the Source radio (radio containing the desired configuration). 2. To put the AWR Advantage / AWR Advantage Plus in clone mode, press and hold the S/M key and PTT key while turning the radio on.

  • Page 61: Local Programming Mode

    6. When finished, turn the Source radio and all Target radios off, then on to use. Local Programming Mode Local programming mode allows you to configure your radio by manual operation. Note: Local programming mode can be disabled by the programming software. Local programming mode menu is as below.

  • Page 64: Entering Programming Mode

    Entering Programming Mode Press and hold PTT and F key while turning the radio on. The radio beeps and displays RADIO SETTING. The radio enters Radio setting programming mode. Note: If you press and hold the PTT button for 3 seconds when the radio is in local programming mode, you will exit from the Programming Mode.
  • Page 65 Exit the sub-menu status and return to front of the menu. Selecting Radio setting, CH. setting, Key setting Main Menu 1. When the radio is in the ‘radio setting’ programming mode, the “RADIO SETTING” will appear on the bottom of the screen. 2.
  • Page 66 3. Press S/M to enter the main menu setting status. Programming channel display mode (CH. Mode) 1. When the radio is in RADIO setting status, press ▲ or ▼ until “CH MODE” displays on the bottom of the screen. In the meantime the current display mode will appear in the middle of the screen.
  • Page 67 3. Press ▲ or ▼ to select the channel display mode you want to set. NOTE: there are three modes that can be selected: Channel number (CH NO), Alias, Frequency. 4. Press S/M to confirm your selection.
  • Page 68 5. Press ▲ or ▼ to set another function, or Press F to exit CH MODE status, or Press and hold PTT to exit Local programming mode. NOTE: To set MIC Sensitivity, VOX parameter, TOT, Speaker, Headset , Priority Scan , Vibration, Battery saver, Key tone, PTT tone, Backlight, Channel Voice, the process is similar with channel display mode.

  • Page 69: Selecting A Channel

    Selecting a channel When the radio is in CHANNEL setting status, Press ▲ or ▼ until the “CH. NO” appears in the bottom of the screen. (This is the first setting item after you enter channel programming mode). Press S/M and the “CH-01” will flash.
  • Page 70 Press ▲ or ▼ to select a channel number. Note: there are 16 channels that can be selected. Press S/M to confirm the selecting channel. Press ▲ or ▼ to set another function, or Press F to exit channel setting menu, or Press and hold PTT to exit Local programming mode.

  • Page 71: Programming The Frequency

    Programming the Frequency When the radio is in channel setting status, press ▲ or ▼ until the “CH. FREQ” appears on the bottom of the screen. Press S/M and the “08” will flash. Press ▲ or ▼ to select a channel.
  • Page 72 Note: See page 76-79 for information on frequencies for communicating with other business radios. There are 64 available frequencies. Press S/M to confirm the selecting frequency number. Press ▲ or ▼ to set another function, or Press F to exit channel setting...
  • Page 73 status, or Press and hold PTT to exit Local programming mode. Note: For Code, TX PWR (transmit power), BCL, Call Tone, Scan List, Priority scan, Compander, Scrambler setting, the process is similar with programming frequency. Programming SF1 key short press function 1.
  • Page 74 NOTE: when SF1 function is set to none, “NONE” will appear on the screen. 2. Press S/M to set SF1 key short press function. The “NONE” flashes. 3. Press ▲ or ▼ to select the key function.
  • Page 75 Note: When you set SF1 short press as a PTT function, then SF1 long press will not be set to another function. 4. Press ▲ or ▼ to confirm the key function. 5. Press ▲ or ▼ to set another function, or Press F to exit ‘KEY SETTING’ status, or Press and hold PTT to exit Local programming mode.

  • Page 76: Advanced Features

    Advanced Features Busy Channel Lockout (BCL) When the BCL feature is enabled, you are prevented from transmitting on a channel that is already in use by fellow radio users. Press the PTT on a channel that is already in use by fellow radio users, the radio will sound an alert tone and turn back to the receive mode.
  • Page 77 beep tone will sound. To stop the beep tone, release the [PTT] key. Press the [PTT] key again to resume transmitting. Battery Save When enabled, the Battery Save feature is automatically activated once the radio has no activity on the channel and no operation performed for 10-12 seconds.
  • Page 78 This feature is designed to automatically remind you of recharging or to replace the battery. Scrambler If enabled, transmit audio will not be heard clearly unless the receiving radio also has scramble enabled. Compander Companding is a feature that allows improved voice quality in weak signal areas.

  • Page 79: Limited Menu Feature

    Limited Menu Feature (Default S/M Long Press) The AWR Advantage / AWR Advantage Plus has a limited menu feature. If enabled, this feature allows the user to access commonly altered settings. These settings include: Battery Save on/off PTT Tone on/off...

  • Page 80: Bluetooth (Awr Advantage Plus - Only)

    Bluetooth (AWR Advantage Plus – Only) The “Bluetooth” feature is enabled or disabled via programming software only. To ‘Pair’ or Link the radio to a Bluetooth headset for the first time, press and hold the SF2 button on the side of the radio while turning the unit on. The radio LCD will display “Link ---“.
  • Page 81 Once a Bluetooth headset has been ‘Paired’ to a radio, the ‘Connect’ mode can be used for subsequent ‘linking’ of the radio and headset. This is typically a much faster process then ‘Pairing’. With the radio powered on, access the short menu by long pressing the ‘Menu’...

  • Page 82: Recorder Feature (Awr Advantage Plus - Only)

    Recorder (AWR Advantage Plus – Only) The “Recorder” feature is enabled or disabled via programming software only. If enabled, the AWR ADVANTAGE PLUS will record the audio of all received radio receptions. The limitation for this feature is 128 total messages or approximately 10 minutes of recording time.
  • Page 83 Use the S/M key as an enter key and the F key as the escape key. If full, the AWR ADVANTAGE PLUS will provide a warning tone every 15 seconds indicating that the recording capacity is full. No new radio...

  • Page 84: Vibration Alert Feature (Awr Advantage Plus - Only)

    Note: recording capacity can reach a ‘Full’ status in two ways, 128 total messages or approximately 10 minutes of recorded time. Vibration Alert (AWR Advantage Plus – Only) The “Vibration” feature is enabled or disabled via programming software only. If enabled the radio will vibrate upon receiving a transmission under the following conditions: Hold timer [S] –...
  • Page 85 Dropout Delay Timer [S] – After an idle period, the radio will vibrate when a transmission is received. After that vibration, the ‘Dropout Delay Timer’ must expire before another vibration will take place (no received messages for the selected time period). Available Dropout Delay Timer selections are 10 to 200 seconds in 10 second increments.

  • Page 86: Dtmf Encoding / Autodialing

    DTMF Encoding (AWR Advantage Plus – Only) The “DTMF Encoding” feature is enabled or disabled via programming software only. DTMF Autodial (AWR-4002 Only) – Function key will allow access to the • pre-programmed Autodial List. Use the up/down arrow to select the desired Autodial list name.

  • Page 87: Frequencies List

    Frequencies list Display Number Frequency (MHz) Display Number Frequency (MHz) 464.5000 461.0625 464.5500 461.0875 467.7625 461.1125 467.8125 461.1375 467.8500 461.1625 467.8750 461.1875 467.9000 461.2125 467.9250 461.2375 461.0375 461.2625...
  • Page 88 Display Number Frequency (MHz) Display Number Frequency (MHz) 461.2875 462.9125 461.3125 464.4875 461.3375 464.5125 461.3625 464.5375 462.7625 464.5625 462.7875 466.0375 462.8125 466.0625 462.8375 466.0875 462.8625 466.1125 462.8875 466.1375...
  • Page 89 Display Number Frequency (MHz) Display Number Frequency (MHz) 466.1625 467.8375 466.1875 467.8625 466.2125 467.8875 466.2375 467.9125 466.2625 469.4875 466.2875 469.5125 466.3125 469.5375 466.3375 469.5625 466.3625 462.1875 467.7875 462.4625...

  • Page 90: Ctcss / Dcs Code List

    Display Number Frequency (MHz) Display Number Frequency (MHz) 462.4875 467.4625 462.5125 467.4875 467.1875 467.5125 CTCSS / DCS Code List Display Number Code (Hz) Display Number Code (Hz) 74.4 67.0 77.0 69.3 79.7 71.9 82.5...
  • Page 91 Display Number Code (Hz) Display Number Code (Hz) 85.4 118.8 88.5 123.0 91.5 127.3 94.8 131.8 97.4 136.5 100.0 141.3 103.5 146.2 107.2 151.4 110.9 156.7 114.8 162.2...
  • Page 92 Display Number Code (Hz) Display Number Code (Hz) 167.9 241.8 173.8 250.3 179.9 Display Number Digital Code 186.2 023N 192.8 025N 203.5 026N 210.7 031N 218.1 032N 225.7 043N 233.6 047N...
  • Page 93 Display Number Digital Code Display Number Digital Code 051N 125N 054N 131N 065N 132N 071N 134N 072N 143N 073N 152N 074N 155N 114N 156N 115N 162N 116N 165N...
  • Page 94 Display Number Digital Code Display Number Digital Code 172N 263N 174N 265N 205N 271N 223N 306N 226N 311N 243N 315N 244N 331N 245N 343N 251N 346N 261N 351N...
  • Page 95 Display Number Digital Code Display Number Digital Code 364N 464N 365N 465N 371N 466N 411N 503N 412N 506N 413N 516N 423N 532N 431N 546N 432N 565N 445N 606N...
  • Page 96 Display Number Digital Code Display Number Digital Code 612N 723N 624N 731N 627N 732N 631N 734N 632N 743N 654N 754N 662N 023I 664N 025I 703N 026I 712N 031I...
  • Page 97 Display Number Digital Code Display Number Digital Code 032I 114I 043I 115I 047I 116I 051I 125I 054I 131I 065I 132I 071I 134I 072I 143I 073I 152I 074I 155I...
  • Page 98 Display Number Digital Code Display Number Digital Code 156I 245I 162I 251I 165I 261I 172I 263I 174I 265I 205I 271I 223I 306I 226I 311I 243I 315I 244I 331I...
  • Page 99 Display Number Digital Code Display Number Digital Code 343I 431I 346I 432I 351I 445I 364I 464I 365I 465I 371I 466I 411I 503I 412I 506I 413I 516I 423I 532I...
  • Page 100 Display Number Digital Code Display Number Digital Code 546I 664I 565I 703I 606I 712I 612I 723I 624I 731I 627I 732I 631I 734I 632I 743I 654I 754I 662I...

  • Page 101: Troubleshooting

    Can’t turn the radio on • Check that the battery is correctly installed and has been fully charged. Can’t communicate with other radios • For this and all other issues contact Advanced Wireless Communications at 1- 800-475-5852 or visit www.advancedwireless.com for more information.
