Quick Start Guide
Hardware Connections
1
Connect a computer using an Ethernet cable.
2
Connect a phone.
3
Connect the power.
4
Make sure the LEDs are on and check the
GPON and VoIP LEDs.
PON connected and registered.
PON not connected. Disconnect power and
repeat hardware connection steps.
PON connected but not registered.
Internet Setup
IP Address: 192.168.1.1
EU Importer: ZyXEL Communication A/S, Generatorvej 8D, 2860 Søborg, Denmark. http://www.zyxel.dk
US Importer: ZyXEL Communications, Inc 1130 North Miller Street Anaheim, CA 92806-2001. http://www.us.zyxel.com
1/2

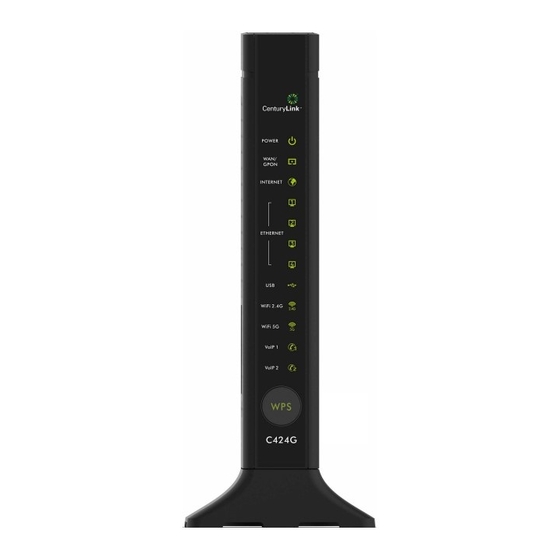

Dual-Band Wireless AC/N GPON HGU with 4-port GbE LAN
4
WAN/GPON
GREEN
WAN/GPON
OFF
WAN/GPON
GREEN
(blinking)
VoIP1
VoIP registration is complete.
GREEN
VoIP registration failed.
VoIP1
RED
VoIP1
VoIP setting is not properly configured. Go to
the Web Configurator and configure VoIP
settings.
OFF
Copyright © 2016 ZyXEL Communications Corp. All Rights Reserved
C424G
1
2
3
Username: admin
Password: 1234
