R7141-L1
------------------------------------------------------------------------------------

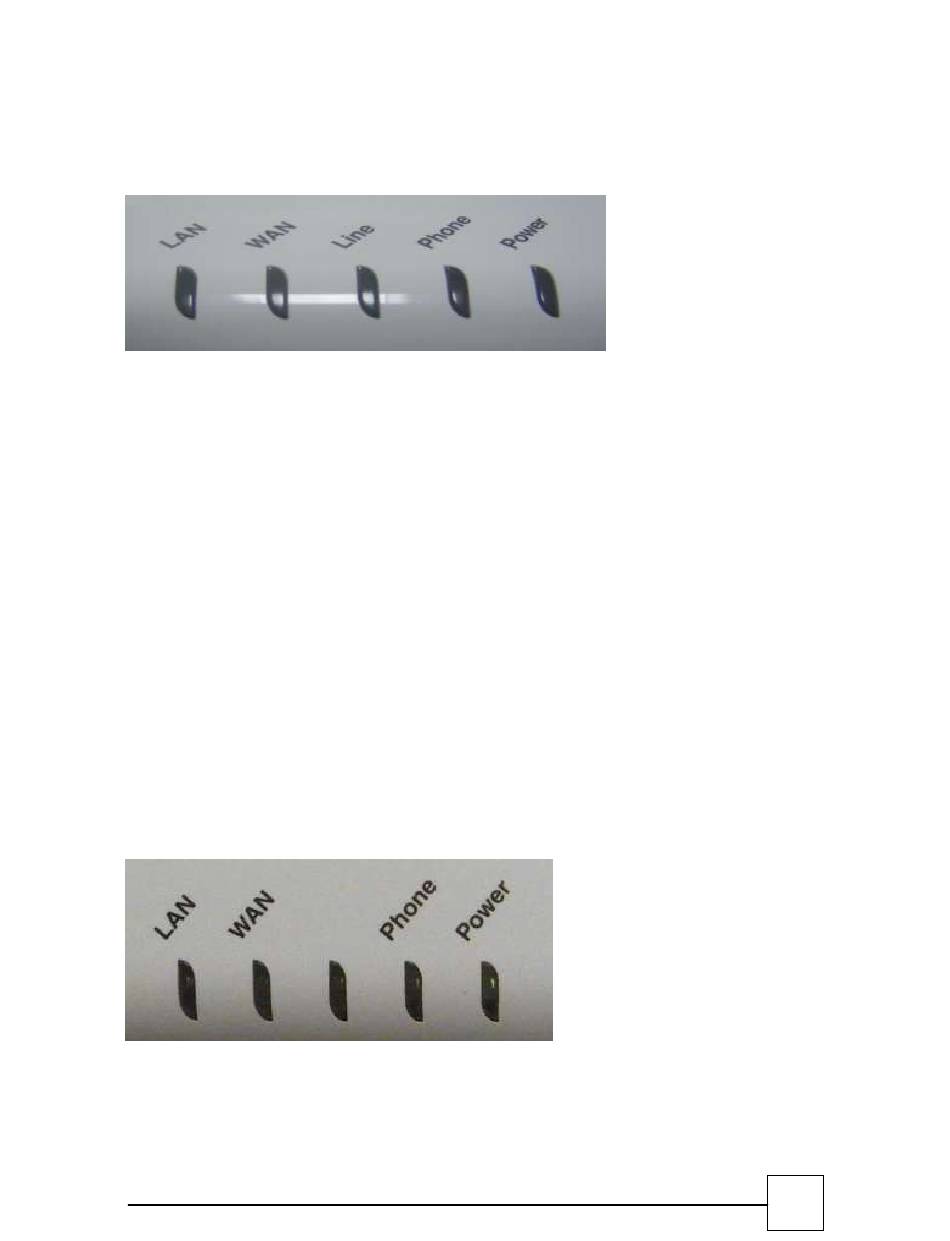

LED
State
------------------------------------------------------------------------------------
1. POWER
On
Off
-------------------------------------------------------------------------------------
2. LAN port
On
Flashing
Off
-------------------------------------------------------------------------------------
3. WAN port
On
Flashing
Off
-------------------------------------------------------------------------------------
4. FXS (Phone)
Off
Flashing
On
-------------------------------------------------------------------------------------
5. FXO (Line)
Off
On
R7111-L1
------------------------------------------------------------------------------------
LED
State
------------------------------------------------------------------------------------
1. POWER
On
Off
-------------------------------------------------------------------------------------
Description
R7141-L1 is power ON
R7141-L1 is power Off
LAN is connected successfully
Data is transmitting
Ethernet not connected to PC
R7141-L1network connection established
Data traffic on cable network
Waiting for network connection
Telephone Set is On-Hook
Ring Indication
Telephone Set is Off-Hook
Line is On-hook
Line is In-Use
Description
R7111-L1 is power ON
R7111-L1 is power Off
