Eltek R7121-L1 User Manual page 45

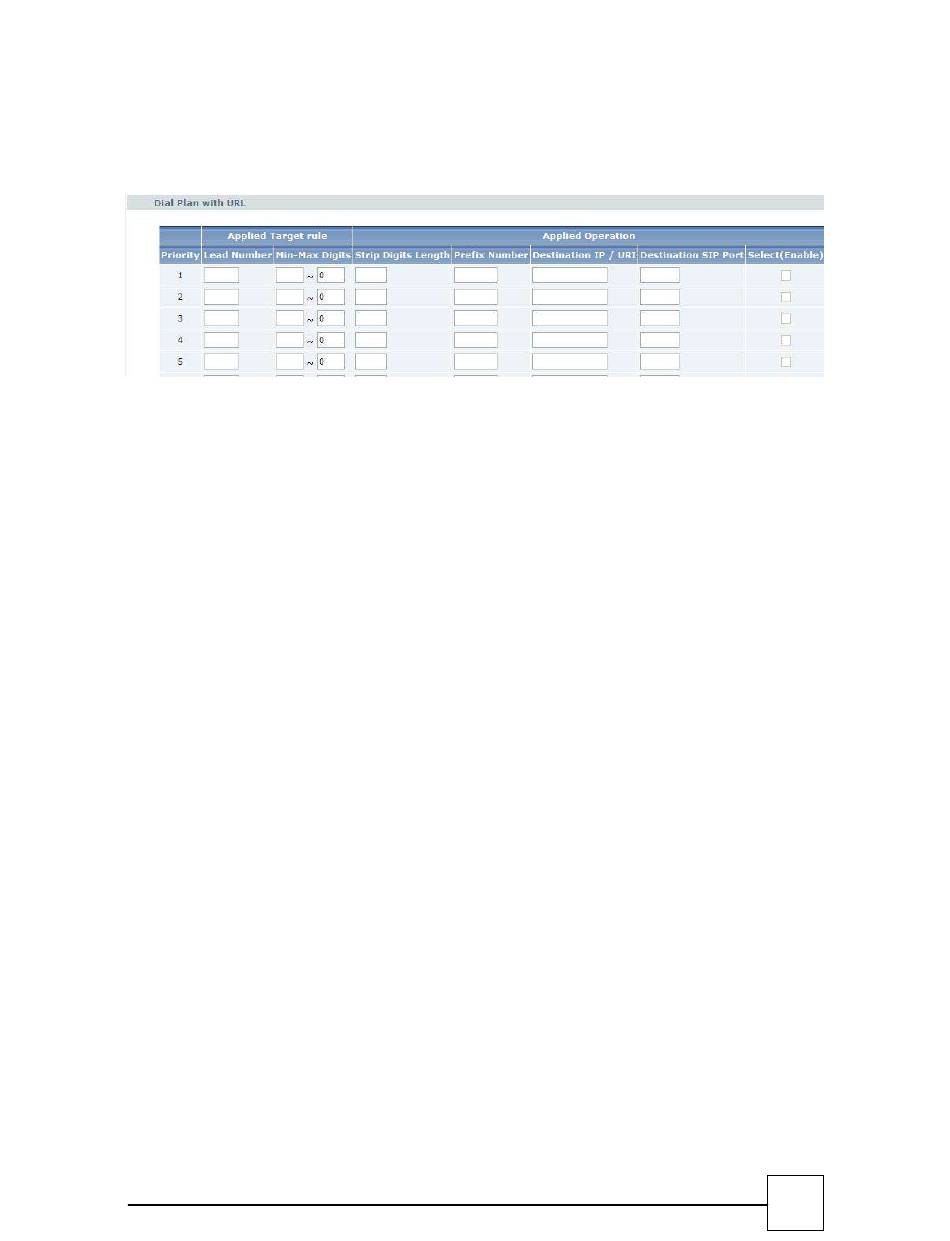

Dial Plan With URL
The "Dialing plan with URL" need to set when the user use the method of Peer-to-Peer SIP VoIP call or SIP
Proxy Server Mode. The SIP Dialing Plan has two kinds of directions: Outgoing (call out).
□"Lead Number" is the leading digits of the call out dialing number.
□"Min-Max Digits" has two text fields need filled: "Min Length" and "Max Length" are the
min/max allowed length you can dial.
□"Strip Digits Length" is the number of digits that will be stripped from beginning of the dialed
number.
□"Prefix Number" is the digits that will be added to the beginning of the dialed number.
□"Destination IP/ URI" is the IP address / Domain Name of the destination
R7121-L1/R7141-L1/R7111-L1 that owns this phone number.
□"Destination SIP Port" is port of the destination R7121-L1/R7141-L1/R7111-L1 use.(Default is
5060)
Call By PSTN: Priority to dial from PSTN
□
45
