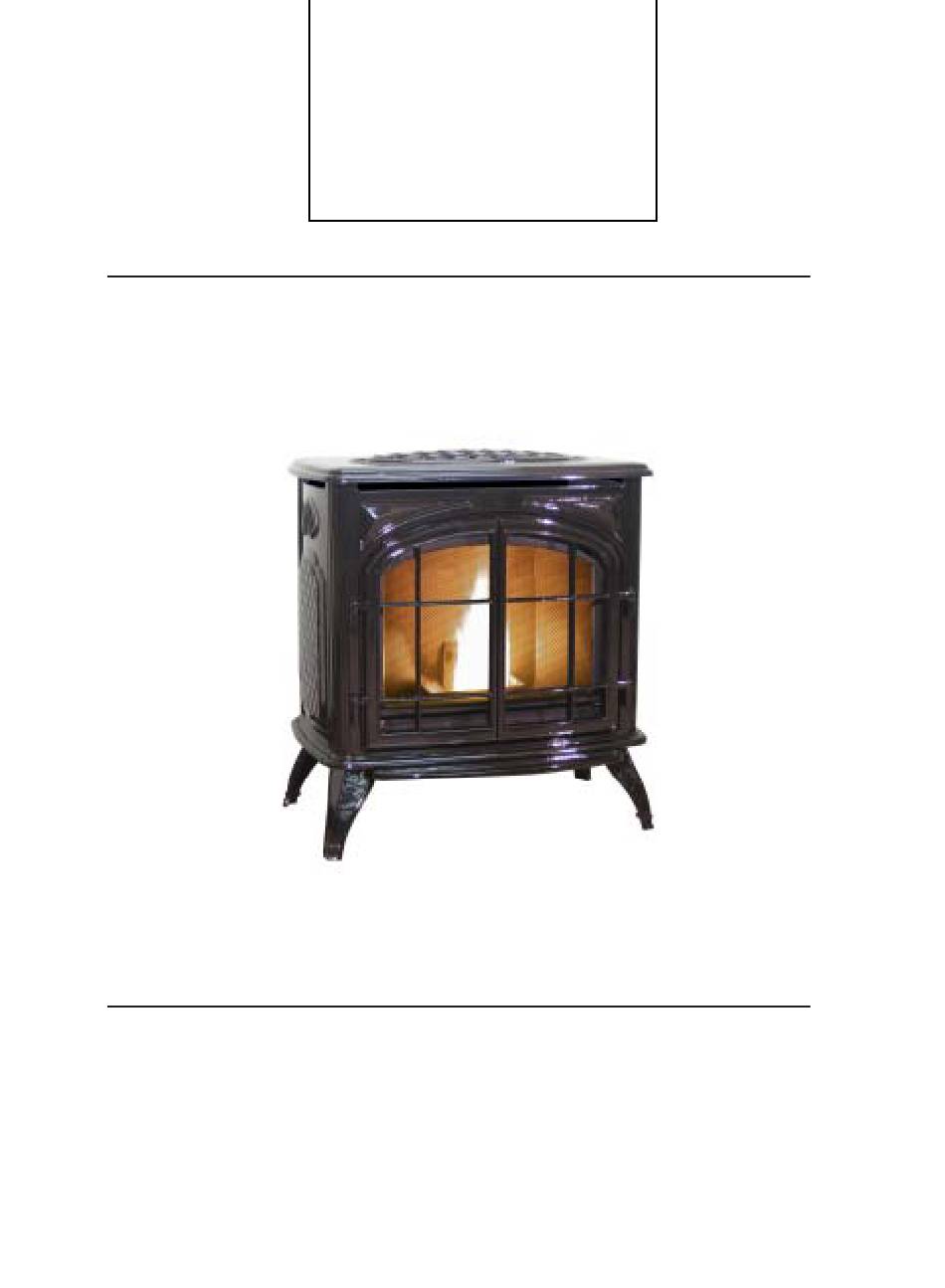

Kozi Tradition A1108 Owner's Manual

Wood pellet burning heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
* INSTALLATION * OPERATION * SERVICE * PARTS *
CAUTION:
Read all instructions carefully before starting the
installation or operating the heater. Failure to follow
these instructions could result in property damage,
bodily injury or even death. Contact local building
or fire officials about restrictions and installation
inspection requirements in your area.
Save this manual for future reference.
Model:
A1108
Tradition
MX2
CONTROL EQUIPPED
TM
WOOD PELLET BURNING HEATER
www.pelletstove.ca
Lithoid in Canada
Rev Apr 2008
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tradition A1108 and is the answer not in the manual?

Questions and answers

Related Manuals for Kozi Tradition A1108

Summary of Contents for Kozi Tradition A1108

  • Page 1 Model: A1108 Tradition OWNER’S MANUAL CONTROL EQUIPPED WOOD PELLET BURNING HEATER * INSTALLATION * OPERATION * SERVICE * PARTS * CAUTION: Read all instructions carefully before starting the installation or operating the heater. Failure to follow these instructions could result in property damage, bodily injury or even death.
  • Page 2 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK Page 2...
  • Page 3 CAUTION: Stove has moving parts. Disconnect power before servicing. Page 3...

  • Page 4: Table Of Contents

    2.6 Lack of Air........................30 2.7 Excess air........................31 VI. DIAGRAMS AND PARTS LIST ..................... 32 1. KOZI MX2TM Control Circuit Diagram ................32 2. Stove Cross Section ........................33 3. Equipment Compartment ......................34 4. Parts List ........................... 36 VII.

  • Page 5: Safety First

    I. SAFETY FIRST!!! This heater is suitable for both mobile home and conventional home installation. Read all instructions carefully before starting installation. Save this manual for future reference. 1. Read these instructions carefully. Failure to follow them could cause a malfunction of the heater, damage to the heater, property damage, bodily injury or even death.
  • Page 6 9. The heater must be turned off and allowed to cool before cleaning. Make sure there are no hot ashes or embers present. Use a brush and scoop to clean. Only use vacuum cleaners specifically designed for use with hot ashes.

  • Page 7: Installation

    1.1 Installation Clearances Please refer to the following figures for all clearances to combustibles. Please note that these clearances are for your KOZI heater only. Each venting manufacturer/supplier has their individual clearances which must also be respected. 26.5" (675 mm) Minimum 28"...
  • Page 8 INSTALLATION COMMENT: We recommend sufficient space be provided (minimum 20 inches/500 mm) on each side of the heater to service the equipment area. If this is not possible, a provision must be made to pull the heater out for service. A ll dimensions are minimum dimensions unless marked.

  • Page 9: Other Clearances And Recommendations

    1.2 Other Clearances and Recommendations 1. This heater must be mounted on a noncombustible material, placed underneath the heater and extending a minimum of 6 inches (150 mm) in front of the heater. 2. Clearances can ONLY be reduced by means approved by local building or fire officials in your area.

  • Page 10: Electrical Requirements

    2. Electrical Requirements 1. This heater is an electrical appliance. The North American versions of this appliance require 120 Volts, 60 cycle and 3 Amps of electrical power. The European versions of this appliance require 230 Volts, 50 cycles and 2 Amps of electrical power.

  • Page 11: Location Of The Heater

    4. Location of the Heater Before proceeding with the installation, the following sections should be reviewed: Section 4: Location of the Heater Section 5: Typical Installation Configurations Section 6: Venting System When selecting a location for your new heater consider the following: a.

  • Page 12: Venting System

    PL or L venting should be used to provide the least resistance for movement of the combustion air. Your KOZI pellet heater is certified for 3 and 4 inch exhaust venting. 3 inch venting is normally sufficient for most direct vent installations. Installations with several elbows, long horizontal and/or vertical runs may add too much resistance to air flow and may create burn problems.

  • Page 13: Exhaust Vent Termination Requirements

    YOU MUST USE APPROPRIATE 4” VENTING IF: The EVL is 7 or more AND you are at or above an altitude of 3000 ft. The EVL is 15 or more If in doubt, use 4” venting. This will reduce the possibility of future burn problems. DO NOT USE MAKESHIFT MATERIALS OR MAKE COMPROMISES IN THE INSTALLATION.

  • Page 14: Combustion Air Intake Requirements

    intakes, etc. 4. The exhaust vent opening must be a minimum of: * 12 inches (0.3m) from the ground * 24 inches (0.61m) from any combustible surface i.e. fence, plant, etc. * 7 feet (2.1 m) from any public walkway 5.

  • Page 15: Mobile Home Additional Installation Requirements

    INSTALL ALL VENTING AT CLEARANCES SPECIFIED BY THE VENT MANUFACTURER 3. The elevation of the combustion air intake must be below the exhaust vent. An elbow may be used to lower the air intake point below that of the exhaust vent. 4.

  • Page 16: Recommendations For Mobile Home Installation

    “Combustion Air Intake Requirements” section for more information. 7.4 Exhaust Vent Requirements Venting a KOZI pellet burner for a mobile home is similar to that of a conventional home. Please refer to the “Typical Mobile Home Installation Configuration” section for typical venting configurations the “Venting System”...

  • Page 17: Operation

    III. OPERATION 1. General overview The first step in understanding your new KOZI heater is to familiarize yourself with its operation. Your heater has 3 main systems: Feed, Combustion and Circulation. These 3 systems work together to produce enough heat for your room. The feed system uses an auger to “feed”...

  • Page 18: Safety Features

    3. Electric Igniter The KOZI Previa Cast Iron pellet stove is factory equipped with an electric igniter. The electric igniter is a convenient way of lighting the fire in your heater without the use of lighter gels or starter fuels. Ask your dealer if an electric igniter is right for you.

  • Page 19: On/Off" Button

    a. “AUTO” Mode: With the switch in this position, your heater will turn itself on and off based on an externally wired switch. The most common use of this mode is with a wall thermostat. When wired to a wall thermostat, the heater will automatically light itself when the room temperature falls below the thermostat setting and will automatically turn itself off when the temperature reaches the thermostat setting.

  • Page 20: Fan" Button

    Any millivolt rated switching device can be used with this control. The switch/thermostat must be wired to the terminals as shown in Figure 18. MX Control KOZI Wall Thermostat Thermostat Wires Board Connect Thermostat Wires Here Figure 18.

  • Page 21: Damper Control

    TO PREVENT INJURY OR DAMAGE TO THE HEATER, ALWAYS UN- PLUG THE HEATER FROM THE POWER OUTLET BEFORE SERVICING. 4.9 Damper Control The damper control rod is located on the left side of the heater. This rod controls the amount of air passing through the burn pot. By pushing the control rod in, you reduce the amount of air passing through the burn pot.

  • Page 22: Stopping Your Heater

    b. The circulation fan will remain off. c. The feed system begins to feed. The “AUGER” and ON/OFF” lights will begin to blink. e. The flame should appear within 5 to 10 minutes. 4. Adjust the HEAT SELECT setting to the desired level 5.

  • Page 23: Maintenance & Cleaning

    flame is fluctuating between feed drops, this indicates the amount of combustion air is too much for the amount of feed. In this case, close the air damper slightly and once again, allow the flame to stabilize. If the air damper is open too far, there is a chance of extinguishing the fire.
  • Page 24 shield after every 3 tons of fuel burned. See Figure 19 for removal of the heat shields. TOP HEAT SHIELD SIDE HEAT SHIELD BACK HEAT SHIELD Figure 19. Cast Iron Stove Heat Shields. 3. Clean the exhaust fan and housing. Ash accumulation on the fan blades will reduce the life of your exhaust fan.
  • Page 25 2 oil ports located on the top of the motor, one near the end and one near the fan housing as shown in Figure 22. There may be rubber plugs in one or both of these oil ports. These plugs must be removed prior to and replaced after oiling.
  • Page 26 These vacuums are specifically designed for the removal of ashes in a pellet stove. Please visit the website www.lovelessash.com find the closest dealer near you. ASH TRAY LATCHES Figure 25. Ash tray for KOZI Previa Cast Iron pellet stove. Page 26...
  • Page 27 Disposal of Ashes - Ashes should be placed in a metal container with a tight fitting lid. The closed container of ashes should be placed on a noncom- bustible floor or on the ground, well away from all combustible materials, pending final disposal.

  • Page 28: Trouble Shooting Guide

    V. TROUBLE SHOOTING GUIDE 1. Trouble Shooting Your KOZI pellet heater is equipped with a diagnostic light feature. When a problem occurs, the heat setting bar graph will light up to indicate where the problem may be. Each light has been numbered for easy identification. The chart below has been included to help you determine which corrective action should be taken.

  • Page 29: Corrective Actions

    Remove the bolt and make sure the hole is aligned with the flat portion of the auger motor shaft. Reinstall the bolt and tighten. e. If none of the above resolve your problem, contact your local KOZI dealer. 2.2 Pressure Switch Failure a.

  • Page 30: Ignition Failure

    If the heat is not needed, reduce the feed and damper accordingly. Continue to reduce the feed until the circulation fan does not run on high. c. If none of the above resolve your problem, contact your local KOZI dealer. 2.6 Lack of Air.

  • Page 31: Excess Air

    If your flames are short, white, if your burn pot looks like a popcorn maker or your fire is always going out, push the damper rod in slightly. If this does not resolve your problem, contact your local KOZI dealer. Page 31...

  • Page 32: Diagrams And Parts List

    VI. DIAGRAMS AND PARTS LIST KOZI MX2 KOZI KOZI 1. KOZI KOZI Control Circuit Diagram Page 32...

  • Page 33: Stove Cross Section

    2. Stove Cross Section Page 33...

  • Page 34: Equipment Compartment

    3. Equipment Compartment Page 34...
  • Page 35 Page 35...

  • Page 36: Parts List

    Left Side Casting CASTLHSC Right Side Casting CASTRHSC Front Casting CASTFRNT Left Door Casting CASTLHSD Right Door Casting CASTRHSD Casting Hearth Lip CASTHRTH Casting Legs CASTLEGS If you don't see the part you need, please contact your local KOZI dealer. Page 36...

  • Page 37: Warranty

    VII. WARRANTY APR Industries Ltd. honors a five-year limited warranty on all steel fabricated parts and a one-year warranty on all electrical parts. The following items are not covered under warranty: Glass, Gasket and Seals, Cast Iron Body Components, Ceramic Bricks, Burn Pot, Paint and Powder Coating, Gold Plating, Inner Heat Shields, Gear Motor, Self Igniter and Glass Saver Contact Your Dealer for Warranty Information.
  • Page 38 SERIAL NUMBER: MODEL TYPE: NOTES: Page 38...
  • Page 39 Page 39...
  • Page 40 www.pelletstove.ca Page 40...
