LED Low Voltage
25 ft. Linkable
Spotlight Kit
with 12W Dusk to Dawn
Transformer

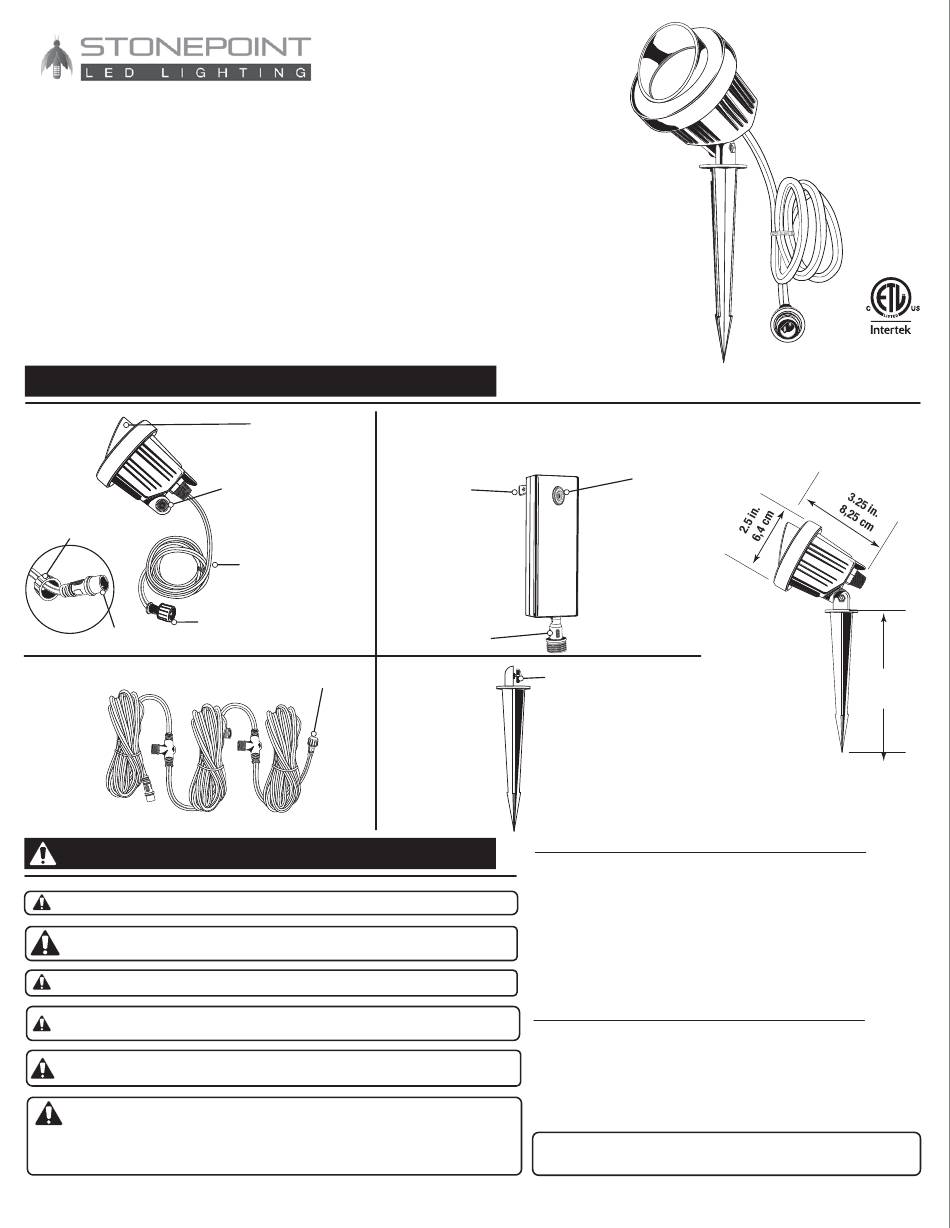

PACKAGE CONTENTS
3x
Light
Head
Collar Ring
Quick Connector
1x
25 ft.
Main
Cord
WARNINGS
WARNING: Do NOT look directly at LED light sources.
WARNING: DO NOT use with extension cords near water or wherever water
may accumulate.
WARNING: ONLY use in a GFCI protected outlet for outdoor utilizations.
WARNING: Avoid using this product in the immediate vicinity of highly
flammable materials, liquids and gases.
WARNING: DO NOT alter or disassemble any of the parts of this fixture. It is
completely enclosed and does not contain replaceable or serviceable parts.
WARNING: This product has a polarized plug (one contact blade is wider than the
other) as a feature to reduce the risk of electric shock. The plug is fashioned to
only fit in a grounded outlet one way. If it does not fit, contact a qualified electrician.
Never use with an extension cord unless plug can be fully inserted. DO NOT ALTER THE
PLUG OR CORD.
Shroud
Friction Lock
3 ft. Cord
Quick Connector
2x
End Cap
1 x
Dusk to Dawn
12W Transformer
Plug
Quick Adapter
3x
Thumbscrew
Ground
Stake
LED Facts:
Lumens: 300 (100 each head)
Color Temperature: 5000K
CRI: 80
Efficacy (Lumens Per Watt): 90
Rated Watts: 4.5W (Total Kit)
LED Life: 50,000 hours
Operating temperature: -13° to 122°F (-25° to 50° C)
Beam Angle: 80°
Power Factor: 0.7
Product Features:
Link Up to 12 Watts Total, (8) 100 Lumen Spotlights
Operating Voltage: 120v
Quick connect with movable heads
Cord Type: 18/2 SPT-2W
Total cord length: 25 ft.
This fixture is IP65 rated and therefore is suitable for
indoor and outdoor use in wet locations.
1
Dusk-to-Dawn
Sensor
MODEL No:
LL-100-25D
5 in.
12,7 cm
Revision Date: 01-11-2018
