Heiman HM-628PS/B User Manual

Battery Powered Photoelectric
Smoke Alarm User Manual

PRODUCT INTRODUCTION

This product is a battery operated photoelectric smoke alarm,
adopting unique structure design and advanced photoelectric
sensor technology, able to monitor and detect smoke particles
in real time. Especially detects visible particles (associated
with smouldering fire) sooner than ionization alarms. Once
smoke particles or a fire danger is detected, this alarm will
chirp and the red LED will flash rapidly to alert you and your
family timely. Furthermore, this alarm has dustproof,
mothproof and anti-light interference etc. functions, ensuring
stability from design basis and suitable for early warning and
protection of fires in houses, factories, shopping malls, hotels,
office buildings, school buildings, banks, libraries and
warehouses etc. indoor places.

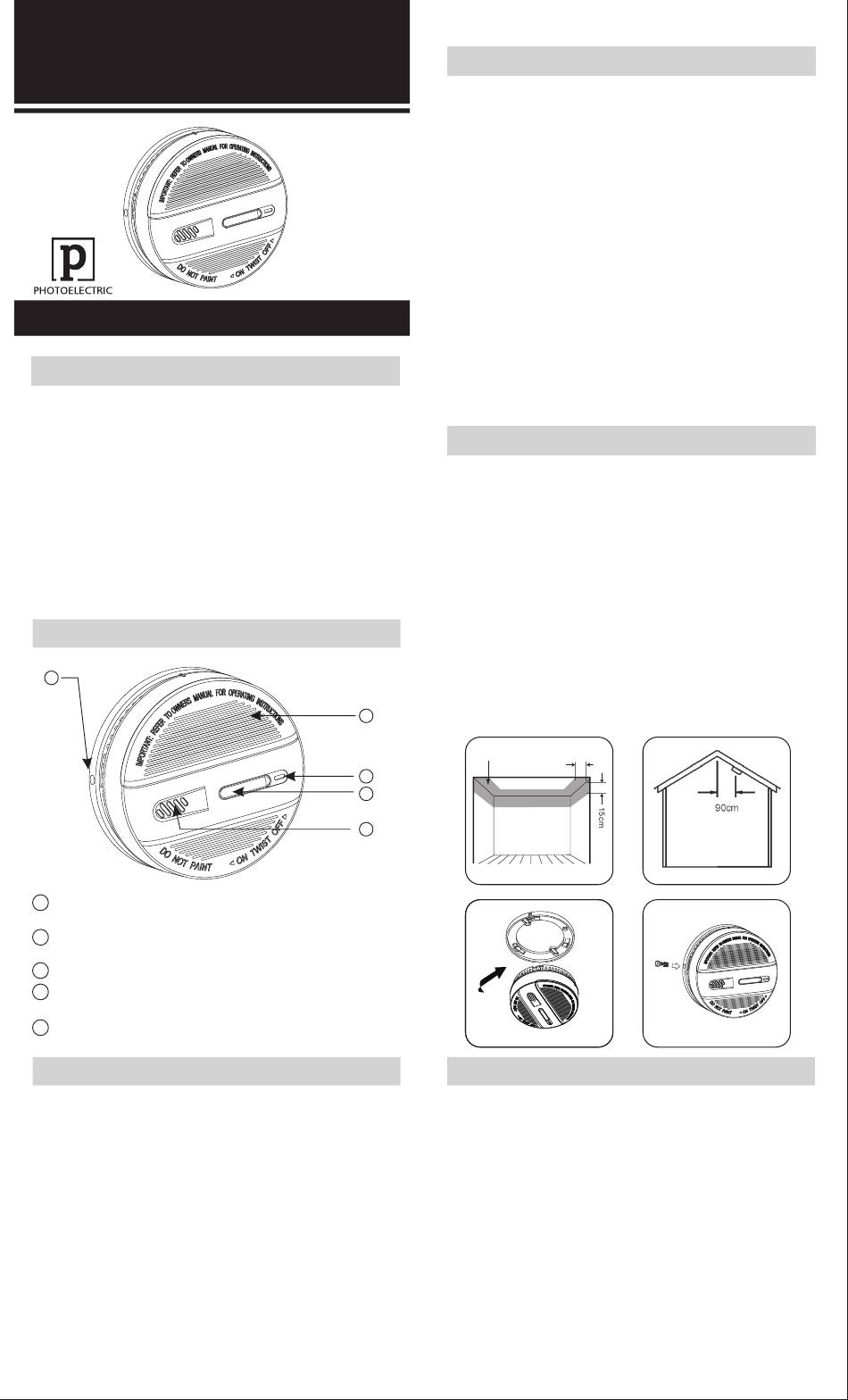

PRODUCT PROFILE

1
Tamper Resist Locking Pin - could be installed in motor
1
homes, ships etc . quavering places.
2 Battery Compartment Cover - on top surface. Battery
replacement i s v ery c onvenient
3 Buzzer - loud alarm sound > 85 decibel.
4 Red LED - standby status, flashes once every 40s; alarm
status, flashes rapidly.
5 Test Button - verifies if the smoke alarm is operating
properly.

TECHNICAL SPECIFICATION

Power Supply: DC 9V battery
Standby Current: <12µA
Alarm Current: <15mA
Alarm Sound: >85dB (3m)
Sensor Type: Photoelectric
Battery Life After Low Battery Warning: >30days
Temperature Range: -10°C ~ 50°C (32°F ~ 120°F)
Humidity: 10%~90%RH (no icing or condensation)
Dimension: Φ95.5×41mm (include bracket)
Detecting A rea: 80m at 6-12m installation height;
60m at installation height <6m.
M219-1EVer1.0
2
4
5
3
1

FEATURES

● Advanced photoelectric sensing technology; detects visible
particles (associated with smouldering fire) sooner than
ionization alarms.
● Convenient to install and maintain.
● Battery compartment on alarm top surface; battery
replacement is more convenient
function for reverse battery loading.
● Auto check malfunction.
● Low battery warning; smoke alarm will chirp once every
40s to remind user of replacing a new battery.
● Auto reset.
● Sound and flash alarm; alarm sound louder tha n 85
decibel with red LED flashing .
● Test button; tests unit's electronic circuitry, buzzer and
battery function.
● SMT manufacture technology; high stability.
● Dustproof, mothproof and anti-white light interference
design.
● Anti-RFI (20V/m-1GHz).

INSTALLATION

1 Avoid installations in places with stagnating smoke, heavy .
dust, heavy water mist, heavy oil mist, great humidity
(>95%) and high wind speed (>5m/s).
2.Insert the battery correctly into the battery compartment
according to the marked positive and negative polarity.
3.Choose a proper position. Normally the center of the
detection area ceiling is recommended. If impractical, do not
install the detector in area without air flow (as Figure 1). For
roof with oblique beam, the ceiling is also oblique where the
detector should be installed at a position with 0.9m
horizontal distance to spire (as Figure 2). Fix the detector
base into a chosen position with screws. Then put the
detector head into the base and twist clockwise to fasten it
(as Figure 3). At last, plug in the tamper resist locking pin
(as Figure 4).
Area without
air flow
15cm
Figure 1
Figure 3

OPERATING INSTRUCTION

1.Battery is equipped on delivery. Unpack the battery
insulation cement to active the battery before using.
2.After activating the battery, the smoke alarm enters into
normal monitoring status. The LED blinks once every 40s.
3.Sensitivity Test
To ensure normal operation, periodic tests should be
performed. Once a month is recommended. For testing,
press and hold the Test Button more than 3s to enter into
sensitivity test status. The alarm indicator will flash rapidly
and buzzer will give out alarm sound, which indicates the
smoke alarm works properly. During testing, keep ears away
from the smoke alarm to avoid hearing damage.
and has protection
Figure 2
Figure 4
2
