Heiman HM-622PS User Manual

Battery Powered Photoelectric
Smoke Alarm User Manual
PRODUCT INTRODUCTION
This product is a battery operated photoelectric smoke alarm,
adopting unique structure design and advanced photoelectric
sensor technology, able to monitor and detect smoke particles in
real time. Especially detects visible particles (associated with
smouldering fire) sooner than ionization alarms. Once smoke
particles or a fire danger is detected, this alarm will chirp and the
red LED will flash rapidly to alert you and your family timely.
Furthermore, this alarm has dustproof, mothproof and anti-light
interference etc. functions, ensuring stability from design basis
and suitable for early warning and protection of fires in houses,
factories, shopping malls, hotels, office buildings, school
buildings, banks, libraries and warehouses etc. indoor places.

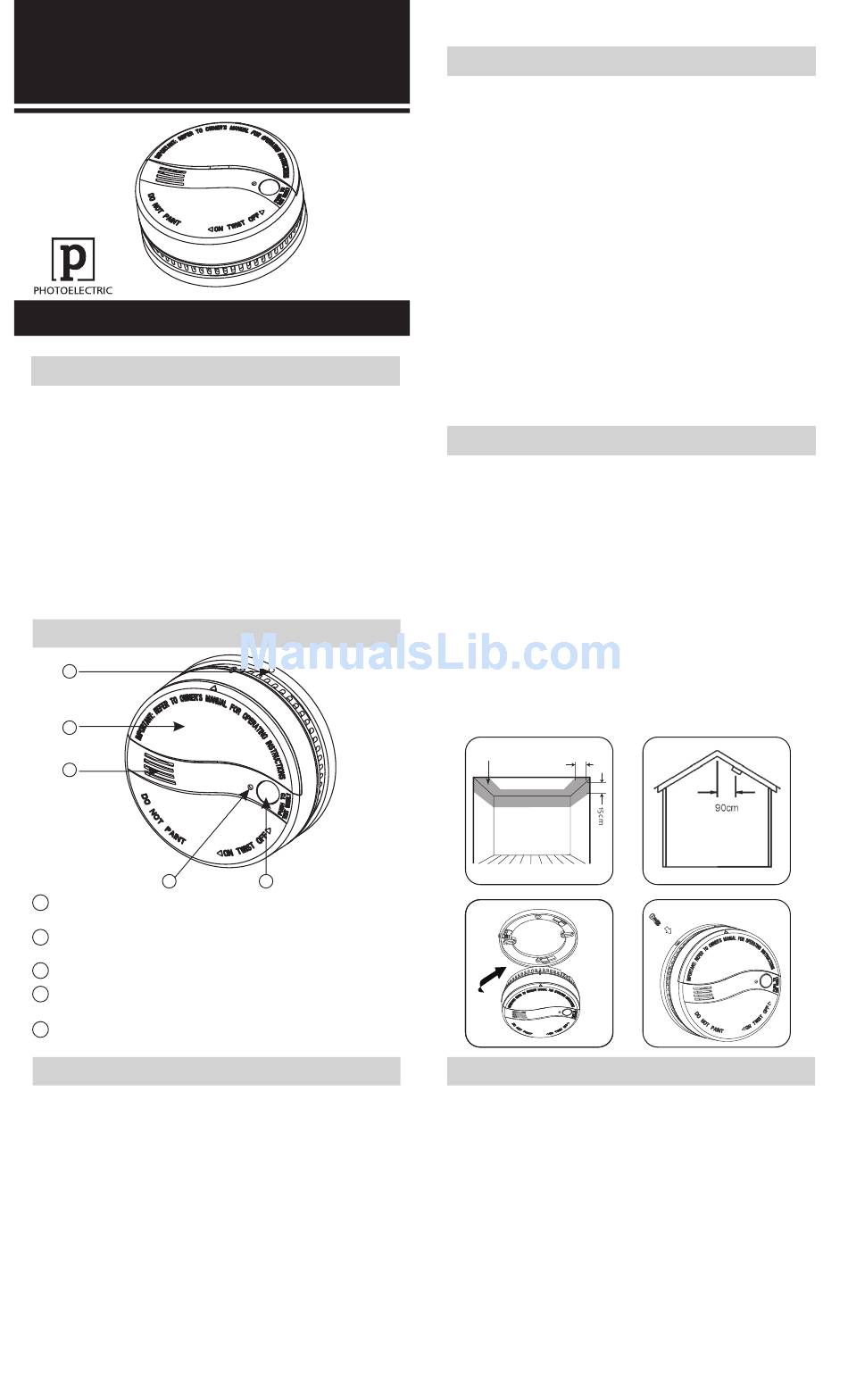

PRODUCT PROFILE
1
2
3
4
Tamper R esist Locking P in - c ould b e installed in motor homes,
1
ships etc . quavering places.
2 Battery Compartment C over - o n t op surface. Battery
replacement i s v ery c onvenient
3 Buzzer - loud alarm sound > 85 decibel.
4 RedL ED standby status, flashes once every 40s; alarm status, -
flashes rapidly.
5 Test B utton verifies i f the smoke a larm i s o perating properly. -

TECHNICAL SPECIFICATION

Power supply: DC 9V battery
Standby current: <12µA
Alarm current: <10mA
Alarm sound: >85dB (3m)
Sensor type: Photoelectric
Battery life after low battery warning: >30days
Temperature range: 0°C ~ 49°C (32°F ~ 120°F)
Humidity: 10%~90%RH (No icing or condensation)
Dimension: Φ95x41mm
Executive criteria: EN14604:2005; GB4715-2005; Ul217
Detecting area: 80m at 6-12m installation height;
60m at installation height <6m.
M212-1EVer1.0
5
1
FEATURES
● Advanced photoelectric sensing technology; detects visible
particles (associated with smouldering fire) sooner than
ionization alarms.
● Convenient to install and maintain.
● Battery compartment on alarm top surface; battery
replacement is more convenient and has protection function
for reverse battery loading.
● Auto check malfunction.
● Low battery warning; smoke alarm will chirp once every 40s
to remind user of replacing a new battery.
● Auto reset.
● Sound and flash alarm; alarm sound louder than 85 decibel
with red LED flashing .
● Test button; tests unit's electronic circuitry, buzzer and
battery function.
● SMT manufacture technology; high stability.
● Dustproof, mothproof and anti-white light interference design.
● Anti-RFI (20V/m-1GHz).
INSTALLATION
1.Avoid installations in places with stagnating smoke, heavy
dust, heavy water mist, heavy oil mist, great humidity (>95%)
and high wind speed (>5m/s).
2. Insert the battery correctly into the battery compartment
according to the marked positive and negative polarity.
3. Choose a proper position. Normally the center of the detection
area ceiling is recommended. If impractical, do not install the
detector in area without air flow (as Figure 1). For roof with
oblique beam, the ceiling is also oblique where the detector
should be installed at a position with 0.9m horizontal distance
to spire (as Figure 2). Fix the detector base into a chosen
position with screws. Then put the detector head into the
base and twist clockwise to fasten it (as Figure 3). At last,
plug in the tamper resist locking pin (as Figure 4).
Area without
air flow
15cm
Figure 1
Figure 3
OPERATING INSTRUCTION
1. Battery is equipped on delivery. Unpack the battery insulation
cement to active the battery before using.
2. After activating the battery, the smoke alarm enters into
normal monitoring status. The LED blinks once every 40s.
3. Sensitivity Test
To ensure normal operation, periodic tests should be
performed. Once a month is recommended. For testing, press
and hold the Test Button more than 3s to enter into sensitivity
test status. The alarm indicator will flash rapidly and buzzer
will give out alarm sound, which indicates the smoke alarm
works properly. During testing, keep ears away from the
smoke alarm to avoid hearing damage.
Figure 2
Figure 4
2
