OWNER'S MANUAL

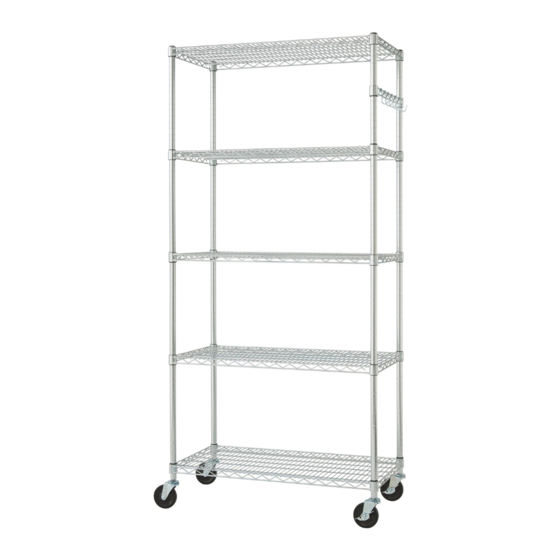

TRINITY 5-TIER NSF 36" x 18" x 72"
WIRE SHELVING RACK w/WHEELS
Model # TBFZ-0906 / TBFPBK-0906
Important / Important / Importante
FOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS
Directives intelligentes
POUR DES DIRECTIVES D'ASSEMBLAGE 3D RAPIDES ET FACILES
Instrucciones Inteligentes
PARA INSTRUCCIONES DE ENSAMBLAJE RÁPIDAS Y SENCILLAS EN 3D
DOWNLOAD THE FREE APP | TÉLÉCHARGER L'APPLICATION GRATUITE | DESCARGUE LA APLICACIÓN GRATUITA
Advertisement
Table of Contents
Related Manuals for TRINITY Pro TBFZ-0906
Summary of Contents for TRINITY Pro TBFZ-0906
- Page 1 OWNER’S MANUAL TRINITY 5-TIER NSF 36" x 18" x 72" WIRE SHELVING RACK w/WHEELS Model # TBFZ-0906 / TBFPBK-0906 Important / Important / Importante FOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS Directives intelligentes POUR DES DIRECTIVES D’ASSEMBLAGE 3D RAPIDES ET FACILES Instrucciones Inteligentes PARA INSTRUCCIONES DE ENSAMBLAJE RÁPIDAS Y SENCILLAS EN 3D...
-
Page 2: Parts List
PARTS LIST Your TRINITY 5-Tier NSF Wire Shelving Rack w/Wheels should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com. - Page 3 ASSEMBLY INSTRUCTIONS STEP 1 Stationary Option A (4) E (4) F (4) Screw each FEET LEVELER (F) into bottom of each BOTTOM POLE (A). Turn clockwise to screw in place. Mobile Option Screw each CASTER (E) into bottom of each BOTTOM POLE (A).
- Page 4 ASSEMBLY INSTRUCTIONS STEP 3 Place SHELF (C) on its side and slide each BOTTOM POLE (A) through each corner cylinder on SHELF (C). Make sure SHELF (C) C (1) corner cylinders are positioned over SLIP SLEEVES (D). Stand the unit upright. Note: •...
- Page 5 ASSEMBLY INSTRUCTIONS STEP 5 Screw TOP POLE (B) into BOTTOM POLE (A). B (4) Repeat for each remaining TOP POLE (B). Note: The top of each TOP POLE (B) is indicated by a BLACK END CAP. STEP 6 Decide on where to place sidebar and hooks, D (4) G (1) H (6)
- Page 6 ASSEMBLY INSTRUCTIONS STEP 7 Repeat Step 4 to install other SHELVES (C) C (3) D (24) as desired. Note: • Use a rubber mallet, if needed, to secure SHELVES (C). • For stationary option, after assembly, adjust FEET LEVELERS (F) as needed to ensure shelving rack is level.
-
Page 7: Service Parts List
SERVICE PARTS LIST – TBFZ-0906 Chrome Color TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description ZSV-03-007-3618 Shelf XBK-98-003-2538 Feet Leveler XBK-01-011-2543 Slip Sleeve XXX-97-002-0001 Wrench ZSV-04-006-3600 Top Pole ZSV-99-008-4010 Locking Caster ZSV-01-013-2523 Pole Connector ZSV-02-008-0001 “S”... - Page 8 SERVICE PARTS LIST – TBFPBK-0906 Black Color TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description PBK-03-007-3618 Shelf XBK-98-003-2538 Feet Leveler XBK-01-012-2543 Slip Sleeve XXX-97-002-0001 Wrench PBK-04-006-3600 Top Pole ZSV-99-008-4010 Locking Caster ZSV-01-013-2523 Pole Connector PBK-02-008-0001 “S”...
-
Page 9: Care And Maintenance
WARNINGS 1. Read and understand all instructions. Failure to follow all instructions may result in injury and/or damage. 2. Use the provided caster wrench to tighten casters completely. Failure to do as instructed could result in the caster stem breaking thereby causing the shelving rack to collapse. 3. -
Page 10: Product Registration
PRODUCT REGISTRATION Thank you for purchasing a TRINITY 5-Tier NSF Wire Shelving Rack w/Wheels. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to customerservice@trinityii.com. -
Page 11: Year Limited Warranty
1 YEAR LIMITED WARRANTY TRINITY 5-Tier NSF Wire Shelving Rack w/Wheels Model # TBFZ-0906 / TBFPBK-0906 Trinity International Industries (“Trinity”) warrants to the original consumer purchaser (“Purchaser”) of the TRINITY 5-Tier NSF Wire Shelving Rack w/Wheels(“Product”) that each Product shall be free from defects in workmanship and materials for a period of 1 year from the date of original purchase. - Page 12 CONTACT US QUESTIONS? NEED PARTS? WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service. TRINITY Customer Service TEL: 800.985.5506 FAX: 310.347.4134 EMAIL: customerservice@trinityii.com...
