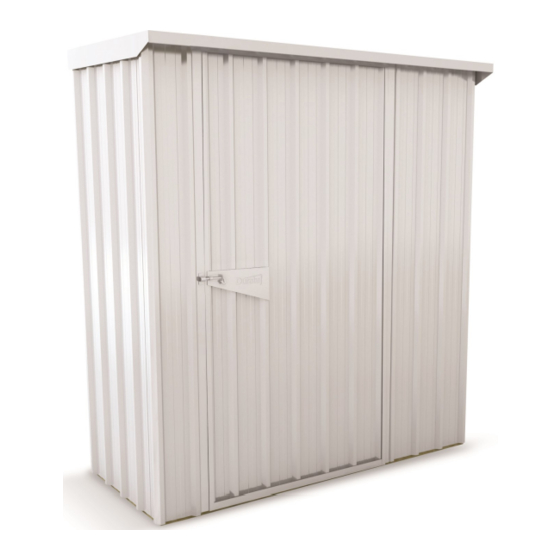

ASSEMBLY INSTRUCTIONS
GS62
BASE SIZE: 1.690m x 0.685m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Duratuf Gurdian Sheds GS62 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Riverlea Duratuf Gurdian Sheds GS62

Summary of Contents for Riverlea Duratuf Gurdian Sheds GS62

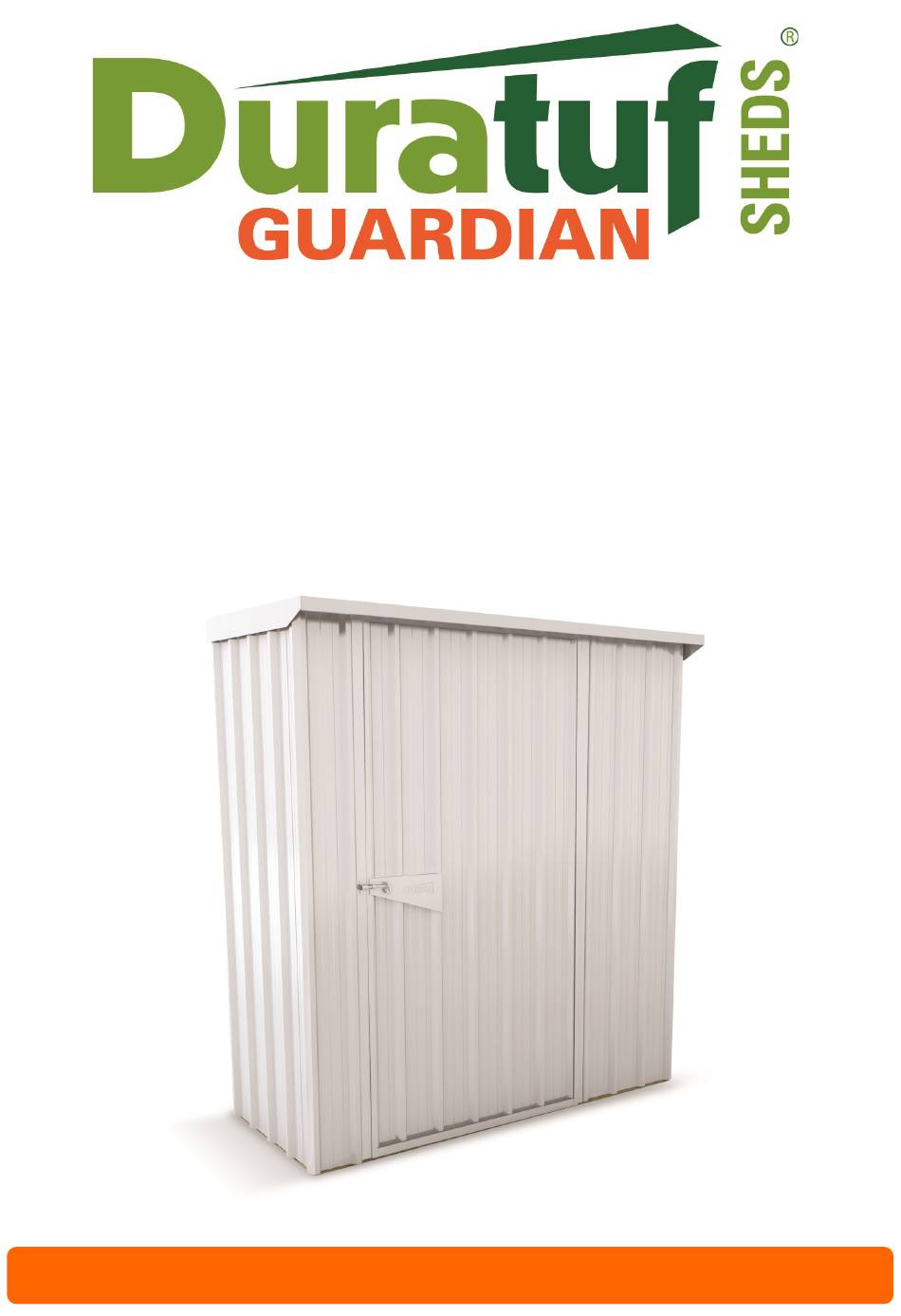

  • Page 1 ASSEMBLY INSTRUCTIONS GS62 BASE SIZE: 1.690m x 0.685m...
  • Page 2 CHECK OUT OUR ASSEMBLY VIDEO...

  • Page 3: Before You Start

    CONGRATULATIONS ON PURCHASING A DURATUF GUARDIAN SHED. BEFORE YOU BEGIN THE ASSEMBLY PLEASE NOTE SOME IMPORTANT POINTS BEFORE YOU START: • Read all instructions carefully • Identify all parts and check quantities against parts list • Select a level site •...
  • Page 4 GS62 PARTS LIST CLADDING + FLASHING + HARDWARE PACK 1 DESCRIPTION DIAGRAM CHECKED Front Wall - 1.890m Back Wall - 1.930m Side Wall Angle- 1.915m Roof - 0.770m Side Wall 1 pan Angle- 1.895m Door Sheet Narrow - 1.850m Front Wall 1 Pan - 1.890m Back Wall 1 Pan - 1.930m Roof 1 Pan - 0.770 Door Sides - 1.850m...
  • Page 5 GS62 PARTS LIST PACK 2 TIMBER DESCRIPTION DIAGRAM CHECKED Front/Back Bottom Plates - H4 (Green) 1.690 m Front/Back Top Plate - H1 (Red) 1.690 m Side Wall Bottom Plates - H4 (Green) 0.685 m Side Wall Top Plates - H1 (Red) 0.687m Ridge - 1.725m...

  • Page 6: Parts Location

    PARTS LOCATION Roof Sheets Barge Flashing Ridge Flashing Spouting Top Plate Side Back Wall Sheets Top Plate Front Top Plate Back Door Brace Door Side Flashing Door Sheets Door Jambs Bottom Plate Front Side Wall Sheets Front Wall Sheet Padbolt Support Bottom Plate Side Door Top/Bottom Flashing QUICK OVERVIEW...
  • Page 7 FOUNDATION No doubt by now you will have decided what sort of base you are putting down. Please read the section that applies to your situation. If you choose to pour a concrete base you will need to decide whether you wish to raise the base plate of your shed. This allows the cladding to protrude below the surface of the concrete and ensures a water tight pad.
  • Page 8 ASSEMBLE DOOR SELECT: 2 x 1.850 m Door Sheets (Narrow) 2 x 0.945 m Door Top/Bottom Flashings 2 x 1.850 m Door Side Flashings 3 x Hinges 1 x Padbolt Support Flashing 2 x 1.160 m Door Brace Flashings 59 x Rivets fig.3 STEP 1: •...
  • Page 9 ASSEMBLE SIDE PANELS SELECT: IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER BASE PLATE –READ THE FOLLOWING; 2 x 1.915 m Side Wall Sheets (Angled) 2 x 1.895 m Side Wall 1 pan Sheets (Angled) For sheds with Raised Base Plate option only (see page 6), deduct 2 x 0.687m Top Plates (Red) 30mm from measurement shown between Top and Bottom Plates on 2 x 0.685m Bottom Plates (Green)
  • Page 10 ASSEMBLE BACK PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 3 x 1.930 m Wall Sheets For sheds with Raised Base Plate option only (see page 6), deduct 1 x 1.930 m 1 Pan Wall Sheet 30mm from measurement shown between Top and Bottom Plates on 1 x 1.690 m Top Plate (Red) all wall panels, so cladding protrudes 20mm below bottom plate...
  • Page 11 ASSEMBLE FRONT PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 1 x 1.890 Wall Sheet For sheds with Raised Base Plate option only (see page 6), deduct 1 x 1.890 1 Pan Wall Sheet 30mm from measurement shown between Top and Bottom Plates on 1 x 1.690 Top Plate (Red) all wall panels, so cladding protrudes 20mm below bottom plate...

  • Page 12: Wall Panel Assembly

    WALL PANEL ASSEMBLY SELECT: 4 x Pre-made Wall Panels 16 x 40mm Screws SIDE 16 x Rivets OVERLAPS BACK TOP PLATE BACK WALL STEP 1: BOTTOM PLATE • Stand the Back Panel and the Side Panel up using someone to support the panels SIDE WALL while they are screwed together.

  • Page 13: Roof Assembly

    ROOF ASSEMBLY IMPORTANT SELECT: Use 50mm Clouts only on outside ribs covered by Barge flashings and back wall top plate. Predrill holes using a 3.5mm drill bit. Use Roofing Screws on all 3 x 0.770 m Roof Sheets other ribs. 1 x 0.770m 1 Pan Roof Sheet 1 x 1.725 m Spouting IMPORTANT—FOR SHEDS WITH OPTIONAL CLEAR ROOF PANEL...
  • Page 14 SECURING SHED Secure your shed using Treated Timber Pegs or a Bolt Down Kit TIMBER PEGS—WOODEN FLOOR • The optional Duratuf Timber Peg Down Kit includes six H5 treated timber pegs that can be hammered into the ground and then attached to the Base Plate with stainless steel screws.

  • Page 16: Year Warranty

    20 YEAR WARRANTY Riverlea Group Ltd warrant that the cladding used in the manufacture of the Guardian shed will not rust within 20 years from the date of purchase. Any liability for product failure that may arise will be limited to repair or replacement of the defective product and will only apply for the benefit of the original purchaser.
