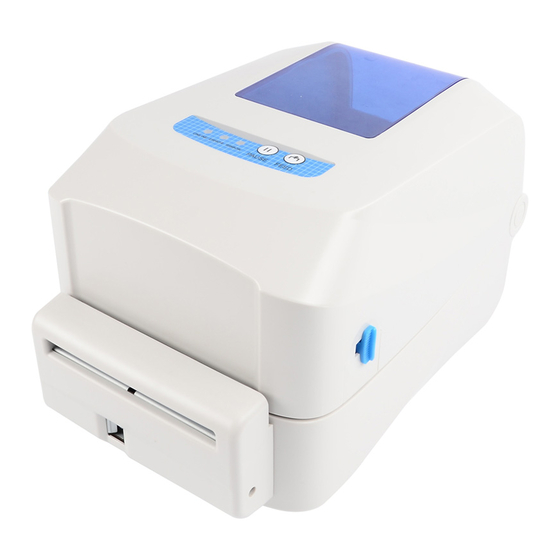

Thermal transfer barcode printer

Advertisement

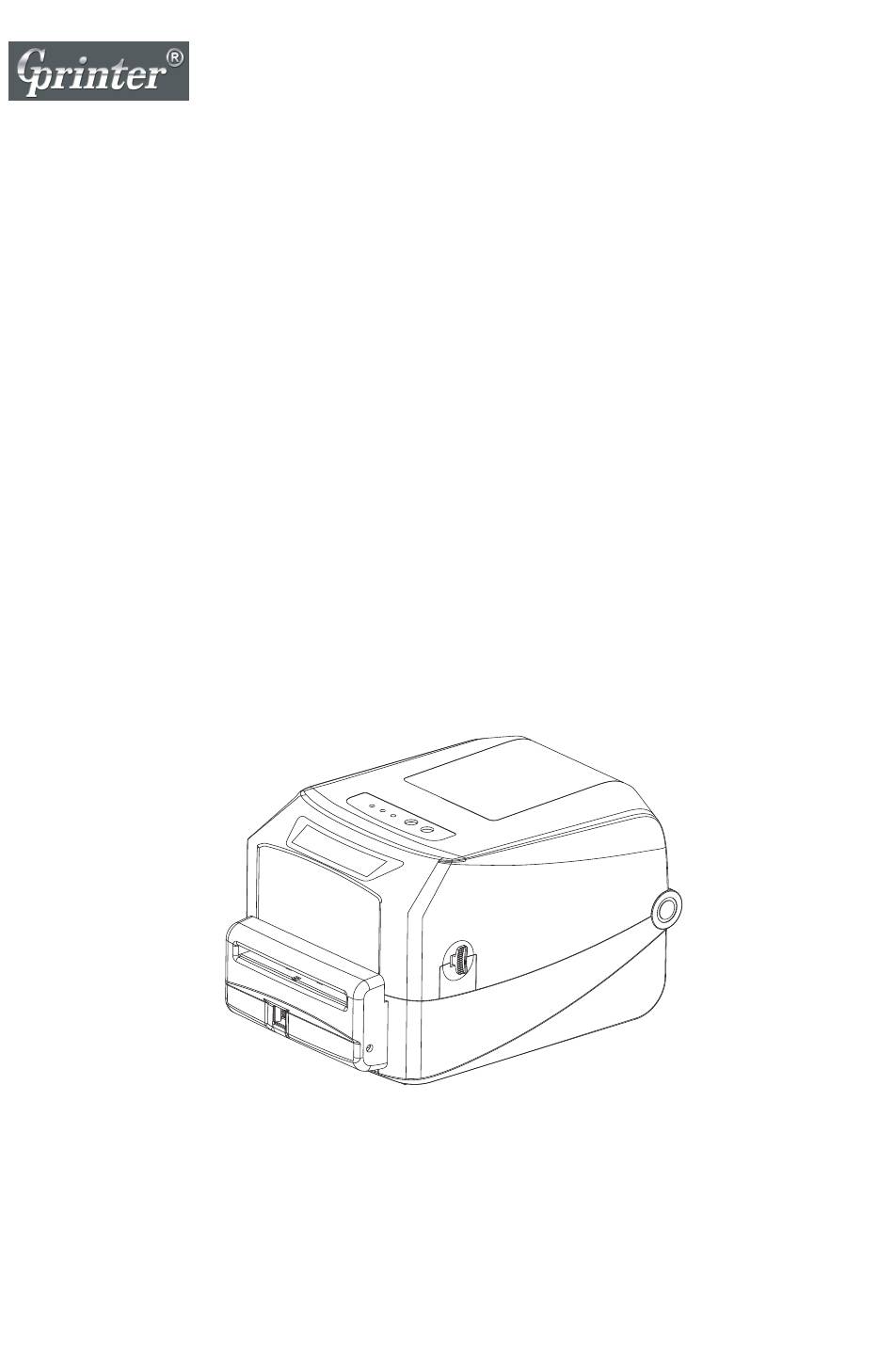

User's Manual
GP-1624T / GP-1625T / GP-1634T / GP-1635T
GP-1624TC / GP-1625TC / GP-1634TC / GP-1635TC
Thermal Transfer Barcode Printer
400 611 3828
Customer service hotline :

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GP-1624T and is the answer not in the manual?

Questions and answers

Summary of Contents for GPRINTER GP-1624T

  • Page 1 User's Manual GP-1624T / GP-1625T / GP-1634T / GP-1635T GP-1624TC / GP-1625TC / GP-1634TC / GP-1635TC Thermal Transfer Barcode Printer 400 611 3828 Customer service hotline :...
  • Page 2 CONTENTS The printer Introduction Product features Standard equipment Optional accessories Specifications Print specifications Ribbon specifications The paper size Product introduction Open and check Printer components Appearance Internal The bottom Installation Install the printer Install the ribbon Installation of paper Installation of paper LED indicator function LED indicator Thermal printing...
  • Page 3: Application Field

    The printer Introduction Thanks for choosing GP-1624T/GP-1625T/GP-1634T/GP-1635/GP-1624TC / GP-1625TC / GP-1634TC / GP-1635TC series direct thermal and thermal transfer label printer. ( The product code with C means that they have cutter.) This series printer is built with 2 sets of gear to drive motor, with capability of handling 300 meters long ribbon and large label roll.
  • Page 4: Product Features

    Built in simplified Chinese, traditional and Korean font for programming. Can print text, bar code, pictures Support bar code Support picture format Optional accessories External media holder, cutter. Specifications GP-1624T/GP-1634T GP-1625T / GP-1635T Models 200(W)X180(H)X280(D) Printer size Printer weight 3.5 KG Power Supply...
  • Page 5: Print Specifications

    Print specifications Models GP-1624T/GP-1625T GP-1634T / GP-1635T The print head 203dots/inch(8dots/mm) 300dots/inch(12dots/mm) Print mode Thermal Transfer / Direct thermal 0.083X0.083mm 0.125x0.125mm (the size) (width X length) (1mm = 12dots) (1mm = 8dots) Print speed (inches per second) 2~6 inch/s 1~5 inch/s Maximum print width 104 mm (4.09")
  • Page 6: Product Introduction

     External paper holder ◆ (Optional for GP-1624T, GP-1634T,GP-1624TC, GP-1634TC, Standard for GP-1625T, GP-1635T,GP-1625TC, GP-1635TC) <Picture 1> Please pack equipment and materials needed for safekeeping printer for subsequent handling; if the above items, any lost or missing, please Customer Service Department of your purchase...
  • Page 7: Printer Components

    Printer components Appearance LED lights indicate: ★ ON LINE electric lamp ★ ERROR error lamp ★ RIBBON ribbon status light LED indicator Label exit Press button for top cover open <Picture 2> Press button for top cover open Label exit Power on/off switch <Picture 3>...
  • Page 8 Internal Ribbon supply hub Top cover Media holder <Picture 4> The bottom Bottom cover with DIP switch Power port RS-232C serial port Parallel port Ethernet port USB port Label entrance from external holder <Picture 5> Note: Picture showing printer port is for GP-1625TC / GP-1635TC.
  • Page 9: Install The Printer

    Installation Install the printer 1. Please put the printer on the stable surface. 2. Make sure printer power is turned off, please do not plug the power cable when the printer power is turned on. 3. Connect serial or USB or Parallel or Ethernet cable to <Picture 6>...
  • Page 10: Installation Of Paper

    Ribbon installation diagram <Picture 7> Installation of paper 1. Open the printer top cover by pressing two buttons located on left and right side of printer. 2. Separate and hold open the media holders, place the label roll between the holders to hold the label roll firmly and turns smoothly.
  • Page 11: Led Indicator And Function

    Paper installation diagram <Picture 8> LED Indicator and Function There’re two buttons and three LED indicators, many functions can be realized through using different button, indicator and power on/off switch. LED indicator Direct thermal printing method LED Indicator status Descriptions Printer is powered on and in normal Power indicator is on,Error indicator is off printing status...
  • Page 12: Button Function

    Button Function Feed When the printer is ready (LED blue fixed), click the button, label paper into the front end of a paper label. Print job timeout The printer in the print, click the PAUSE button to print suspended. At this time power indicator is blue flashing.
  • Page 13 User can use command to save a code auto- runn TSPL2 Skip AUTO.BAS program -ing file into flash. When turn on printer, prin (AUTO.BAS) -ter will run the program automatically. If you want to skip AUO.BAS program on power-up, then follow below steps: Press and hold button, then turn on the PAUSE...
  • Page 14: Troubleshooting

    Troubleshooting Common problem Below the table of contents is generally the common problems and solutions; if you have been in our proposed methods of eliminating the fault, and the printer is not normal operation, so check with your purchase customer service department, so as to get more help. Problems Possible Reasons Solution and Suggestion...
  • Page 15 Ribbon printing side wrong Check and re-install ribbon to make installed sure printing side touch label paper Print head not clean Clean print head and print again Print density setting wrong Suggest density set to be 7 Not printing Print head cable not well Re-connect print head cable connected Step Motor cable not well...
  • Page 16: Maintenance

    Maintenance 6.1.Printer Cleaning To ensure the printing quality, please proceed this maintenance section to keep your printer in good conditions and extend its life as well. Please use one of following material to clean the printer. Cotton swab ★ Lint-free cloth ★...
