Summary of Contents for Chauvet Professional OVATION P-56

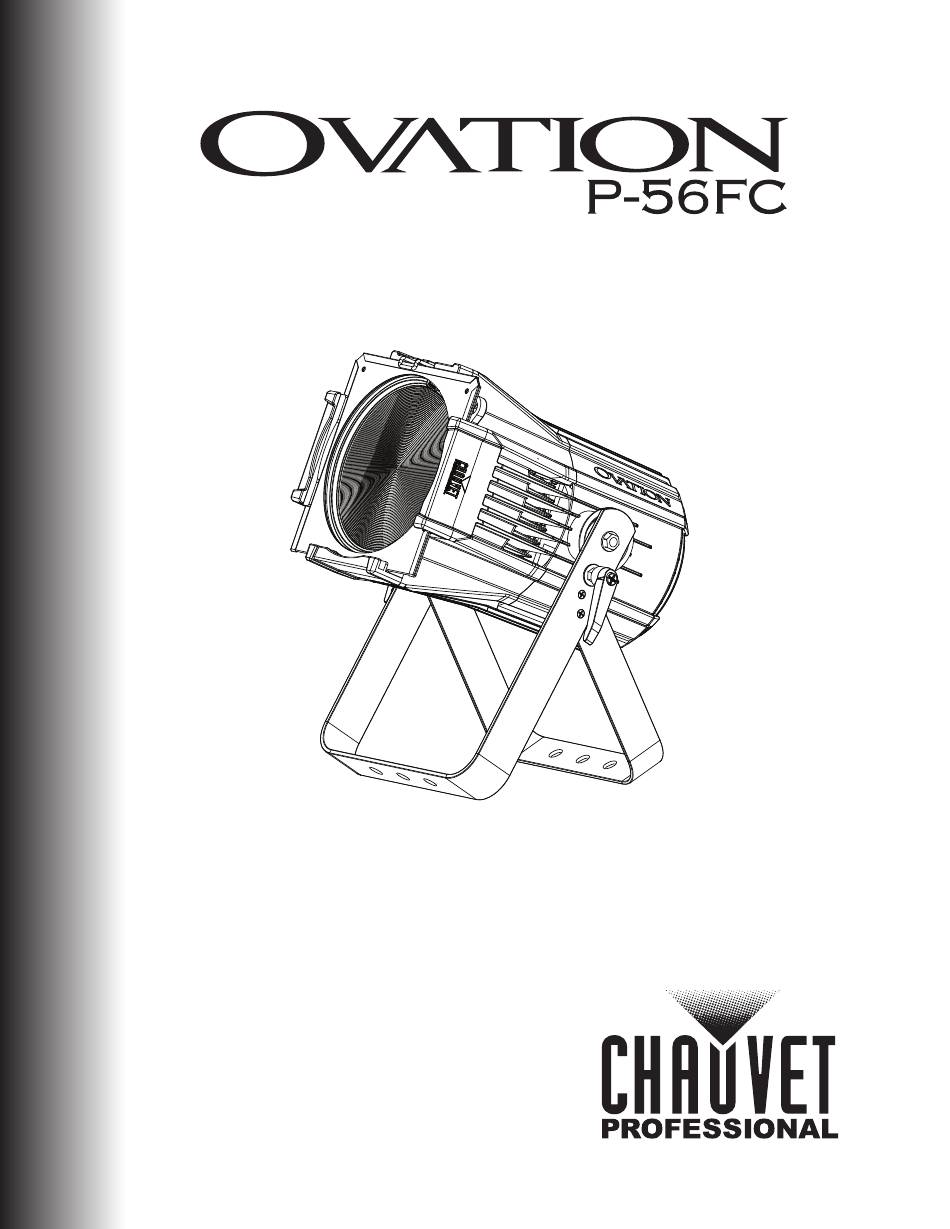

  • Page 1 User Manual...
  • Page 2 DITION OTES The Ovation P-56FC User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the Ovation P-56FC. Trademarks CHAUVET, the Chauvet logo, and Ovation P-56FC are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.
  • Page 3: Table Of Contents

    Table of Contents TABLE OF CONTENTS 1. Before You Begin ............... What Is Included ................... 3 Claims ......................3 Manual Conventions ..................3 Symbols ......................3 Safety Notes....................4 Personal Safety......................Mounting and Rigging ....................Power and Wiring......................Operation ...................... 4 Expected LED Lifespan.................
  • Page 4 Table of Contents Master/Slave ........................Dimmer Profiles......................White Balance ........................ LED Frequency ......................Fan Mode ........................Back Light ........................System Information ......................Factory Reset......................... 5. Technical Information ..............Product Maintenance ..................21 6. Technical Specifications ............Photometrics Chart ..................23 Returns....................
  • Page 5: Before You Begin

    EFORE EGIN 1. B EFORE EGIN What Is Included • Ovation P-56FC • Neutrik powerCON power cord • Gel frame holder (7.5 in/191 mm • Medium and wide lenses accessories) • Quick Reference Guide Claims Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition.
  • Page 6: Safety Notes

    EFORE EGIN Safety Notes Read all the following safety notes before working with this product. These notes contain important information about the installation, usage, and maintenance of this product. This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained, certified technicians.
  • Page 7: Introduction

    NTRODUCTION 2. I NTRODUCTION Description The Ovation P-56FC is a compact, silent par that produces a homogenized, single-source, flat field of light with high CRI. The bright product utilizes the same advanced full color-mixing RGBAL LED system found in the popular Ovation E-910FC ellipsoidal. Interchangeable lens plates are included for medium and wide beam angles, and the unit accepts standard 7.5"...
  • Page 8: Product Overview

    NTRODUCTION Product Overview 5-pin DMX Menu Power in/out buttons 3-pin DMX in/out Power in Fuse Bracket Gel frame Gel frame holder clip Tilt adjustment handle Page 6 of 25 Ovation P-56FC User Manual Rev. 4...
  • Page 9: Product Dimensions

    NTRODUCTION Product Dimensions 9.38 in 12.83 in (238 mm) (326 mm) 3.31 in (84 mm) 7.48 in 0.51 in (190 mm) (13 mm) 7.48 in (190 mm) 6.85 in (174 mm) 6.65 in 8.15 in (159 mm) (207 mm) 4.72 in (120 mm) 10.28 in (261 mm)
  • Page 10: Setup

    ETUP 3. S ETUP AC Power Each Ovation P-56FC has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the power requirements for each Ovation P-56FC, refer to the label affixed to the product.
  • Page 11: Mounting

    Mounting Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. For our CHAUVET Professional line of mounting clamps, go to http://trusst.com/products/. Orientation Always mount this product in a safe position, making sure there is adequate room for ventilation, configuration, and maintenance.
  • Page 12: Alternate Lens Changing Procedure

    ETUP Alternate Lens Changing Procedure The Ovation P-56FC has the ability to have different types of lenses installed. The interchangeable lenses allow the product to have alternate beam angles. To remove a lens: Pull knob up. Grab the tab on the lens and pull it out of the fixture. Diffusion filter media (gel) attached to the fixture behind the lens may stick to the lens being removed.
  • Page 13: Operation

    PERATION 4. Operation Control Panel Operation Button Function <MENU> Exits from the current menu or function <ENTER> Enables the currently displayed menu or sets the currently selected value in to the current function <UP> Navigates upward through the menu list or increases the numeric value when in a function <DOWN>...
  • Page 14 PERATION Main Level Programming Levels Description C3050 - Md Yellow C3040 - Lt Yellow C3240 - Amb Yellow C2340 - VLt Amber C2040 - Lt Amber C2050 - Md Amber C2060 - Dk Amber C1050 - Lt Red C1080 - Md Red C1020 - NC Pink C1030 - Md Pink C1630 - Dk Pink...
  • Page 15 PERATION Main Level Programming Levels Description Auto 1 Auto 2 Selects automatic programs and auto Auto Show Auto 3 1–100 program speed Auto 4 Auto 5 Master Master mode Master/ Slave Slave Slave mode Linear dimmer Dimmer 1 Fast dimmer curve Dimmer Mode Dimmer 2...
  • Page 16: Configuration (Dmx)

    PERATION Configuration (DMX) Use control configurations to operate the product with a DMX controller. Control Personalities This setting allows you to choose a particular control personality. Go to the DMX Channel main level. Select the desired personality (see table below). Personality Channels Personality...
  • Page 17: 13-Ch

    PERATION 13-Ch Channel Function Value Percent/Setting Dimmer 255 0–100%  Dimmer Fine 255 0–100%  255 0–100%  Red Fine 255 0–100%  Green 255 0–100%  Green Fine 255 0–100%  Blue 255 0–100%  Blue Fine 255 0–100% ...
  • Page 18: 10-Ch

    PERATION 10-Ch Channel Function Value Percent/Setting Dimmer 255 0–100%  Dimmer Fine 255 0–100%  255 0–100%  Green 255 0–100%  Blue 255 0–100%  Amber 255 0–100%  Lime 255 0–100%  010 No function  Strobe 255 Strobe (slow to fast) ...
  • Page 19: Virtual Color Wheel

    PERATION Virtual Color Wheel The Ovation P-56FC includes a feature called the Virtual Color Wheel (VCW). This feature is available as a standalone control mode for manual use and as a control channel in select DMX personalities. More than 30 pre-mixed colors, custom blended by our engineers, are available to call up for easier programming. The DMX values used to mix these colors are provided below.
  • Page 20: Configuration (Standalone)

    PERATION Preset Color Temperature Chart DMX Channel Green Blue Amber Lime Display Readout Value Value Value Value Value Value  2800K  3000K  3200K  3500K  4000K  4500K  5000K  5600K  6000K  6500K  ...
  • Page 21: Master/Slave

    PERATION Master/Slave The Master/Slave mode allows a group of Ovation P-56FC products (the slaves) to simultaneously duplicate the output of another Ovation P-56FC (the master) without a DMX controller. To set each of the slaves: Go to the Master/Slave main level Select Slave.
  • Page 22: Back Light

    PERATION Back Light This setting allows for selection of the amount of time the backlight on the Ovation P-56FC’s display stays on after the last button is pressed on the control panel. Go to the Back Light main level. Select Always On (remains on), 10S (10 seconds), 30S (30 seconds), or 2MIN (2 minutes). System Information This option displays the total number of hours the product has run, the installed software version, and the product’s UID.
  • Page 23: Technical Information

    ECHNICAL 5. T ECHNICAL NFORMATION Product Maintenance To maintain optimum performance and minimize wear, clean this product frequently. Usage and environment are contributing factors in determining the cleaning frequency. Clean this product at least twice a month. Dust build-up reduces light output performance and can cause overheating.
  • Page 24: Technical Specifications

    ECHNICAL PECIFICATIONS 6. T ECHNICAL PECIFICATIONS Dimensions and Weight Length Width Height Weight 12.48 in (317 mm) 12.83 in (326 mm) 14.0 in (363 mm) 12.2 lb (5.6 kg) Note: Dimensions in inches rounded to the nearest hundredth. Power Power Supply Type Range Voltage Selection Switching (internal)
  • Page 25: Photometrics Chart

    ECHNICAL PECIFICATIONS Photometrics Chart Light Source Wide Beam Field Beam Field Diameter Diameter Footcandle Footcandle Diameter Diameter Distance 15 ft 20 ft 30 ft 40 ft 50 ft 75 ft 100 ft 125 ft 150 ft Field Field Beam Light Source Wide Field Beam...
  • Page 26: Returns

    ETURNS ETURNS Send the product prepaid, in the original box, and with the original packing and accessories. Chauvet will not issue call tags. Call Chauvet and request a Return Merchandise Authorization (RMA) number before shipping the product. Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return.
  • Page 27: Contact Us

    ONTACT ONTACT General Information Technical Support Chauvet World Headquarters Address: 5200 NW 108th Ave. Voice: (844) 393-7575 Sunrise, FL 33351 Fax: (954) 756-8015 Voice: (954) 577-4455 Email: chauvetcs@chauvetlighting.com Fax: (954) 929-5560 Toll Free: (800) 762-1084 Website: www.chauvetprofessional.com Chauvet Europe Ltd Address: Unit 1C Email: UKtech@chauvetlighting.eu...
