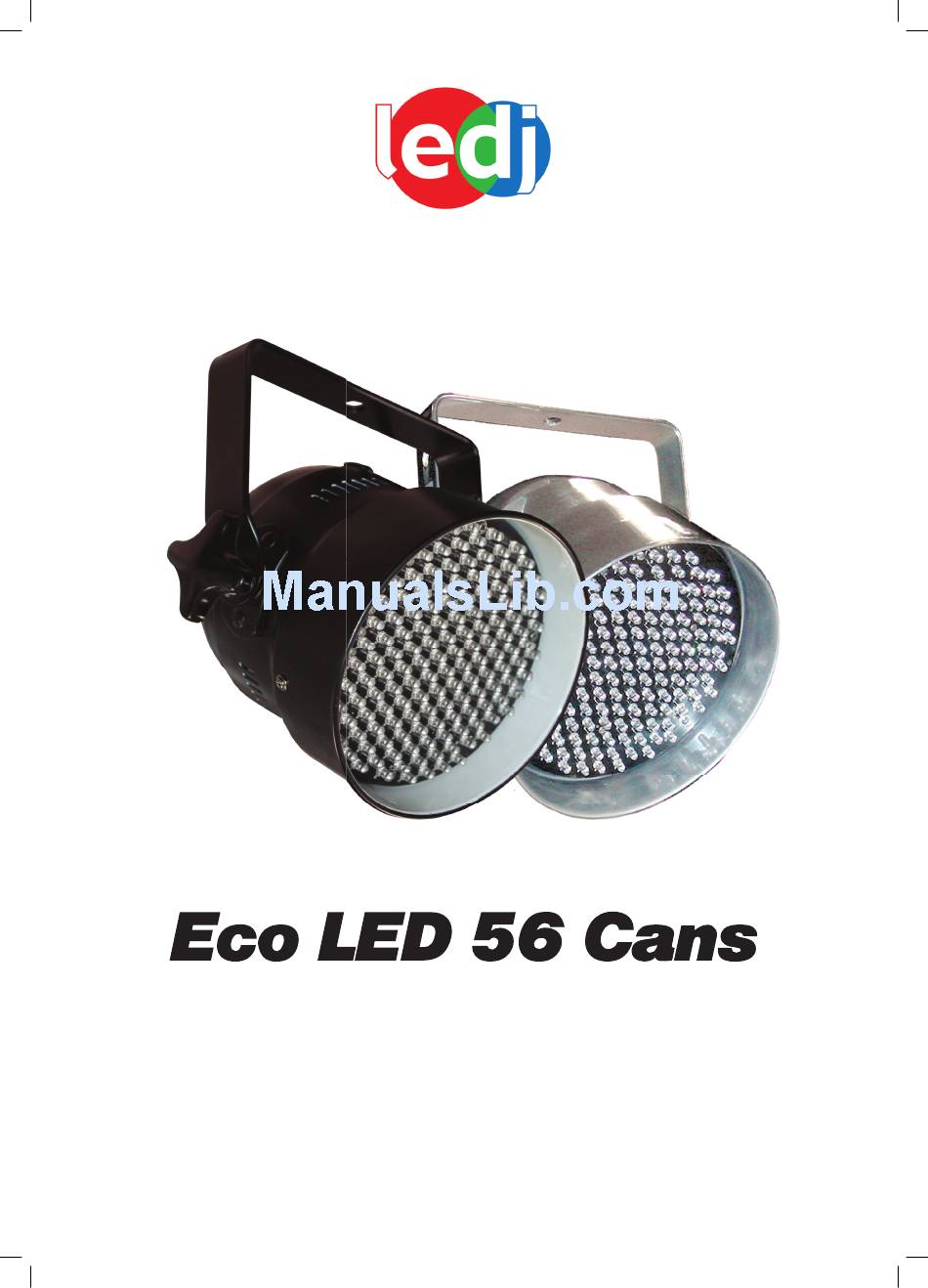

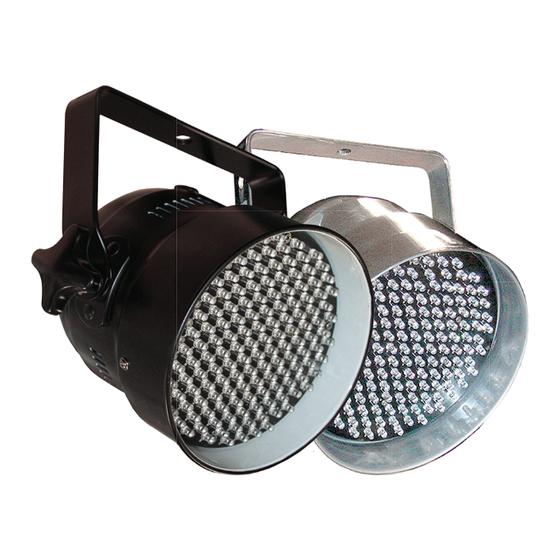

Page 1: User Manual
www.prolight.co.uk Order code: LEDJ06 - Black Order code: LEDJ07 - Polished USER MANUAL... -
Page 2: Safety Instructions
Eco LED 56 Cans SAFETY WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual... -
Page 3: Operating Determinations
Eco LED 56 Cans SAFETY IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... -
Page 4: Control Features
Eco LED 56 Cans INTRODUCTION Introduction CONTROL FEATURES • 3/6-channel DMX • Blackout/Dimmer/Strobe • Individual control of Red, Green and Blue LEDs Features • 151 LEDs: - Red (51), Green (49), and Blue (51) • Ultra Bright 5mm LEDs • Sound control via internal microphone •... - Page 5 Eco LED 56 Cans Programmes Programme Selection: Static Colour Mode: Press the mode button and use the up and down buttons to select one of the 7 desired colours. 1, Red 2, Green 3, Blue 4, Yellow 5, Cyan 6, Purple 7 White Colour Changing Mode Press the mode button to select the Colour Change programme.
- Page 6 Eco LED 56 Cans CONTROL OPTIONS DMX Control Mode: The Eco LED 56 can has two DMX modes to choose from, 3 channel or 6 Channel. To access the 3 Channel mode, press the mode button to show a red dot illuminated under the first digit of the DMX address. Red Dot The unit is now ready for use in 3 channel mode 3CH DMX Mode:...
- Page 7 Eco LED 56 Cans DMX SET UP DMX-512: • DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN”...
- Page 8 Eco LED 56 Cans DMX SET UP Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
- Page 9 Eco LED 56 Cans DMX VALUES Technical Specifications Weight & Dimensions • Length….................. 169mm • Width..................203mm • Height…………………………………………......….. 213mm • Weight………………………………………........ 1.4kgs Power • AC input……………………………………........ 240V/50hz Fuse 20mm Glass 0.5A Fast Blow • Main………………………………………………......Control & Programming • Data input………………………………………......Locking 3-pin XLR male socket Locking 3-pin XLR female socket •...
