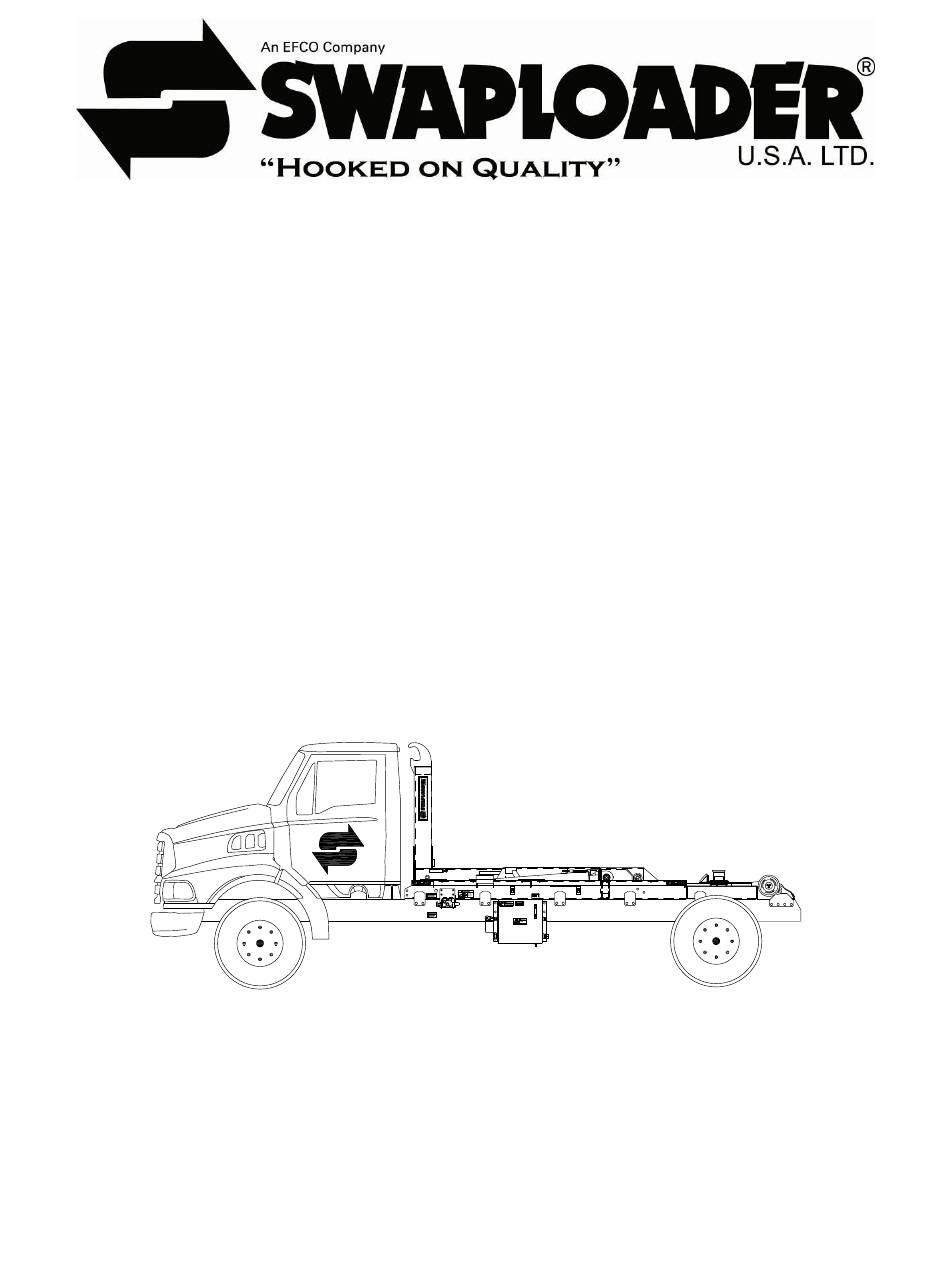

swaploader SL-240 Parts And Operation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Model SL-240
Parts and
Operations Manual
Hoist Serial Number: ____________________

Advertisement

loading
Need help?

Need help?

Do you have a question about the SL-240 and is the answer not in the manual?

Questions and answers

Related Manuals for swaploader SL-240

Summary of Contents for swaploader SL-240

  • Page 1 Model SL-240 Parts and Operations Manual Hoist Serial Number: ____________________...
  • Page 5 Placing a Container on the Ground Changing Hook Heights Adjusting Jib (Optional) Rear Roller Spacing Adjustment MAINTENANCE Weekly Service (50 Operations) Monthly Service (200 Operations) Yearly Service Lubrication Diagram Hydraulic Oil Specifications Hydraulic Filter Interchange General Maintenance Parts List Replacement Bearing List SL-240 Rev. 05/2020...
  • Page 7 INTRODUCTION...
  • Page 9 Record your SwapLoader Hoist serial number in the appropriate space provided on the title page. Your SwapLoader dealer needs this information to give you prompt, efficient service when you order parts. It pays to rely on an authorized SwapLoader Distributor for your service needs. For the location of the Distributor nearest you, contact SwapLoader.
  • Page 10 SwapLoader distributor or service center, that such products are free of defects in material and workmanship. All SwapLoader products with an original factory invoice date of September 1, 2009 or later qualify for warranty as defined in this Limited Warranty Statement.
  • Page 11 SAFETY SUGGESTIONS Do not operate or service this equipment until you have been properly trained and instructed in its use and have read the operation and service manual. Do not operate this equipment on uneven ground. Do not drive with the hoist in the dump position or with the hook to the rear.
  • Page 12 It is the responsibility of the owner and/or installer to insure that any additional safety devices required by state or local codes are installed on the SwapLoader Hoist and/or Truck Chassis.
  • Page 13 SAFETY INSTRUCTIONS 90P18 RELIEF VALVE 90P52 PROP DECAL 90P78 HIGH-PRESSURE FLUID The following is a list of all the Swaploader Safety Decals, and their part numbers. Please use when reordering replacement decals. WARNING 90P07 – OPERATIONS & SERVICE MANUAL INTRODUCTION 09/2009...
  • Page 14 90P08 – HOIST-BODY SPECIFICATIONS 90P09 – HYDRAULIC OIL SPECIFICATIONS 90P10 – HYDRAULIC OIL FLAMMABLE 90P11 – HOIST FALLING 90P13 – SWAPLOADER SAFETY INSTRUCTIONS 90P18 – RELIEF VALVE INTRODUCTION 09/2009...
  • Page 15 90P52 – PROP DECAL (OPTIONAL) 90P78 – HIGH-PRESSURE FLUID INTRODUCTION 09/2009...
  • Page 17 INSTALLATION...
  • Page 19 When the SwapLoader hoist is received from the factory, you should inspect the hoist for damage, which may have occurred in shipment. If damage has occurred, you should contact the shipper immediately. Be sure to note any damage or missing items on bill of Lading.
  • Page 20 Minimum clear frame rail for mounting: 182" (See Fig. A) Front Axle Cap: 12,000 lb. (Min) Total Rear Axle Capacity: 20,000 lb. (Min) CA Dim: 130” to 144” (144” preferred) CT Dim: 120” to 132” (132” preferred) Figure A SL-240.INS 05/2020...
  • Page 21 There are two types of mount brackets used on the Model SL-240 hoist as indicated in Figure C or Drawing No. 52H34. They are the front mount brackets (Pt. No. 60H60), and the rear mount brackets (Pt.
  • Page 22 Note: The hoist main frame is made from high strength low alloy steel. Use an appropriate welding process. SL-240.INS 05/2020...
  • Page 23 SL-240.INS 05/2020...
  • Page 24 Assemble and install the control lever console (See diagram below). Typically the console is fastened to the floor of the cab and the control cables are routed through additional holes drilled in the floor. Your particular installation may require that additional brackets be fabricated or other modifications made. SL-240.INS 05/2020...
  • Page 25 SL-240.INS 05/2020...
  • Page 26 SL-240.INS 05/2020...
  • Page 27 Swaploader. Take proper care when routing the control cables, as a good cable path is essential for a proper operating system. Keep bends in the cable path to a minimum and be as generous as possible.
  • Page 28 When turning on the Flange Adapter / Flange / Sleeve Assembly, make sure that the control head remains in the neutral position. 6. Tighten the .750-16 UNF Jam Nut against the Sleeve and lock in position. 7. Bring Flange into position on bolt assembly to valve housing. 2-10 SL-240.INS 05/2020...
  • Page 29 The air hose is provided in a bulk length, which you can cut to length as required for running the air lines. Take care in routing the air lines and avoid hot areas such as exhaust pipes, etc. 2-11 SL-240.INS 05/2020...
  • Page 30 2-12 SL-240.INS 05/2020...
  • Page 31 2-13 SL-240.INS 05/2020...
  • Page 32 Drawing No. 90H95. The hose length can be shortened if necessary. Secure the hose to the barb fittings with the hose clamps provided. Figure E 2-14 SL-240.INS 05/2020...
  • Page 33 L.H. As provided (See Note 2). The hydraulic pump rotation can be reversed to R.H. by a qualified hydraulic technician or it can be sourced through Swaploader. NOTE 1: P.T.O. torque and power requirements are based on the unit operating at main relief pressure.
  • Page 34 CW (right hand rotation pump) is needed; call SwapLoader for price and availability. NOTE: Consult the PTO supplier whenever uncertain about the correct pump rotation for a particular application. The table below lists the SwapLoader part number for both left and right hand rotation pumps for the SL-518 hoist model: L.H. Rotation R.H.
  • Page 35 5. Tie up the pressure and suction hoses as necessary. Again, be sure the hoses are routed to avoid exhaust components and to stay clear of the drive shaft. 2-17 SL-240.INS 05/2020...
  • Page 36 2-18 SL-240.INS 05/2020...
  • Page 37 Install all safety decals and product decals per Drawing No. 52H06 (Parts section of manual) after final installation and painting have been completed. Fill out Product Registration form online at https://www.swaploader.com/warranty- registration/. NOTE: Failure to fill out Product Registration form within 15 days of installation may possibly void the warranty. 2-19 SL-240.INS 05/2020...
  • Page 38 CAUTION: The SwapLoader hoist must be used with bodies or containers that properly fit the front hook and the rear hold-downs (See figure S025). If possible, pick up one of the containers that will actually be used with the SwapLoader hoist and verify the following: Outside dimensions of the long sills match the guiding rollers on the hoist.
  • Page 39 EHV INSTALLATION Review all directions and diagrams provided before starting the Electric over Hydraulic Valve Installation. Electric Over Hyd. Valve - SERVICE PARTS SL-240 Mount the 22P62 EHV to the ITEM PART # DESCRIPTION 13P36 Hose Assy 83.5 08-08FJ/08FJ45 hoist’s Main Frame and attach all...
  • Page 40 Route control harness from valve into the truck cab. Determine the best location in the cab for the control box location and install with mounting screws (included). The location should be such that the controls can be easily reached while operating the truck. 2-22 SL-240.INS 05/2020...
  • Page 41 2-23 SL-240.INS 05/2020...
  • Page 42 2-24 SL-240.INS 05/2020...
  • Page 43 2-25 SL-240.INS 05/2020...
  • Page 46 INSTALLATION INSTRUCTIONS 1. Review all directions and diagrams provided before starting bumper installation. 2. Trim truck frame to indicated dimensions (See Figure 1). These dimensions will facilitate the mounting of the rear light assembly if it is also being mounted. 3.
  • Page 47 DIMENSION B (Max) DIM. SL-220 SL-406 SL-180 SL-330 SL-650 SL-105 SL-145 SL-222 SL-2418 SL-412 SL-518 SL-185 SL-400 SL-240 SL-520 24 5/8” 13 1/2" 15 3/4" 15 1/4" 17” 14 1/4" 14” 13 1/2" 16 1/2” 18” 22 5/8” 12 1/4" 14 1/2"...
  • Page 50 INSTALLATION INSTRUCTIONS 1. Review all directions and diagrams provided before starting bumper installation. 2. Trim truck frame to indicated dimensions (See Figure 1). These dimensions will facilitate the mounting of the rear light assembly if it is also being mounted. 3.
  • Page 51 SL-220 SL-406 SL-180 SL-330 SL-650 SL-105 SL-145 SL-222 SL-2418 SL-412 SL-518 SL-185 SL-400 SL-240 SL-520 24 5/8” 1 3/4" 22 1/2" 21 3/4" 25 1/4” 21 3/4" * 21 1/2” * 21 1/4" * 24 1/4” 27” 22 5/8” 18 1/2"...
  • Page 54 INSTALLATION INSTRUCTIONS 1. Review all directions and diagrams provided before starting bumper installation. Typically, a folding bumper is needed when the rear of the container extends beyond the back of the truck such that the distance between the truck bumper and container rear exceeds 24”...
  • Page 55 INSTALLATION INSTRUCTIONS (cont’d) 4. Weld the Pivot Arms [Part No. 62H84 to the Bumper Tube Weldment [Part No. 51H46]. Be sure to maintain the width dimension that was used to locate the support bars in Step 2. 5. Assemble the Bumper Assembly to the Front and Rear Brackets (See Figure 3). Refer to the Typical Bolted Connection (See Figure 3) for all connections.
  • Page 58 INSTALLATION INSTRUCTIONS 1. Review all directions and diagrams provided before starting bumper installation. Typically, a drop down bumper is needed when the rear of the container extends beyond the back of the truck such that the distance between the truck bumper and container rear exceeds 24”...
  • Page 59 Additional Notes: 1. Prior to any welding, consult the truck manufacturer for any special precautions that may need to be taken. Typically the batteries must be disconnected and the ground lead from the welder should be connected as close as possible to the part being welded to avoid the possibility of arcing across bearings, gears, etc.
  • Page 62 INSTALLATION INSTRUCTIONS 1. Review all directions and diagrams provided before starting cab guard installation. 2. Position cab guard weldment [Part No 50H95] on frame with sufficient clearance between cab and cab guard. 3. Determine location for mounting holes. Mounting holes should not be located within 2 3/8”...
  • Page 63 CONTAINER VARIABILITY SYSTEM ASSEMBLY (52H21) [Hoist Models: SL-220, SL-222 & SL-240] INSTALLATION INSTRUCTIONS Review all directions and diagrams provided before starting the C.V.S. installation. Attach the base plate bracket [Part No. 23H76] to the C.V.S. sub-assembly [Part No. 12H01] with fasteners provided (See drawing 52H21 Section View A-A).
  • Page 64 Page 2 of 7 Once the overall hose length is adjusted, install between the C.V.S. hydraulic valve and the hydraulic tank fittings (See drawing 90H85), and tighten. Remove both the hydraulic hose [Part No. 12P76] that connects from the upper bulkhead fitting inside the mainframe to the jib lockout valve [Part No.
  • Page 65 Page 3 of 7 28JUL09...
  • Page 66 Page 4 of 7 28JUL09...
  • Page 67 Page 5 of 7 28JUL09...
  • Page 68 Page 6 of 7 28JUL09...
  • Page 69 Page 7 of 7 28JUL09...
  • Page 71 FENDER ASSEMBLY, SINGLE AXLE Aluminum (10H93) / Steel (11H13) (Diamond Plate Only) INSTALLATION INSTRUCTIONS 1. Review all directions and diagrams provided before starting fender installation. 2. Center fender above tire using block to maintain the proper height. Fender should be approximately 5” above tire to allow for suspension movement (See Fig.
  • Page 72 TRUCK bearings, gears, etc. (REF) 4 @ 6” CENTERS 7/16 DIA. HOLE 1800 NE Broadway Avenue, Des Moines, Iowa, U.S.A. 50313-2644 Phone: (515) 266-3042 • Fax: (515) 313-4426 • Toll Free: (888) 767-8000 E-Mail: sales@swaploader.net • Web Site: www.swaploader.com 10/05/09...
  • Page 74 INSTALLATION INSTRUCTIONS 1. Review all directions and diagrams provided before starting fender installation. 2. Center fender above tire using block to maintain the proper height. Fender should be approximately 6” above tire to allow for suspension movement (see Figure 1). A maximum width of 48”...
  • Page 75 Figure 3 MATERIAL LIST Additional Notes: WT lb ITEM DESCRIPTION 1. Prior to any welding, PER EA. consult the truck 10H74 FENDER BRACKET WDMT 8.05 manufacturer for any 21H37 MOUNTING PLATE 1.09 special precautions that 21H42 RUBBER SPACER 0.85 may need to be taken. 21H61 FENDER TUBE 1.26...
  • Page 78 INSTALLATION INSTRUCTIONS 1. Review all directions and diagrams provided before starting rear light bar installation. 2. Trim truck frame to indicated dimensions (See Figure 1). This step may have already been performed if a bumper was previously installed. 3. Position center plate [Part No. 63H08] on the rear of the main frame.
  • Page 79 8. Mount junction box on the back left side of center plate (See Figure 2), using the fasteners provided (See Figure 3). 9. Route all wire harnesses into the junction box. Wire harnesses must enter the junction box through a compression fitting (based on the size of the wire harness, choose a compression fitting with an...
  • Page 85 OPERATION...
  • Page 87 OPERATING INSTRUCTIONS During all operations of the SwapLoader, the speed of the engine should be maintained at 1,000 to 1,200 RPM, assuming the ratio of the Power Take Off is about 100%. LOADING A CONTAINER Engage the P.T.O. (Refer to P.T.O. manual for operation).
  • Page 88 Make sure work area is clear of people and obstacles prior to dumping or unloading containers. SwapLoader strongly recommends that a back up alarm be installed on the truck chassis. The operation of the hook hoist is that the truck is...
  • Page 89 Rotate jib all the way till the container touches the ground. Pull away from container and rotate jib back into the transport position. WARNING: DON'T OVER SPEED THE PUMP 1,500 RPM MAXIMUM. DON'T DUMP, MOUNT OR DISMOUNT BODIES ON UNEVEN GROUND. 3.0.OPE.SL-240 Oct-18...
  • Page 90 WARNING (cont’d): DON'T DRIVE WITH THE HOIST IN THE DUMP POSITION OR WITH THE HOOK TILTED BACK. 3.0.OPE.SL-240 Oct-18...
  • Page 91 With the telescopic arm in the transport position (as shown); remove the hitch pin from the lock pin. Then pull the lock pin loose from the jib arm. Lock pin secured with hitch pin Retract the jib (right control lever backward). See Fig. A (Pg. 3-1). 3.0.OPE.SL-240 Oct-18...
  • Page 92 WARNING: Do not remove lock pin on the adjustable jib while jib is in the 54” hook position and the telescopic arm is tilted rearward (as shown). Possible property damage and/or personal injury may result. 3.0.OPE.SL-240 Oct-18...
  • Page 93 With the telescopic arm in full load/unload position (as shown); remove the hitch pin from the lock pin. Then pull the lock pin loose from the jib arm. Lock pin secured with hitch pin Tilt the telescopic arm toward the cab (left control lever forward). See Fig. A (Pg. 3-1). 3.0.OPE.SL-240 Oct-18...
  • Page 94 WARNING: Do not remove lock pin on the adjustable jib while jib is up in the 61-3/4” hook position and telescopic arm in transport position (as shown). Possible property damage and/or personal injury may result. 3.0.OPE.SL-240 Oct-18...
  • Page 95 SUBFRAME STANDARD WIDTHS HOIST STANDARD: All SwapLoader hooklift hoists are made so that the rear rollers can be spaced at either the wide spacing or narrow spacing depending on the subframe design (the only exception is the SL-105 which can only accommodate a ‘wide spacing’ or 41-5/8” outside width). Unless instructed otherwise SwapLoader will ship hoists with the rear rollers setup per the previously discussed industry standard for a given hook height of subframe, or as detailed in the chart below.
  • Page 96 3. Place the rear roller on first; then place the roller spacer back on the roller shaft. 4. Replace and tighten the retaining bolts, washers and roller retainer. SwapLoader USA, Ltd. 1800 NE Broadway Avenue Des Moines, IA 50313 3-10 3.0.OPE.SL-240...
  • Page 97 MAINTENANCE...
  • Page 99 Inspection & Adjustment Instructions on page 4-14 of the maintenance section. Change hydraulic oil, replace hydraulic filter element, and wash out suction strainer. Check main relief valve setting. Refer to the Pressure Check Instructions on page 4-11 of the maintenance section. (Pressure should be 2,800 PSI minimum). SL-240.MAI 05/2020...
  • Page 100 SL-240.MAI 05/2020...
  • Page 101 Filter Part Number Filter Part Number Name Name Baldwin BT8443 Hydac 0085MA010P Behringer BSO92E10N25 SPE25-10 Donaldson P550255 Norman Fleetguard HF6511 F4E-040CCB Flow Ezy FEE30-10L Purolator 20201 FPE40-10N Zinga * AE-10L * Brand of Element supplied from factory on hoist. SL-240.MAI 05/2020...
  • Page 102 * * * * * * * * 20P25 HYDRAULIC TANK, 25 GALLON 20P07 STRAINER, TANK MOUNTED - 25 GPM 20P96 SIGHT GAUGE, HYDRAULIC TANK 20P97 BREATHER CAP ASSEMBY, HYDRAULIC TANK * * * * * * * * SL-240.MAI 05/2020...
  • Page 103 CLAMP LINER – (OUTER TUBE) 00P58 3/8-16 x 1-1/2 FL HD SCREW (BRASS) * * * * * * * * 60H11 WEAR BLOCK – (JIB) 00P79 3/8-16 x 3/4 FL HD SCREW (BRASS) * * * * * * * * SL-240.MAI 05/2020...
  • Page 104 ROLLER ASSEMBLY (FOR 52H03 PIVOT JOINT SUB-ASSEMBLY) 23H07 BRONZE BEARING; QTY: 1 PER ROLLER * * * * * * * * 21P63 HYD CYLINDER 6 x 54 (FOR 52H04 MAINFRAME SUB-ASSEMBLY) CYLINDER BEARINGS; CONTACT SWAPLOADER * * * * * * * * SL-240.MAI 05/2020...
  • Page 105 MAST LOCK INSPECTION & ADJUSTMENT INSTRUCTIONS All SwapLoader hook-lift hoists come with a mast lock (safety latch) assembly that is located on the bottom side of the outer tube. When the jib is extended the mast lock then engages the latch bars (forks) on the pivot joint, making the jib, outer tube, and pivot joint into a continuous member for raising the container or body up into a dump mode.
  • Page 106 5. Once the 1/4" clearance is achieved, then tighten the jam nut. Make sure to hold the adjustment bolt from turning when tightening the jam nut. Please contact your SwapLoader Distributor or SwapLoader USA should you have any questions regarding this procedure.
  • Page 107 JIB LOCKOUT VALVE INSPECTION & ADJUSTMENT INSTRUCTIONS All SwapLoader hook-lift hoists have a jib lockout valve (see illustration below) to prevent accidental operation of the telescopic jib, while the hoist is up in a dump mode. Because the jib lockout valve can block the flow of hydraulic oil to the jib cylinder, should the valve come out of adjustment the telescopic jib may experience a reduction in extension or retraction speed to the point of stalling out.
  • Page 108 Work Port Size Spool Type Pt. No. (Maximum) (Maximum) 21P28 3/4-16 ORB (SAE 8) 2-Way, 2-Position N.C. 4,600 PSI (Nominal) 16 GPM (Nominal) Please contact your SwapLoader Distributor or SwapLoader USA should you have any questions regarding this procedure. 4-10 SL-240.MAI 05/2020...
  • Page 109 50 PSI Graduation Marks RECOMMENDED PRESSURE GAUGE ILLUSTRATION Should you not be able to source a hydraulic gauge locally, SwapLoader can provide one at a reasonable cost (Hyd. Pressure Gauge & Hose Ass’y – Part No. 22P10). PRESSURE CHECK STEPS 1.
  • Page 110 LIFT RAISE/UNLOAD RETRACT 5. Check the gauge for the maximum developed system pressure. The SL-240 should have a reading of 2,800 PSI. 6. With the pressure check complete; release all functions and disengage the P.T.O. Please contact your SwapLoader Distributor or SwapLoader USA should you have any questions regarding this procedure.
  • Page 111 Continue to push the lever forward until steps 5-6 are complete. 5. Check the gauge for the maximum developed system pressure. The SL-240 should have a reading of 2,800 PSI. 6. With the pressure check complete; release all functions.
  • Page 112 INSPECTION The illustration below is a typical hoist clamp assembly for the 100 & 200 series SwapLoader hoist models. For optimum performance out of your SwapLoader SL-240 hooklift the gap between the top of the jib horizontal tube and the top inside surface of the outer tube should be kept between 1/16”...
  • Page 113 A Phillip’s screwdriver is recommended to be used to assist in pressing in the valve spool button. Properly working pump & P.T.O is required to move cylinders. Be careful of your surroundings and any bodies loaded on hoist when manually actuating cylinders! 4-15 SL-240.MAI 05/2020...
  • Page 115 PARTS LIST...
  • Page 117 SWAPLOADER HOIST - BASE ASS'Y SL-240 52H05 ~ REV D...
  • Page 118 MAINFRAME SUB-ASSEMBLY SL-240 52H04 ~ REV A...
  • Page 119 52H10 - DUAL BODY LOCK WDMT (REF) PIVOT JOINT SUB-ASSEMBLY SL-240 52H03 ~ REV E...
  • Page 120 OUTER TUBE SUB-ASSEMBLY SL-240 51H99 ~ REV B...
  • Page 121 1/16" CLEARANCE (REF) OUTER TUBE SEE DETAIL B-B WDMT (REF) (OPP. HAND) JIB WDMT (REF) SEE DETAIL B-B PIVOT JOINT JIB WDMT WDMT (REF) (REF) SEE DETAIL A-A OUTER TUBE SAFETY LATCH ASSEMBLY WDMT (REF) SL-240 52H01 ~ REV B...
  • Page 122 FIXED JIB SUB-ASSEMBLY SL-240 52H57...
  • Page 123 HYD TANK HYD CONTROL (REF) VALVE (REF) (REF) HOIST INSTALLATION KIT ASS'Y SL-240 52H34...
  • Page 125 HYD CYL 6Ø x 54 (REF) BHD TEE UPPER ADP BHD TEE LOWER ADP HYD CYL 6Ø x 54 (REF) BHD UNION UPPER ADP BHD UNION LOWER ADP SL-220/222/240 90H96 ~ REV A...
  • Page 126 BHD UNION LOWER ADP BHD TEE UPPER ADP BHD UNION UPPER ADP BHD TEE LOWER ADP HYD CONTROL VALVE (REF) (SEE NOTE 1) SL-220/222/240 90H97...
  • Page 127 HYD PUMP (REF) TANK STRAINER HYD TANK (REF) (20P07) (REF) (20P25) SUPPLIED BY CUSTOMER HYD CONTROL VALVE (REF) HYD. SUB-ASS'Y - PUMP CIRCUIT SL-220/222/240/2418 90H98...
  • Page 128 OUTER TUBE ASS'Y (REF) (51H76) (ON DASHBOARD) OUTER TUBE ASS'Y (REF) (51H76) (ON VISOR) DECAL ASSEMBLY SL-240 52H06 ~ REV B...
  • Page 129 OPTIONS...
  • Page 131 HOIST CONTROL CONTROL (TYP) 1/4-18 NPTF PORT SUPPLY AIR CONTROL ASS'Y - 2 SECTION SL-220/222/240/2418 90H61 ~ REV B...
  • Page 132 HYD CONTROL VALVE ASS'Y (20P88) (REF) W/ AIR SHIFT KITS (20P95) (REF) BRASS ADP, PUSH-ON TUBE/ CONTROL HANDLE ASS'Y MP SVL 90° (-4-2) 2 SECTION AIR HYD ADP, MP/FMP (-4-2) (20P72) (REF) BRASS ADP, PUSH-ON TUBE/ MP SVL 90° (-4-2) BRASS ADP, PUSH-ON TUBE/MP (-4-2) LEAVE EXHAUST PORT OPEN HYD ADP, MP/FMP (-4-2)
  • Page 133 5/8-11 UNC x 3 1/2" BOLT (GR. 8) 0.38 00P99 3/8-16 UNC x 4" HHCS 0.14 90P03 1/8" NPT ZERK 0.02 90P94 ADJUSTABLE JIB OPERATION DECAL 0.00 ADJUSTABLE JIB SUB-ASSEMBLY NOTES: SL-240 1. INSTALL DECAL SO 90P94 PART NO. IS IN THE LOWER RIGHT HAND CORNER. 52H56...
  • Page 134 NOTE: HOIST INSTALLATION KIT - EHV 1. 52H06 (DECAL ASSEMBLY) AND 52H07 SL-240 (PARTS AND OPERATION MANUAL) NOT SHOWN. 52H85...
  • Page 135 EHV TANK CIRCUIT SL-220/222/240 91H29 REV A...
  • Page 136 EHV SUB-ASSY - PUMP CIRCUIT 200 SERIES 91H31...
  • Page 137 U.S.A. LTD. EHV VALVE HOSE CIRCUIT 200 SERIES 91H32...
  • Page 140 1800 NE Broadway Avenue, Des Moines, Iowa, U.S.A. 50313-2644 Phone: (515) 266-3042 • Fax: (515) 313-4426 • Toll Free: (888) 767-8000 E-Mail: sales@swaploader.net • Web Site: www.swaploader.com...
