swaploader SL-400 Parts And Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

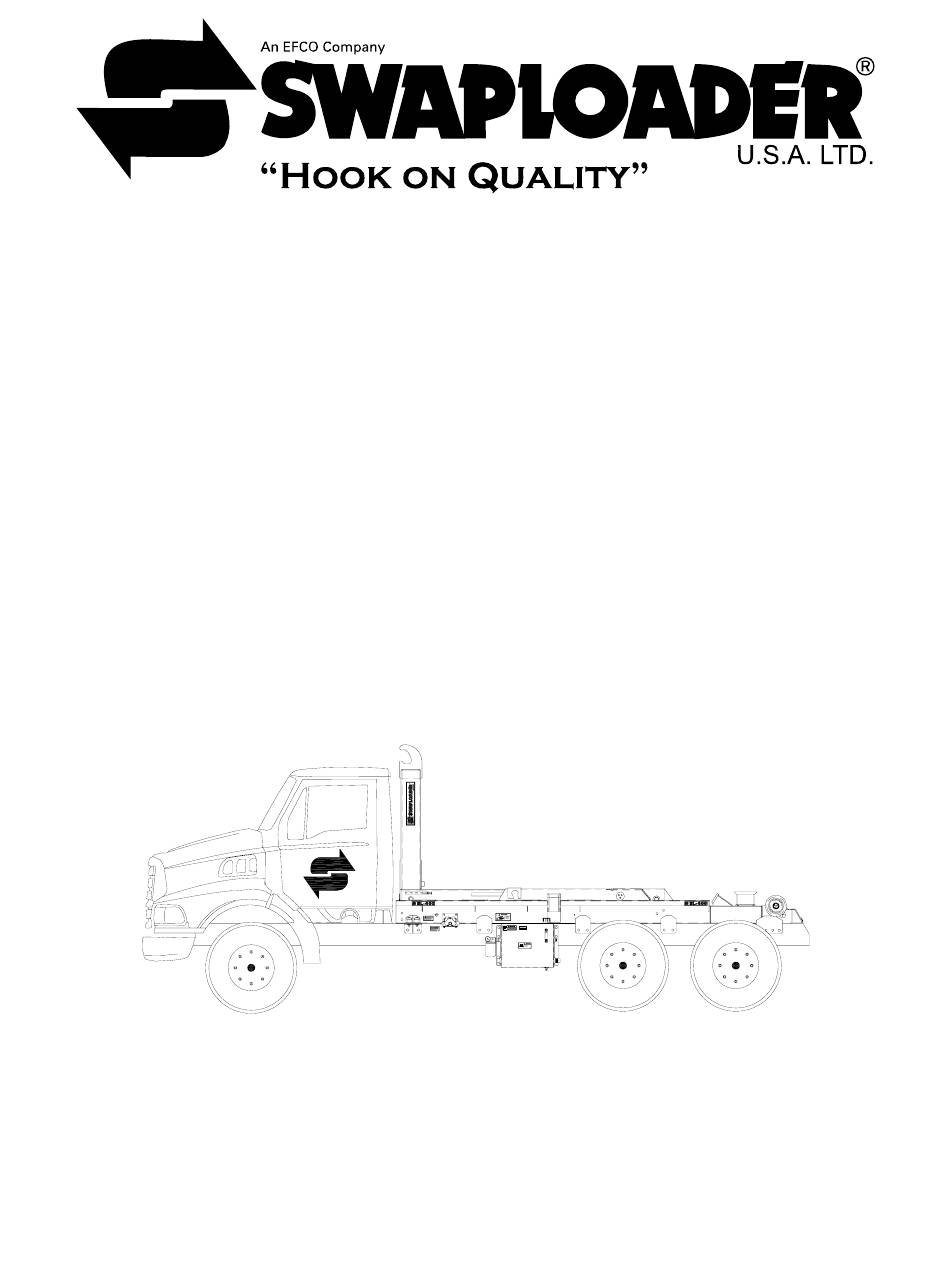

Model SL-400
Parts and
Operations Manual
Hoist Serial Number: ____________________

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL-400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for swaploader SL-400

Summary of Contents for swaploader SL-400

  • Page 1 Model SL-400 Parts and Operations Manual Hoist Serial Number: ____________________...
  • Page 3 City, State & Zip: Phone: The unit has been checked and serviced according to SwapLoader’s Pre-delivery Check List. The proper mechanical operation of the unit as described in the written Parts & Operations Manual, provided by SwapLoader USA, Ltd., has been discussed with the customer.
  • Page 5 PRE-DELIVERY CHECK LIST INSPECTOR’S INFORMATION Inspected By: Signature: Distributor: Date Installed: Customer: Date Inspected: I. COMPONENT INFORMATION Hoist Model: Hoist Serial No.: Chassis VIN: Chassis Make & Model: Chassis GVWR: Distance from rear of cab to the centerline Chassis CA / CT: of rear axle/tandem.
  • Page 6 Parts & Operations Manual cover or at the back of the Parts List section in the Manual). Additional Comments: COMPLETE & SAVE TO YOUR COMPUTER. RETAIN A COPY FOR YOUR FILES. ONCE COMPLETE, FAX (515-313-4426) OR EMAIL (sales@swaploader.net) A COPY BACK TO SWAPLOADER! 1800 NE Broadway Ave., Des Moines, IA 50313 • www.swaploader.com •...

  • Page 9: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION PARTS LIST Letter to Customer Base Assembly Warranty Statement Mainframe Subassembly Safety Suggestions Rear Pivot Subassembly Telescopic Jib Subassembly INSTALLATION Mast Lock (Safety Latch) Assembly Hoist Installation Kit Assembly Initial Inspection Manual Control Assembly, 2 Section Hoist Installation Hyd.
  • Page 11 INTRODUCTION...
  • Page 13 Record your SwapLoader Hoist serial number in the appropriate space provided on the title page. Your SwapLoader dealer needs this information to give you prompt, efficient service when you order parts. It pays to rely on an authorized SwapLoader Distributor for your service needs. For the location of the Distributor nearest you, contact SwapLoader.
  • Page 14 SwapLoader distributor or service center, that such products are free of defects in material and workmanship. All SwapLoader products with an original factory invoice date of September 1, 2009 or later qualify for warranty as defined in this Limited Warranty Statement.

  • Page 15: Safety Suggestions

    SAFETY SUGGESTIONS Do not operate or service this equipment until you have been properly trained and instructed in its use and have read the operation and service manual. Do not operate this equipment on uneven ground. Do not drive with the hoist in the dump position or with the hook to the rear.
  • Page 16 It is the responsibility of the owner and/or installer to insure that any additional safety devices required by state or local codes are installed on the SwapLoader Hoist and/or Truck Chassis.
  • Page 17 SAFETY INSTRUCTIONS 90P18 RELIEF VALVE 90P52 PROP DECAL 90P78 HIGH-PRESSURE FLUID The following is a list of all the Swaploader Safety Decals, and their part numbers. Please use when reordering replacement decals. WARNING 90P07 – OPERATIONS & SERVICE MANUAL INTRODUCTION 09/2009...
  • Page 18 90P08 – HOIST-BODY SPECIFICATIONS 90P09 – HYDRAULIC OIL SPECIFICATIONS 90P10 – HYDRAULIC OIL FLAMMABLE 90P11 – HOIST FALLING 90P13 – SWAPLOADER SAFETY INSTRUCTIONS 90P18 – RELIEF VALVE INTRODUCTION 09/2009...
  • Page 19 90P52 – PROP DECAL (OPTIONAL) 90P78 – HIGH-PRESSURE FLUID INTRODUCTION 09/2009...

  • Page 21: Installation

    INSTALLATION...

  • Page 23: Initial Inspection

    INITIAL INSPECTION When the SwapLoader hoist is received from the factory, you should inspect the hoist for damage, which may have occurred in shipment. If damage has occurred, you should contact the shipper immediately. Be sure to note any damage or missing items on bill of Lading.

  • Page 24: Hoist Installation

    HOIST INSTALLATION TO TRUCK CHASSIS Place the SL-400 hoist assembly on the truck chassis. The truck chassis mounting surface should be flat without any steps or protrusions. If necessary shim bars need to be added to ensure a flat surface on which to support hoist. The truck chassis should meet the following minimum specifications (See Figures A): RBM for each frame channel: 2,000,000 in.-lb.
  • Page 25 There are three types of mount brackets used on the Model SL-400 hoist as indicated in Figure B or Drawing No. 42H97. They are the spring mount brackets (40H31), and the front mount brackets (Pt. No. 81H23), and the rear mount brackets (Pt. No. 81H24).
  • Page 26 Weld the mount brackets to the hoist mainframe as indicated on Figures C thru E. You may need to modify the mount brackets or add shim plates to allow for variances in the width of the truck chassis as well as to allow for top rivets, stepped channels, etc. Figure C Figure D SL-400.INS 09/2009...
  • Page 27 Note: The hoist mainframe is made from high strength low alloy steel. Use an appropriate welding process. SL-400.INS 09/2009...
  • Page 28 SL-400.INS 09/2009...

  • Page 29: Controls Installation

    Assemble and install the control lever console (See diagram below). Typically the console is fastened to the floor of the cab and the control cables are routed through additional holes drilled in the floor. Your particular installation may require that additional brackets be fabricated or other modifications made. SL-400.INS 09/2009...
  • Page 30 SL-400.INS 09/2009...
  • Page 31 SL-400.INS 09/2009...
  • Page 32 Swaploader. Take proper care when routing the control cables, as a good cable path is essential for a proper operating system. Keep bends in the cable path to a minimum and be as generous as possible.
  • Page 33 HOLES AND INSERT PIN SCREW NUT BACK FACE OF VALVE VALVE BODY SCREW SCREW FLANGE SLEEVE BACK TERMINAL EYE ON ROD SCREW FLANGE SLEEVE FLUSH WITH BOLT FLANGE FACE OF VALVE TO VALVE BODY SCREW NUT ON 2-11 SL-400.INS 09/2009...
  • Page 34 The air hose is provided in bulk length, which you can cut to length as required for running the air lines. Take care in routing the air lines and avoid hot areas such as exhaust pipes, etc. 2-12 SL-400.INS 09/2009...
  • Page 35 2-13 SL-400.INS 09/2009...

  • Page 37: Hydraulic Tank Installation

    Drawing No. 91H03. The hose length can be shortened if necessary. Secure the hose to the barb fittings with the hose clamps provided. Figure F 2-15 SL-400.INS 09/2009...

  • Page 38: P.t.o. Selection

    Hydraulic Pump Rotation: L.H. As provided (See Note 2). The hydraulic pump rotation can be reversed to R.H. by a qualified hydraulic technician or it can be sourced through Swaploader. Ratio of Pump RPM to Engine RPM: 80% to 100% NOTE 1: P.T.O.
  • Page 39 CW (right hand rotation pump) is needed; call SwapLoader for price and availability. NOTE: Consult the PTO supplier whenever uncertain about the correct pump rotation for a particular application. The table below lists the SwapLoader part number for both left and right hand rotation pumps for the SL-400 hoist model: L.H. Rotation R.H.

  • Page 40: Pump Installation

    SAE 37° (JIC) 1 1/16-12 Install the pressure hose as indicated. Tie up the pressure and suction hoses as necessary. Again, be sure the hoses are routed to avoid exhaust components and to stay clear of the drive shaft. 2-18 SL-400.INS 09/2009...
  • Page 41 2-19 SL-400.INS 09/2009...

  • Page 42: Start Up Procedure

    180° angle to the decal surface. Should problems occur with the premask pulling the decal loose, wet the tack side of the premask with water via a spray bottle to weaken the adhesive bond, while pulling straight down on the premask. 2-20 SL-400.INS 09/2009...
  • Page 43 (i.e.: Hydraulic tank, hydraulic tubing or hose, hydraulic valve, etc.) When the SL-400 hoist is equipped with a standard 61-3/4” fixed jib see subframe Drawing No. S288, otherwise when equipped with the optional 61-3/4” to 53-7/8” adjustable dual height jib see subframe Drawing No.’s S288 or S905.

  • Page 46: Stabilizer Installation (Optional)

    The following diagram gives the approximate position of the stabilizer roller from the top of the truck chassis frame rail with the mounts as provided by SwapLoader. When extended down, the roller should touch the ground only when the vehicle is loading a heavy container.
  • Page 47 FRONT LOWER LOWER/LOAD EXTEND LIFT RAISE RAISE/UNLOAD RETRACT Operate the stabilizer through 5 to 8 cycles to remove the air from the hydraulic cylinders and lines. 2-25 SL-400.INS 09/2009...
  • Page 49 BUMPER LOCATION CHART DIM B. (Max) DIM. A SL-220/222 SL-330 & SL-406 & SL-105 SL-145 SL-180 SL-2418 SL-650 & SL-240 SL-400 SL-505/545 24 5/8” 13 1/2 15 3/4 15 1/4 14 1/4 16 1/2 22 5/8” 12 1/4 14 1/2 15 3/4 12 3/4 20 5/8”...
  • Page 50 REAR BUMPER WDMT 95.66 (REF) 63H94 VERTICAL CHANNEL 9.58 TOTAL 114.82 FIG. 3 1800 NE Broadway Avenue, Des Moines, Iowa, U.S.A. 50313-2644 Phone: (515) 266-3042 • Fax: (515) 313-4426 • Toll Free: (888) 767-8000 E-Mail: sales@swaploader.net • Web Site: www.swaploader.com 10/05/09...
  • Page 51 DIM B. (Max) DIM. A SL-220/222 SL-330 & SL-406 & SL-105 SL-145 SL-180 SL-2418 SL-650 & SL-240 SL-400 SL-505/545 24 5/8” 19 3/4 22 1/2 21 3/4 25 1/4 21 3/4 21 1/2 * 24 1/4 * 22 5/8” 18 1/2...
  • Page 52 VERTICAL CHANNEL 9.58 52H13 REAR BUMPER EXTENSIONS 58.42 TOTAL 173.24 FIG. 3 1800 NE Broadway Avenue, Des Moines, Iowa, U.S.A. 50313-2644 Phone: (515) 266-3042 • Fax: (515) 313-4426 • Toll Free: (888) 767-8000 E-Mail: sales@swaploader.net • Web Site: www.swaploader.com 05OCT09...

  • Page 61: Container Variability System - (C.v.s.)

    CONTAINER VARIABILITY SYSTEM ASSEMBLY (42H70) [Hoist Models: SL-330, SL-375, SL-400, SL-405 & SL-406] INSTALLATION INSTRUCTIONS Review all directions and diagrams provided before starting the C.V.S. installation. Attach the base plate bracket [Part No. 86H76 to the C.V.S. sub-assembly [Part No.
  • Page 62 Page 2 of 7 Once the 12P93 hose length is adjusted, install between the C.V.S. hydraulic valve and the hydraulic tank fittings (See drawing 90H88), and tighten. Remove the 90 degree hydraulic fitting [Part No. 11P06] that connects from the upper bulkhead fitting inside the mainframe to the 12P03 hydraulic hose that runs to the jib lockout valve (See drawing 90H55 &...
  • Page 63 Page 3 of 7 28JUL09...
  • Page 64 BHD UNION BHD TEE LOWER ADP UPPER ADP BHD TEE BHD UNION LOWER ADP UPPER ADP HYD CONTROL VALVE (REF) (SEE NOTE 1) SL-330/400 91H03...
  • Page 67 Page 7 of 7 28JUL09...

  • Page 69: Fender Assembly, Single Axle

    FENDER ASSEMBLY, SINGLE AXLE Aluminum (10H93) / Steel (11H13) (Diamond Plate Only) INSTALLATION INSTRUCTIONS 1. Review all directions and diagrams provided before starting fender installation. 2. Center fender above tire using block to maintain the proper height. Fender should be approximately 5” above tire to allow for suspension movement (See Fig.
  • Page 70 TRUCK bearings, gears, etc. (REF) 4 @ 6” CENTERS 7/16 DIA. HOLE 1800 NE Broadway Avenue, Des Moines, Iowa, U.S.A. 50313-2644 Phone: (515) 266-3042 • Fax: (515) 313-4426 • Toll Free: (888) 767-8000 E-Mail: sales@swaploader.net • Web Site: www.swaploader.com 10/05/09...

  • Page 71: Fender Assembly, Tandem Axle

    FENDER ASSEMBLY, TANDEM AXLE Steel (11H14) INSTALLATION INSTRUCTIONS 1. Review all directions and diagrams provided before starting fender installation. 2. Center fender above tire using block to maintain the proper height. Fender should be approximately 6” above tire to allow for suspension movement (See Fig. 1). A maximum width of 48”...
  • Page 72 SPACER CENTERS possibility of arcing across bearings, gears, etc 7/16 DIA. HOLE 1800 NE Broadway Avenue, Des Moines, Iowa, U.S.A. 50313-2644 Phone: (515) 266-3042 • Fax: (515) 313-4426 • Toll Free: (888) 767-8000 E-Mail: sales@swaploader.net • Web Site: www.swaploader.com 11/02/99...

  • Page 73: Rear Light Bar Assembly

    REAR LIGHT BAR ASSEMBLY (51H68) 10/05/09...
  • Page 74 REAR LIGHT BAR ASSEMBLY (51H68) INSTALLATION INSTRUCTIONS Review all directions and diagrams provided before starting rear light bar installation. 2. Trim truck frame to indicated dimensions (See Fig. 1). This step may have already been preformed if a bumper was previously installed. 3.
  • Page 75 FIG. 3 1800 NE Broadway Avenue, Des Moines, Iowa, U.S.A. 50313-2644 Phone: (515) 266-3042 • Fax: (515) 313-4426 • Toll Free: (888) 767-8000 E-Mail: sales@swaploader.net • Web Site: www.swaploader.com 10/05/09...
  • Page 76 10/05/09...
  • Page 81 PRE-DELIVERY CHECK LIST INSPECTOR’S INFORMATION Inspected By: Signature: Distributor: Date Installed: Customer: Date Inspected: I. COMPONENT INFORMATION Hoist Model: Hoist Serial No.: Chassis VIN: Chassis Make & Model: Chassis GVWR: Distance from rear of cab to the centerline Chassis CA / CT: of rear axle/tandem.
  • Page 82 Parts & Operations Manual cover or at the back of the Parts List section in the Manual). Additional Comments: COMPLETE & SAVE TO YOUR COMPUTER. RETAIN A COPY FOR YOUR FILES. ONCE COMPLETE, FAX (515-313-4426) OR EMAIL (sales@swaploader.net) A COPY BACK TO SWAPLOADER! 1800 NE Broadway Ave., Des Moines, IA 50313 • www.swaploader.com •...

  • Page 83: Operation

    OPERATION...

  • Page 85: Loading A Container

    OPERATING INSTRUCTIONS During all operations of the SwapLoader, the speed of the engine should be maintained at 1,000 to 1,200 RPM, assuming the ratio of the Power Take Off is about 100%. LOADING A CONTAINER Engage the P.T.O. (Refer to P.T.O. manual for operation).
  • Page 86 WARNING: Make sure work area is clear of people and obstacles prior to dumping or unloading containers. SwapLoader strongly recommends that a back up alarm be installed on the truck chassis. The operation of the hook hoist is that the truck...

  • Page 87: Placing A Container On The Ground

    Rotate jib all the way till the container touches the ground. Pull away from container and rotate jib back into the transport position. WARNING: DON'T OVER SPEED THE PUMP 1,500 RPM MAXIMUM. DON'T DUMP ON UNEVEN GROUND. SL-400.OPE 07/2009...

  • Page 88: Operating The Stabilizer

    When finished with loading or unloading the container the stabilizer roller should be raised prior to disengaging the P.T.O. To raise the stabilizer, push backward on the left control lever until the roller is all the way up. SL-400.OPE 07/2009...

  • Page 89: Changing Hook Heights

    With the telescopic arm in the transport position (as shown); remove the hitch pin from the lock pin. Then pull the lock pin loose from the jib arm. Lock pin secured with hitch pin Retract the jib (right control lever backward). See Fig. A (Pg. 3-1). SL-400.OPE 07/2009...
  • Page 90 WARNING: Do not remove lock pin on the adjustable jib while jib is in the 54” hook position and the telescopic arm is tilted rearward (as shown). Possible property damage and/or personal injury may result. SL-400.OPE 07/2009...
  • Page 91 With the telescopic arm in full load/unload position (as shown); remove the hitch pin from the lock pin. Then pull the lock pin loose from the jib arm. Lock pin secured with hitch pin Tilt the telescopic arm toward the cab (left control lever forward). See Fig. A (Pg. 3-1). SL-400.OPE 07/2009...
  • Page 92 WARNING: Do not remove lock pin on the adjustable jib while jib is up in the 61-3/4” hook position and telescopic arm in transport position (as shown). Possible property damage and/or personal injury may result. SL-400.OPE 07/2009...

  • Page 93: Maintenance

    MAINTENANCE...

  • Page 95: Weekly Service (50 Operations)

    Inspection & Adjustment Instructions on page 4-13 of the maintenance section. Change hydraulic oil, replace hydraulic filter element, and wash out suction strainer. Check main relief valve setting. Refer to the Pressure Check Instructions on page 4-11 of the maintenance section. (Pressure should be 3,500 PSI minimum). SL-400.MAI 07/2009...
  • Page 96 SL-400.MAI 07/2009...
  • Page 97 Filter Part Number Company Name Filter Part Number Baldwin BT-388-10 Hydac 0180MA010P Can Flo RSE60-10N SPE60-10 Case D-130046 Norman Donaldson HSM6047 Parker 927736 Fleetguard R750-H-0825A 51860 HF6711 Zinga * LE-10 * Brand of Element supplied from factory on hoist. SL-400.MAI 07/2009...

  • Page 98: General Maintenance Parts List

    * * * * * * * * 20P86 HYDRAULIC TANK, 30 GALLON LS 21P16 STRAINER, TANK MOUNTED - 50 GPM 20P96 SIGHT GAUGE, HYDRAULIC TANK 20P97 BREATHER CAP ASSEMBY, HYDRAULIC TANK * * * * * * * * SL-400.MAI 07/2009...
  • Page 99 00P68 3/8-16 x 1 1/4 FL HD SCREW (BRASS) * * * * * * * * 60H11 WEAR BLOCK – (JIB) 00P79 3/8-16 x 3/4 FL HD SCREW (BRASS) * * * * * * * * SL-400.MAI 07/2009...

  • Page 100: Replacement Bearing List

    ROLLER ASSEMBLY (FOR 42H02 PIVOT JOINT SUB-ASSEMBLY) 23H07 BRONZE BEARING; QTY: 1 PER ROLLER * * * * * * * * 21P44 HYD CYLINDER 6φ X 60 (FOR 42H03 MAINFRAME SUB-ASS’Y) CYLINDER BEARINGS; CONTACT SWAPLOADER * * * * * * * * SL-400.MAI 07/2009...
  • Page 101 MAST LOCK INSPECTION & ADJUSTMENT INSTRUCTIONS All SwapLoader hook-lift hoists come with a mast lock (safety latch) assembly that is located on the bottom side of the outer tube. When the jib is extended the mast lock then engages the latch bars (forks) on the pivot joint, making the jib, outer tube, and pivot joint into a continuous member for raising the container or body up into a dump mode.
  • Page 102 5. Once the 1/4" clearance is achieved, then tighten the jam nut. Make sure to hold the adjustment bolt from turning when tightening the jam nut. Please contact your SwapLoader Distributor or SwapLoader USA should you have any questions regarding this procedure.
  • Page 103 JIB LOCKOUT VALVE INSPECTION & ADJUSTMENT INSTRUCTIONS All SwapLoader hook-lift hoists have a jib lockout valve (see illustration below) to prevent accidental operation of the telescopic jib, while the hoist is up in a dump mode. Because the jib lockout valve can block the flow of hydraulic oil to the jib cylinder, should the valve come out of adjustment the telescopic jib may experience a reduction in extension or retraction speed to the point of stalling out.
  • Page 104 Work Port Size Spool Type Pt. No. (Maximum) (Maximum) 21P28 3/4-16 ORB (SAE 8) 2-Way, 2-Position N.C. 4,600 PSI (Nominal) 16 GPM (Nominal) Please contact your SwapLoader Distributor or SwapLoader USA should you have any questions regarding this procedure. 4-10 SL-400.MAI 07/2009...

  • Page 105: Pressure Check Instructions

    50 PSI Graduation Marks RECOMMENDED PRESSURE GAUGE ILLUSTRATION Should you not be able to source a hydraulic gauge locally, SwapLoader can provide one at a reasonable cost (Hyd. Pressure Gauge & Hose Ass’y – Part No. 22P10). PRESSURE CHECK STEPS 1.
  • Page 106 LIFT RAISE/UNLOAD RETRACT 5. Check the gauge for the maximum developed system pressure. The SL-400 should have a reading of 3,500 PSI. 6. With the pressure check complete; release all functions and disengage the P.T.O. Please contact your SwapLoader Distributor or SwapLoader USA should you have any questions regarding this procedure.
  • Page 107 OUTER TUBE CLAMP ASSEMBLY INSPECTION INSTRUCTIONS All SwapLoader hooklift hoists come equipped with an outer tube clamp assembly located on the bottom of the outer tube at the opening where the jib telescopes in and out (see illustration below). On SwapLoader 400 series hoist models the outer clamp assembly is fixed in height.
  • Page 109 PARTS LIST...
  • Page 111 BASE HOIST ASSEMBLY W/ FIXED JIB SL-400 42H05 - REV D...
  • Page 112 SHCS 3/8-16 UNC x 1-3/4 GR8 0.07 01P31 WASHER, LOCK DISC 5/8 PR 0.03 22P56 HYD CYL 6x3x60 NITRIDED 483.56 90P71 WEAR PAD, 2-3/4 x 1/2 x 11-3/4 0.63 TOTAL 2163.44 10 14 MAIN FRAME SUB-ASSEMBLY 42H03 MAIN FRAME SUB-ASSEMBLY SL-400 42H03 - REV H...
  • Page 113 PARTS PER 42H02 WELDMENT ITEM PART # DESCRIPTION WT-lb./ea. 40H71 PIN CAP, 13/16 x 4-3/4 2.25 40H84 PIN, PJ/MF 3 x 8 16.97 41H91 PIVOT JOINT WELDMENT 642.98 41H99 PIN, PJ/OT 3 x 5-7/8 11.86 61H94 ROLLER SPACER, 2-1/4ODx11/16 0.56 80P09 ROLLER ASSY, 6-1/4"x2-1/4ID 34.11...
  • Page 114 DISC-LOCK WASHER PARTS PER 42H04 SUB-ASSEMBLY TORQUE SPEC'S ITEM PART # DESCRIPTION WT-lb./ea. SAE GR 8 BOLT ASS'Y TORQUE SIZE 40H44 CLAMP PLATE, JIB 400 SERIES 30.05 (FT-LBS) 41H94 OUTER TUBE WELDMENT 683.66 7/16 41H98 PIN, JIB/CYL 1-3/4 x 9-7/8 7.33 42H08 SAFETY LATCH SUB-ASSY...
  • Page 115 TORQUE SPEC PARTS PER 43H39 SUB-ASSEMBLY BOLT SAE GR 8 ITEM PART # DESCRIPTION WT-lb./ea. SIZE (FT-LBS) 41H97 FIXED JIB WELDMENT 794.17 7/16 60H11 WEAR PAD, 2-3/4 x 1/2 x 4-1/4 0.21 62H11 COVER, JIB 5-1/4 x 11GA x 5-1/4 0.92 00755 WASHER, LOCK - 3/8 DIA...
  • Page 119 HOIST CONTROL CONTROL (TYP) (TYP) (REF) HYD TANK (REF) MANUAL CONTROL ASS'Y - 2 SECTION SL-330/400/406 90H57 ~ REV A...
  • Page 120 HYD. CYL. 4" x 38" STROKE NITRIDED FOR SL-330/400 (REF) HYD. CYL. 5.5" x 60" STROKE NITRIDED FOR SL-330 (REF) 22P55 HYD. CYL. 6" x 60" STROKE NITRIDED FOR SL-400 (REF) 22P56 91H02 BASE CYLINDER CIRCUIT BASE CYLINDER CIRCUIT SL-330/400...
  • Page 121 BHD UNION BHD TEE LOWER ADP UPPER ADP BHD TEE BHD UNION LOWER ADP UPPER ADP HYD CONTROL VALVE (REF) (SEE NOTE 1) SL-330/400 91H03...
  • Page 122 HYD PUMP (REF) TANK STRAINER HYD TANK (REF) (21P16) (REF) (20P86) SUPPLIED BY CUSTOMER HYD CONTROL VALVE (REF) HYD SUB-ASS'Y - PUMP CIRCUIT SL-330/400/406 91H04...
  • Page 123 OUTER TUBE ASS'Y (REF) (ON DASHBOARD) OUTER TUBE ASS'Y (REF) (ON VISOR) DECAL ASSEMBLY SL-400 42H07 ~ REV A...
  • Page 125 OPTIONS...
  • Page 127 HOIST CONTROL CONTROL (TYP) 1/4-18 NPTF PORT SUPPLY AIR CONTROL ASS'Y - 2 SECTION SL-330/400/406 90H58 ~ REV C...
  • Page 128 HYD CONTROL VALVE ASS'Y (20P88) (REF) W/ AIR SHIFT KITS (20P95) (REF) BRASS ADP, PUSH-ON TUBE/ CONTROL HANDLE ASS'Y MP SVL 90° (-4-2) 2 SECTION AIR HYD ADP, MP/FMP (-4-2) (20P72) (REF) BRASS ADP, PUSH-ON TUBE/ MP SVL 90° (-4-2) BRASS ADP, PUSH-ON TUBE/MP (-4-2) LEAVE EXHAUST PORT OPEN HYD ADP, MP/FMP (-4-2)
  • Page 129 HOIST CONTROL CONTROL STABILIZER CONTROL (TYP) (TYP) (REF) HYD TANK (REF) MANUAL CONTROL ASS'Y - 3 SECTION SL-330/400/406 90H68 ~ REV B...
  • Page 130 AIR CONTROL ASS'Y - 3 SECTION SL-330/400/406 90H69 ~ REV B...
  • Page 131 BRASS ADP, PUSH-ON TUBE/ HYD CONTROL VALVE ASS'Y MP SVL 90° (-4-2) (21P88) (REF) W/ AIR SHIFT KITS (20P71) (REF) CONTROL HANDLE ASS'Y 3 SECTION AIR (20P73) (REF) BRASS ADP, PUSH-ON TUBE/MP (-4-2) BRASS ADP, PUSH-ON TUBE/ MP SVL 90° (-4-2) BRASS ADP, PUSH-ON TUBE/MP (-4-2) 1/4 O.D.
  • Page 132 TRUCK FRAME (REF) TRUCK FRAME (REF) 2" - 3" GROUND CLEARANCE LOCTITE 00P03 INTO 42H64 22 11/16 62 1/4 STABILIZER FINAL ASSEMBLY 42H62...
  • Page 133 CONTROL VALVE ASS'Y (REF) HYD CYL 3Ø x 6 (REF) (21P84) HYDRAULIC SUB-ASSEMBLY STABILIZER CIRCUIT 90H83...
  • Page 134 JIB ASSEMBLY - ADJUSTABLE SL-330/400 43H08 ~ REV C...
  • Page 136 1800 NE Broadway Avenue, Des Moines, Iowa, U.S.A. 50313-2644 Phone: (515) 266-3042 • Fax: (515) 313-4426 • Toll Free: (888) 767-8000 E-Mail: sales@swaploader.net • Web Site: www.swaploader.com...
