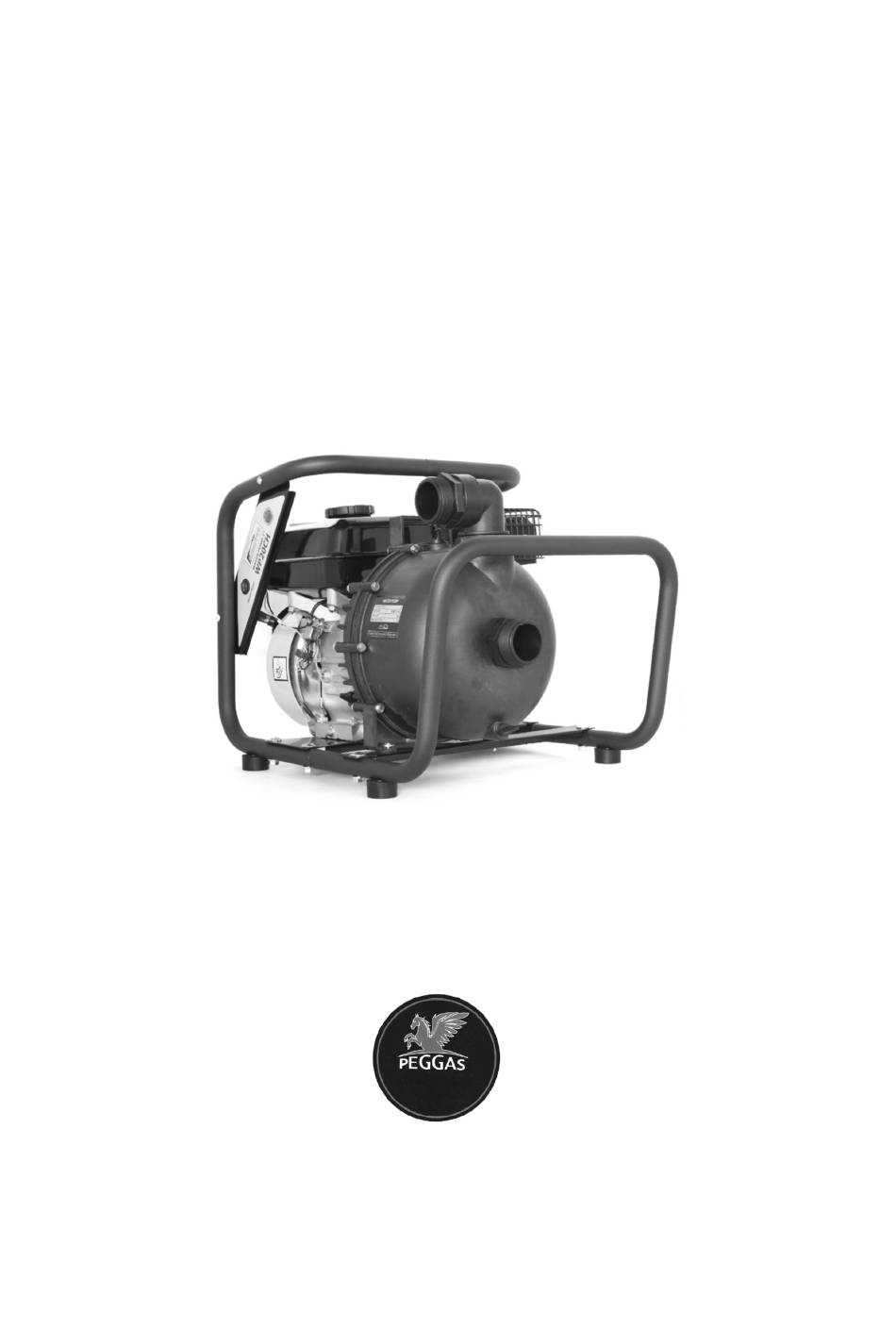

- Page 1 Instruction Manual WP20CH/P Engine driven Translation of the original operation manual. * The picture of the device is illustrative and doesn’t necessarily correspond to the actual display of the supplied device...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Symbols Used When reading these operating instructions, you Use of the Product in Accordance with Its Page 1 Intended Use will encounter the following symbols. Page 1 Environmental Protection - Read the operating instructions, Page 1 Safety observe warnings and safety instructions. -
Page 3: Scope Of Delivery
Danger Levels DANGER - A warning of imminent danger which may cause serious injury or even death. WARNING - A warning of a potentially hazardous situation that could cause minor injuries. CAUTION - A warning of a potentially hazardous situation that could cause material damage. Safety Features WARNING - Safety features serve to protect the user from injury and may not be altered or removed. -
Page 4: Engine
The outlet flange of the pressurized water can be rotated as required. Start the engine and adjust the engine speed with the throttle. Refer to the ENGINE section for more information on starting the engine. It’s necessary for the engine to run at higher revolutions until the pump takes in water from the source. - Page 5 Petrol fumes are extremely flammable and explosive substances that max cause burns, fire or even explosion, when handled improperly. Let the engine cool down for 5 minutes before adding petrol into the tank. Then proceed with careful removal of the tank lid and start pouring the petrol in with caution. NEVER fill the fuel up to the rim, since petrol warms up during engine operation and swells, which may result in leakage through the lid and subsequent explosion of fire.
-
Page 6: Engine Maintenance
Every 8 hours or daily Check engine oil level Check the area around the air filter and exhaust for dirt After the first 5 hours Replace the engine oil Every 50 hours or at Clean the air filter the end of the season Replace the engine oil Every 100 hours Check and set the spark plug electrode... -
Page 7: Pump
Fill the engine with the correct amount and type of engine oil. For engine oil specifications, see below. - For specific filling volumes refer to the Technical data section. Set the pump on a horizontal surface. ¾ Fill the engine with approximately of the oil amount required. -
Page 8: Troubleshooting
A list of approved service centres is available on our website: www.waspper.com The effort of WPW Center s.r.o. is to continuously improve the technical characteristics and user comfort of its products. -
Page 9: Technical Specifications
Technical Specifications Type of Device WP20CH/P Engine Peggas 196cm3/ 3,8kw Maximum speed 3600 rpm Engine type 4 stroke OHV Max. torque 10,7 Nm/ 2500 rpm Spark plug Brisk: LR14YC gap 0,7-0,8mm Champion: RN7YC NGK: BPR7ES Petrol tank capacity 3,6L Oil fill capacity... -
Page 10: Declaration Of Conformity With Eu
Product details: Water pump TYPE Inspection reports Noise level Guaranteed noise level measured WP20CH/P 3748/3/2018-13 95dB 97dB Certificate issued by: TECHNICKÁ INŠPEKCIA a.s., pracovisko KOŠICE, as an accredited inspection body in accordance with EN ISO / IEC 17020 Applicable EU Directives:... - Page 11 Application of claims for repairs under warranty requires completion and submission of the complaint form via the manufacturer's website: www.waspper.com. The product is covered by a full warranty of 24 months for private customers (as defined by the Civil Code) and 12 months for corporate customers (as defined by the Commercial Code). The warranty period commences upon completion and submission of the complaint report via the website in case of simple defects and damages.
