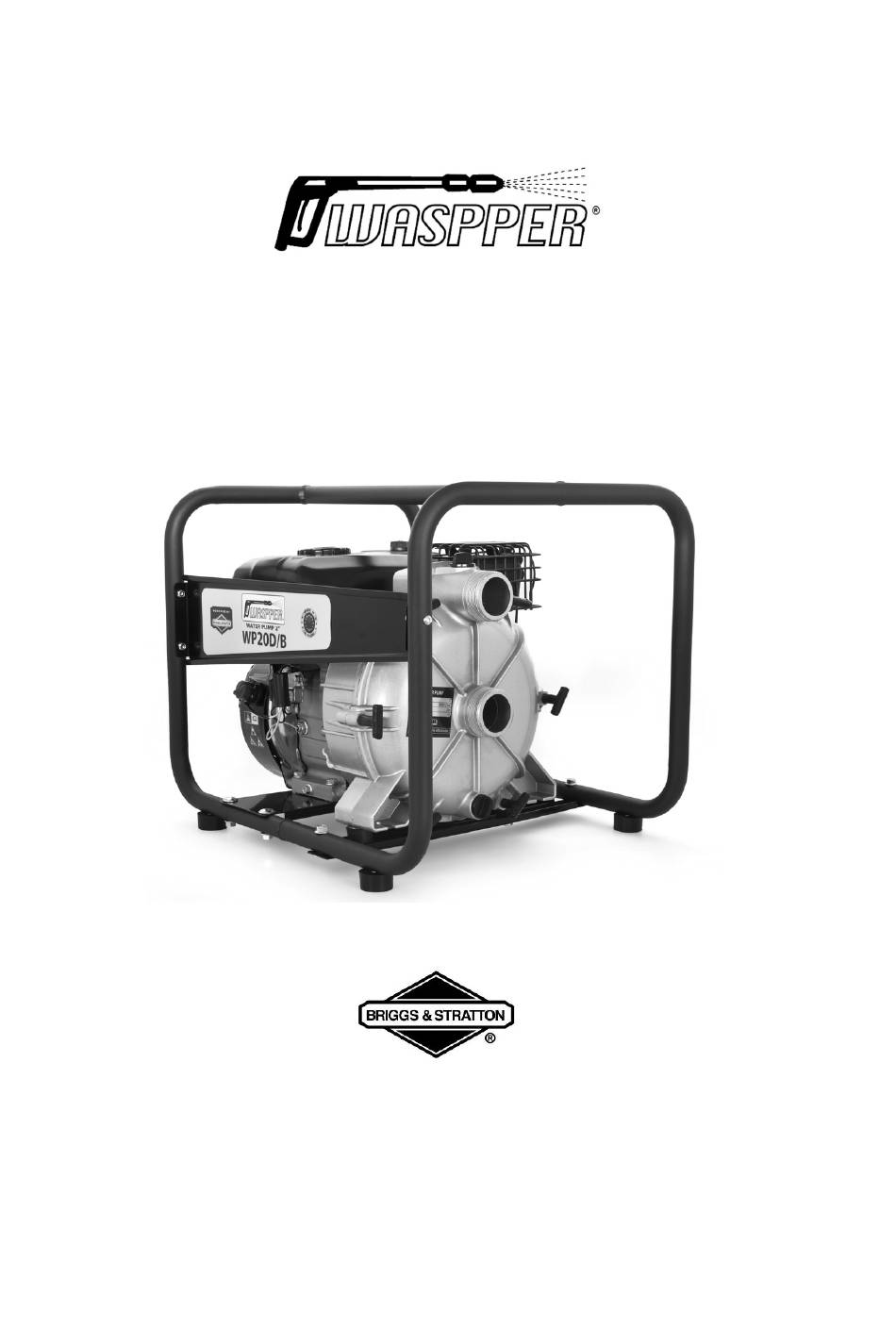

- Page 1 Instruction Manual WP20D/B WP30D/B Engine driven Translation of the original operation manual. * The picture of the device is illustrative and doesn’t necessarily correspond to the actual display of the supplied device...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Symbols Used When reading these operating instructions, you Use of the Product in Accordance with Its Page 1 Intended Use will encounter the following symbols. Page 1 Environmental Protection - Read the operating instructions, Page 1 Safety observe warnings and safety instructions. -
Page 3: Scope Of Delivery
Danger Levels DANGER - A warning of imminent danger which may cause serious injury or even death. WARNING - A warning of a potentially hazardous situation that could cause minor injuries. CAUTION - A warning of a potentially hazardous situation that could cause material damage. Safety Features WARNING - Safety features serve to protect the user from injury and may not be altered or removed. -
Page 4: Engine
of Drain Cap 4. Excessive tightening with pliers may result in damaging the cap. Immerse the suction hose suction strainer into the water source needing to be pumped. After pumping is completed, any water remaining inside the pump must be drained by unscrewing Cap 4. - Page 5 into such position, where petrol may leak from the tank. NEVER attempt to start the engine with damaged components in the fuel supply, ignition or safety features. ON (I) Push the engine switch and the fuel switch into the position. Shift the speed control lever into the position.
-
Page 6: Engine Maintenance
During operation, in rare cases, protective metal covers may become loose due to vibration. It’s necessary to tighten these components as the long-term effect of vibrations on the loosened cover causes damage to the mounting holes. If the exhaust, air filter or cooling fan protective cover is damaged, these parts have to be replaced by original parts as this is the only case where maximum safety can be guaranteed. -
Page 7: Pump
The minimum requirements to be met by the oil are: viscosity class of 10W30 or 10W40 with quality level of SF and higher (SG, SH, SJ). The use of 10W30 engine oil at temperatures higher than 27 °C can lead to increased oil consumption. Therefore, it’s necessary to pay extra attention to the oil level if the device is operated at these temperatures with 10W30 oil. -
Page 8: Troubleshooting
A list of approved service centres is available on our website: www.waspper.com The effort of WPW Center s.r.o. is to continuously improve the technical characteristics and user comfort of its products. -
Page 9: Technical Specifications
Technical Specifications Type of Device WP20D/B WP30D/B Engine Briggs-Stratton 163cm3/ Briggs-Stratton 163cm3/ 3,7kw 3,7kw Maximum speed 3600 rpm 3600 rpm Engine type 4 stroke OHV 4 stroke OHV Max. torque 10,2 Nm/ 2600 rpm 10,2 Nm/ 2600 rpm Spark plug... -
Page 10: Declaration Of Conformity With Eu
EU directives on occupational health and safety of the device operators. Any alteration of the device without the prior consent from the manufacturer will render this declaration void. Product details: Water pump TYPE Inspection reports Noise level Guaranteed noise level measured WP20D/B 3748/3/2018-04 97dB 99dB WP30D/B 3748/3/2018-05 99dB 101dB Certificate issued by: TECHNICKÁ... - Page 11 Application of claims for repairs under warranty requires completion and submission of the complaint form via the manufacturer's website: www.waspper.com. The product is covered by a full warranty of 24 months for private customers (as defined by the Civil Code) and 12 months for corporate customers (as defined by the Commercial Code). The warranty period commences upon completion and submission of the complaint report via the website in case of simple defects and damages.
