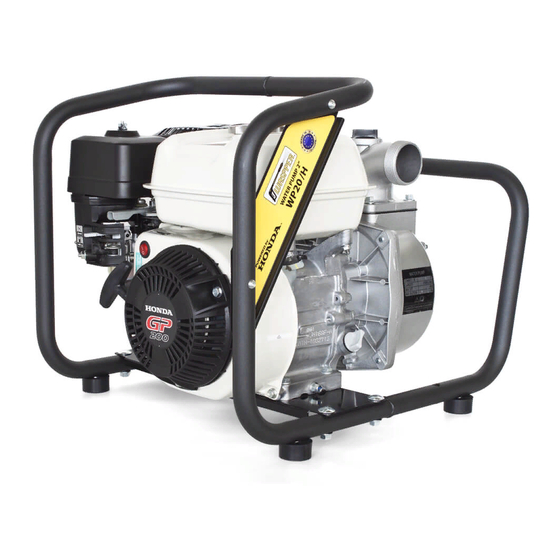

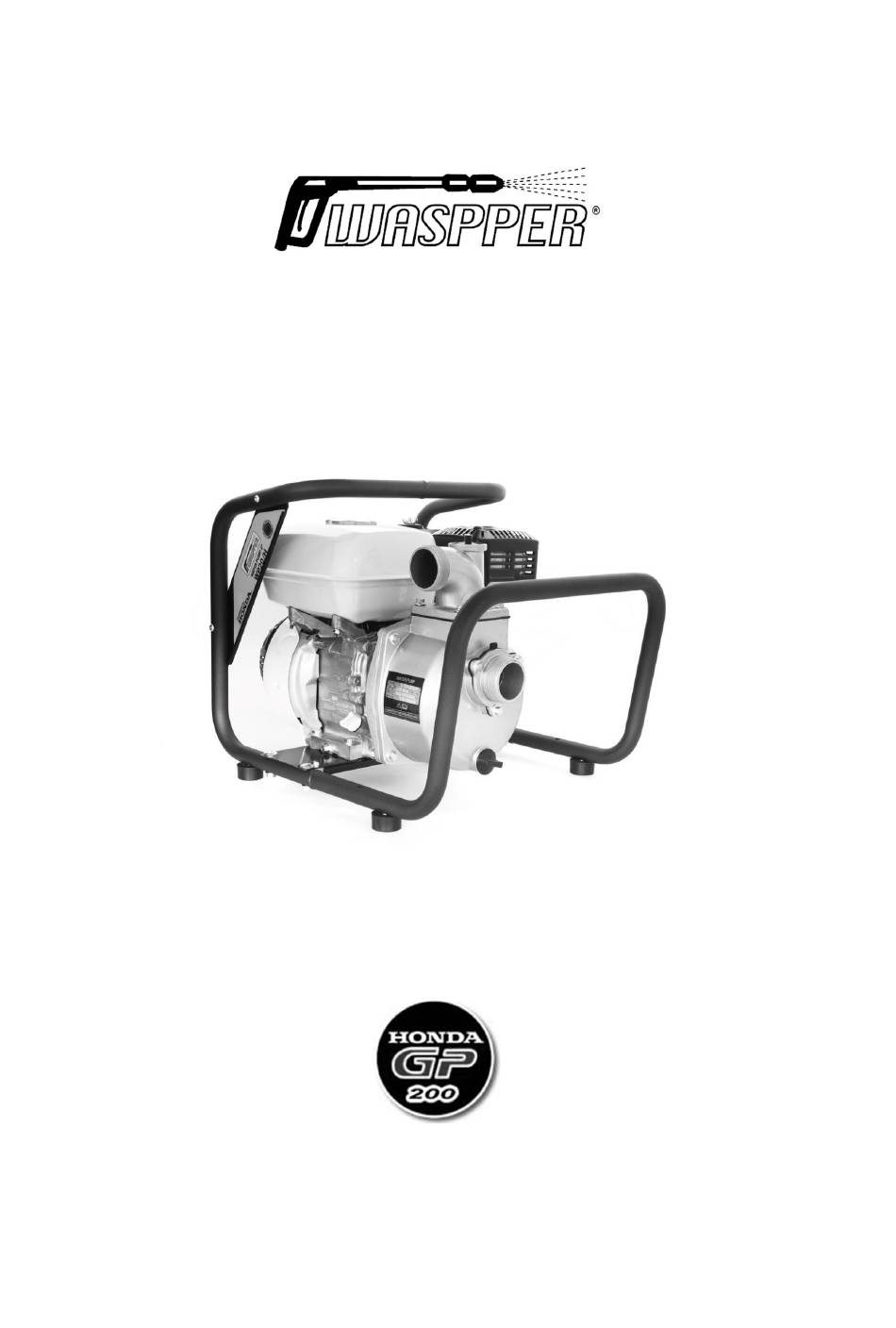

- Page 1 Instruction Manual WP20/H WP30/H Engine driven Translation of the original operation manual. * The picture of the device is illustrative and doesn’t necessarily correspond to the actual display of the supplied device...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Symbols Used When reading these operating instructions, you Use of the Product in Accordance with Its Page 1 Intended Use will encounter the following symbols. Page 1 Environmental Protection - Read the operating instructions, Page 1 Safety observe warnings and safety instructions. -
Page 3: Scope Of Delivery
Danger Levels DANGER - A warning of imminent danger which may cause serious injury or even death. WARNING - A warning of a potentially hazardous situation that could cause minor injuries. CAUTION - A warning of a potentially hazardous situation that could cause material damage. Safety Features WARNING - Safety features serve to protect the user from injury and may not be altered or removed. -
Page 4: Engine
of Drain Cap 4. Excessive tightening with pliers may result in damaging the cap. Immerse the suction hose suction strainer into the water source needing to be pumped. After pumping is completed, any water remaining inside the pump must be drained by unscrewing Cap 4. - Page 5 (garages, galleries, cellars, etc.). When in operation, the engine produces waste heat, resulting in heat-up of various engine components (exhaust, engine cylinder), which may cause serious burns. These components may cause fire, when in contact with flammable materials. DANGER Petrol fumes are extremely flammable and explosive substances that max cause burns, fire or even explosion, when handled improperly.
-
Page 6: Engine Maintenance
Every 8 hours or daily Check engine oil level Check the area around the air filter and exhaust for dirt After the first 5 hours Replace the engine oil Every 50 hours or at Clean the air filter the end of the season Replace the engine oil Every 100 hours Check and set the spark plug electrode... -
Page 7: Pump
Fill the engine with the correct amount and type of engine oil. For engine oil specifications, see below. - For specific filling volumes refer to the Technical data section. Set the pump on a horizontal surface. ¾ Fill the engine with approximately of the oil amount required. -
Page 8: Troubleshooting
A list of approved service centres is available on our website: www.waspper.com The effort of WPW Center s.r.o. is to continuously improve the technical characteristics and user comfort of its products. -
Page 9: Technical Specifications
Technical Specifications Type of Device WP20/H WP30/H Engine Honda 196cm3/ 4,1kw Honda 196cm3/ 4,1kw Maximum speed 3600 rpm 3600 rpm Engine type 4 stroke OHV 4 stroke OHV Max. torque 12,4 Nm/ 2500 rpm 12,4 Nm/ 2500 rpm Spark plug... -
Page 10: Declaration Of Conformity With Eu
EU directives on occupational health and safety of the device operators. Any alteration of the device without the prior consent from the manufacturer will render this declaration void. Product details: Water pump TYPE Inspection reports Noise level Guaranteed noise level measured WP20/H 3748/3/2018-14 93dB 95dB WP30/H 3748/3/2018-15 95dB 97dB Certificate issued by: TECHNICKÁ... - Page 11 Application of claims for repairs under warranty requires completion and submission of the complaint form via the manufacturer's website: www.waspper.com. The product is covered by a full warranty of 24 months for private customers (as defined by the Civil Code) and 12 months for corporate customers (as defined by the Commercial Code). The warranty period commences upon completion and submission of the complaint report via the website in case of simple defects and damages.
