Skid Steer Wiring Installation - Solenoid Connections

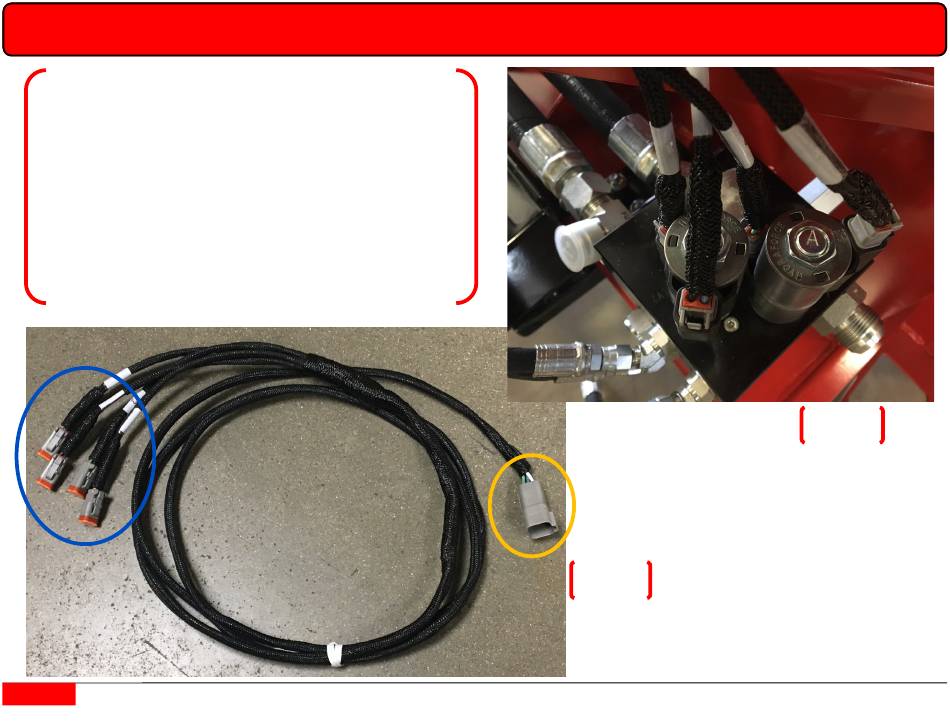

1. Connect the 4 connectors shown in Figure 15 and labeled 1-4 to the
solenoid receptacles in the hydraulic block of Figure 14.
2. Pair connector 1 with 2 and 3 with 4 on the solenoids.
Note: Reconfiguring which ports or solenoids the connectors mate with
will depend on your preference. Switching upper and lower ports within a
pair (ex. 1 & 2) will reverse the switch direction in the cab. Swapping the
pairs with each other (1 & 2 with 3 & 4) will change what a switch in the
cab controls (chute rotation or deflector).
3. Connect the female end of the harness to either the pin connector
harness or the rocker switch harness.
Page | 8 3/16/2020 www.reddevilsnowblowers.com | Red Devil Snow Blowers
Figure 15
Red Devil Snow Blowers is a registered trademark of Lankota Group.
Figure 14
