RED DEVIL RED2S307 Owner's Manual page 6

Skid Steer Wiring Installation - Rocker Switches
The switches may be located in the provided switch plates, or in available switch knockouts in the skid steer. The below instructions show a

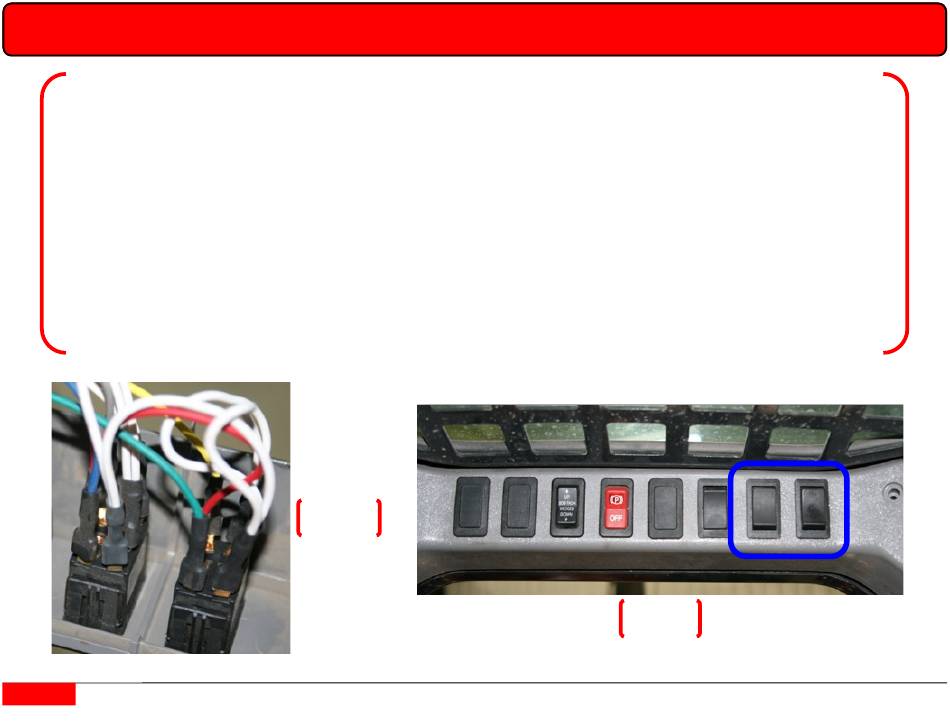

1. Insert two momentary switches (REDRS1093) into the upper cab panel (Figures 9 & 10).
2. Attach the one of the short red wires from RED56WIR-4 to the middle post of a momentary switches. (The momentary switches are identical.)
Then attach the blue wire and the brown wire of harness RED56WIR-3 to the same switch, one on either side of the red wire (Figure 11). This will
be your chute rotation motor switch.
3. Attach the other short red wire from RED56WIR-4 to the middle post of the second momentary switch. Then attach the green wire and yellow
wire of harness RED56WIR-3 to the switch, one on each side of the red wire (Figure 12). This will be your deflector control switch.
4. Connect the free end of the Red wire (RED56WIR-4) to the power wire on the skid loader and the free end of the Black wire of harness
(RED56WIR-3) to a ground wire on the skid loader (Figure 13).
Page | 6 3/16/2020 www.reddevilsnowblowers.com | Red Devil Snow Blowers
Use these instructions if the 8-Pin and 14-Pin connectors will not work on your skid loader.
typical skid steer installation. Location details will vary between makes and models.
Figure 9
Figure 10
