Summary of Contents for Etec 43EF20

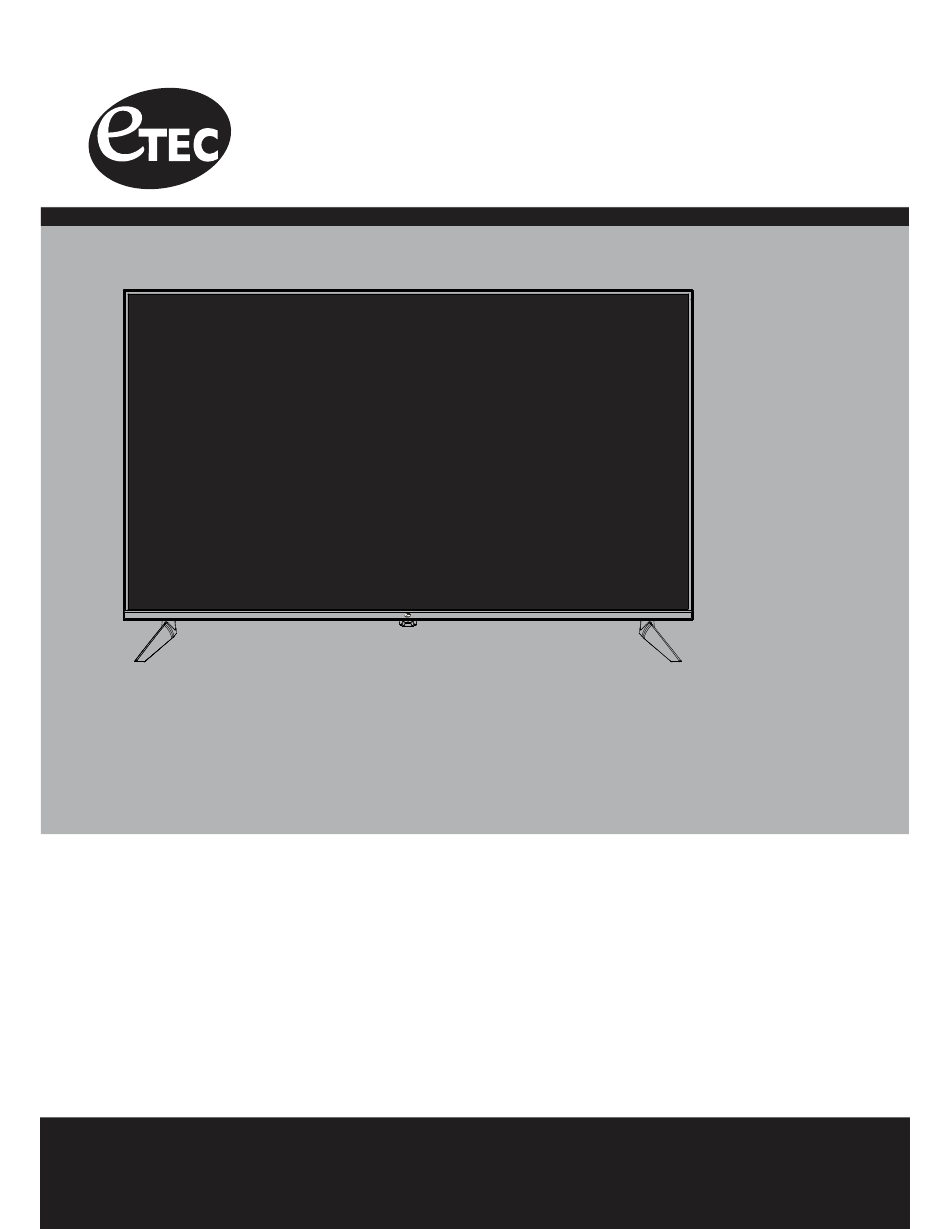

- Page 1 43EF20 Ver 1.0 USER’S MANUAL 43” LED TELEVISION For technical assistance or troubleshooting please call 1-855-994-3832 or visit www.sibrandssupport.com...
-
Page 3: Important Safety Instructions
Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. -
Page 4: Favorite
Safety Instructions Please read these instructions carefully. This product complies with all applicable US federal safety requirements, as well as those of the Canadian Standards Association. 1. Cleaning Always unplug the TV before cleaning. Do not use liquid or aerosol cleaners. Use a soft, slightly damp cloth to clean. - Page 5 Safety Instructions 9. Outdoor Antenna Grounding If an outside antenna or cable system is connected to the TV be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built up static charges. Article 810 of the National Electri- cal Code (U.S.
- Page 6 Safety Instructions 16. Safety Check Upon completion of any service or repairs to this TV, ask the service technician to perform safety checks to determine whether the product is in proper operating condition. 17. Wall Mounting The TV should be mounted to a wall only by a professional. The TV may slide or fall, causing serious injury to a child or adult, and serious damage to the product .
-
Page 7: Table Of Contents
Table of Contents Important Safety Instructions ............................1 Table of Contents ................................5 Introduction ..................................6 Remote Control Battery Install .................................7 Overview ..................................8 TV Overview Front Panel ................................10 Rear Panel & Pedestal Removal ..........................11 Installation Connection to Antenna & Cable / Satellite Box ......................12 Connection to HDMI Input ............................13 Connection to Component YPbPr Input ........................14 Connection to Composite Input ...........................15... -
Page 8: Introduction
Introduction What’s In The Box Thank you for purchasing the energy ef cient 43EF20 television. It has been designed to enjoy today’s high de nition television experience. With a display resolution of 43”1920X1080 you are assured of one of the nest quality televisions available today. -
Page 9: Remote Control
Remote Control Battery Install • Turn the remote over and remove • Place two (2) “AAA” batteries into • Replace the cover battery cover. the battery compartment with the “+” and “-“ ends facing as indicated. • Effective remote range is approximately 16 feet at an angle of no greater than 30°... -
Page 10: Overview
Remote Control Overview... - Page 11 Remote Control Overview Button Function 1. POWER Turn the display ON or OFF (Standby). 2. DISPLAY Provides program information for program being viewed. PLAY/PAUSE (USB) PREVIOUS (USB) NEXT (USB) STOP (USB) 7. REP REPEAT (USB) 8. CH.LIST Press to display a list of channels saved in the TV tuner memory. 9.
-
Page 12: Tv Overview
TV Overview Front & Bottom Panel IR Receiver A Green/Blue light illuminates When the television power is on. POWER - Press the button to turn the TV ON/ OFF (standby). The screen image will appear within a few seconds, and the LED will turn on. -
Page 13: Rear Panel & Pedestal Removal
TV Overview Rear Panel & Pedestal Removal Wall Mounting It is recommended that you consult a professional before mounting this TV a wall. Use VESA 200 x 100 wall mount hardware. Wall mount screws size: 4 x (M5 x 8) NOTE: You must remove the pedestal before wall mounting. -
Page 14: Installation
Connection to Antenna & Cable / Installation Satellite Box Roof Antenna / Cable Outlet Installation Ant. / Cable • Connect the RF coaxial (75 ohm) cable from Wall Outlet your existing roof top / in door antenna, or wall outlet. Finger tighten the Coaxial / RF Cable end to the TV input on the panel. -
Page 15: Connection To Hdmi Input
Installation Connection to HDMI Input Digital Cable / Satellite Set Top Box HDMI cable ( not included ) Cable / Satellite set top box Coaxial / RF Cable (not included) Connect the RF coaxial (75 ohm) cable from the video outlet of your cable / Satellite box to the RF input on the TV’s panel. -
Page 16: Connection To Component Ypbpr Input
Connection to Component Installation YPbPr Input Connecting External Equipment to Component Video IN (Y Pb Pr) Component cables (not included) Digital set top box, gaming console or DVD For BETTER video performance Connect to external equipment that features component video output jacks for better performance. -
Page 17: Connection To Composite Input
Installation Connection to Composite Input Connecting External Equipment to AV Composite IN on your television Audio Video Cable (not included) Digital set top box, gaming console or DVD For GOOD video performance Connect to external equipment using optional video and audio cables. Composite output jacks are available on most set top cable / satel- lite boxes and DVD players. -
Page 18: Connection To A Personal Computer
Installation Connection to a Personal Computer Connecting a Personal Computer with VGA to your television VGA & Audio Cable (not included) Recommended computer display resolution:1920x1080@60 Hz Connect using an optional male to male VGA cable (not included) from your PC to the VGA input on the TV’s panel. Connect an audio cable (not included) from the computer’s mini audio output jack to the audio input on the TV’s panel. -
Page 19: Connection To A Home Theater System
Connection to a Home Installation Theater System Connection to a Home Theater Audio System Optional cables Dolby Prologic Front Left Front Right Center Channel Press the appropriate... -
Page 20: Tv Setup
TV Setup Initial Setup Wizard Initial Setup Wizard After connecting your TV antenna or cable wire, turn the television ON. The quick setup wizard will display on-screen. Select your preferred Picture setting followed by antenna options and performing Auto Scan to receive local broadcast channels that will be stored in the TV tuner memory. -
Page 21: Tv Provider Setup & Channel Auto Scan
TV Provider Setup TV Settings & Channel Auto Scan • Press the button • Using the arrow buttons; scroll to highlight • Press the down arrow buttons to highlight Select if you subscribe to a pay television service a set top box. •... -
Page 22: Picture Setting
Menu Adjustments Picture Setting menu of e picture displayed on your TV based on ambient room light and personal preferences. Adjustment options include contrast, brightness, color, sharpness and color temperature. How to Navigate: Press the button on the remote control. Navigate using arrow buttons to select . -
Page 23: Audio Settings
Menu Adjustments Audio Settings menu offers options to make sound enhancements while listening through the built-in speakers or to select digital audio options when connected to a Dolby Digital receiver though a (SPDIF) coaxial digital output. How to Navigate: Press the button on the remote control. -
Page 24: Date & Time Settings
Menu Adjustments Date & Time Settings menu includes adjustment of settings for your local time zone and daylight savings time. The clock will adjust automatically after the initial Channel Auto Scan of available broadcast channels in your area (see page 19 for TV Setup). -
Page 25: Setup Settings
Menu Adjustments Setup Settings In the menu you may change the initial set up of preferences that include settings for language, menu display, computer monitoring,closed captions, enhancement of black detail in the picture and resetting your TV back to its fac- tory default status. -
Page 26: Cec
Menu Adjustments The CEC menu includes HDMI CEC \ Auto Standby \ Auto TV on \ HDMI ARC \ Device control \ Device List. How to Navigate: Press the MENU button on the remote control. Navigate using arrow buttons to select Setup •... -
Page 27: Closed Captions
Menu Adjustments Closed Captions menu includes adjustments for activating the text feature for display on-screen and customiz- ing CC display types and font styles. How to Navigate: Press the button on the remote control. Navigate using arrow buttons to select •... -
Page 28: Parental Control
Menu Adjustments Parental Control In the menu, you may block television and movie programming based on TV ratings and Motion Picture Association guidelines. To gain access and select your preferences within the Parental menu make certain your input is set to TV. How to Navigate: Press the button on the remote control. - Page 29 Menu Adjustments Parental Control...
-
Page 30: Tv Settings
Menu Adjustments TV Settings provides the setup / changes of your television to receive broadcast channels, store your favorite chan- nels, add or skip channels in memory and label or name channels.(For antenna and Auto Channel Scan setup, please refer to page 19.) How to Navigate: Press the button on the remote control. -
Page 31: Usb Modes
USB Modes 1. Press the INPUT button on the remote control to display the Input Menu. 2. Press the buttons to select MEDIA in the Source menu, and then press the ENTER button. To view Photos on the TV: Photo Music mblog.jpg mblog.jpg... -
Page 32: Mhl Setting
MHL Setting You can connect an MHL-enabled device, such as a cell phone, and view your device’s screen on your TV. Press INPUT to open the Input Source list. Press to select ,then press Connect an MHL cable (not provided) to the micro USB port on the device, then connect the other end of the cable to the HDMI /MHL jack on the side of your TV. - Page 33 ations 16:9 480i / 480p / 720p /1080i 1920x1080 4000:1 178° 178° 16.7M 75Watts 2 X 8 W 37.6” (W) x22.3” (H) x 3.8” (D) 13.6 lbs SPDIF Digital Audio Output Headphone Jack...
-
Page 34: Troubleshooting
Troubleshooting Check for a possible solution to a symptom before contacting a customer service representative. Cannot receive certain • Perform Channel Scan to add channels into the TV tuner memory. channels through the See page 18. antenna • Readjust your antenna and retry Auto Channel Scan. •... - Page 35 We warrant this product to be free from defects in material and workmanship under normal use for a one-year period from the original date of purchase from an authorized ETEC dealer. We will repair or replace the unit free of charge should it become defective under this warranty, providing you, the original purchaser, submit proof of purchase (sales slip) along with the TV and all accessories.
