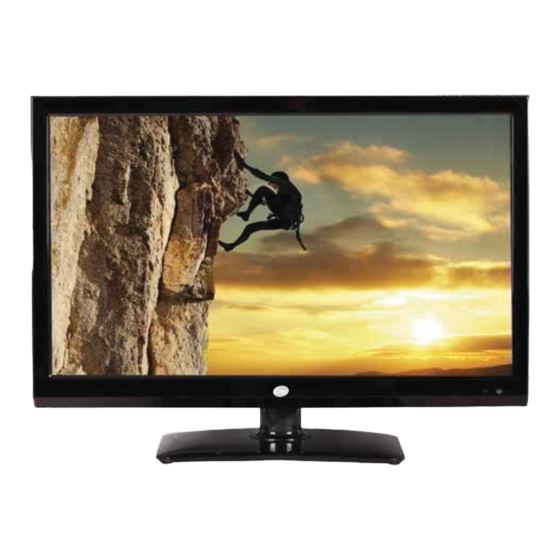

- Page 1 24E700 Ver 1.4 USER’S MANUAL 24” LED TELEVISION For technical assistance or troubleshooting please call 1-855-994-3832.
-
Page 2: Important Safety Instructions
Instruction: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying the appliance. 24E700-1... -
Page 3: Safety Instructions
To protect the TV during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV from lightning and power-line surges. 24E700-2... - Page 4 If the TV has been dropped or the cabinet has been damaged. f. If the TV exhibits a distinct change in performance. 24E700-3...
- Page 5 - Increase the separation between the equipment and television. - Connect the equipment into an outlet on a circuit different from that to which the television is connected. - Consult your dealer or an experienced radio / TV technician for assistance. ’s authority to operate the equipment. 24E700-4...
-
Page 6: Table Of Contents
OSD Timeout ..................................24 Closed Captions.................................25 Advanced Settings ..............................26 Parental Control ................................27 Channel Settings Favorite ..................................29 Show / Hide ..................................29 Channel Label ................................29 TV Channel Setup & Channel Auto Scan ........................30 Zoom Modes ................................31 USB Modes ..................................32 ................................33 Troubleshooting ................................34 24E700-5... -
Page 7: Introduction
Please refer to this guide whenever you have questions about features and functions. This instruction book will get you up and running with the best possible connection type for your devices. Enjoy! The 24E700 package includes the following items. Save the carton & packing for future shipping • Remote Control •... -
Page 8: Installing The Base
Installing the Base Place the TV face down on a soft cloth or cushion. Position Base as shown. Twist the base onto the the TV post in the direction indicated. 24E700-7... -
Page 9: Remote Control
For non-major TV functions not listed, use the remote control included with this TV. o program your Cable / Satellite remote to operate this ETEC TV, follow the programming instruc- tions included with your providers’ remote and use the following codes. -
Page 10: Overview
Remote Control Overview 24E700-9... - Page 11 Select the viewable display aspect options: Normal, Wide, or Cinema. 22. FREEZE Pause and still-frame the current image on the display. Press again for live TV. 23. AUDIO USER - STANDARD - MUSIC - SPORTS - MOVIE PLAY/PAUSE (USB) STOP (USB) PREVIOUS (USB) NEXT (USB) 24E700-10...
-
Page 12: Tv Overview
4. Volume (-VOL+) - Press the VOL- / VOL+ buttons to adjust the volume up or down. 5. POWER - Press the POWER button to turn the TV ON/ OFF (standby). The screen image will ap- pear within a few seconds, and the Blue LED will turn off. 24E700-11... -
Page 13: Rear Panel
8. CABLE/ANTENNA - Connect an antenna or cable connection for television reception. Note: Use an outdoor antenna, cable or satellite for best reception. 9. EARPHONE - Connect a stereo headphone (3.5mm – not included) for private listening. 10. L/R Audio Out- Connect to audio receiver. 24E700-12... -
Page 14: Installation
Match and insert the yellow, red, and white A / V cables into the Input Source Source Select device and TV. How to Use • Press the INPUT button on the remote. Then use the arrow buttons to highlight AV. Press ENTER. Component HDMI Media 24E700-13... -
Page 15: Connect A Digital Cable Box, Satellite Receiver, Or Dvd Player With An Hdmi Cable
On the back of your device, connect the HDMI cable from HDMI out on Source Select device to HDMI in on the panel. How to Use • Press the INPUT button on the remote, then use the arrows to Component HDMI. Press ENTER. highlight HDMI Media 24E700-14... -
Page 16: Connect A Digital Cable Box, Satellite Receiver, Or Dvd Player With A Component Connection
*NOTE: The picture will be black & white if hooked up incorrectly. You must hook up audio cables separately. HDMI How to Use Media • Press the INPUT button on the TV remote. Then use the arrow buttons to highlight Component. Press ENTER. 24E700 -15... -
Page 17: Connecting The Power And Basic Cable Connection
We recommend using a high quality roof top antenna, digital cable, or satellite box for the best display and performance. Note: Reception quality is determined by your location, geographical terrain, distance from the local broadcast transmitter, and strength of antenna. 24E700-16... -
Page 18: Connection To A Personal Computer
Connecting to an amplifier or home theater system (not included) Audio Cable • Match and insert the red and white audio cables from “Line Out” NOTE: The TV’s speakers will still output audio. You can turn the TV’s speaker volume to 0 to prevent echoing. 24E700-17... -
Page 19: Connection To A Home Theater System
ENTER. Surround Left Surround Right Speaker Speaker How to Use (Audio) Select the appropriate input from your audio equipment. *NOTE: Refer to the User Manual from your home theater equipment for recommended audio settings. 24E700 -18... -
Page 20: Tv Setup
Time Format 12-hour Go to next step Select the time zone & Daylight saving time Use the q arrow button to select Go to next step and press the Select Move Return MENU u button to complete the step. 24E700-19... - Page 21 Once Channel Auto Scan has ended, Initial Setup is RF CH Total Found : complete. You may now begin enjoying your TV, or make further adjustments to the TV settings which are Exit MENU explained in the following pages of this manual. 24E700-20...
-
Page 22: Picture Setting
Cool (more bluish tone), Normal or Warm setting. • Advanced Settings Adjust advanced video features to fine tune the picture. Press u button to enter. Note: When adjustments are completed, you may select another menu by pressing the Menu button. 24E700-21... -
Page 23: Audio Settings
Sets the sound to the second audio program. • Audio Language Press down q arrow button to highlight Audio Language. Press t u button to select English - Francais - Español. Note: When adjustments are completed, you may select another menu by pressing the Menu button. 24E700-22... -
Page 24: Date & Time Settings
Navigate using the t u arrow buttons to turn this feature on or off. • Clock and Date are automatically set the first time the tuner receives a broadcast channel. Note: When adjustments are completed, you may select another menu by pressing the Menu button. 24E700 -23... -
Page 25: Setup Settings
Over Scan Input Label Other Settings Restore Default Setup Wizard Select Move Exit • Setup Wizard Set the first time installation. Press ENTER / u button to enter. NOTE: Closed Caption and Advanced are features described on the following pages. 24E700-24... -
Page 26: Closed Captions
Off, Service 1-6. with options to customize text fonts, colors and opacities. Note: When adjustments are completed, you may select another menu by pressing the Menu button. 24E700 -25... -
Page 27: Advanced Settings
Exit • Highlight V-Pos. Navigate • Highlight Auto. Press the u using the t u arrow buttons to arrow button to automatically adjust adjust the position of images the display to the best setting. displayed up and down. 24E700 -26... -
Page 28: Parental Control
TV-G General Audience PG-13 Parents Strongly Cautioned TV-PG Parental Guidance Suggested Restricted TV-14 Parents Strongly Cautioned NC-17 No One Under 17 Permitted TV-MA Mature Audience Only Adults Only NOTE: PRT Setting and Reset RRT are not user adjustable settings. 24E700 -2... - Page 29 13 ans+ Appropriate for Children 13 years old and up 16 ans+ Appropriate for Children 16 years old and up 18 ans+ Mature Audience Only Select Move Exit Note: When adjustments are completed, you may select another menu by pressing the Menu button. 24E700 -...
-
Page 30: Channel Settings
• Highlight Channel Label to name or rename a broadcast channel. Navigate using the u arrow button to enter the screen menu to re-label a channel. Use the qp arrow buttons to spell out each letter, number or character. Use t u arrow buttons to advance to the next space. 24E700-29... -
Page 31: Tv Channel Setup & Channel Auto Scan
Press the t u arrow button to highlight Air. • Press the q arrow button to highlight Auto Scan and press ENTER. Press the u arrow button to highlight YES and press ENTER to begin Auto Scan. NOTE: Channel Auto Scan may take several minutes to complete. 24E700-30... -
Page 32: Zoom Modes
Recommended for viewing native widescreen content and undistorted 4:3 images (with black bars). 2. WIDE Stretches certain 4:3 content and may reduce visible black bars. 3. CINEMA n eliminating visible side black bars. It may also eliminate or reduce black bars on certain widescreen movies. 24E700 -31... -
Page 33: Usb Modes
• To return to the previous menu screen, press the RETURN button. ress the ▲ / ▼ /◄ / ► buttons to highlight the different playback functions (Play, Pause, Next, etc.) then press ENTER to select the highlighted funciton. 24E700-3... - Page 34 22.5” x 1.7” x 14.3” Weight without stand (may vary 10%) Cable/Antenna 24E700-33...
-
Page 35: Troubleshooting
• Re-connect the antenna or cable wiring. • Restore default settings. See page Remote control does not function • Replace batteries with new ones. • Check that battery polarity is correct. • Point remote directly at the TV’s IR receiver. See page 8. 24E700-34... - Page 36 We warrant this product to be free from defects in material and workmanship under normal use for a one-year period from the original date of purchase from an authorized ETEC dealer. We will repair or replace the unit free of charge should it become defective under this warranty, providing you, the original purchaser, submit proof of purchase (sales slip) along with the TV and all accessories.
