WARNING: This appliance
is equipped for (Natural and
Propane) gas. Field conversion is
not permitted other than between
natural or propane gases.
CAUTION - FOR YOUR SAFETY
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
- Do not store or use gasoline or other flammable vapors and Iiquids in vicinity of this or any other
appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
WARNING: Do not attempt to access or change the setting of the fuel selection means. Access
to and adjustment of the fuel selection means must only be a performed by a qualified service
person when connecting this appliance to a specified fuel supply at the time of installation.
Change of the selector setting to other than the fuel type specified at the time of installation could
damage this appliance and render it inoperable.
The installer shall replace the access cover before completing the installation and operating this
appliance.
This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is installed.
Provisions for adequate combustion and ventilation air must be provided. Refer to Air For
Combustion and Ventilation section on page 9 of this manual.
This appliance may be installed in an aftermarket, permanently located manufactured (mobile) home,
where not prohibited by local codes. This appliance is only for use with propane or natural gas.
This appliance is equipped with a simple means to switch between propane and natural gas. Field
conversion by any other means including the use of a kit is not permitted.
The Installation instructions for an appliance for installation on combustible flooring shall specify that
when the appliance is installed directly on carpeting, tile or other combustible material, other than wood
flooring, the appliance shall be installed on a metal or wood panel extending the full width and depth of
the appliance.
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-877-447-4768, 8:30 a.m. – 4:30 p.m., CST, Monday – Friday or email us at
customerservice@ghpgroupinc.com.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
1

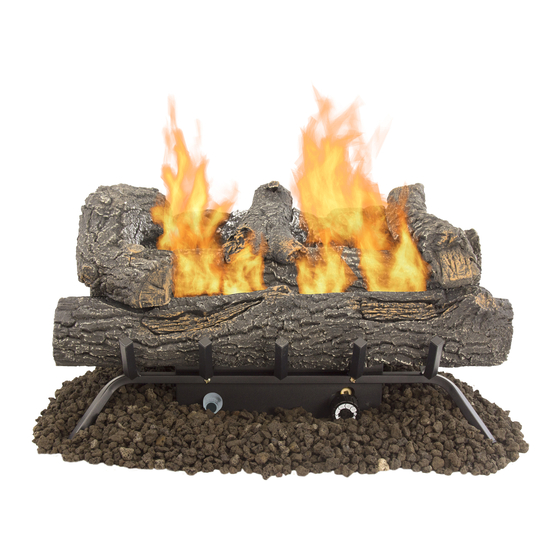

VENT-FREE
GAS LOG SET
MODEL # VFL2-SO18DT
VFL2-EO18DT
VFL2-SO24DT
VFL2-EO24DT
VFL2-WW18DT
VFL2-WW24DT
Patent Pending Dual
Fuel System
NG
LP
C
ANS Z21.11.2 2013
Dual Fuel
80-10-442 - 2018-05-29
C
US
US

Advertisement

loading
Need help?

Need help?

Do you have a question about the VFL2-SO24DT and is the answer not in the manual?

Questions and answers

Related Manuals for pleasant hearth VFL2-SO24DT

Summary of Contents for pleasant hearth VFL2-SO24DT

  • Page 1 VENT-FREE GAS LOG SET MODEL # VFL2-SO18DT VFL2-EO18DT VFL2-SO24DT VFL2-EO24DT VFL2-WW18DT VFL2-WW24DT WARNING: This appliance is equipped for (Natural and Propane) gas. Field conversion is Patent Pending Dual not permitted other than between Fuel System natural or propane gases. ANS Z21.11.2 2013...

  • Page 2: Table Of Contents

    IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in possible injury to persons or a fire hazard and will void the warranty. ITEM VFL2-SO18DT VFL2-SO24DT VFL2-EO18DT VFL2-EO24DT VFL2-WW18DT VFL2-WW24DT Input Rating...

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this heater. Improper use of this heater can cause serious injury or death from burns, fire, explosion, electrical shock, and carbon monoxide poisoning. Only a qualified installer, service agent, or local gas supplier may install and service this product.
  • Page 4 SAFETY INFORMATION 1. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases. 2. Do not place propane/LP supply tank(s) inside any structure. Locate propane/LP supply tank(s) outdoors. 3.

  • Page 5: Product Identification

    PRODUCT IDENTIFICATION Log Locator Spacer - (4) NG ODS Pilot LP ODS Pilot Grate Cap Burner Tube Battery Ignitor Thermostatic Control Valve Grate...

  • Page 6: Product Features

    PRODUCT FEATURES This log set has been tested and approved to ANS Z21.11.2 2013 standard for Unvented Heaters and can be operated with the flue damper closed. State and local codes in some areas prohibit the use of vent-free heaters. DUAL FUEL CAPABILITY Your heater is equipped to operate on either propane or natural gas.
  • Page 7 CARE AND MAINTENANCE BURNER FLAME PATTERN Figure 29 shows a correct burner flame pattern. Figure 30 shows an incorrect burner flame pattern. The incorrect burner flame pattern shows sporadic, irregular flame tipping. The flame should not be dark or have an orange/reddish tinge. Note: When using the heater the first time, the flame will be orange for approximately one hour until the log cures.
  • Page 8 CARE AND MAINTENANCE 1. Shut off unit including pilot. Allow unit to cool for at least 30 minutes. 2. Inspect burner, pilot and primary air inlet holes on orifice holder for dust and dirt (See Fig. 31). 3. Blow air through the ports/slots and holes in the burner. 4.
  • Page 9 TROUBLESHOOTING WARNING: If you smell gas: • Shut off gas supply. • Do not try to light any appliance. • Do not touch any electrical switch; do not use any phone in your building. • Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions. •...
  • Page 10 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION 1. Control knob is not fully 1. Press in control knob fully. ODS/pilot lights pressed in. but flame goes out 2. Control knob is not pressed 2. After ODS/pilot lights, keep control when control knob is in long enough.

  • Page 11: Operation

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION White powder resi- 1. When heated, the vapors 1. Turn heater off when using furniture due forming within from furniture polish, wax, polish, wax, carpet cleaner or similar burner box or on carpet cleaners, etc., turn products.

  • Page 12: Replacement Parts

    REPLACEMENT PARTS LIST For replacement parts, call our Technical Service Department at 1-877-447-4768, 8:30 a.m. – 4:30 p.m., CST, Monday – Friday. VFL2-SO18DT/ VFL2-EO18DT/ VFL2-SO24DT/ VFL2-EO24DT VFL2-WW18DT/ VFL2-WW24DT PART NO. ITEM NO. DESCRIPTION VFL2-SO18DT VFL2-SO24DT VFL2-WW18DT VFL2-WW24DT VFL2-EO18DT VFL2-EO24DT Log Set (complete)
