Summary of Contents for Solt GGSTLW70B

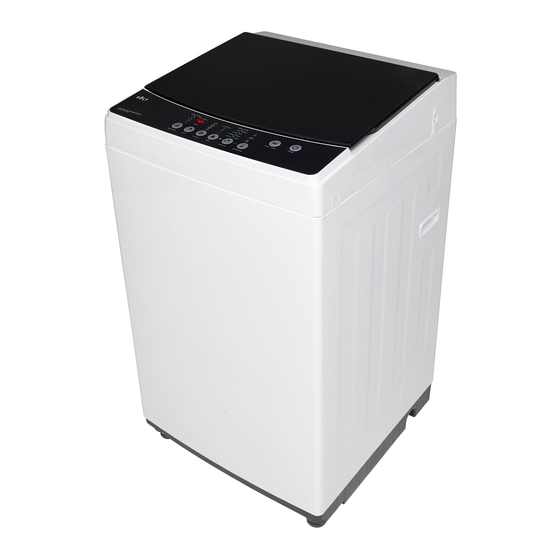

- Page 1 MODEL/S GGSTLW55B, GGSTLW70B GGSTLW80B, GGSTLW100B V 6 | 0221 User Manual Top Load Washing Machine...
- Page 2 Sôlt You can use our online Support Centre at anytime by — visiting http://support.residentiagroup.com.au, or you can Online. www.solt.house contact us via calling us on 1300 11 HELP (4357). — Instagram. /solt.house It is important that you read through the following use and —...
-
Page 3: Table Of Contents
2 Welcome Contents 4 Safety Instructions 6 Your Washing Machine 7 Installation 8 Operating Instructions 16 Cleaning & Maintenance 18 Troubleshooting 20 Technical Specifications 21 Purchase Details 21 Attach Your Receipt 22 Warranty Information... -
Page 4: Safety Instructions
The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused. • The openings must not be obstructed by a carpet. Washing Standard Water Model Capacity Pressure GGSTLW55B 5.5kg 0.03MPa~0.8MPa GGSTLW70B 7.0kg 0.03MPa~0.8MPa GGSTLW80B 8.0kg 0.03MPa~0.8MPa GGSTLW100B 10.0kg 0.03MPa~0.8MPa... - Page 5 WARNING! CAUTION! POTENTIAL ELECTRIC SHOCK INSTALLING THE PRODUCT • This appliance is for indoor use only. • This washing machine is for indoor use only. • Do not position washing machine in a humid place. • It isn't intended to be built-in using. •...
-
Page 6: Your Washing Machine
Your Washing Machine PRODUCT DESCRIPTION Top lid Water inlet valve Frame Power cord and plug Control panel Handle Cabinet Adjustable feet Drain hose NOTE! The product line chart is for reference only, please refer to real product as standard. ACCESSORIES Inlet hose Cabinet User... -
Page 7: Installation
Installation INSTALLATION INSTRUCTIONS It’s recommended to use the washing machine on its own dedicated power outlet for both convenience and safety. The power outlet must be grounded. IMPORTANT! If the power cord is damaged, it must be replaced by Residentia Group or one of it’s authorised service representatives. -
Page 8: Operating Instructions
Operating Instructions WARNING! To prevent leakage or water damage, follow the instructions in this chapter carefully: • Do not kink, crush, modify, sever or protract the inlet hose or drain hose. • Position drain hose properly ,otherwise damage might result of water leakage. •... - Page 9 SELECTION OF TAP Please select appropriate tap. Ordinary faucet Screw tap Special washing machine tap CONNECTION OF INLET HOSE, TAP AND WASHING MACHINE Connection between ordinary tap and inlet hose. Loosen clamp nut b) Loosen four bolts Set connecting base d) Tighten clamp nut to show 5mm thread on tap and tighten...
- Page 10 Operating Instructions (Continued) PREPARATION BEFORE WASHING CAUTION! • Before washing, please make sure it’s installed properly. • Before washing it at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows. Plug in Open tap Load and Close door...
- Page 11 WASHING MATTERS NEEDING ATTENTION • The working condition of the washer should be(0-40)°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is placed under condition of 0°C or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use.
- Page 12 Operating Instructions (Continued) DISPLAY: WATER LEVEL: The display shows the settings, estimated time Select water level according to clothing categories, degree remaining, options, and status messages for of soiling and washing habits of customers. your washer. The display will remain on through the cycle.
- Page 13 START/PAUSE: POWER: WATER TEMPERATURE: After selecting your desired wash settings, press this button to start Press this button to Press this button to select your your wash cycle. turn your washing water temperature. When both the machine On or Off. Hot and Cold indicators are lit, your You can also use this button to washing machine will be set to use...
- Page 14 Operating Instructions (Continued) PERSONALISED WASH MODE SETTING Users can select washing program according to actual demand, set rinsing times, water volume and delay amount. → → → → → → → Power On Program Water Level Wash Rinse Temperature Delay Start Function OPERATIONS OF WASHING PROCESS...
- Page 15 WASHING MODES • Suitable to wash cotton, linen, flax. jute clothes • NORMAL (STANDARD) Standard fabric washing program, suitable to wash ramie cotton fabric. Wash for once, rinsing for twice, the spin time is a little long. • JEANS Suitable to wash heavy stained/wearable clothes. •...
-
Page 16: Cleaning & Maintenance
Cleaning & Maintenance CLEANING AND CARE WARNING! • Before you begin maintenance, please unplug the machine and close the tap. CLEANING THE CABINET Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use the wet cloth to wipe it off immediately. - Page 17 CLEANING THE DRAIN PUMP FILTER (NOT APPLICABLE FOR MODEL GGSTLW55B) WARNING! • Be careful of the hot water! • Allow detergent solution to cool down. • Drain pump filter can filter the yarns and small foreign matters from the washing. •...
-
Page 18: Troubleshooting
Troubleshooting OPERATION IN CASE OF EMERGENCY In the event of an emergency you should: • Switch off all controls. • Switch the washing machine off at the power point or at the fuse box. • Call the Residentia Support Team on 1300 11 HELP (4357). Some minor faults can be fixed by referring to the instructions given in the Troubleshooting section below. - Page 19 When the washing machine experiences a fault, please contact the Residentia Group support team on: Telephone: 1300 11 HELP (4357). WARNING! Never dismantle the washing machine. ERROR MESSAGES AND SOLUTIONS INDICATION REASON SOLUTION "E1" displays Alarm for Check the water tap is opened abnormal water intake.
-
Page 20: Technical Specifications
Technical Specifications Below outlines the technical specifications for your Sôlt Washing Machine. GGSTLW55B GGSTLW70B GGSTLW80B GGSTLW100B 515w � 525d � 910h 550w � 565d � 935h 580w � 596d � 968h 601w � 630d � 1000h Size (mm) (mm) (mm) -
Page 21: Purchase Details
Purchase Details For future reference, please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. STORE DETAILS STORE NAME ADDRESS TELEPHONE PURCHASE DATE PRODUCT DETAILS MODEL NO. -
Page 22: Warranty Information
Warranty Information WARRANTY TERMS & CONDITIONS IN THIS WARRANTY LAUNDRY APPLIANCES (WASHING MACHINES) ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in the This document sets out the terms and conditions of the ACL;... - Page 23 You will bear the cost of transportation, travel and For Appliances and services provided by Residentia delivery of the Appliance to and from Residentia Group in Australia, the Appliances come with a Group or its ASR. If you reside outside of the service guarantee by Residentia Group that cannot be area, you will bear the cost of: excluded under the Australian Consumer Law.
- Page 24 An initiative by Residentia Group T. 1300 11 4357 E. support@residentiagroup.com.au www.solt.house...
