Denon DP-DJ101 Operating Instructions Manual

Direct drive manual turntable system
Hide thumbs

Advertisement

Quick Links

Download this manual

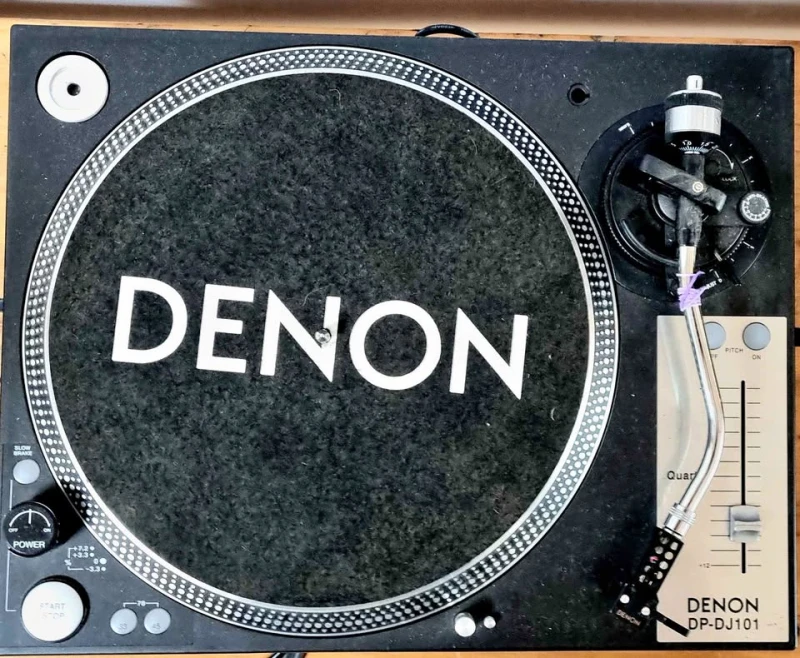

DIRECT DRIVE MANUAL TURNTABLE SYSTEM
DP-DJ101
OPERATING INSTRUCTIONS
BEDIENUNGSANLEITUNG
MODE D'EMPLOI
INSTRUCCIONES DE OPERACION
SLOW
BRAKE
OFF
ON
POWER
START
78
/STOP
33
45
"SERIAL NO.
PLEASE RECORD UNIT SERIAL NUMBER ATTACHED TO THE REAR OF THE
CABINET FOR FUTURE REFERENCE"
FOR EUROPEAN MODELS ONLY
• DECLARATION OF CONFORMITY
• ÜBEREINSTIMMUNGSERKLÄRUNG
• DECLARATION DE CONFORMITE
-12
Quartz
0
+12
• DECLARACIÓN DE CONFORMIDAD
FOR ENGLISH READERS
FÜR DEUTSCHE LESER
POUR LES LECTEURS FRANCAIS
PARA LECTORES DE ESPAÑOL
We declare under our sole responsibility that this product, to which
this declaration relates, is in conformity with the following standards:
EN60065, EN55013, EN55020, EN61000-3-2 and EN61000-3-3.
Following the provisions of 73/23/EEC, 89/336/EEC and 93/68/EEC
Directive.
Wir erklären unter unserer Verantwortung, daß dieses Produkt, auf
das sich diese Erklärung bezieht, den folgenden Standards entspricht:
EN60065, EN55013, EN55020, EN61000-3-2 und EN61000-3-3.
Entspricht den Verordnungen der Direktive 73/23/EEC, 89/336/EEC
und 93/68/EEC.
Nous déclarons sous notre seule responsabilité que l'appareil, auquel
se réfère cette déclaration, est conforme aux standards suivants:
EN60065, EN55013, EN55020, EN61000-3-2 et EN61000-3-3.
D'après les dispositions de la Directive 73/23/EEC, 89/336/EEC et
93/68/EEC.
Declaramos bajo nuestra exclusiva responsabilidad que este producto
al que hace referencia esta declaración, está conforme con los
siguientes estándares:
EN60065, EN55013, EN55020, EN61000-3-2 y EN61000-3-3.
Siguiendo las provisiones de las Directivas 73/23/EEC, 89/336/EEC y
93/68/EEC.
PAGE
05 ~ PAGE
09
SEITE
11 ~ SEITE
15
PAGE
17 ~ PAGE
21
PAGINA
23 ~ PAGINA
27
1
