Summary of Contents for VIGO VG08003

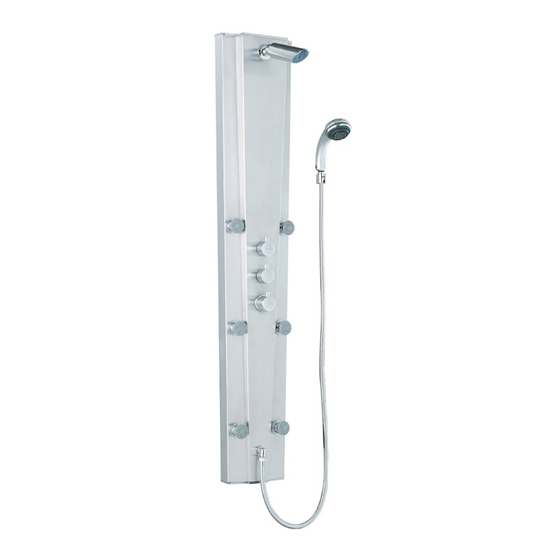

- Page 1 MODEL VG08003 CONTENT PACKING LIST / TOOLS NEEDED PANEL DIMENSIONS FITTINGS / TECHNICAL DATA WALL/CORNER INSTALLATION CARE AND TROUBLE SHOOTING WARRANTY...
-
Page 2: Packing List
88074 84005 84001 88092 NOTE: INSTALLATION MUST BE DONE BY A QUALIFIED, LICENSED PLUMBER. FREE FROM ACETIC ACID SILICONE PRESSURE GAUGE TO ASSURE PROPER PRESSURE ( MAX 60 PSI) RECOMMENDED - SHUT OFF VALVES FOR HOT AND COLD MODEL VG08003... -
Page 3: Panel Dimensions
8" 6 3/4" 6 3/4" NOTE: Dimension may vary up to 1/4". It is highly recommended to pull all dimensions off actual model for installation and measuring purposes. MODEL VG08003 THE MEASUREMENTS IN INCHES ARE ROUNDED TO THE NEAREST 1/8"... -
Page 4: Fittings/Technical Data
WATER JET TOP VIEW TECHNICAL DATA WATER JETS TURN 30 ALL DIRECTIONS MIN.FLOW PRESSURE 30 PSI FROM WATER JET CENTER MAX OPERATING PRESSURE 60 PSI SIDE VIEW POINT OVERALL WATER PRESSURE IS 2.5 GALLONS PER MINUTE AT 60 PSI MODEL VG08003... - Page 5 88006 88074 MODEL VG08003...
- Page 6 Please disconnect the hoses, reattach them to the correct supplies and test the unit before calling the Vigo Technical Service center. MODEL VG08003...
- Page 7 88074 88007A 88006 88074 Place the larger of the two corner brackets on the top portion of the wall and the smaller of the two brackets near the bottom of the wall.. 88007B 88007B MODEL VG08003...
- Page 8 88024 PANEL 84005 84000 88008 84004 84001 84044 MODEL VG08003...
-
Page 9: Troubleshooting
*** Vigo is not responsible for pressure related issues stemming from the home's water supply. The customer should read, understand and/or ask a certified plumber prior to installation. If these steps are not taken the product may not work at optimum efficiency. - Page 10 VIGO warrants the mechanical components of the Product to be free from defects in workmanship and materials under normal use and service for a period of two (2) years from the initial date of purchase by the owner or end-user, contractor, or builder, from VIGO or an authorized VIGO dealer.
