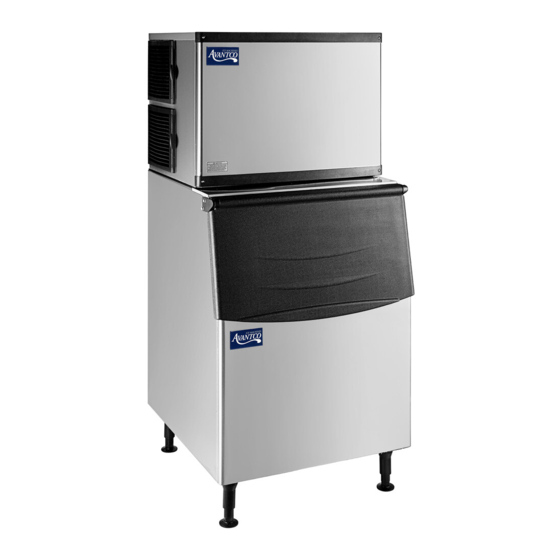

User Manual
Modular Ice Machine User's Manual
194MCF322A, 194MCH322A, 194MCF422A, 194MCH422A, 194MCF530A,
194MCH530A, 194KMCF322BA, 194KMCH322BA, 194KMCF422BA, 194KMCH422BA,
194KMCF530BA, 194KMCH530BA, 194BIN23022, 194BIN27530, 194KMCF322LA,
194KMCH322LA, 194KMCF422LA, 194KMCH422LA, 194KMCF530LA,
194KMCH530LA, 194BIN40022, 194BIN54030, 194KMCF322HA, 194KMCH322HA,
194KMCF422HA, 194KMCH422HA, 194KMCF530HA, 194KMCH530HA,
194HBN12022, 194HBN18030
Please read the manual thoroughly prior to equipment set-up,
operation and maintenance.
User Manual
- 1 -
10/2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 194KMCH530BA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Avantco 194KMCH530BA

  • Page 1 User Manual User Manual Modular Ice Machine User’s Manual 194MCF322A, 194MCH322A, 194MCF422A, 194MCH422A, 194MCF530A, 194MCH530A, 194KMCF322BA, 194KMCH322BA, 194KMCF422BA, 194KMCH422BA, 194KMCF530BA, 194KMCH530BA, 194BIN23022, 194BIN27530, 194KMCF322LA, 194KMCH322LA, 194KMCF422LA, 194KMCH422LA, 194KMCF530LA, 194KMCH530LA, 194BIN40022, 194BIN54030, 194KMCF322HA, 194KMCH322HA, 194KMCF422HA, 194KMCH422HA, 194KMCF530HA, 194KMCH530HA, 194HBN12022, 194HBN18030 10/2021 Please read the manual thoroughly prior to equipment set-up, operation and maintenance.
  • Page 2: Table Of Contents

    User Manual Table of Contents 1. Modular Ice Machine and Bin User's Manual a. Warning and Safety................3 b. Installation....................4 c. Startup and Operation................7 d. Maintenance..................12 e. Clean Function..................13 f. Manual Cleaning & Sanitizing..............14 g. Service Call..................17 h. Troubleshooting...................18 2. Hotel Ice Dispenser User's Manual a.
  • Page 3: Warning And Safety

    User Manual User Manual Warning and Safety DANGER – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. TO BE REPAIRED ONLY BY TRAINED SERVICE PERSONNEL. DO NOT PUNCTURE REFRIGERANT TUBING. PELIGRO - RIESGO DE INCENDIO O EXPLOSION. REFRIGERANTE INFLAMABLE UTILIZADO. PARA SER REPARADO SOLAMENTE POR PERSONAL DE SERVICIO CALIFICADO.
  • Page 4 User Manual User Manual This product cannot be used in outdoor envrionments. Not intended for use by children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge. • The installation, repair or maintenance of this ice machine must be carried out by professional and qualified personnel.
  • Page 5 The water filters below are approved for use with Avantco Ice Machines. Failure to use and maintain an appropriate water filter will void warranty coverage on your Avantco Ice Machine. For installation instructions, refer to the C Pure water filtration manual or contact a C Pure water filtration dealer.
  • Page 6 User Manual Modular & Bin Avantco Ice warrants to the origin Item Number Ice Shape Ice Production Recommended Water Replacement Cartridge Per 24 Hrs. Filtration System 194KMCF322BA Full Dice 350 lbs. 790OCLOKITM 790OCLOCARTM 194KMCH322BA Half Dice 350 lbs. 790OCLOKITM 790OCLOCARTM...
  • Page 7: Installation

    User Manual User Manual Installation The ice machine should be installed in a proper location meeting the following conditions: urchaser of new equipment, that covered models of equipment will be free of defects • • Power supply: the rated voltage indicated on the machine nameplate ±6%; •...
  • Page 8 User Manual User Manual Installation Steps 1. Check to see if the ice machine is in good condition and the accessories are all present; check the machine model and the machine nameplate. 2. Clean the ice storage bin and the food area inside with a sponge soaked in warm water and soap.
  • Page 9: Startup And Operation

    User Manual User Manual Startup and Operation 1. Before you start up the machine, please check and confirm: • That the packaging tape inside the ice machine has been removed; • The accessories or items in the ice bin have been taken out; •...
  • Page 10 User Manual User Manual Operation Instructions • Startup: after proper installation, connect the water source and turn on the power supply to turn on the machine. Please confirm that the machine is operating normally when you turn it on for the first time. •...
  • Page 11 User Manual User Manual Control Panel 1. LED Display: • Self-check: Display “ini” code. • Preparing: Counts (in seconds) forwards. • Ice making: Counts (in seconds) forwards prior to the water reaching 32 degrees F. Counts seconds backwards to 0 seconds afterwards. •...
  • Page 12 User Manual User Manual 4. Cleaning: During the normal operation, hold the cleaning button for 3 seconds to enter the cleaning process. During the entire cleaning process, cleaning agents and disinfectants need to be put into the water trough. When the cleaning process is finished, the ice maker will go to the ice making process.
  • Page 13 Noble Chemical offers a full line of products to clean and sanitize your commercial ice machine. These chemicals are approved for use with Avantco Ice Machines. Failure to regularly clean and sanitize your Avantco Ice Machine will void warranty coverage. For information and instructions, contact a Noble Chemical dealer.
  • Page 14: Maintenance

    User Manual User Manual Maintenance NOTE: Maintenance must be done by a qualified technician. WARNING: Before maintenance or manual cleaning, be sure to shut off the water source and power supply. Exterior Cleaning • Frequently clean the environment around the ice machine to keep it clean. Do not block the vents.
  • Page 15: Clean Function

    User Manual User Manual Clean Function NOTE: Please empty the bin of ice in advance. NOTE: Please clean and sanitize the bin and do a complete rinsing. NOTE: Please clean and sanitize the ice sliding board, water distribution line, water supply line, water pump, then do a complete rinsing. •...
  • Page 16 User Manual User Manual 4. Make sure the power 5. Remove the 2 screws 6. Remove the 2 screws supply is cut off. Remove which are securing the which are securing the the water curtain. spray pipe and remove it. water pump.
  • Page 17 User Manual User Manual 12. After soaking, scrub the spray pipe, water curtain and pump base bracket with cleaning solution, and rinse with clean water. 13. Spray the cleaning solution into the evaporator and wipe clean. Repeatedly wipe the water tank, ice plate and its plastic parts, side plates, ice buckets and other sanitary areas with cleaning solution.
  • Page 18: Service Call

    User Manual User Manual 2. Spray the spray pipe, water curtain and pump base bracket with the sanitizer solution. If using a no-rinse sanitizer, there is no need to rinse. 3. Spray the sanitizer solution into the ice evaporator with a spray bottle. Spray the water tank, ice plate and its plastic parts, side plates, ice bin and other sanitary areas with sanitizer solution.
  • Page 19: Troubleshooting

    User Manual User Manual 3. Check nameplate and serial number • Check the nameplate located on the side or back of the ice machine and record the model and series number of the ice machine. Note: If the machine fails due to the user’s faults, such as failure to use and maintain a water filter, no supply of water, electricity or environmental factors, rather than the fault of the ice maker, the door-to-door service will be charged.
  • Page 20 Ice thickness is Check and correct ice ice cubes too thin or incomplete too thin thickness setting Avantco Ice warrants to the origin Water pressure is Check that the water supply too low pressure is 1.3 bar to 5.5 bar...
  • Page 21: Hotel Ice Dispenser User's Manual

    User Manual urchaser of new equipment, that covered models of equipment will be free of defects Hotel Ice Dispenser User's Manual Models: 194HBN12022, 194HBN18030 - 21 -...
  • Page 22 User Manual General Information The 194HBN12022 22"W and is designed to use an Avantco Ice 194MC35022HA/FA or 194MC42022HA/FA cube ice machine as the source for ice production. The 194HBN18030 is 30"W and designed to use an Avantco Ice 194MC50030HA/FA cube ice machine as the source for ice production.
  • Page 23 Check the nameplate, located on the back of the cabinet for specific information. Avantco Ice Machines assumes no liability or responsibility of any kind for products manufactured by Avantco Ice Machines that have been altered in any way, including the use of any parts and/or other components not specifically approved by Avantco Ice Machines.
  • Page 24 User Manual 194HBN18030 24.1 1" Dimensioned 451.1 17 3/4" Illustration POWER CORD WATER INLET 3/8 FLARE (WATER FILLER ONLY) 444.4 179.1 17 1/2" 7" 3/4 FPT DRAIN 189.4 189.7 7 1/2" 7 1/2" BACK 609.6 762.4 24" 30" HEAD HEAD 711.2 28"...
  • Page 25 User Manual 194HBN12022 24.1 406.4 1" Dimensioned 16" Illustration POWER CORD 179.1 7" 3/4 FPT DRAIN 88.9 3 1/2" BACK 558.8 609.6 22" 24" HEAD HEAD 711.200 28" Note: Ice l station depth is curved to match large ice buckets. Listed number is the maximum depth.
  • Page 26 User Manual Product Description All models consist of a plastic lined, insulated hopper mounted to a metal base. The hopper contains a 15 blade plastic dispense wheel and a stainless steel sweep arm. The top front of the hopper has a removable door to facilitate maintenance and cleaning of the hopper without removal of the ice machine.
  • Page 27: Unpacking

    User Manual Unpacking After removing the carton, check for the Front Panel Removal loose-shipped parts packed in the storage bin. The The front panel rests on the base and is located parts will include a carton with four legs. Remove with pins that stick up from the base.
  • Page 28: Installation

    User Manual Installation-Plumbing Drain: All models of the dispenser have a 3/4" FPT drain g at the bottom of the back panel. Connect 3/4" rigid tubing to this connection, a vent is recommended for most installations. Route the drain tubing to the building drain. Note: Drain g material is plastic.
  • Page 29 User Manual Installation-Electrical and Ice Machine Assembly The dispenser is supplied with a power cord. Do If using a compatible Oceanloch lter not use with an extension cord. The unit must be system, use the included M4 bolts from plugged into a properly grounded outlet. 194BKTHBN Kit to attach lter system to the ice machine through the the brackets The dispenser must be installed so that it is a...
  • Page 30: Final Check List/Initial Startup

    User Manual Final Check List/Initial StartUp 1. Check that electrical power has been supplied. To Start: 2. Check that a drain, separate from the ice 1. Connect electrical power. The dispensing machine, insulated and made of rigid tubing, has system will cycle on for a few seconds. been connected to the dispenser.
  • Page 31: Use

    User Manual No ice is dispensed. Push the chute back to dispense ice - 31 -...
  • Page 32: General Care And Cleaning

    User Manual General Care and Cleaning Periodically inspect and clean the ice dispenser to 5. Lift up and remove the access door at the front keep it operating at peak performance. of the bin Wash the outside of the dispenser with warm water 6.
  • Page 33 User Manual General Care And Cleaning-Continued 10. Rinse all areas washed with clean, fresh water. 11. Using the ice machine cleaning solution, clean the ice grill, sink, sweep arm and dispense wheel. Rinse these parts with clean, fresh water. 12. To sanitize: Use a locally approved sanitizer. A possible sanitizer: Mix a solution o e machine sanitizer and water: 1 ounce of household bleach to 2 gallons of (95...
  • Page 34: Maintenance

    User Manual Maintenance Spilled ice and user debris will collect in the ice catch pan, located just below the sink grill. Occasionally the debris will need to be removed and the drain d out to prevent water back ups. Note: Failure to clean out the ice catch pan will likely result in a water leak, one that is NOT covered by warranty.
  • Page 35: Adjustments

    User Manual Adjustments The dispenser is preset at the factory. Adjustments are rarely needed. Agitation Time Recommendations: The standard time is 3 seconds on every 6 hours. Adjust to agitate more frequently if the unit is installed in a low temperature environment. However, if the ice being produced by the ice machine is cloudy and crumbles easily, adjust to agitate less frequently.
  • Page 36: Service Diagnosis

    User Manual Service Diagnosis No ice is dispensed No power to dispenser Check for proper power, is dispenser plugged in? Vend switch does not close Check vend switch Check chute for proper motion Chute cannot be pushed back Check door lock for proper operation Interlock switch open Check interlock switch, be sure top panel is in place...
  • Page 37 5 Year Compressor Warranty In addition to the above coverage, Avantco Ice warrants to all eligible customers that the original compressor part only will be free of defects in material and workmanship for a period of 5 years from the original date of delivery (4 years of additional coverage).
  • Page 38: Warranty

    1 Year Limited Warranty Avantco Ice warrants all applicable models to be free of defects in material and workmanship for a period of 1 year from the original date of delivery. Avantco Ice will provide a replacement for damaged components or provide a replacement ice bin at Avantco Ice’s discretion to satisfy warranty obligation.
  • Page 39 Equipment that has been altered, modified, or repaired by anyone other than an authorized service agency outside of preventative maintenance and cleaning. • Parts deemed by Avantco Ice to be normal wear and tear parts, including hoses and select plastic or rubber components. For Warranty Inquiries Please contact your authorized place of purchase.
