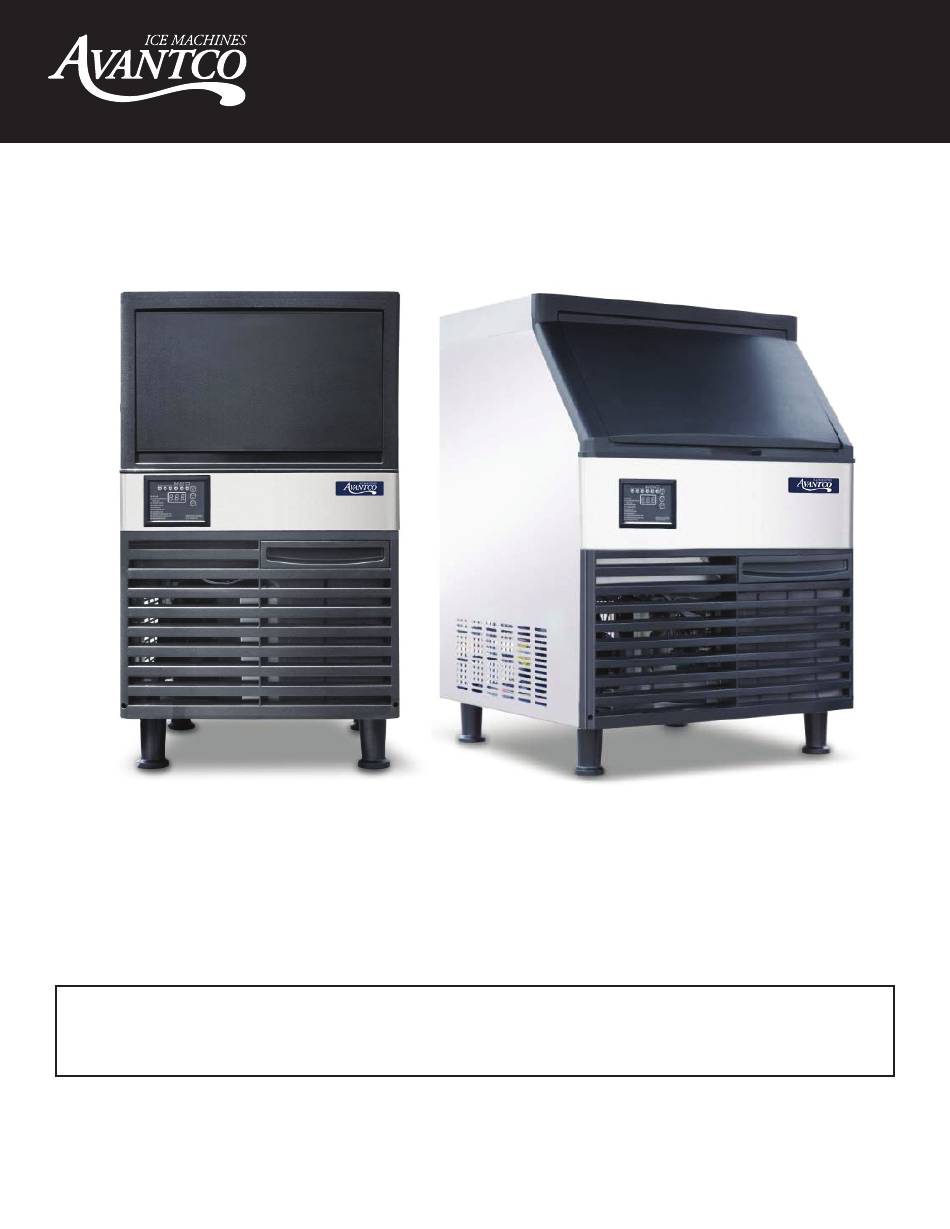

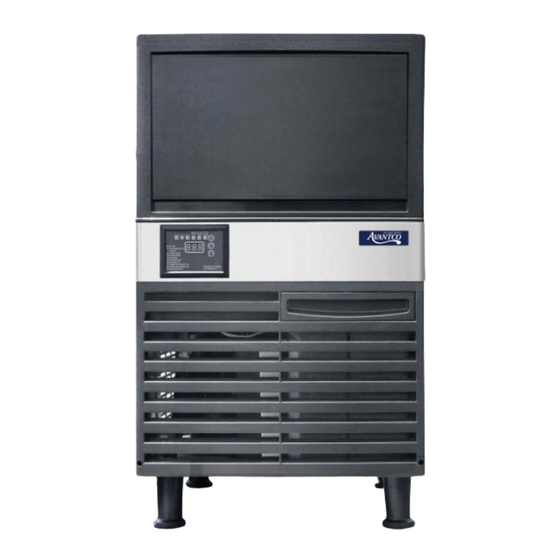

- Page 1 User Manual Undercounter Ice Machine User’s Manual 10/2021 194UCF120A, 194UCF160A, 194UCH160A, 194UCF210A, 194UCH210A, 194UCF280A, 194UCH280A Please read the manual thoroughly prior to equipment set-up, operation and maintenance. - 1 -...
-
Page 2: Warning And Safety
User Manual Warning and Safety DANGER – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. TO BE REPAIRED ONLY BY TRAINED SERVICE PERSONNEL. DO NOT PUNCTURE REFRIGERANT TUBING. PELIGRO - RIESGO DE INCENDIO O EXPLOSION. REFRIGERANTE INFLAMABLE UTILIZADO. PARA SER REPARADO SOLAMENTE POR PERSONAL DE SERVICIO CALIFICADO. NO PINCHAR LA TUBERÍA REFRIGERANTE. - Page 3 User Manual This product cannot be used in outdoor envrionments. Not intended for use by children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge. • The installation, repair or maintenance of this ice machine must be carried out by professional and qualified personnel.
- Page 4 The water filters below are approved for use with Avantco Ice Machines. Failure to use and maintain an appropriate water filter will void warranty coverage on your Avantco Ice Machine. For installation instructions, refer to the C Pure water filtration manual or contact a C Pure water filtration dealer.
-
Page 5: Installation
User Manual Installation The ice machine should be installed in a proper location meeting the following conditions: • • Power supply: the rated voltage indicated on the machine nameplate ±6%; • Water source: potable water, with water pressure from 18.75 psi to 80 psi; water temperature: 90°F;... -
Page 6: Installation Steps
User Manual Installation Steps 1. Check to see if the ice machine is in good condition and the accessories are all present; check the machine model and the machine nameplate. 2. Clean the ice storage bin and the food area inside with a sponge soaked in warm water and soap. -
Page 7: Start-Up And Operation
User Manual Startup and Operation 1. Before you start up the machine, please check and confirm: • That the packaging tape inside the ice machine has been removed; • The accessories or items in the ice bin have been taken out; •... - Page 8 User Manual Operation Instructions • Startup: after proper installation, connect the water source and turn on the power supply to turn on the machine. Please confirm that the machine is operating normally when you turn it on for the first time. •...
-
Page 9: Control Panel
User Manual Control Panel 1. LED Display: • Self-check: Display “ini” code. • Preparing: Counts (in seconds) forwards. • Ice making: Counts (in seconds) forwards prior to the water reaching 32 degrees F. Counts seconds backwards to 0 seconds afterwards. •... - Page 10 User Manual 4. Cleaning: During the normal operation, hold the cleaning button for 3 seconds to enter the cleaning process. During the entire cleaning process, cleaning agents and disinfectants need to be put into the water trough. When the cleaning process is finished, the ice maker will go to the ice making process.
- Page 11 Noble Chemical offers a full line of products to clean and sanitize your commercial ice machine. These chemicals are approved for use with Avantco Ice Machines. Failure to regularly clean and sanitize your Avantco Ice Machine will void warranty coverage. For information and instructions, contact a Noble Chemical dealer.
-
Page 12: Maintenance
User Manual Maintenance NOTE: Maintenance must be done by a qualified technician. WARNING: Before maintenance or manual cleaning, be sure to shut off the water source and power supply. Exterior Cleaning • Frequently clean the environment around the ice machine to keep it clean. Do not block the vents. -
Page 13: Clean Function
User Manual Clean Function NOTE: Please empty the bin of ice in advance. NOTE: Please clean and sanitize the bin and do a complete rinsing. NOTE: Please clean and sanitize the ice sliding board, water distribution line, water supply line, water pump, then do a complete rinsing. •... - Page 14 User Manual 4. Remove the pump and pull out the 5. Remove screws which are securing the spray pipe. upper pipe of the pump circulation. Remove the spray pipe and the upper pipe. 6. Disassemble fixed screws which are in the spray pipe. Dismantle the spray pipe. 7.
-
Page 15: Sanitizing Instructions
User Manual 9. Spray the cleaning solution into the evaporator and wipe clean. Repeatedly wipe the water tank, ice plate and its plastic parts, side plates, ice buckets and other sanitary areas with cleaning solution. Rinse all areas thoroughly with clean water. Sanitizing Instructions 1. -
Page 16: Service Call
User Manual 3. Spray the sanitizer solution into the ice evaporator with a spray bottle. Spray the water tank, ice plate and its plastic parts, side plates, ice bin and other sanitary areas with sanitizer solution. If using a no-rinse sanitizer, there is no need to rinse. 4. -
Page 17: Troubleshooting
User Manual Troubleshooting Fault Potential Cause Troubleshooting Not working Power switch not turned on Turn on the power switch Indicator is OFF Plug is loose Check plug and socket Shutdown every 3 minutes after The ambient temperature is Normal working temperature startup;... - Page 18 User Manual Poor transparency of ice cubes; Ice thickness is Check and correct ice ice cubes too thin or incomplete too thin thickness setting Water pressure is Check that the water supply too low pressure is 1.3 bar to 5.5 bar Water temperature is Normal working temperature too high...
- Page 19 1 Year Parts and Labor Warranty Avantco Ice warrants to the original purchaser of new equipment, that covered models of equipment will be free of defects in material and workmanship for a period of 1 year from the original date of delivery. Warranty coverage is valid only in the contiguous United States to commercial customers.
- Page 20 1 Year Limited Warranty Avantco Ice warrants all applicable models to be free of defects in material and workmanship for a period of 1 year from the original date of delivery. Avantco Ice will provide a replacement for damaged components or provide a replacement ice bin at Avantco Ice’s discretion to satisfy warranty obligation.
- Page 21 Equipment that has been altered, modified, or repaired by anyone other than an authorized service agency outside of preventative maintenance and cleaning. • Parts deemed by Avantco Ice to be normal wear and tear parts, including hoses and select plastic or rubber components. For Warranty Inquiries Please contact your authorized place of purchase.
