3. To remove H.V.transformer

(1) Remove four screws which secure
the H.V.transformer to the base plate.
(2) Remove the H.V.transformer.
(3) Reverse the above steps for reassembly.

4. To remove high voltage capacitor

(1) Remove a screw which secure the grounding ring
terminal of the H.V. diode and the capacitor holder.
(2) Remove the H.V. diode from the capacitor holder.
(3) Reverse the above steps for reassembly.

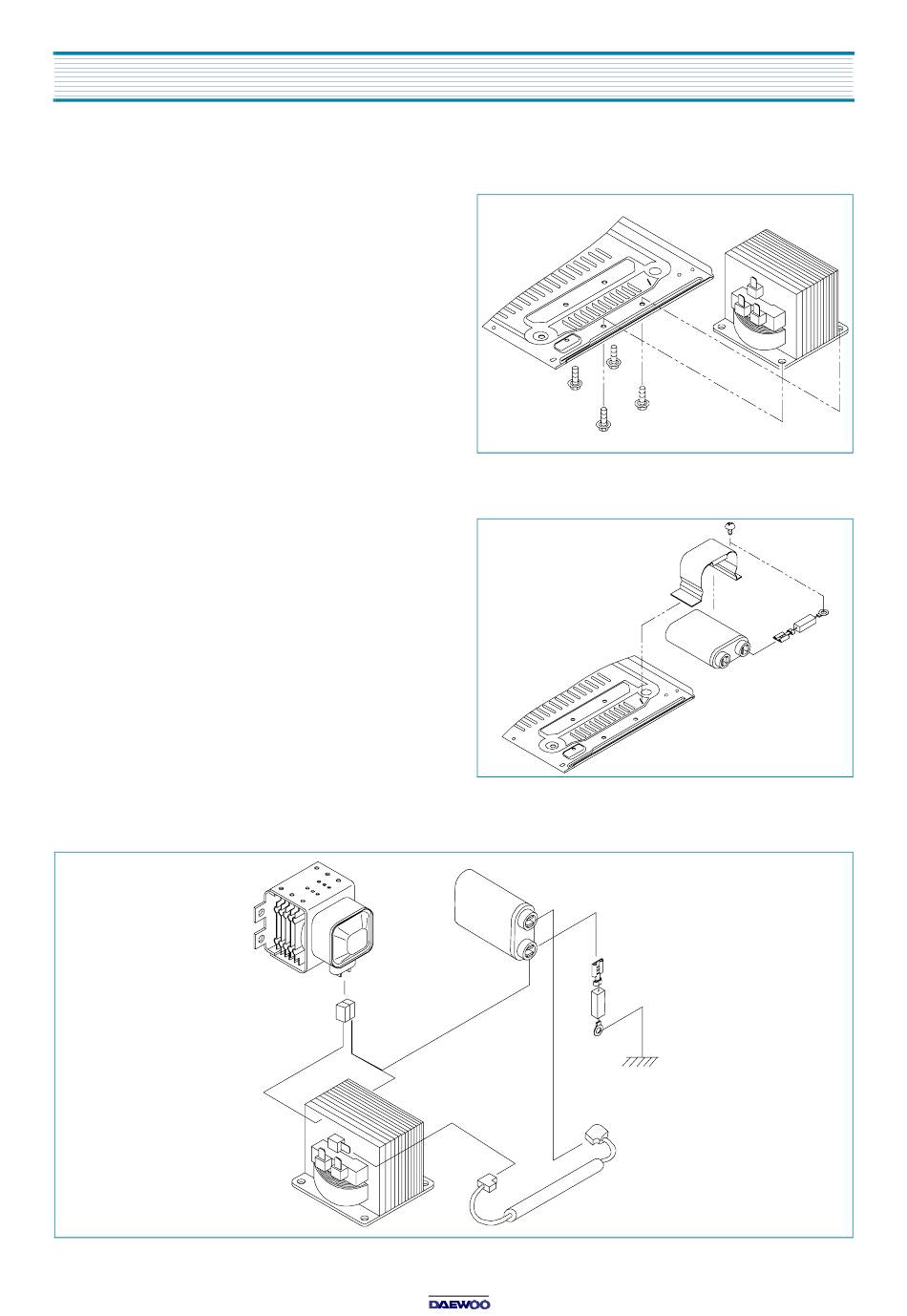

High voltage circuit wiring
DISASSEMBLY AND ASSEMBLY
