1. Introduction
FN-CC2541 is 2.4GHz Bluetooth low power system on chip (SoC), support 250kbps, 500kbps, 1Mbps and
2Mbps data rate, with connecting budget excellent, but the front end the application, receiving 1Mbps with a
sensitivity of -94dBm, mainly used in the 2.4GHz Bluetooth low energy system, personal 2.4GHz system,
man-machine interface such as a keyboard, mouse, and remote control etc., sports and leisure equipment,
mobile phone accessories and consumer electronics.
1.1 Overview

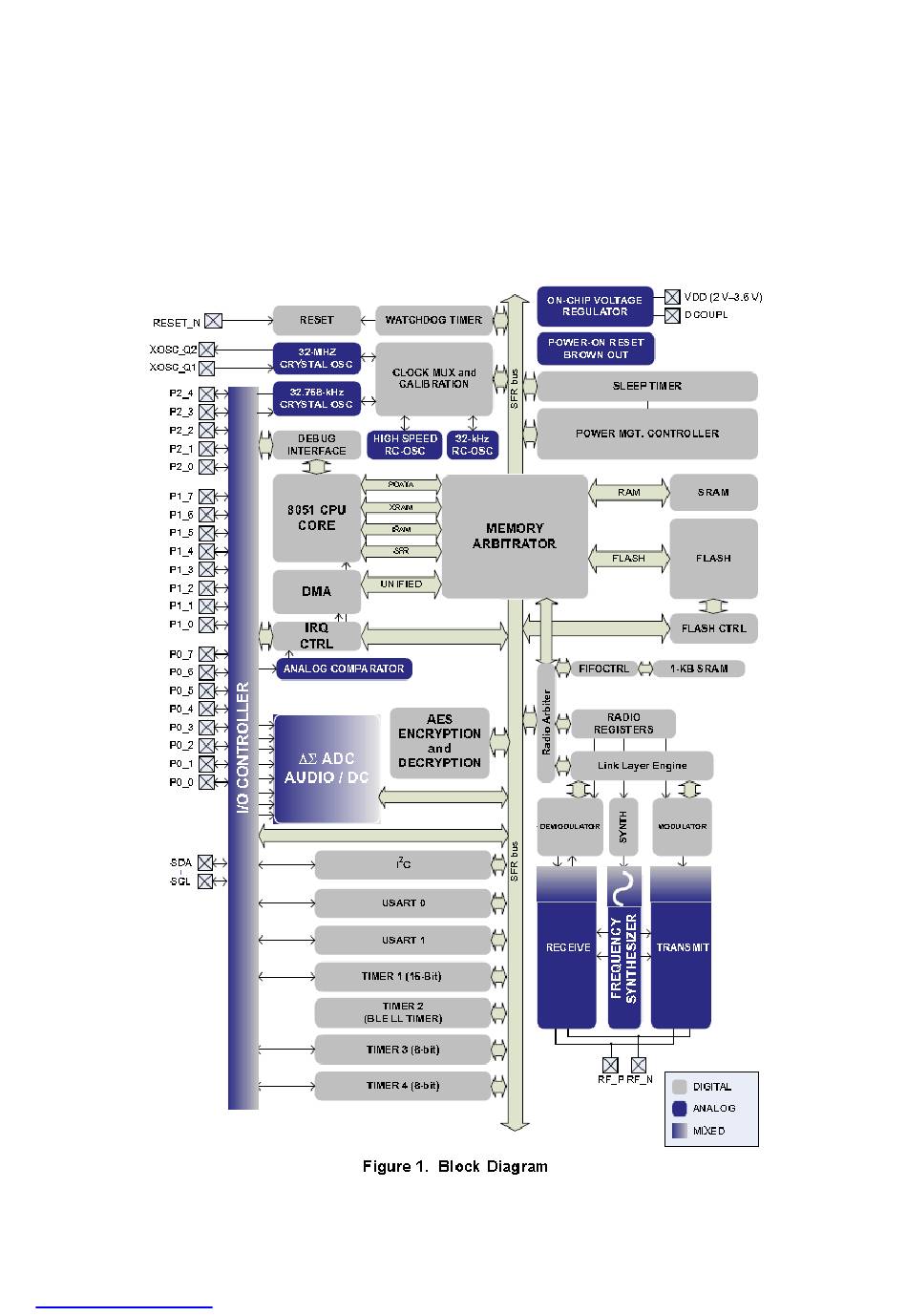

The block diagram for the module is shown in Figure 1. The modules can be roughly divided into one of
three categories: CPU-related modules; modules related to power, test, and clock distribution; and
radio-related modules.
