Installation Instructions

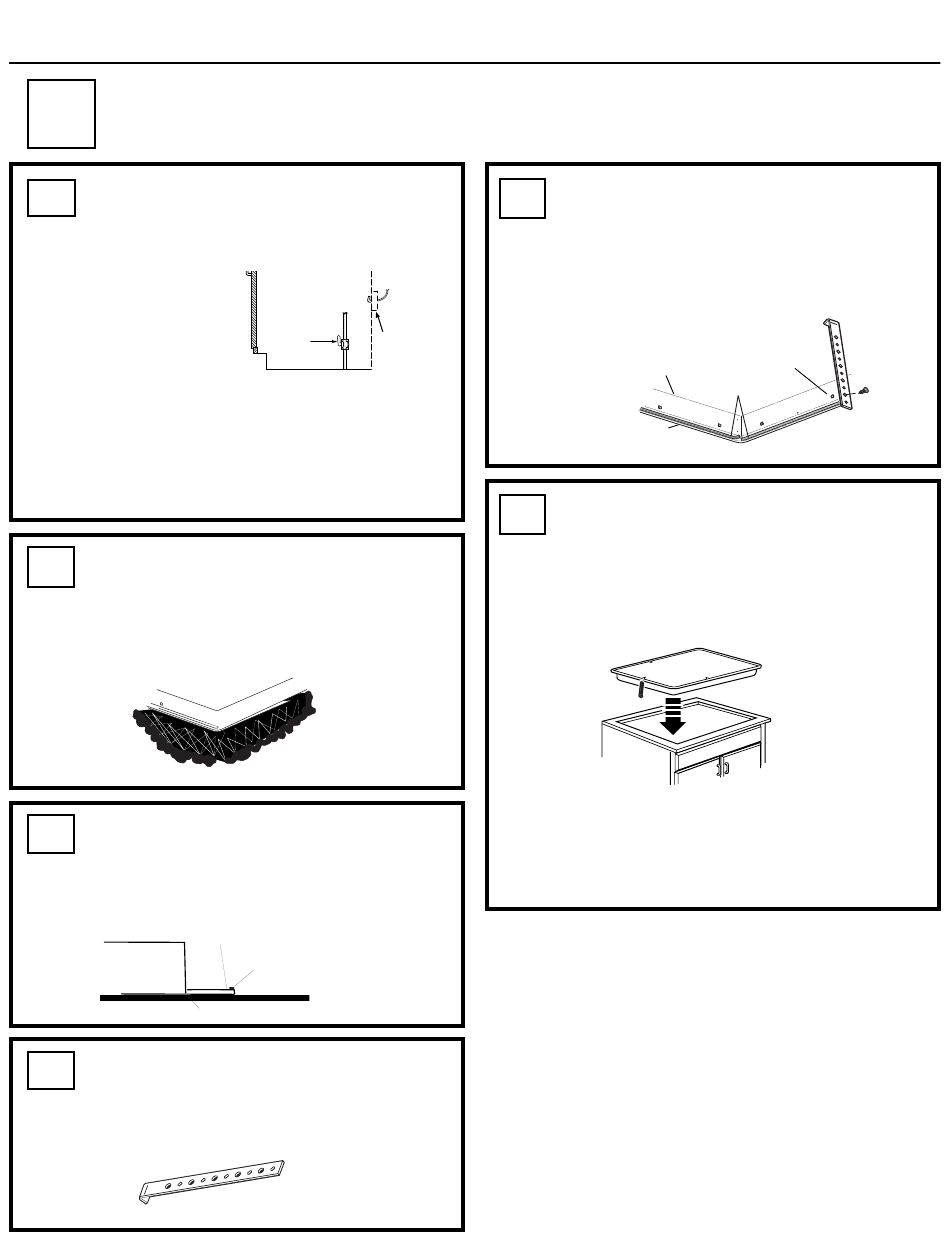

Installing the Cooktop unit
B
Locate the electrical outlet
B1
and the Gas Shut Off valve
beneath the cabinet.
NEVER REUSE
OLD CONNEC-
TORS
WHEN INSTALLING
THIS UNIT.
Install a manual shutoff valve in the gas line in an
easily accessible location outside the cooktop.
Be sure you know how and where to shut off the
gas supply to the cooktop. Install the electrical
outlet 12" below the countertop.
Protect the Surface of the
B2
Cooktop
Place a towel or table cloth onto the counter
top. Lay the cooktop upside down onto the
protected surface.
Bottom of cooktop
Cloth under Cooktop
Attach the Adhesive Strip
B3
( Glass Top Models Only)
Attach the adhesive strip around the maintop
glass as close to the edge as possible.
Outer edge
of glass bottom
Cooktop
Burner
Box
Countertop
Locate The Mounting Parts
B4
Remove the hold down brackets from the
literature package.
Shut Off
Electrical
Valve
Outlet
12" Below
Countertop
Adhesive Strips
to outer edge
of glass
Attach Brackets to Cooktop
B5
Remove the screw the bottom of the the
cooktop. Screw the hold down bracket to the
side of the cooktop unit. Repeat for opposite
side of cooktop.
Bottom of
Cooktop
Insert Cooktop Into Cutout
B6
Insert the cooktop centered into the cutout
opening. Make sure the front edge of the
countertop is parallel to the cooktop. Make
final check that all required clearances are
met.
Once the unit is in place, screw the hold
down bracket into the cabinet sides to
secure the unit into place.
5
Pre-drilled
hole
Cooktop
Foam Strips
Glass
COOKTOP
