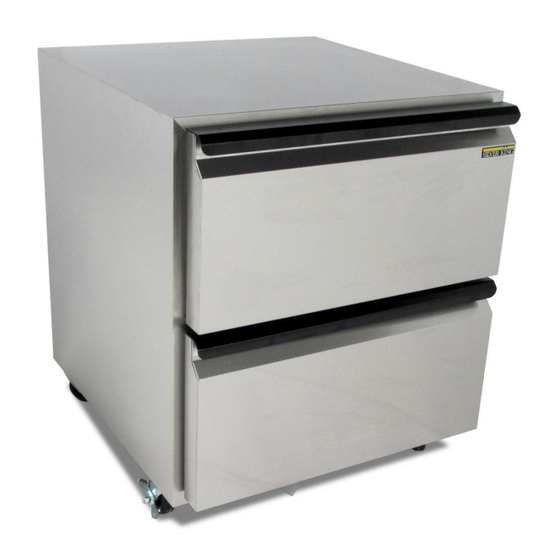

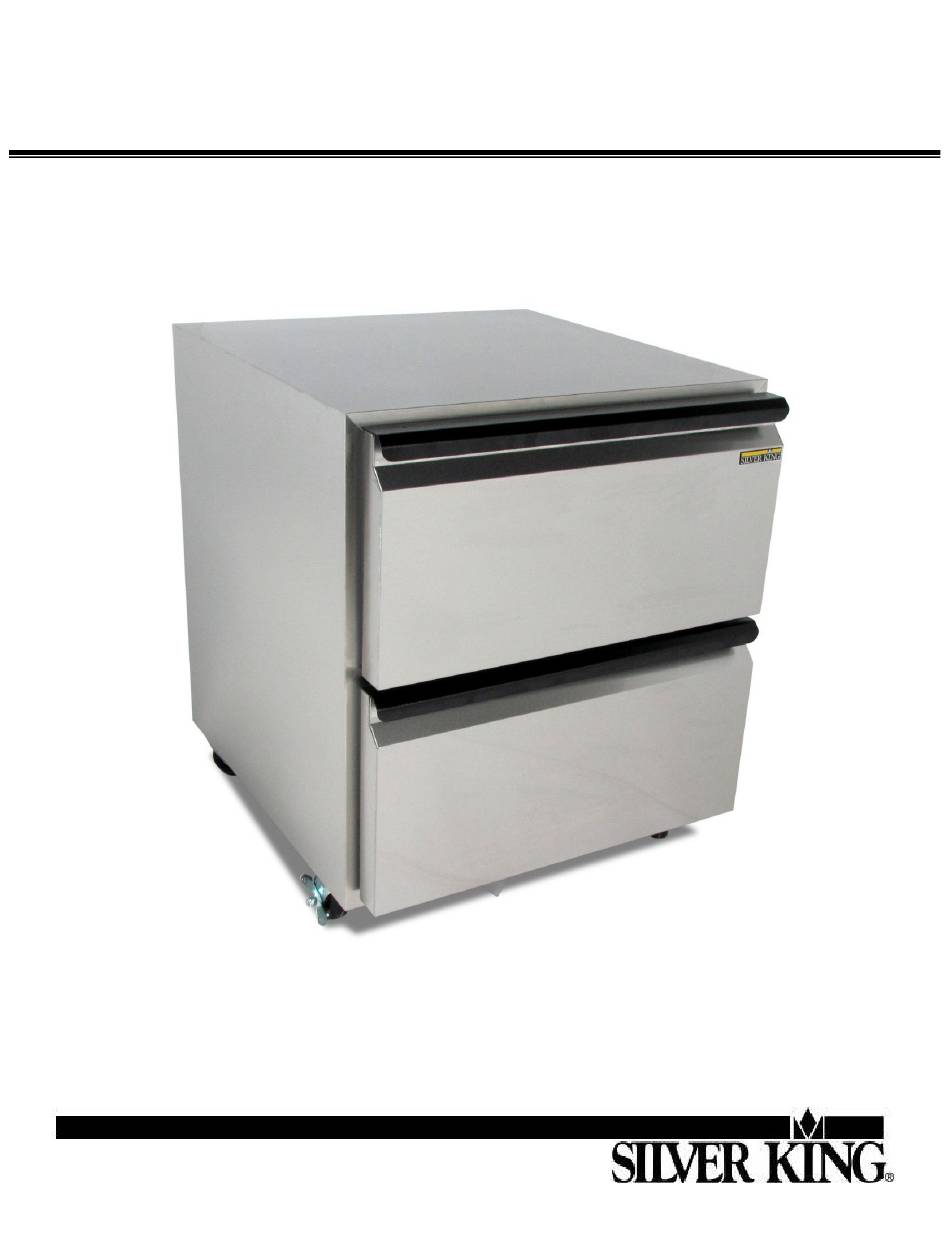

- Page 1 Technical Manual & Replacement Parts List Freezer MODEL: SKF27A-ED 115V 1600 Xenium Lane North, Minneapolis, MN 55441-3787 Phone (763) 923-2441 FORM NO. 45071 REV D 07/2021 Specifications Subject to Change Without Notice.
- Page 2 INSPECT FOR DAMAGE AND UNCRATE Upon delivery of your new Silver King unit, uncrate at once to examine and test for possible damage following the instructions printed on the exterior of the container. Report any damages to the carrier responsible for transportation and promptly present a claim for any evidence of mishandling.
-
Page 3: Installation
Your Silver King refrigerator is equipped with an eight (8) foot power cord. Any attempt to modify the plug will void the warranty, terminate the manufacturers responsibility, and could result in serious injury. - Page 4 Defrost: Your Silver King unit is an automatic defrost unit. No additional plumbing is required. Automatic defrosting is accomplished by a defrost heater and timer. Defrost water is collected in a pan located in the compressor compartment where it is evaporated into the room air.
- Page 7 REPLACEMENT PARTS LIST – SKF27A-ED 115V ITEM NO. PART DESCRIPTION PART NO. 39959 DRAWER ASSEMBLY COMPLETE 10310-76 DRAWER GASKET KIT SLIDES 15.75" (FOR ONE DRAWER) 10451-04 TEMPERATURE INDICATOR 22409 POWER CORD 115V 32199 DEFROST PROBE EVAPORATOR 38822 TEMPERATURE PROBE DEFROST HEATER EVAPORATOR...
- Page 9 Thermistor Field Testing Use the guide below to test if a thermistor (temperature probe) is functioning properly. See the replacement parts list for part number information. Table 2 is valid for all thermistors listed on table 1. • Establish Thermistor Temperature Table 2 ▪...
- Page 10 (6) months from the date of shipment from the factory of the equipment, that it will replace the drawer slides with one of similar design and capacity, exclusive of delivery and installation charges, if it is found in Silver King’s review to be inefficient or inoperative due to defects in material or factory workmanship.
- Page 11 WARRANTY period applicable to the Equipment has expired. This Equipment warranty is limited to repairing or replacing any parts that, at Silver King’s discretion, are deemed to be defective within the time period covered by this warranty. The three (3) year parts warranty covers standard freight and handling charges.
- Page 12 CONTRACT, WARRANTY, NEGLIGENCE, INDEMNIFICATION, STRICT LIABILITY, TORT, OR OTHERWISE, SHALL NOT EXCEED THE PURCHASE PRICE OF THE COMPONENT UPON WHICH LIABILITY IS BASED. SILVER KING SHALL HAVE NO OBLIGATION OR LIABILITY FOR CONSEQUENTIAL OR SPECIAL DAMAGES, INCLUDING BUT NOT LIMITED TO INDIRECT, PUNITIVE DAMAGES, LOSS OF USE, LOSS OF PRODUCT, DOWNTIME OR LOST PROFITS, ARISING OUT OR, RELATED TO OR CONNECTED IN ANY WAY WITH THE PRODUCT OR ITS USE.
