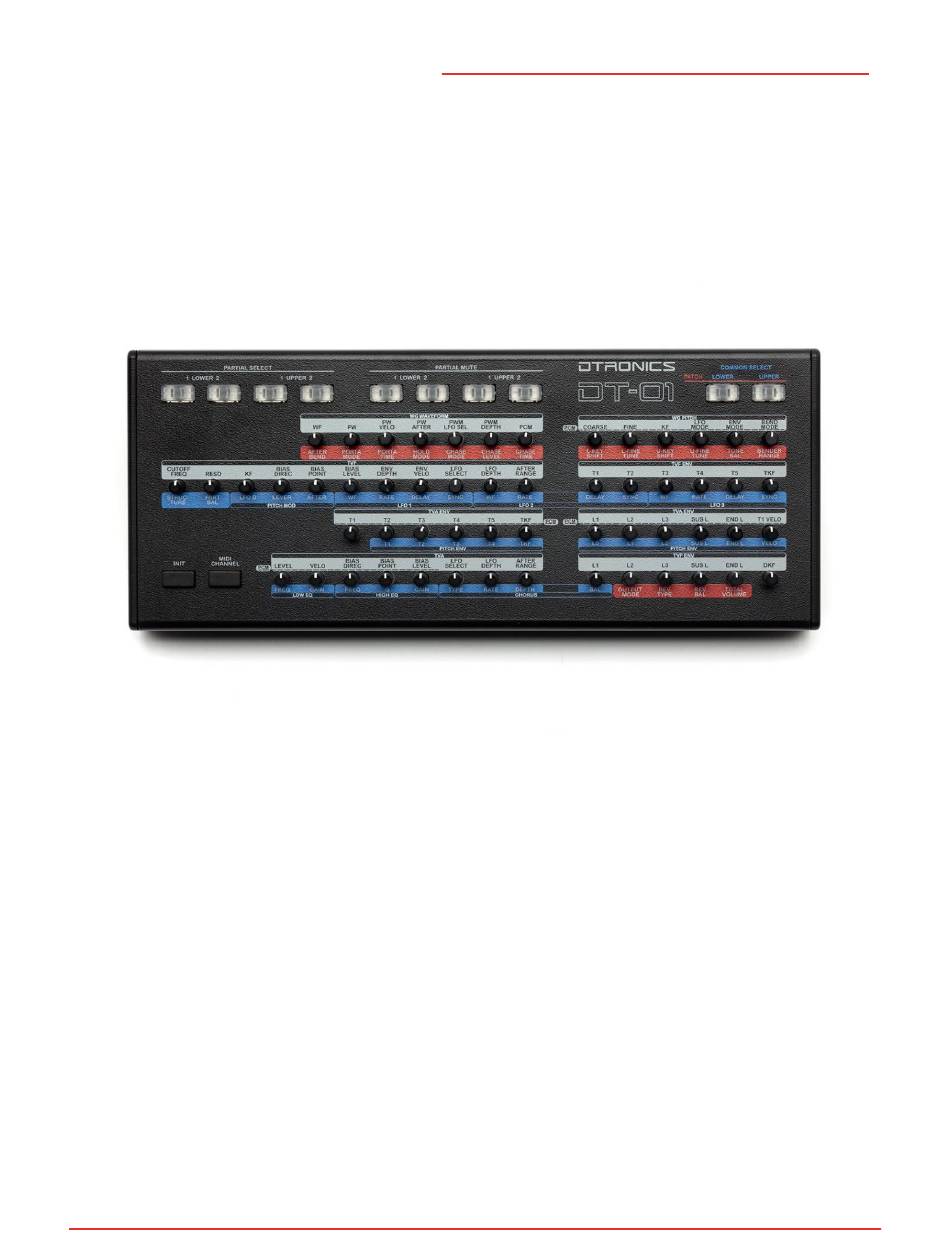

- Page 1 DTRONICS DT-01 Firmware update manual DT-01 MANUAL...
-
Page 2: Introduction
The DT-01 is equipped with bootloader functionality. This is a piece of software that can be used to update the software inside the DT-01. With this technology you are able to update your DT-01 to the latest firmware version. DT-01... -
Page 3: Table Of Contents
DTRONICS Index INTRODUCTION ................... 2 Document revisions ................4 Software revisions ................4 1 Firmware Update ................5 What do you need ................5 Current Firmware version DT-01 ............6 How does it work................7 DT-01 MANUAL... -
Page 4: Document Revisions
Document revisions Date Version Change 14-04-2019 Initial document 02-07-2019 Additions to “Updating steps” 02-08-2020 Removed checksum check 24-04-2022 Changed URL’s in document Software revisions Date Version Change 24-01-2019 Initial release 14-04-2019 Bug fixing 02-08-2020 Optimized software for performance DT-01 MANUAL... -
Page 5: Firmware Update
DTRONICS 1 Firmware Update What do you need • A midi program like MIDI OX to send the new firmware file to the DT-01 http://www.midiox.com/ • The DT-01 firmware file https://www.dtronics.nl/dt-01 DT-01 MANUAL... -
Page 6: Current Firmware Version Dt-01

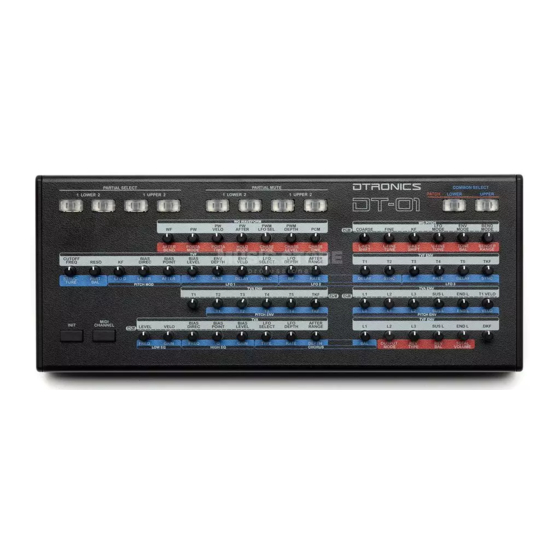

DTRONICS Current Firmware version DT-01 The firmware version of the DT-01 is shown while powering up the DT- 01. When the power is connected the firmware version is shown on LEDS from buttons 1-4 and 5-8 Figure 1: DT-01 front view... -
Page 7: How Does It Work
1 and6 will be lit. 0001 0100 = V1.4 How does it work. Updating the DT-01 is done by sending the new firmware file to the DT- 01 in System Exclusive format (or simply SysEx). Updating steps: - Download the latest firmware version from our website. - Page 8 DTRONICS - In the MIDI Devices menu check if the MIDI output device is right DT-01 MANUAL...
- Page 9 DTRONICS - Navigate to menu View -> SysEx - The SysEx menu will open. DT-01 MANUAL...
- Page 10 DTRONICS - Navigate to Sysex > Configure Set delay between buffers and delay after f7 to 100 make sure the box before "delay after F7" is checked. DT-01 MANUAL...
- Page 11 - Select the downloaded firmware file and press OK. Uploading the file will take a few minutes. - After completion, the dt01 will reset and start up and the LED’s will shown the new firmware version. Any questions please let us know. DT-01 MANUAL...
