Summary of Contents for DTronics DT-RDX

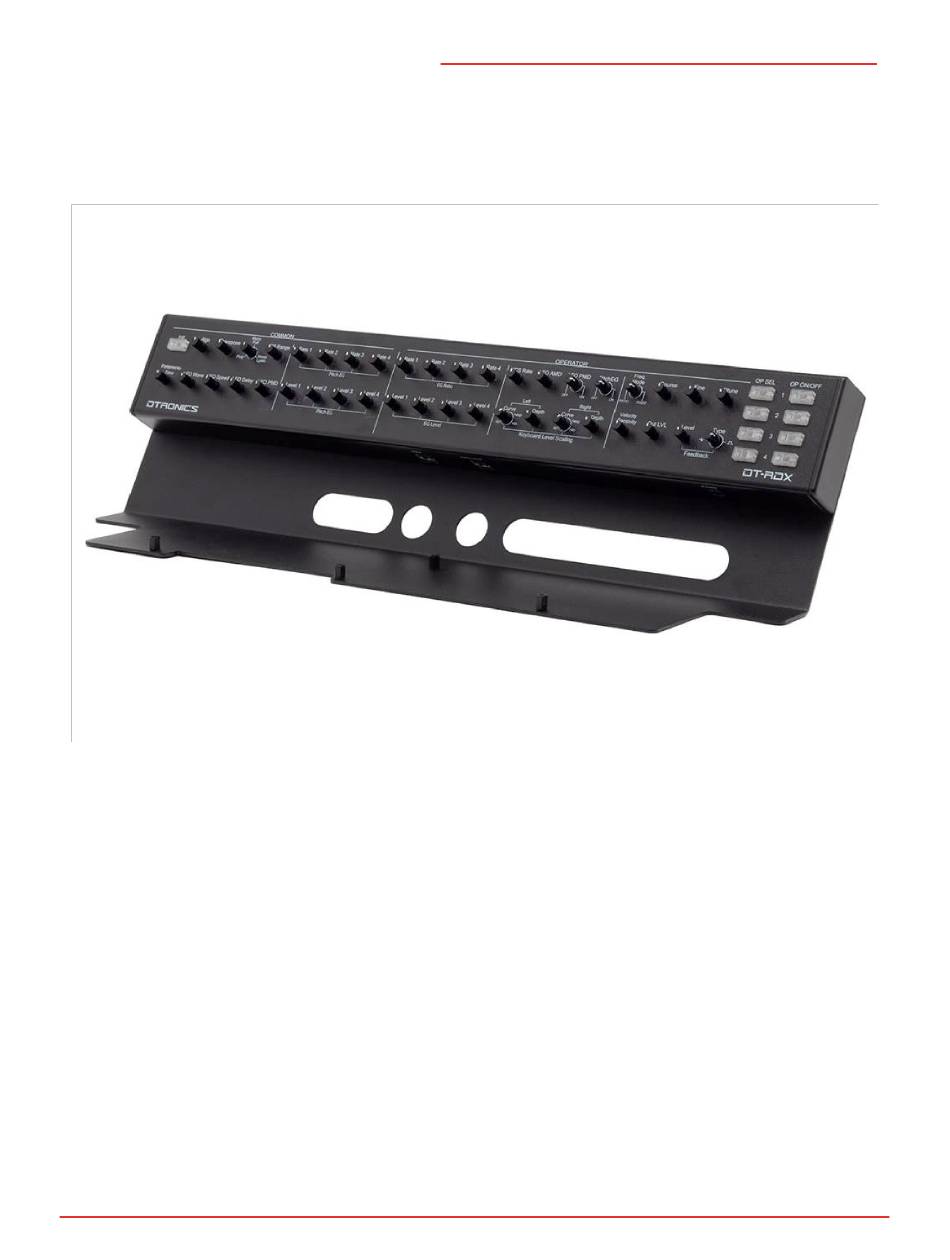

  • Page 1 DTRONICS DT-RDX Firmware update manual DT-RDX MANUAL...
  • Page 2: Introduction

    The DT-RDX is equipped with bootloader functionality. This is a piece of software that can be used to update the software inside the DT-RDX. With this technology you are able to update your DT-RDX to the latest firmware version. DT-RDX...
  • Page 3: Table Of Contents

    DTRONICS Index INTRODUCTION ................... 2 Document revisions ................4 Software revisions ................4 1 Firmware Update ................5 What do you need ................5 Current Firmware version DT-RDX ............6 How does it work................7 DT-RDX MANUAL...
  • Page 4: Document Revisions

    DTRONICS Document revisions Date Version Change 14-04-2019 Initial document Software revisions Date Version Change 14-04-2019 Initial release 02-08-2020 Optimized software for performance DT-RDX MANUAL...
  • Page 5: Firmware Update

    DTRONICS 1 Firmware Update What do you need • A midi program like MIDI OX to send the new firmware file to the DT-RDX http://www.midiox.com/ • The DT-RDX firmware file http://www.dtronics.nl/pages/dtrdx.html DT-RDX MANUAL...
  • Page 6: Current Firmware Version Dt-Rdx

    DTRONICS Current Firmware version DT-RDX The firmware version of the DT-RDX is shown while powering up the DT-RDX. The right 8 LEDS indicate the firmware version on power up. This image shows version 1.2 DT-RDX MANUAL...
  • Page 7: How Does It Work

    - Install a midi program that has SysEx support in this manual we are using MIDI-OX - Connect the MIDI IN from the DT-RDX with the MIDI OUT from the computer running the MIDI software - Do NOT connect the midi out of the programmer.
  • Page 8 DTRONICS - In the MIDI Devices menu check if the MIDI output device is right DT-RDX MANUAL...
  • Page 9 DTRONICS - Navigate to menu View -> SysEx - The SysEx menu will open. DT-RDX MANUAL...
  • Page 10 DTRONICS - Navigate to Sysex > Configure Set delay between buffers and delay after f7 to 100 make sure the box before "delay after F7" is checked. DT-RDX MANUAL...
  • Page 11 - Select the downloaded firmware file and press OK. Uploading the file will take a few minutes. - After completion, the DT-RDX will reset and start up and the LED’s will shown the new firmware version. Any questions please let us know.
